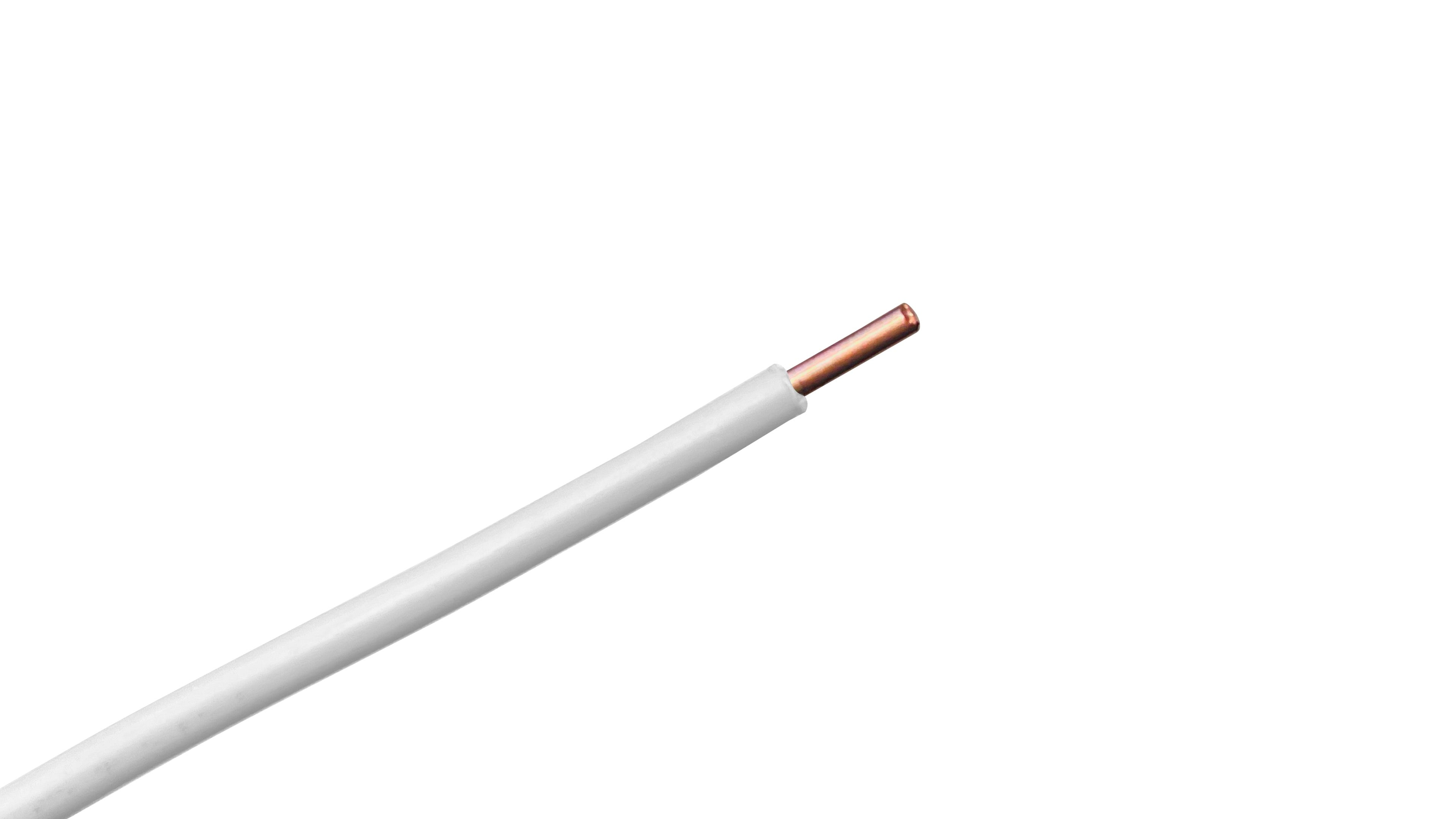

8 AWG Extra High-Strength Copper Clad Steel Tracer Wire PE-45

8 AWG Extra High Strength (EHS) Copper Clad Steel (CCS) PE-45 Tracer Wire is an ultra-heavy-duty, maximum-tensile underground locating utility line engineered for the most severe directional drilling, extreme micro-tunneling, and deep-depth municipal infrastructure installations. Combining the immense structural mechanics of a thick, high-carbon steel core with the electrical conductivity of a concentric copper skin, this industrial-grade tracer wire features a 45-mil, high-density high-molecular-weight polyethylene (HDPE / HMWPE) insulation layer specifically designated under the industry standard PE-45 rating.

This asset is optimized for maximum-distance horizontal directional drilling (HDD), river crossings, critical highway under-boring, and massive municipal infrastructure tracing. It provides an uninterrupted, highly localized electromagnetic path for utility line locating equipment to track non-metallic (PVC, HDPE, PE, fiberglass) underground water, natural gas, wastewater, and fiber optic pipelines without stretching or snapping under the highest mechanical installation forces.

TENSILE BREAK LOAD PERFORMANCE

Unlike standard soft-drawn or hard-drawn pure copper wire, which stretches, narrows, and snaps under the mechanical pulling force of heavy underground boring rigs, EHS Copper Clad Steel is mechanically rated for extreme structural pulling loads:

• Extra High Strength (EHS) Rating: 3,100 LBS minimum break load This represents the ultimate mechanical pulling threshold before physical structural failure occurs. This exceptional tensile capacity allows the heavy 8 AWG tracer wire to be bundled directly alongside large-diameter municipal transmission pipe pull-backs during complex under-boring passes without risking internal core breaks.

Key Features

• Maximum Extra High Strength (EHS) Carbon Steel Core: Engineered using a massive high-carbon steel center that provides multiple times the structural tensile strength of standard copper wires, effectively preventing line snapping caused by catastrophic soil shifting, root intrusion, or heavy industrial drilling rigs.

• Metallurgically Bonded Copper Clad Layer: A continuous, concentric bare copper skin is molecularly bonded to the steel core. Because high-frequency utility locating signals travel strictly along the outer surface of a conductor (The Skin Effect), the copper skin provides identical signal transmission performance to a solid copper wire while maintaining a steel backbone.

• Heavy-Duty 45-Mil PE-45 Insulation: Extruded with a thick 45-mil coating of high-density polyethylene. This specialized formulation provides exceptional resistance to sharp gravel scrapes, long-term water immersion, acid or alkaline soil chemistry, and voltage tracking failures.

• Optimal High-Frequency Traceability: Delivers excellent electrical conductivity at standard underground locating frequencies (such as 9.8 kHz, 33 kHz, and 83 kHz), ensuring long-range, crystal-clear signal paths for standard field receivers.

• Corrosion-Resistant Armor Skin: The non-degradable PE-45 jacket completely encapsulates the copper clad core, blocking moisture migration and preventing galvanic corrosion over the multi-decade lifespan of the buried pipe asset.

Common Applications

• Critical Horizontal Directional Drilling (HDD): Pulled simultaneously as a tracking helper with maximum-diameter municipal gas transmission lines, water mains, and heavy fiber conduits during critical directional under-boring operations.

• Severe Environment Open-Trench Excavation: Placed directly over non-metallic utility pipes inside standard rocky gravel backfill trenches to enable future top-side tracking.

• High-Density Municipal Infrastructure: Tracing deep-burial PVC water systems, automated wastewater mains, and high-capacity storm sewer tracks.

• Critical Hydrocarbon & Fiber Routes: Installed as a continuous locator line alongside high-density polyethylene (HDPE) natural gas distribution networks and telecommunication fiber optic rings.

Industry Standard APWA Color Code Guide

Tracer wire outer PE-45 insulation is color-coded to comply directly with the American Public Works Association (APWA) uniform color matrix for instant visual verification of the hidden asset below:

• Safety Precaution Blue: Designated strictly for Potable (Drinking) Water Systems.

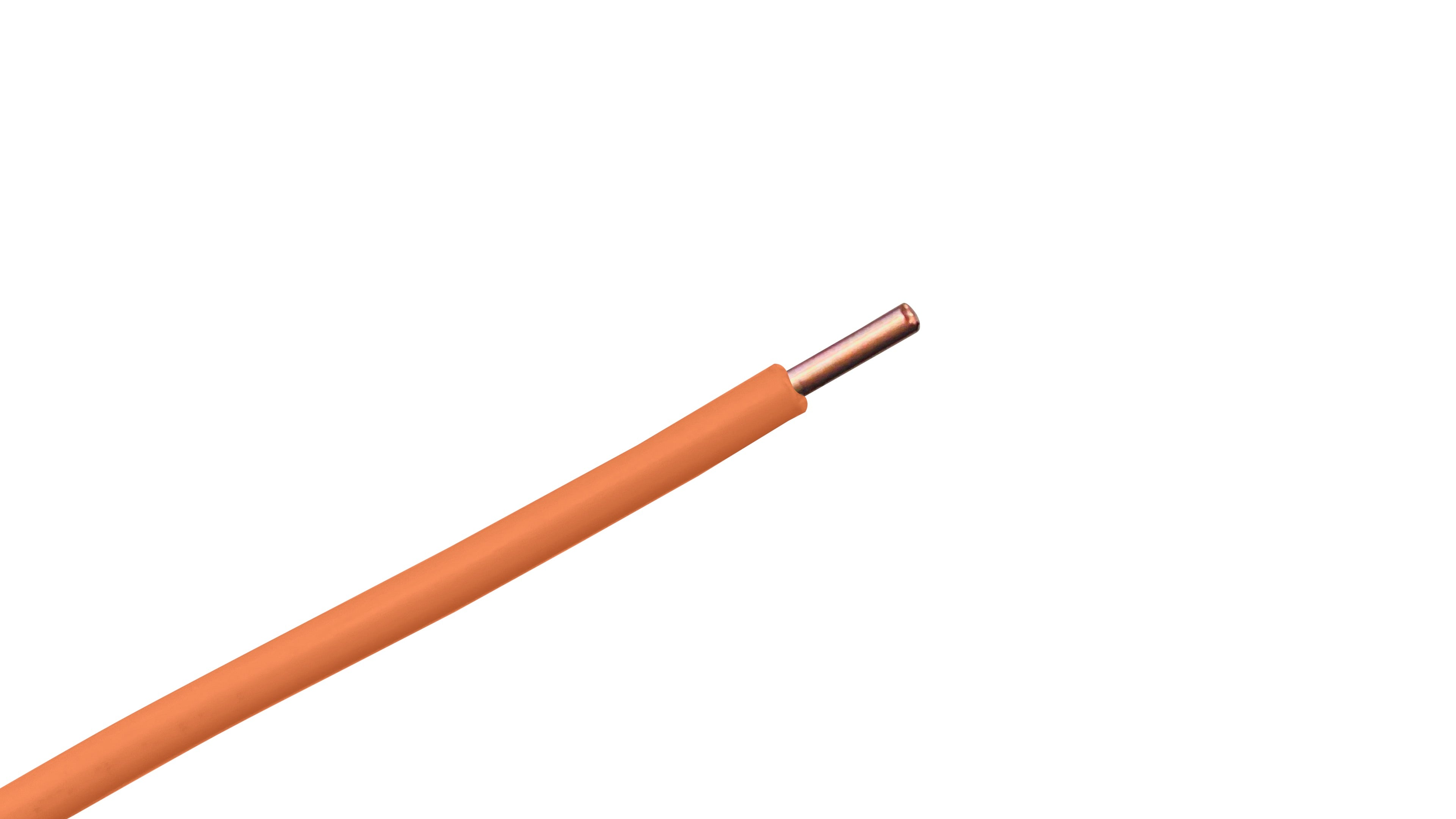

• Safety Alert Orange: Used for Telecommunications, Fiber Optic Networks, and Traffic Signal loops.

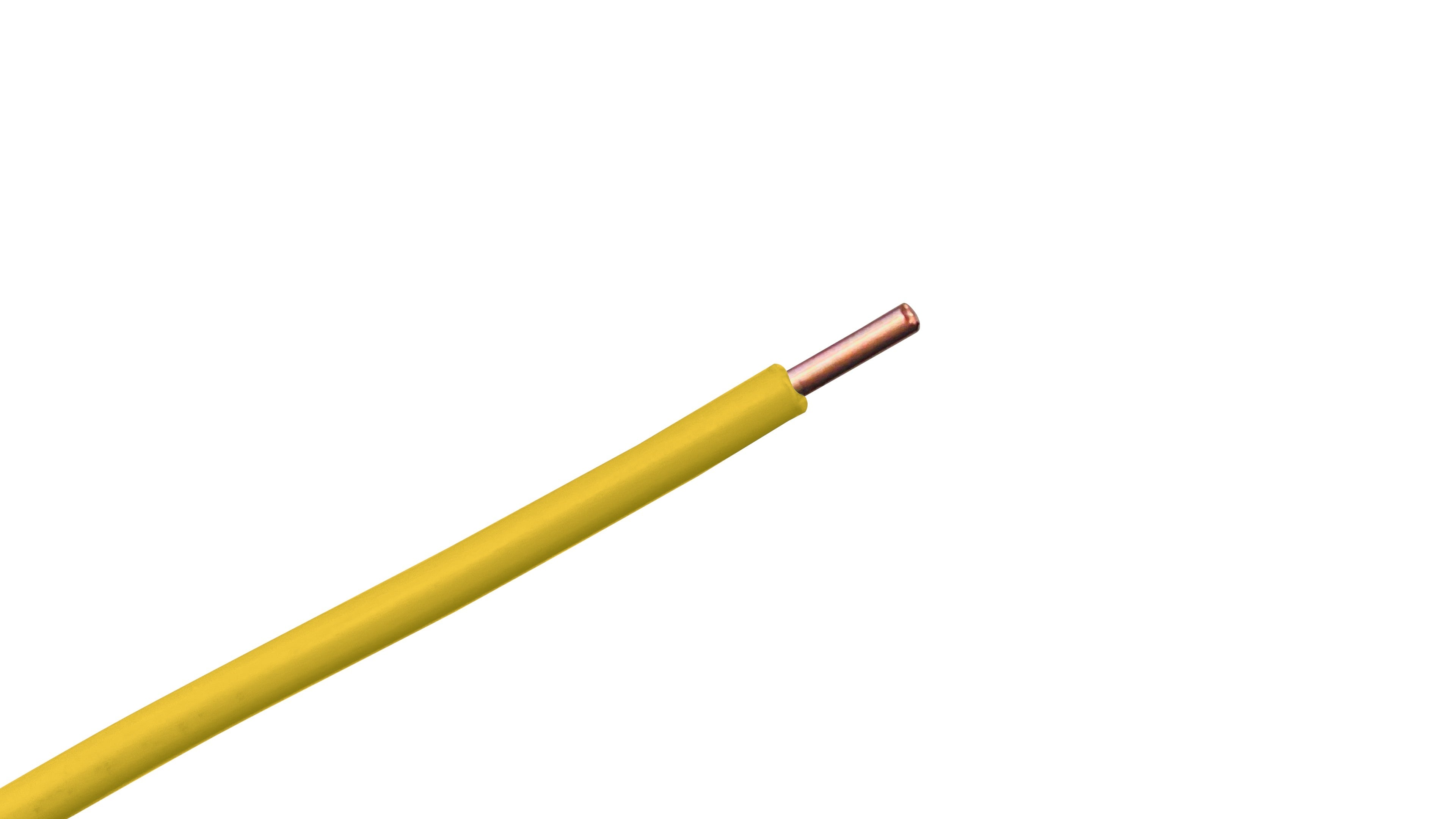

• High Visibility Yellow: Reserved exclusively for Natural Gas, Petroleum, and other Gaseous or Hazardous Materials.

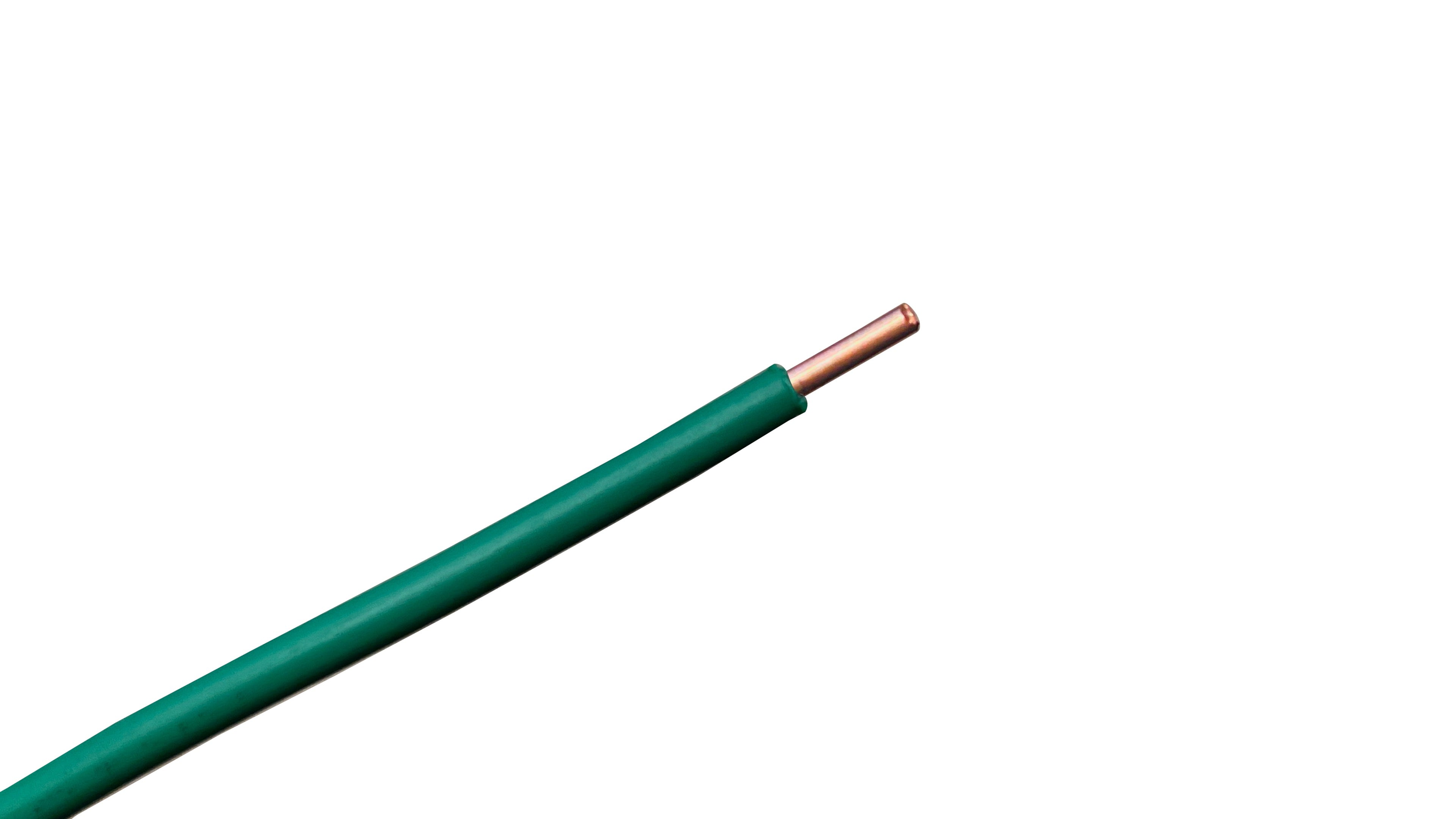

• Safety Public Works Green: Assigned to Sanitary Sewers, Force Mains, and Drain Lines.

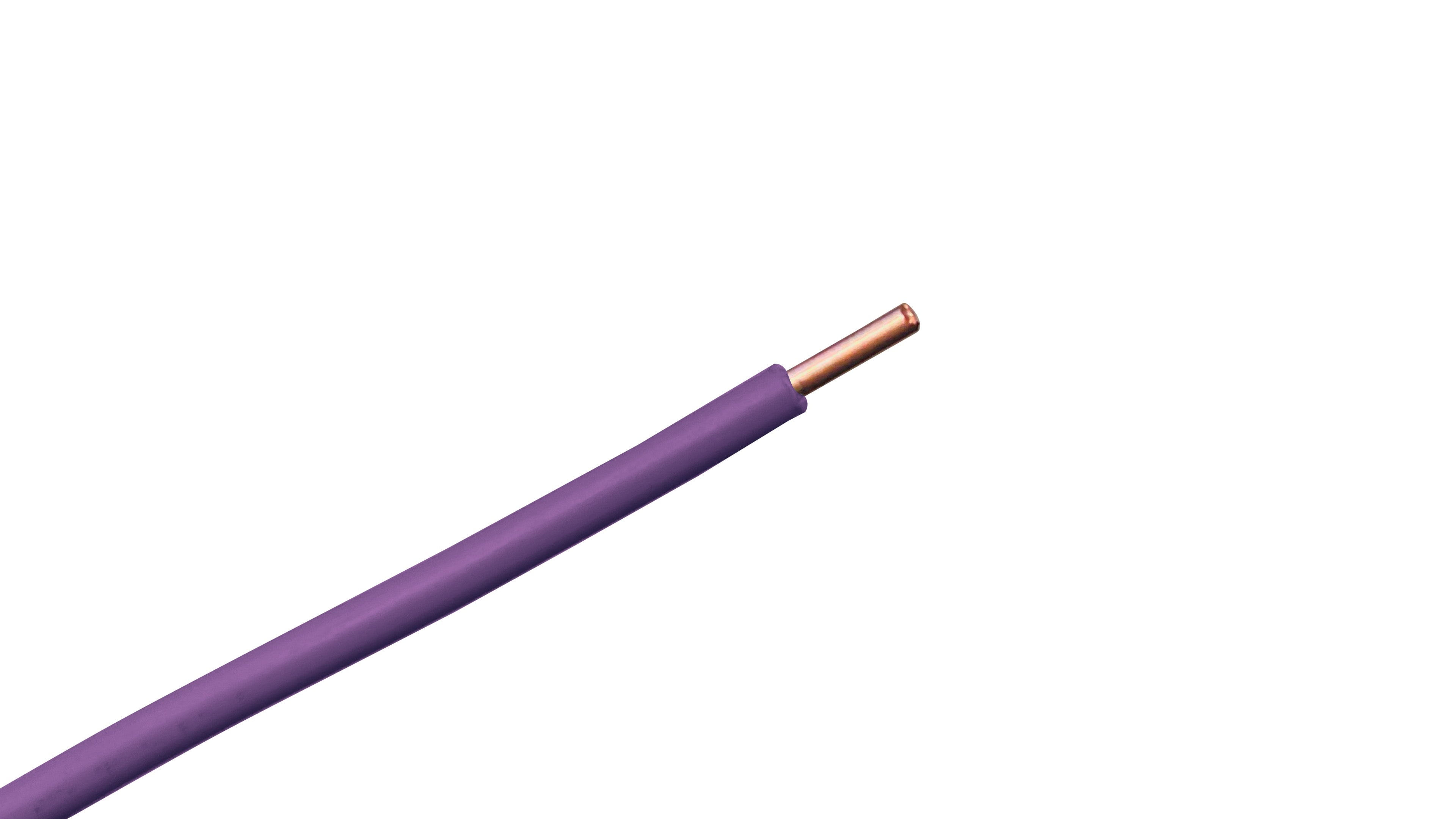

• Safety Purple: Utilized for Reclaimed Water, Irrigation Systems, and Slurry Lines.

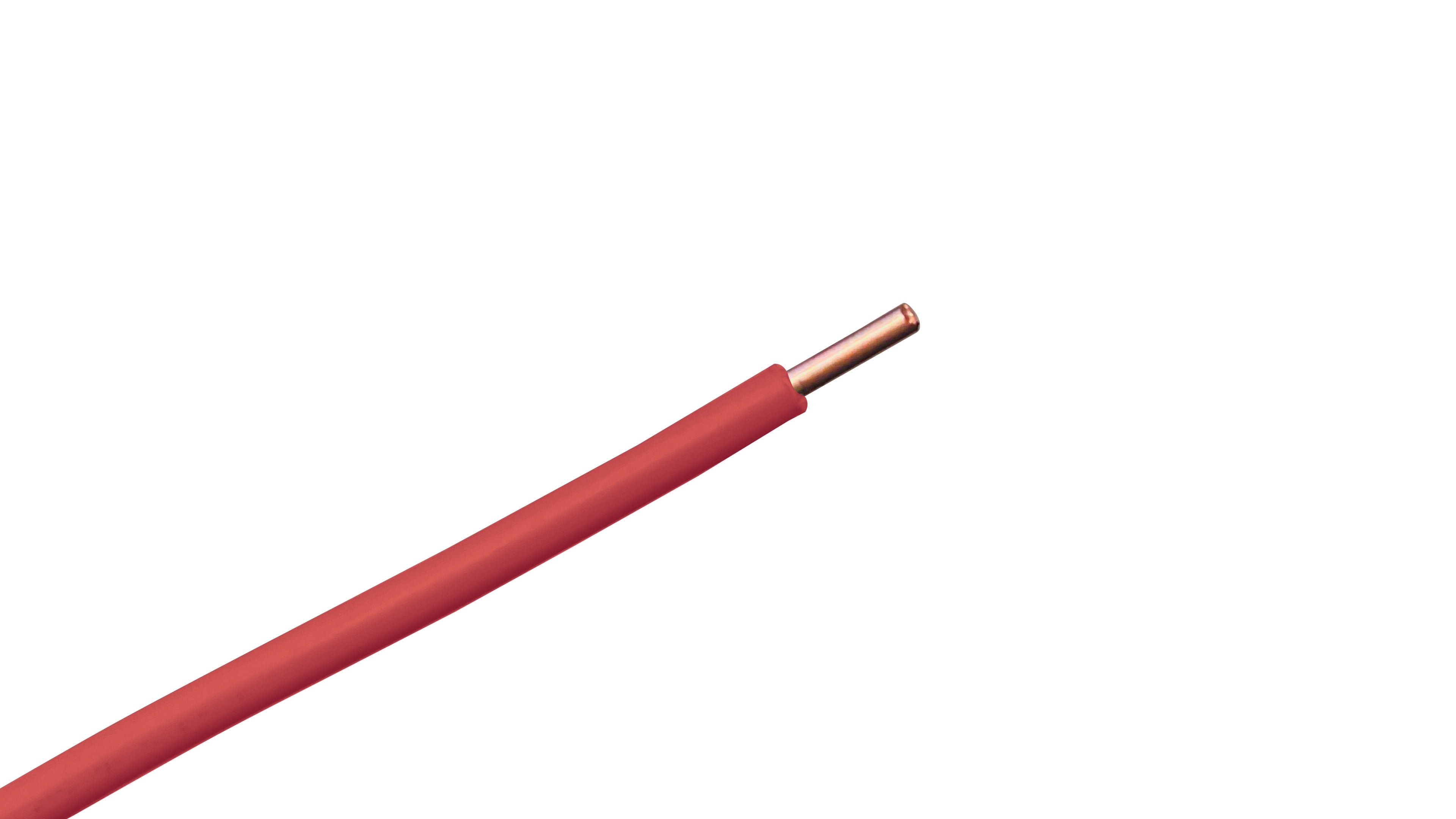

• Safety Alert Red: Deployed for Electric Power Distribution circuits and high-voltage Conduit Trunks.

Technical Specifications

• Conductor Size: 8 AWG

• Conductor Type: Extra High Strength Copper Clad Steel (EHS-CCS)

• Steel Core Type: High-Carbon Steel

• Copper Clad Volume: 21% Conductivity (Minimum thickness matches ASTM B910 specifications)

• Insulation Material: High-Density Polyethylene (HDPE / HMWPE - PE-45 Rating)

• Insulation Thickness: 45 Mils (1.14 mm)

• Tensile Strength: 3,100 lbs minimum break load

• Voltage Rating: 30 Volts (Locating signaling systems only)

• Operating Temperature: -40 degrees C to +80 degrees C Continuous Burial

• Compliance Standards: ASTM B910, ASTM D1248, APWA Color Code Compliant, Buy American Act Approved

Technical Note: To maintain an uninterrupted electromagnetic trace path, underground connections must never be wrapped with standard electrical tape or connected with non-watertight wire nuts. All 8 AWG EHS tracer wire splices must utilize fully sealed, moisture-proof directional drilling connectors (such as silicone-filled outer locking lugs).

Exposing the copper clad core to direct soil moisture or chemical trace acids will lead to localized oxidation and galvanic cell breakdown, which breaks the signal continuity and renders the entire downstream section invisible to locator tracking rigs.

CABLE TYPE: 8 AWG Single-Conductor Extra High Strength (EHS) Copper Clad Steel Tracer Wire (45-Mil PE-45 Insulation)

DISCLAIMER: The technical information provided is for general reference only. Civil engineering profiles, underground excavation boundaries, and utility tracing loops must strictly adhere to the American Public Works Association (APWA) design parameters, National Utility Locating Contractors Association (NULCA) provisions, and local municipal utility regulations. Always cross-reference the official product submittal data sheet from the chosen manufacturer prior to finalizing underground infrastructure layouts or specifying mechanical pulling loads.
