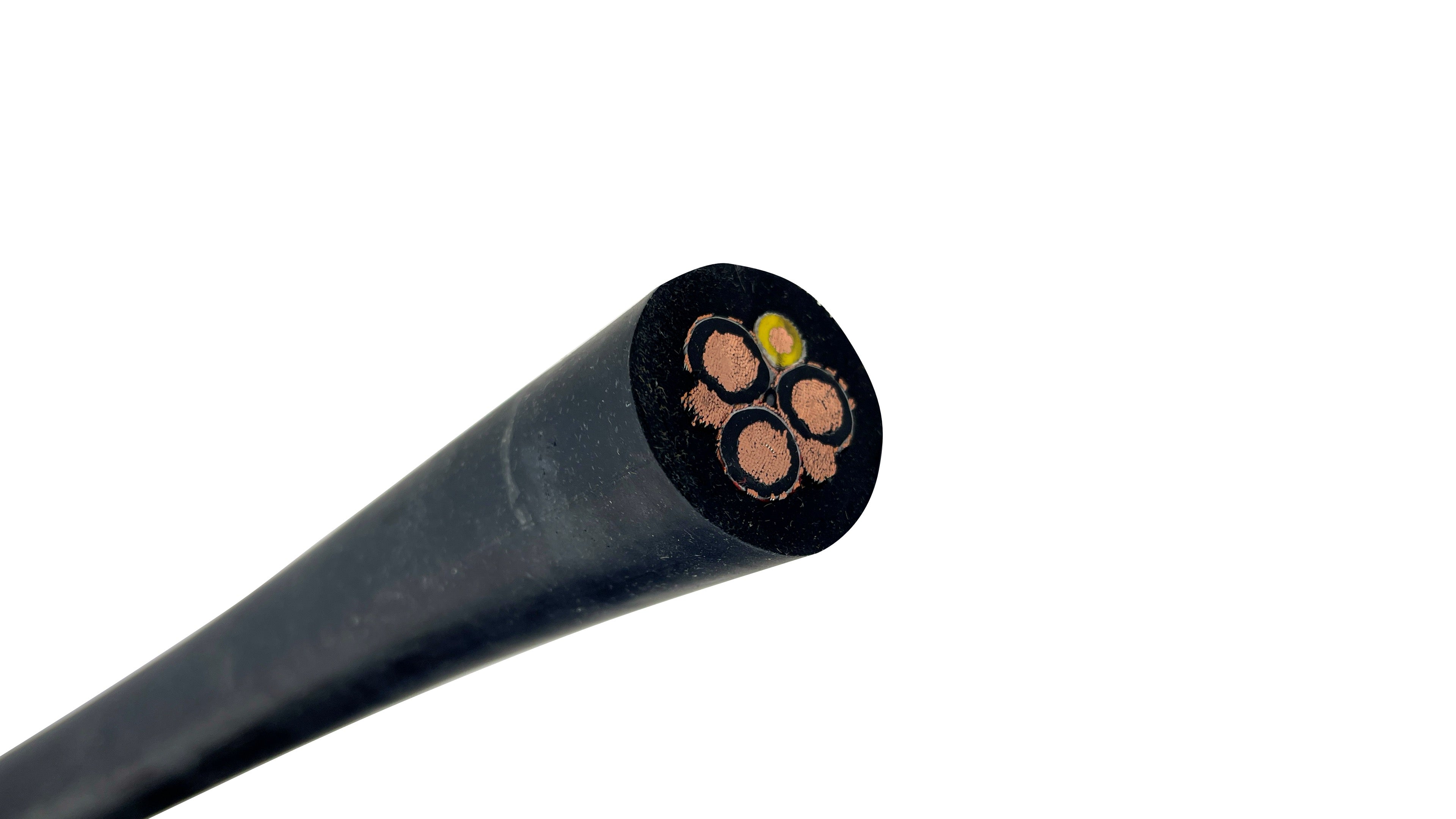

8/3 Type SHD-GC Mining Cable 2kV

Parent SKU :  SHDGC2KV8-3

SKU :  SHDGC2KV8-3-250

FLEXIBLE TINNED COPPER • REINFORCED CPE JACKET • SHIELDED W/ GROUND CHECK
Download Spec Sheet
Wire Size 8 AWG
Conductor Material Tinned Copper
Outer Diameter 1.27 in. / 32.26 mm
Conductor Count 3
Voltage Rating 2000V
Ampacity Rating 59
Weight per Foot 1.05 lb
Download Spec Sheet

Get Product Details

Get Product Details
APPLICATION:
Type SHD-GC Cable is for use in heavy duty medium voltage service as a power supply cable for mobile and portable mining equipment, loaders, drag lines, shovels, dredges and drills, where flex life is required, and for systems that require an internal ground check conductor for added safety. Type SHD-GC is for applications up to 2,000 volts and temperatures from -40°C to +90°C.

CONDUCTOR:
Flexible stranded tinned soft drawn copper conductor

INSULATION:
Ethylene-propylene rubber (EPR). Inner semiconductive rubber layer over the semiconductive tape

CONDUCTOR SHIELD:
Tinned copper wire braid/textile fiber (Red - White - Black)

CONDUCTOR COLORS:
Black, White, Red with Tinned Bare Copper Grounds and Yellow Ground Check

GROUND CONDUCTORS:
2 #10 flexible stranded tinned bare copper conductors

GROUND CHECK CONDUCTOR:
1 #8 Flexible stranded tinned copper wire with yellow thermoset EP compound insulation

INNER JACKET:
Black, extra heavy duty CPE jacket reinforced with textile fibre antitwisting element on outside

OUTER JACKET:
Black, extra heavy duty CPE jacket overall

AMP RATING:
@ 90°C - 59 Amps



All values are nominal and subject to correction

See Full Specifications

See Full Specifications
Download Spec Sheet

Physical Specifications

Wire Size (AWG/MCM) 8 AWG
Conductor Material Tinned Copper
Conductor Type Stranded
Strand Count 133
Outer Diameter (OD) (in/mm) 1.27 in. / 32.26 mm
Jacket Type Black, extra heavy duty CPE
Conductor Count 3
Shield Coverage % 1
Shield Type Tinned Copper Braid
Shield Shielded
Insulation Type Ethylene-propylene rubber (EPR)

Technical Specifications

Voltage Rating 2000V
Ampacity Rating 59
Submersible No
Sunlight Resistance Rating Yes
Temperature Rating 90ºC
Standards ICEA S-75-381/NEMA WC58 Portable and Power Feeder, Cables for Use in Mines and Similar Applications
ASTM B33
FT1 & FT5 Burn Rated
Oil & Ozone Resistant
Miscellaneous Information All values are nominal and subject to correction
Other Certifications MSHA, CSA, cUL, UL
RoHS Compliance Yes

Usage & Installation

Primary ApplicationsMining Equipment, loaders, drag lines, shovels, dredges and drills
Common Uses
  • Mobile Equipment
  • Open-Pit Infrastructure
  • High-Voltage Distribution
  • Port and Marine Terminals
  • Heavy Industrial Machinery
  • Construction Sites

Packaging & Dimensions:

Weight per Foot 1.05 lb
