Parent SKU : XHW6
SKU : XHW6-250-BK
| Wire Size (AWG/MCM) | 6 AWG |
| Conductor Material | Stranded Copper |
| Conductor Type | Stranded |
| Strand Count | 7 |
| Outer Diameter (OD) (in/mm) | 0.28 in. / 7.112 mm |
| Conductor Count | 1 |
| Shield | Unshielded |
| Insulation Type | (XLPE) Cross-Linked Polyethylene |
| UL Listing Numbers | UL 44, UL 1685 |
| Voltage Rating | 600V |
| Ampacity Rating | 75 |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL 44 UL 1685 RoHS Compliant ASTM B3, B8 ANSI/ICEA S-95-658/NEMA WC-70 NFPA 70 NEC XLPE -40°C FT1 Federal Spec A-A-59548 |
| Miscellaneous Information | All values are nominal and subject to correction. *Ampacities for not more than three conductors in raceway or cable or earth (directly buried), based on ambient temperature of 30°C per Table 310.16 of the National Electrical Code. **Overcurrent protection shall not exceed 15 amps for #14 AWG, 20 amps for #12 AWG, and 30 amps for #10 AWG per NEC. |
| RoHS Compliance | Yes |
| Primary Applications | Main service entrance cables, feeders, branch circuit wiring in conduit and ducts, power distribution, lighting, and control circuits. |
| Common Uses |
|
| Weight per Foot | 0.098 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||
This #6 AWG Copper XHHW-2 Building Wire is primarily designed for power distribution within conduit or other recognized raceways. It is suitable for services, feeders, and branch circuit wiring as specified by the National Electrical Code. This wire features a soft drawn bare copper conductor and durable cross-linked polyethylene (XLP) insulation.
The acronym XHHW-2 describes the wire's key characteristics:
The key specifications for this #6 AWG Copper XHHW-2 Building Wire are:
XHHW-2 Copper Wire is primarily used for power distribution in various applications. These include services, feeders, and branch circuit wiring within conduit or other recognized raceways, as outlined in the National Electrical Code. It is a good choice for industrial applications where enhanced resistance to moisture and heat is desired.
This #6 AWG Copper XHHW-2 wire has an ampacity rating of 75 Amps at 90°C. This rating is based on not more than three current-carrying conductors in a raceway, cable, or directly buried in earth, with an ambient temperature of 30°C, as per Table 310.16 of the National Electrical Code.
Yes, #6 AWG Copper XHHW-2 Building Wire is suitable for use in both wet and dry locations. Its advanced cross-linked polyethylene (XLPE) insulation ensures consistent performance at temperatures not exceeding 90°C in either environment.
This XHHW-2 wire is dual-rated for 600V or 1000V. This makes it versatile for a range of electrical distribution systems in commercial, institutional, and industrial buildings.
XHHW-2 wire generally offers superior performance compared to THHN wire, particularly due to its insulation. XHHW-2 uses thermoset XLPE insulation, which provides better resistance to moisture, chemicals, and abrasion, and maintains a 90°C rating in both wet and dry conditions. THHN typically uses thermoplastic PVC insulation, which can be less flexible in cold temperatures and may emit toxic smoke when burned, though it is often a more economical choice for standard commercial and residential conduit runs.

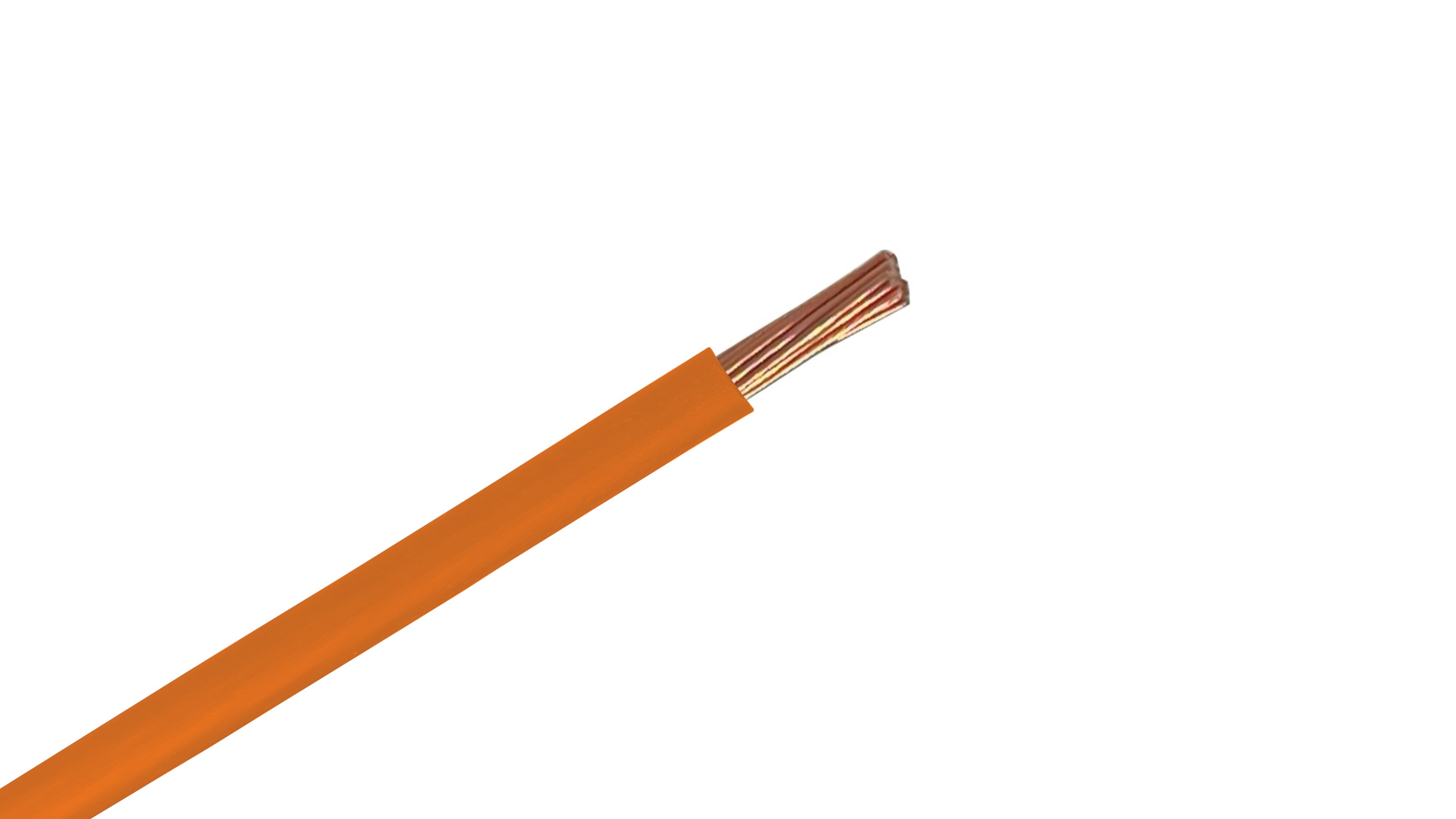

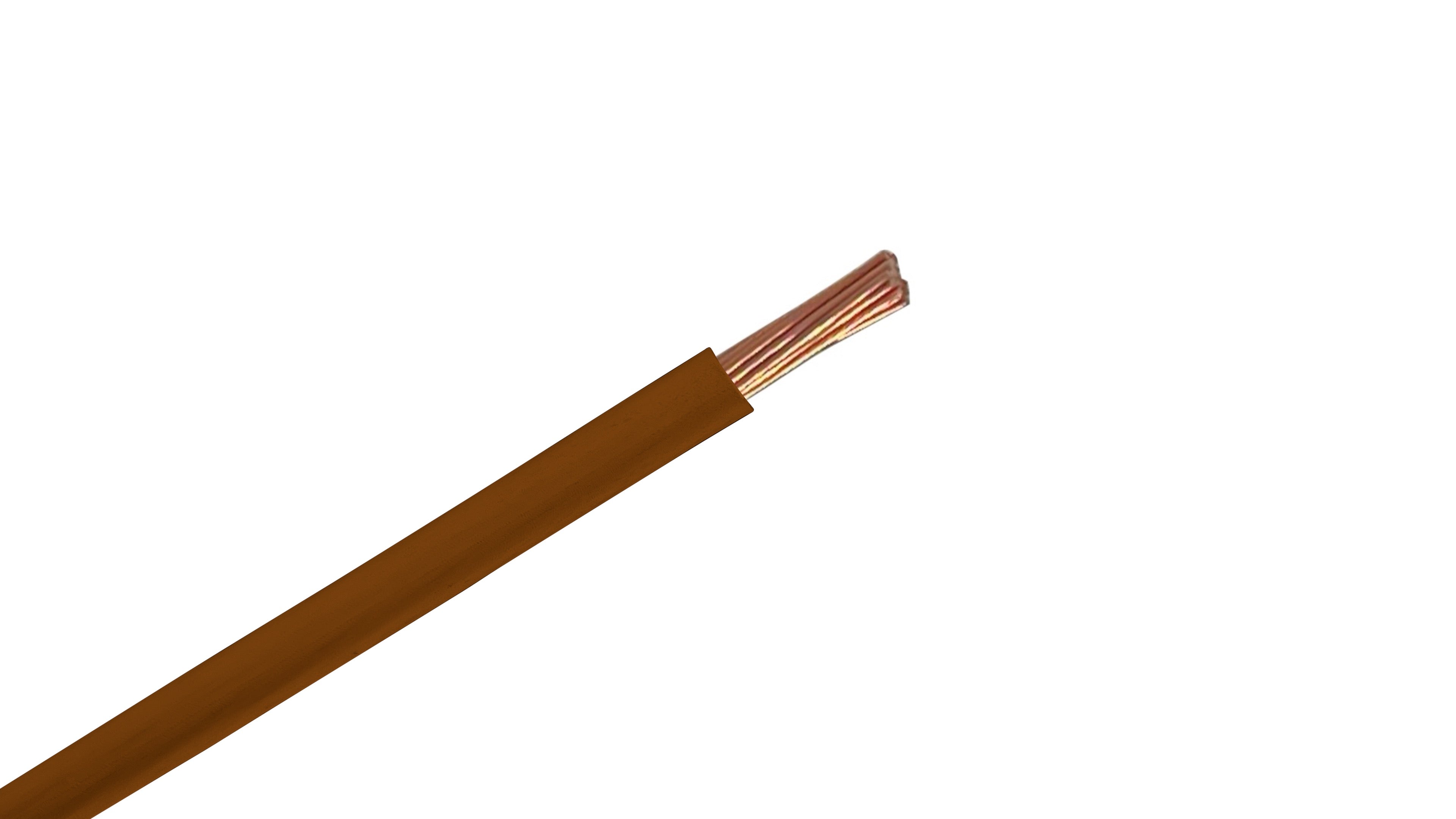

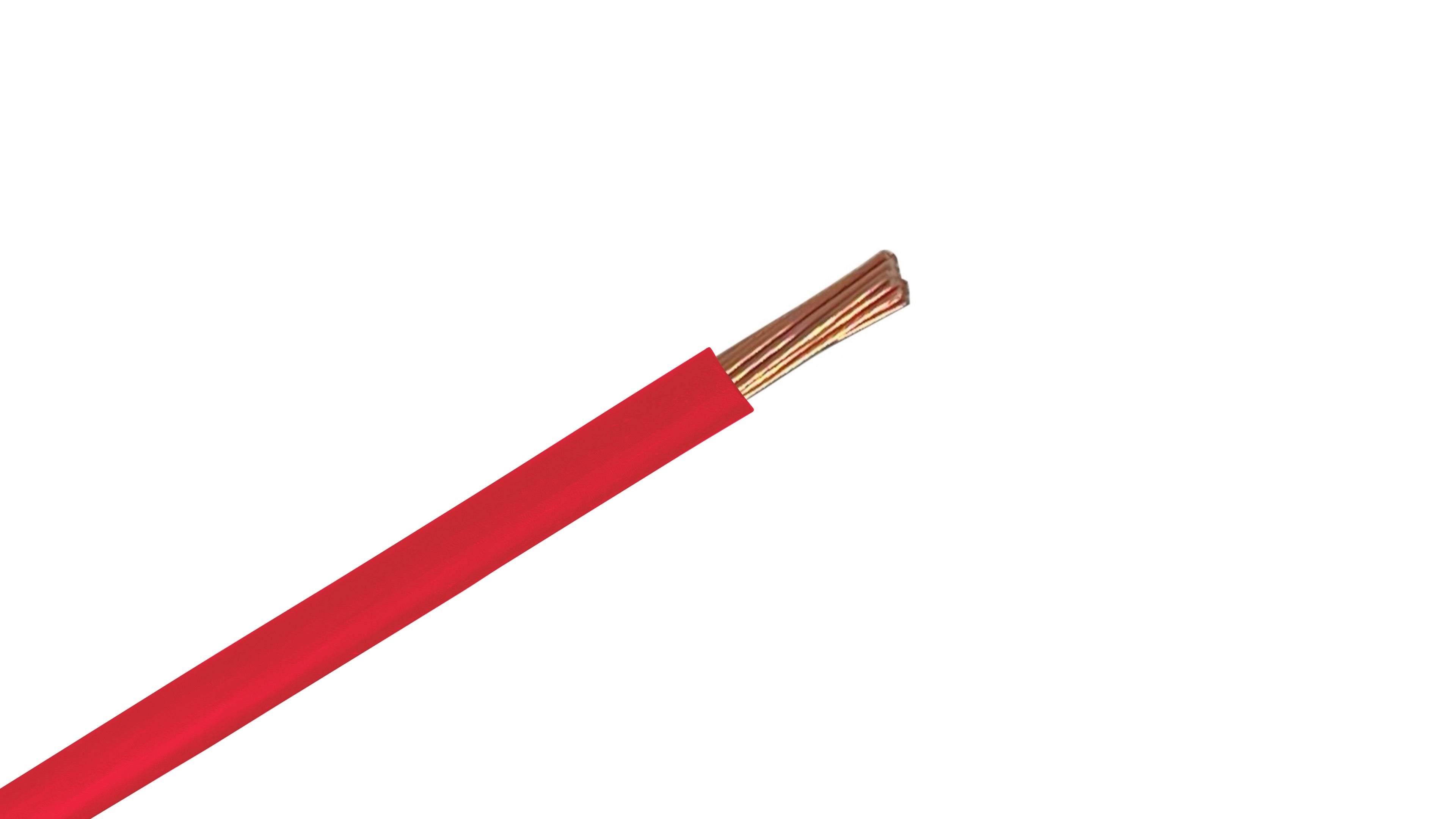

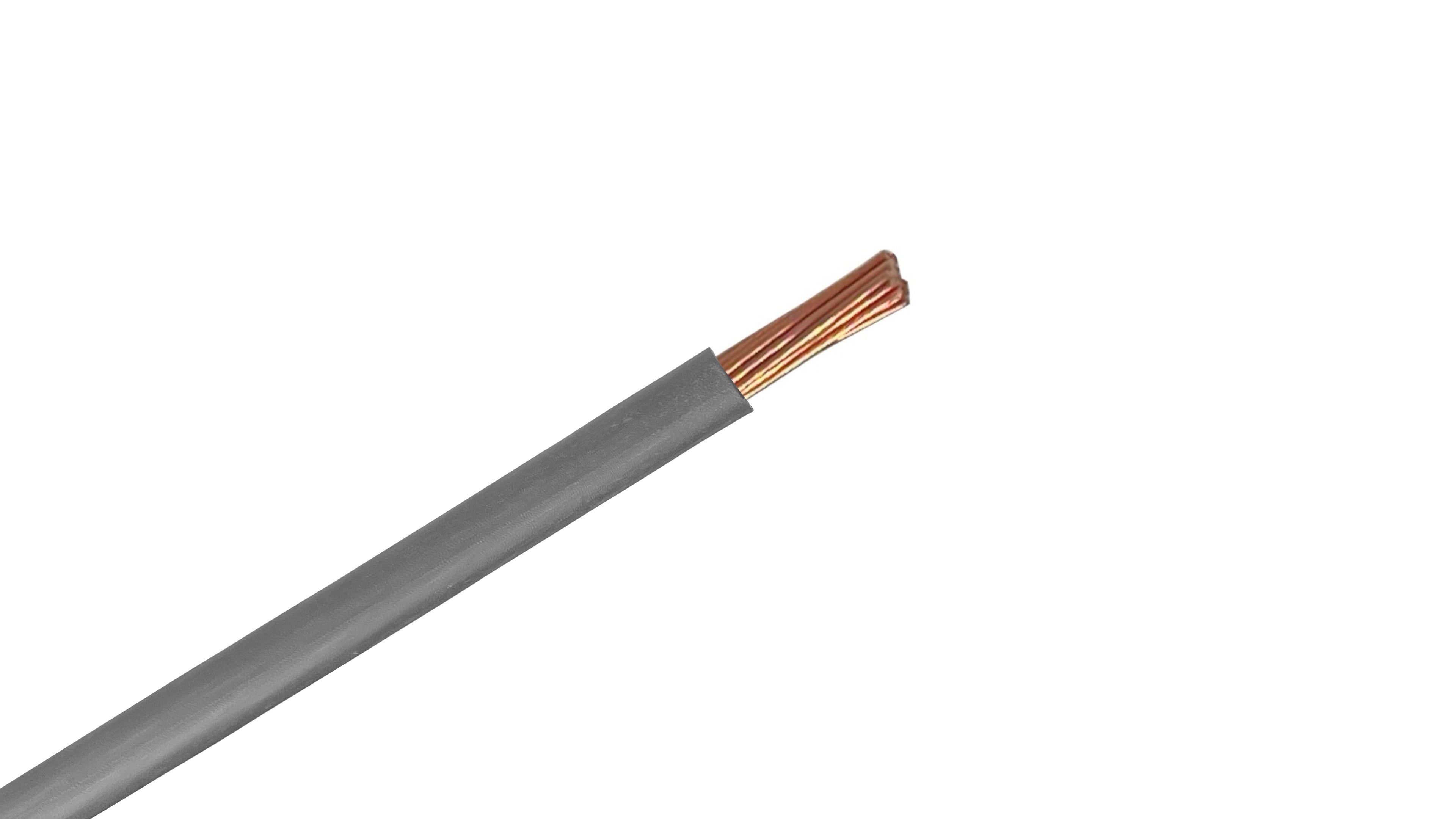

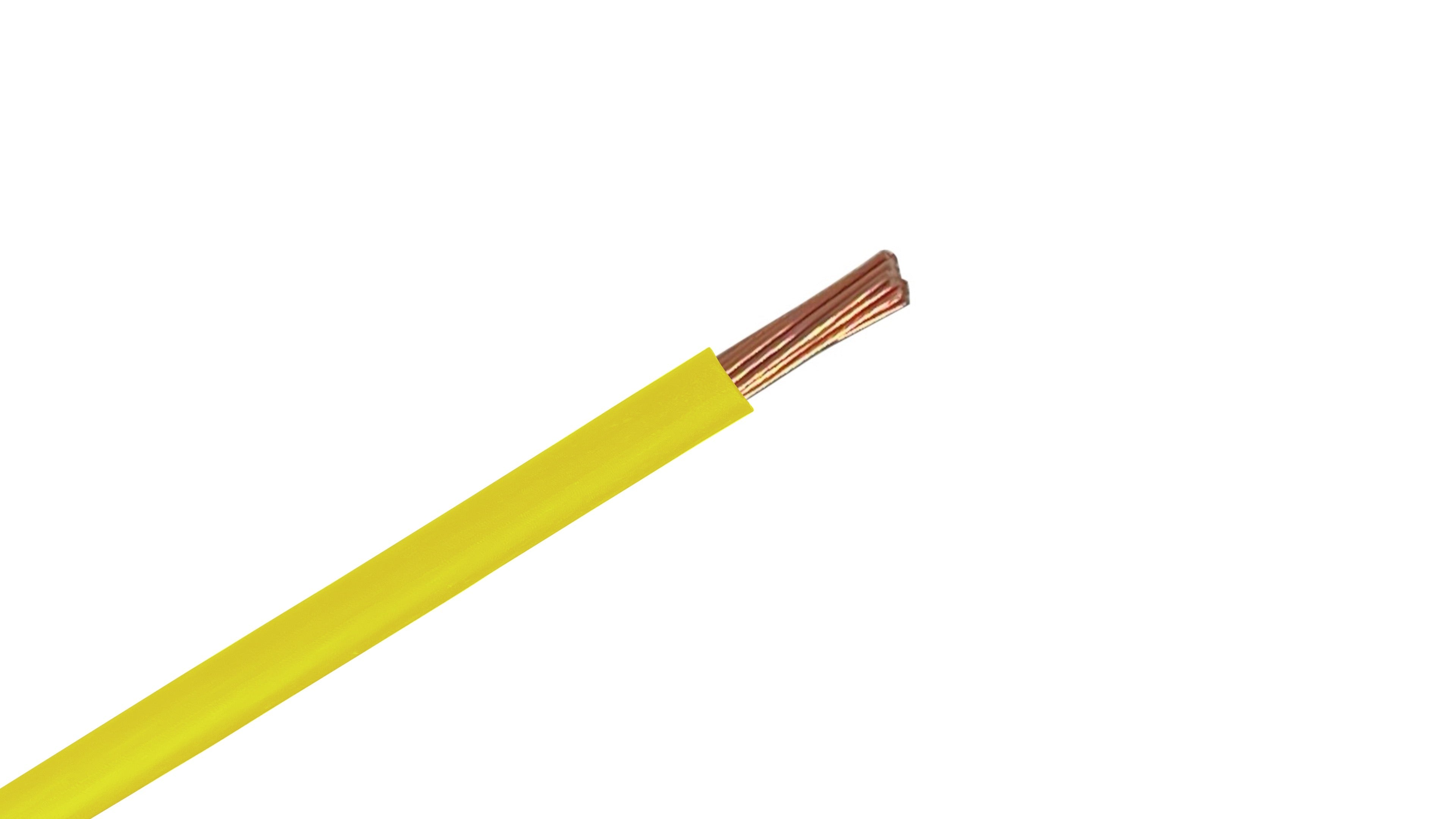

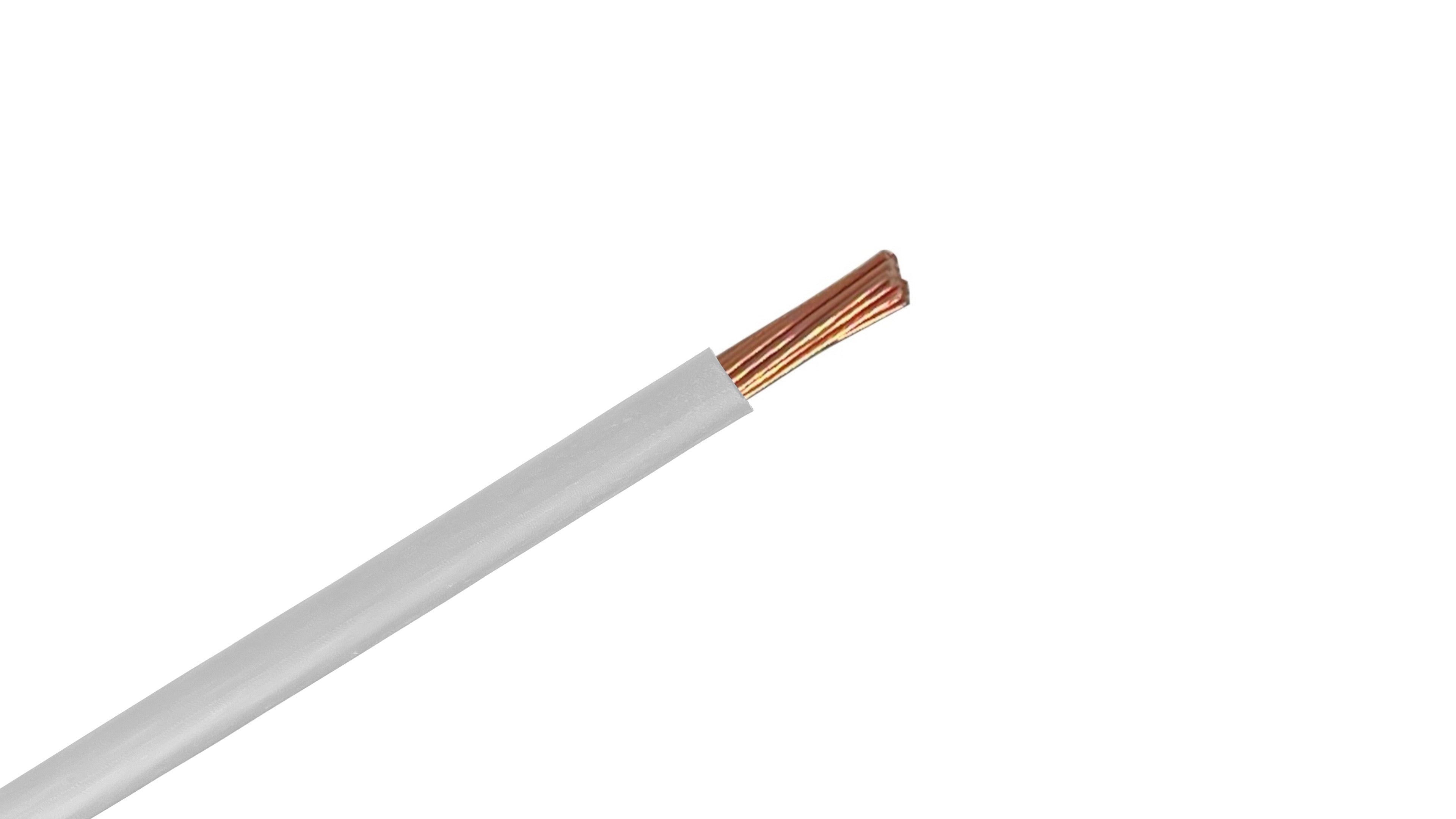

The XHHW-2 insulation for this product is available in ten solid colors. This allows for easy circuit identification during installation and maintenance.
