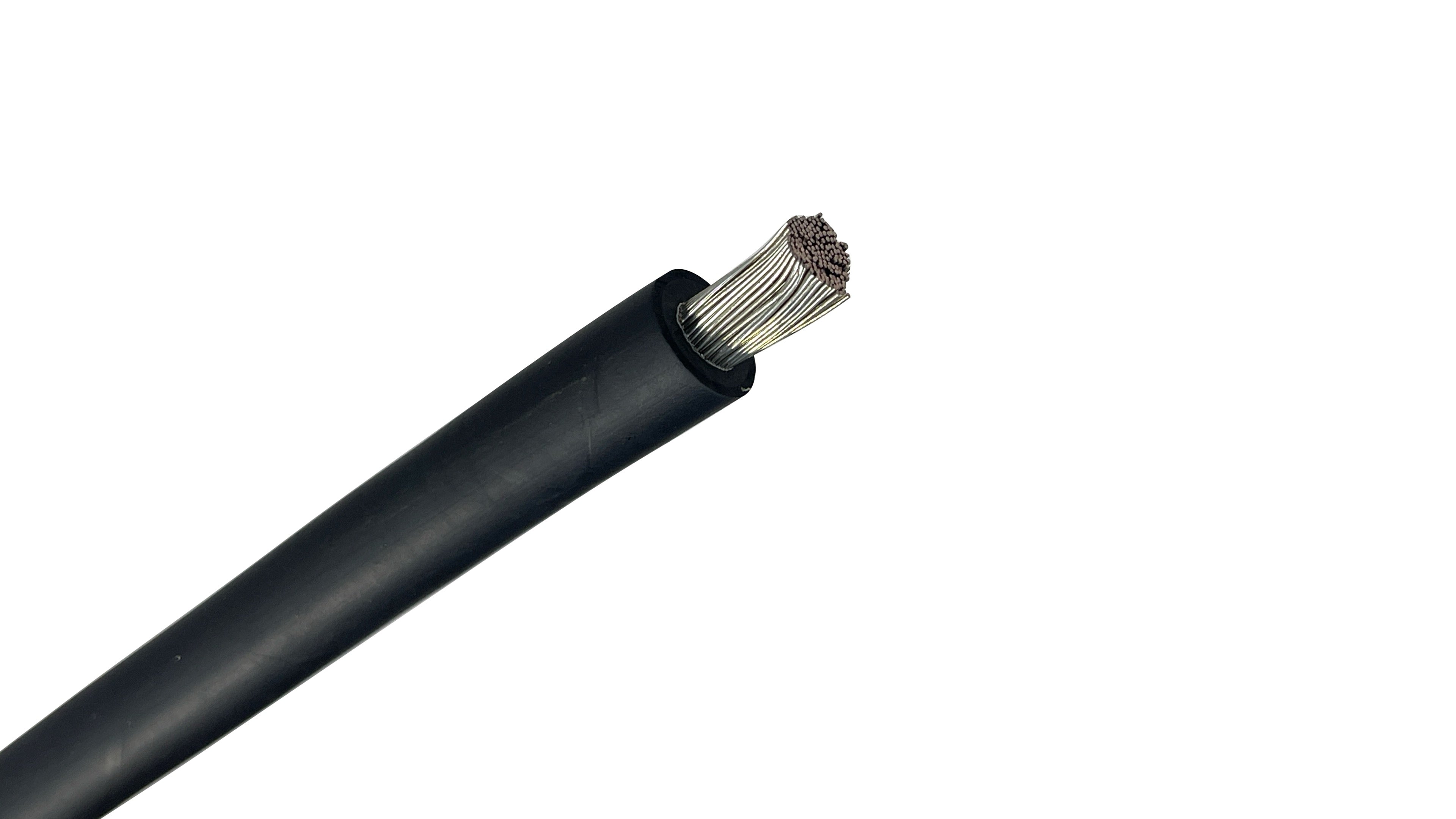

6 AWG Diesel Locomotive Cable, 2000V

6 AWG Diesel Locomotive Cable (DLO) is an extra-flexible 2000V single-conductor industrial power wire engineered for high-density control panels, equipment leads, and harsh industrial environments. Constructed with finely stranded tinned copper, heavy-duty EPR insulation, and a pressure-extruded Chlorinated Polyethylene (CPE) jacket, it delivers maximum flexibility, vibration resistance, and chemical protection.

Dual-rated as Type RHH/RHW-2 (600V and 2000V) under UL 44, this cable easily handles dynamic equipment movement while remaining fully code-compliant for permanent installations in conduits and control raceways.

Key Features & Benefits

• Corrosion-Resistant Tinned Copper: Built with high-strand tinned annealed copper (ASTM B-33/B-172) to prevent conductor oxidation, ensure long-lasting terminations, and provide superior flexibility for tight routing inside control enclosures.

• Premium EPR Insulation: Thermoset Ethylene Propylene Rubber (EPR) insulation delivers excellent dielectric strength, handling continuous 2000V electrical loads without thermal breakdown, cracking, or softening.

• Ultra-Rugged CPE Outer Jacket: Heavy-duty Black Chlorinated Polyethylene (CPE) thermosetting compound provides extreme resistance to oil, grease, petrochemical solvents, ozone, weather, and continuous UV exposure.

• Dual-Rated Compliance (DLO / RHH/RHW-2): Certified as 2kV DLO for flexible machinery leads AND dual-rated as 600V/2000V RHH/RHW-2 under UL 44 for permanent raceway installations.

• Sub-Zero Cold Flexibility: Rated for -40°C low-temperature flexibility, preventing jacket cracking or stiffening during dynamic payouts.

• Custom Cut-to-Length: Wire America supplies 6 AWG DLO cable cut by the foot with zero cut fees, saving you material waste and jobsite prep time.

Technical Specifications

• Conductor Size: 6 AWG

• Conductor Stranding: 65 Strands of 24 AWG (65/#24)

• Conductor Material: Tinned Annealed Copper

• Insulation Material: Premium Ethylene Propylene Rubber (EPR)

• Jacket Material: Heavy-Duty Black Chlorinated Polyethylene (CPE)

• Voltage Rating: 2000V (DLO) / 600V & 2000V (Type RHH/RHW-2) / 1000V (CSA RW90)

• Ampacity: 105 Amps (Single conductor in free air @ 90°C conductor temp, 30°C ambient per NEC Table 310.17)

• Nominal Outer Diameter: Approx. 0.370" (Range: 0.354" min – 0.403" max)

• Approximate Net Weight: ~128 lbs / 1,000 ft (191 kg/km)

• Temperature Rating: -40°C to +90°C (Continuous Wet or Dry)

• Minimum Bending Radius: 4 x OD (1.48" for Fixed Installation) / 6 x OD (2.22" for Flexible Application)

• Compliance Standards: UL Listed Type RHW-2 (UL 44), c(UL) RW90 EP 1kV, MSHA Approved (P-7K-268080-01), VW-1 Flame Test, IEEE 1202/FT4, AAR RP-586 / RP-588, RoHS Compliant.

Common Applications

• Industrial Motor & Generator Leads: Serving as flexible high-current feeder links on manufacturing motors, conveyor networks, and mobile generator sets.

• Oil and Gas Drilling Rigs: Powering auxiliary pumps, localized control enclosures, and marine drilling platform systems.

• Data Centers & Battery Backup Banks: Connecting intermediate Uninterruptible Power Supply (UPS) networks, commercial energy storage arrays, and high-voltage backup battery setups.

• Telecommunications Power Plants: Providing localized low-voltage drop, high-amperage DC power distribution lines inside central switching hubs.

• Diesel-Electric Locomotive Infrastructure: Supplying auxiliary power links, traction system controls, and transit car grids.

DISCLAIMER: The technical information provided is for general reference only. Industrial high-voltage power networks and flexible cable trays must strictly comply with the National Electrical Code (NEC), local municipal safety enforcement mandates, and individual equipment installation datasheets. Always verify official product submittal listings and exact core metrics with your electrical component manufacturer prior to configuring terminal arrays or subjecting lines to high pulling forces.

• Locomotive Controls & Power Sub-Systems: High-flex 105A power leads routing electricity to auxiliary blower motors, lighting arrays, diagnostic consoles, and control sub-systems from locomotive generators.
• Solar & BESS Inverter Wiring: Interconnects commercial solar combiner boxes, string inverters, and Battery Energy Storage Systems (BESS) where heavy-duty 2000V insulation and tight bending radii are required.
• Industrial Motor Control Centers (MCC): High-flexibility panel wire and cross-connect jumper lines within crowded industrial switchgear cabinets where standard building wire is too rigid to route.
• Oil & Gas Rig Power & Control Skids: Deployed across onshore and offshore drilling platforms to safely supply power to localized telemetry sensors, control skids, and automated valves exposed to harsh vibration.
• Data Center UPS & Battery Bank Jumpers: High-flexibility battery connections and control links within high-density uninterruptible power supply (UPS) rooms and telecommunications networks.
• Marine Vessel & Shipboard Sub-Systems: Internal shipboard power distribution, bilge pump control, and radar tower wiring with superior resistance to salt spray, moisture, and chemical corrosion.
• Mining Machinery Controls & Articulations: Auxiliary power feeds for electric shovels, draglines, and continuous miners operating under severe mechanical vibration and dynamic movement.

Who Relies on 6 AWG DLO Cable?

• Panel Builders & Industrial Electricians: Specified for its extra-fine 65/#24 tinned copper stranding layout, allowing smooth, tight bends around crowded terminal blocks without kinking, strand breakage, or mechanical fatigue.
• Solar Field Engineers & PV Installers: Preferred for its 2000V RHH/RHW-2 dual rating, continuous outdoor UV/sunlight resistance, and easy routing inside cramped inverter housings.
• Control Systems Engineers & Estimators: Trusted for its premium Ethylene Propylene Rubber (EPR) insulation and Chlorinated Polyethylene (CPE) jacket that resists severe oils, cutting fluids, ozone, and sub-zero weather down to -40°C.
• Field Technicians & Submittal Teams: Relied upon for seamless termination using standard fine-strand compression lugs and ferrules, ensuring low-resistance connections without strand shear.
• Safety & Code Compliance Inspectors: Verified for its dual-rated RHH/RHW-2 compliance (600V/2000V) in raceways and conduits, as well as MSHA flame-retardant listings for hazardous location approval.

DISCLAIMER: Real-world application examples are provided for educational and general planning purposes only. Project requirements vary based on system design, environmental factors, and local codes. Buyers and specifiers are responsible for verifying that all materials meet exact job specifications and comply with NEC and local electrical regulations. Always consult with a licensed electrician prior to installation.
