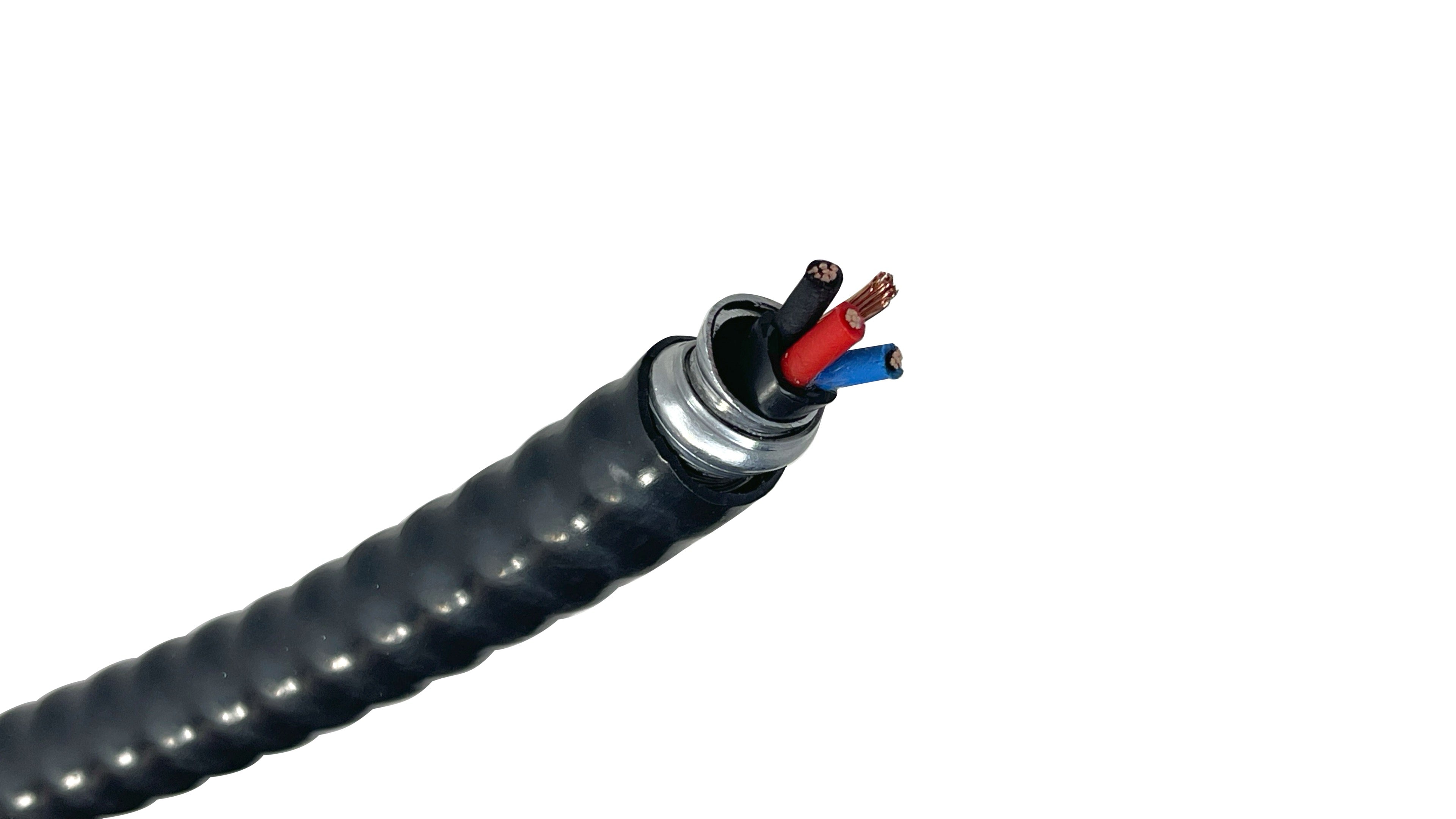

6/3 TECK90 Cable with Ground - 1000V Aluminum Interlocked Armor (AIA)

Engineered for harsh industrial and heavy-utility applications, 6 AWG 3-Conductor TECK90 Armored Cable delivers complete 1000V 3-phase power and circuit protection without installing rigid conduit runs.

Featuring three stranded copper conductors, an 8 AWG bare ground wire, dual PVC jackets, and flexible Aluminum Interlocked Armor (AIA), it transitions seamlessly from indoor cable trays and concrete barriers directly into outdoor aerial runs or subterranean direct-burial trenches.

Key Features & Benefits: 6/3 TECK90 1000V Cable

• Dual-Jacket Direct Burial Protection: The inner bedding PVC cushions the core, while the heavy-duty -40°C outer PVC jacket seals the aluminum armor against water, corrosive soil chemicals, and mechanical abrasion.

• 1000V Heavy-Duty Rating: Built with RW90 XLPE thermoset insulation rated up to 1000V and continuous operating temperatures from -40°C to +90°C in wet or dry locations.

• 3-Phase 75A Power Architecture: Features three 6 AWG stranded bare copper circuit conductors and an 8 AWG bare copper ground wire for high thermal efficiency and continuous 3-phase load capacity.

• Flexible Interlocked Armor (AIA): The aluminum interlocked armor shields internal conductors from crushing loads and physical impacts while keeping the assembly flexible during pulls.

• Hazardous Location & Acid Gas Certified: Rated CSA HL, FT4 flame resistant, IEEE 1202, and AG14 compliant for harsh chemical and petrochemical plants.

Technical Specifications: 6 AWG 3C TECK90 Armored Cable

• Conductor Size: 6 AWG (7 Strands per core)

• Number of Power Conductors: 3 (Black, Red, Blue)

• Conductor Material: Soft-Drawn Stranded Bare Copper (ASTM B8)

• Ground Wire Size: 8 AWG Bare Stranded Copper

• Insulation Type: Cross-Linked Polyethylene (XLPE) / Type RW90

• Inner Jacket: Flame-retardant, Low-Gas-Emission Black PVC

• Armor Type: AIA (Aluminum Interlocked Armor)

• Protective Outer Jacket: -40°C PVC - Black (Sunlight & Chemical Resistant)

• Voltage Rating: 1000 Volts (1kV)

• Temperature Rating: -40°C Minimum / +90°C Continuous Operation

• Ampacity Rating (@ 90°C): 75 Amps (per CE Code Part 1, Table 2)

• Armor Diameter: 1.05 inches

• Approximate Outer Diameter: 1.13 inches

• Approximate Net Weight: 758 lbs per 1,000 ft

• Compliance Standards: CSA C22.2 No. 131, CSA C22.2 No. 174 (Hazardous Locations), CSA HL, CSA FT4, IEEE 1202, AG14, RoHS Compliant

💡 Technical Installation Note: Approved wet-location/explosion-proof TECK glands (such as Star Teck or TMC series) must be utilized to ensure proper ground bonding continuity and maintain watertight seals at enclosures.

Common 6/3 TECK90 Cable Applications

• Industrial Machinery & Motor Feeds: Delivering power to localized sub-panels, large HVAC equipment, commercial pumps, and three-phase branch circuits.

• Pulp, Paper, and Chemical Facilities: Routing sub-feeder power lines through highly corrosive processing bays, wet areas, and acid-gas environments.

• Mining & Generating Stations: Transitioning electrical loads across open racks, building gaps, and underground utility paths.

• Direct-Burial & Utility Infrastructure: Laid directly into underground trenches, parking lot lighting loops, or encased in outdoor concrete envelopes.

Ordering & Fulfillment

• Cut to Length: Sold by the foot to match your exact trench layout and eliminate scrap material.

• Fast Processing: Ships directly from regional distribution hubs to guarantee minimal transit time.

• Submittal Assistance: Need cut sheets or technical data sheets for engineering approval? Contact our sales desk at 833-268-8644 or sales@wireamerica.com.

DISCLAIMER: The technical information provided is for general reference only. Multi-conductor industrial armored systems must strictly comply with the Canadian Electrical Code (CEC), the National Electrical Code (NEC), and all applicable provincial or municipal enforcement safety mandates. Always verify official product submittal sheets and exact component metrics with your cable manufacturer before establishing trench depths, panel punching maps, or physical cable tray layouts.

Common 6 AWG 3C TECK90 Cable Use Cases

• 60A–75A Workshop & Garage Subpanels: The go-to armored cable for routing single-phase subpanel feeders to detached garages, workshops, outdoor sheds, or barns (configured with 2 hots, 1 neutral, and bare ground).
• 3-Phase Motors, Pumps & Industrial Drives: Powering 208V, 240V, 480V, or 600V 3-phase industrial motors, hydraulic pumps, conveyor drives, and Delta loads where no neutral wire is required.
• High-Power Hot Tubs & Spas: Ideal for 50A and 60A outdoor hot tub / spa installations requiring direct-burial, crush-resistant cable running straight from the main panel to the outdoor disconnect box.
• Commercial HVAC Units & Compressors: Feeds heavy 3-phase rooftop air conditioning units (RTUs), commercial chillers, walk-in refrigeration compressors, and industrial blowers.
• Level 2 EV Chargers & RV Power Pedestals: Supplies dedicated 60A breaker circuits for continuous 48A Level 2 EV charging stations and 50-Amp outdoor RV power pedestals.
• Mining, Sawmills & Chemical Processing: Built to run underground feeders or open cable tray circuits across chemical plants, mining operations, sawmills, and paper mills exposed to mechanical impacts and standing water.

Who Relies on 6 AWG 3C TECK90 Cable?

Commonly Served Industries

• Industrial Construction & Manufacturing: Installed across factory floors, mill sites, and processing plants requiring heavy crush protection.
• Oil, Gas & Chemical Processing: A standard specification for facilities requiring flame-retardant (FT4/IEEE 1202) and acid-gas (AG14) resistant armored power feeds.
• Commercial Infrastructure & Agriculture: Used on farms, commercial parking complexes, and utility sites for direct-buried underground feeds.

Core Professionals & Buyers

• Electrical Contractors: Field technicians who choose TECK90 to eliminate the labor-intensive process of bending rigid conduit and pulling individual conductors.
• Industrial Engineers: Designers who leverage thermoset RW90 XLPE insulation (rated to 1000V) for thermal stability and hazardous location compliance.
• Project Estimators & Buyers: Supply chain managers who leverage lightweight interlocked aluminum armor (AIA) to lower shipping costs and speed up field installation.

⚠️ The applications listed above are for informational and educational purposes only. Electrical code requirements vary significantly by region. Always consult a licensed electrician and your local building authority to verify compliance with the Canadian Electrical Code (CEC) or National Electrical Code (NEC®) for your specific project before purchasing or installing cable.
