500 MCM Aluminum XHHW-2 Building Wire

"Engineered for budget-friendly power distribution and smooth conduit pulls, 500 MCM Aluminum XHHW-2 / RW90 Building Wire features compact-stranded AA-8000 aluminum alloy wrapped in a slick, low-friction XLPE jacket. Dual-rated for 600V/1000V systems and approved for wet or dry locations up to 90°C, it delivers superior cost and weight savings over copper for main feeders, heavy commercial service entrances, industrial distribution, and raceway applications."

Key Features & Benefits: 500 MCM Aluminum XHHW-2 Wire

• Slick, Low-Friction XLPE Insulation: Features an advanced "slippery" outer compound that glides through conduit bends effortlessly without pulling lubricant or insulation damage.

• AA-8000 Series Compact Aluminum: Built with Class B compact-stranded AA-8000 series aluminum alloy, reducing wire diameter to maximize conduit fill capacity.

• Dual Voltage Rated (600V / 1000V): Rated for standard 600V systems as well as higher-voltage 1000V commercial and solar installations.

• Cost-Effective Efficiency: Provides reliable conductivity with significant weight savings and lower material costs compared to equivalent copper conductors.

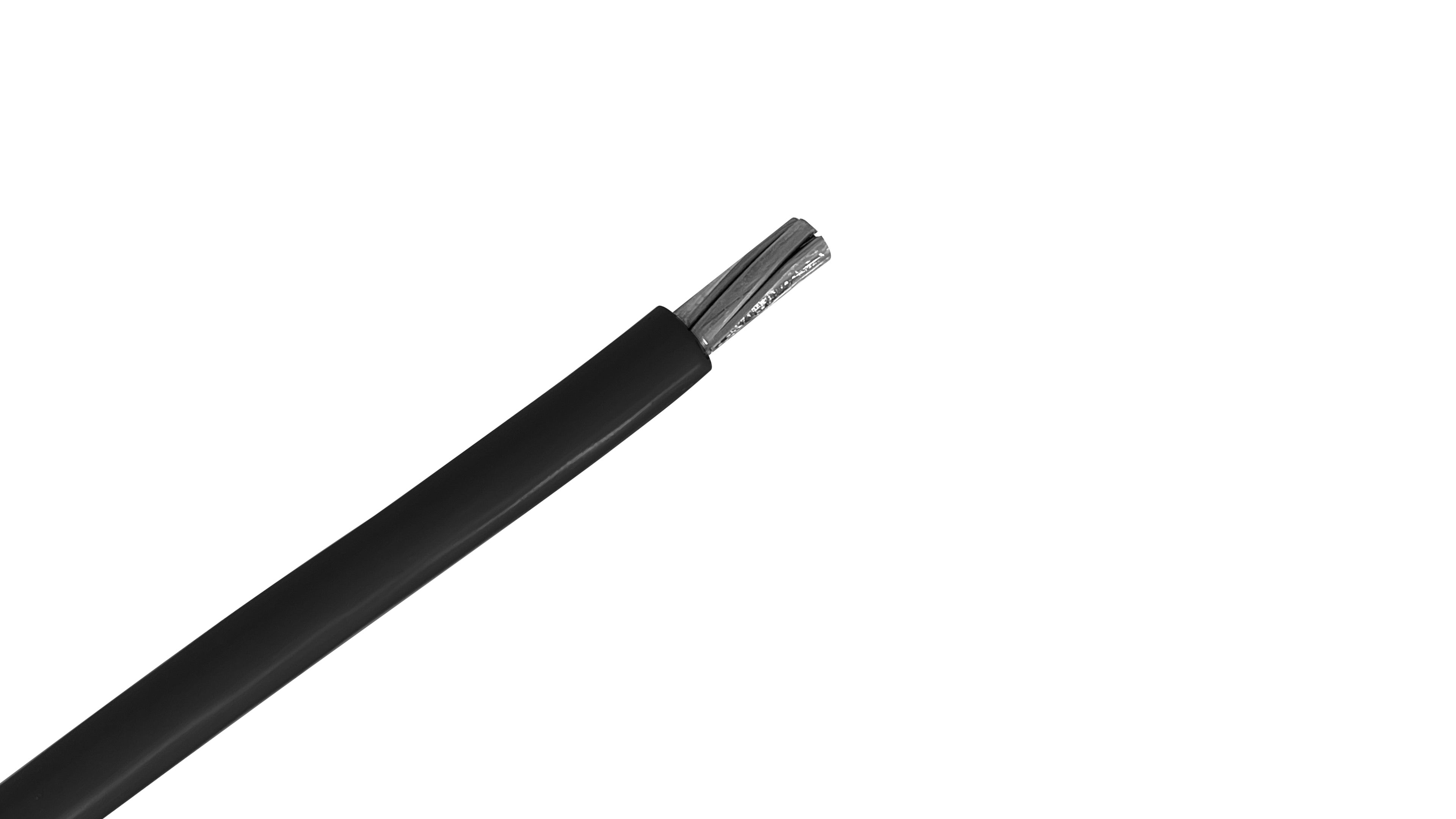

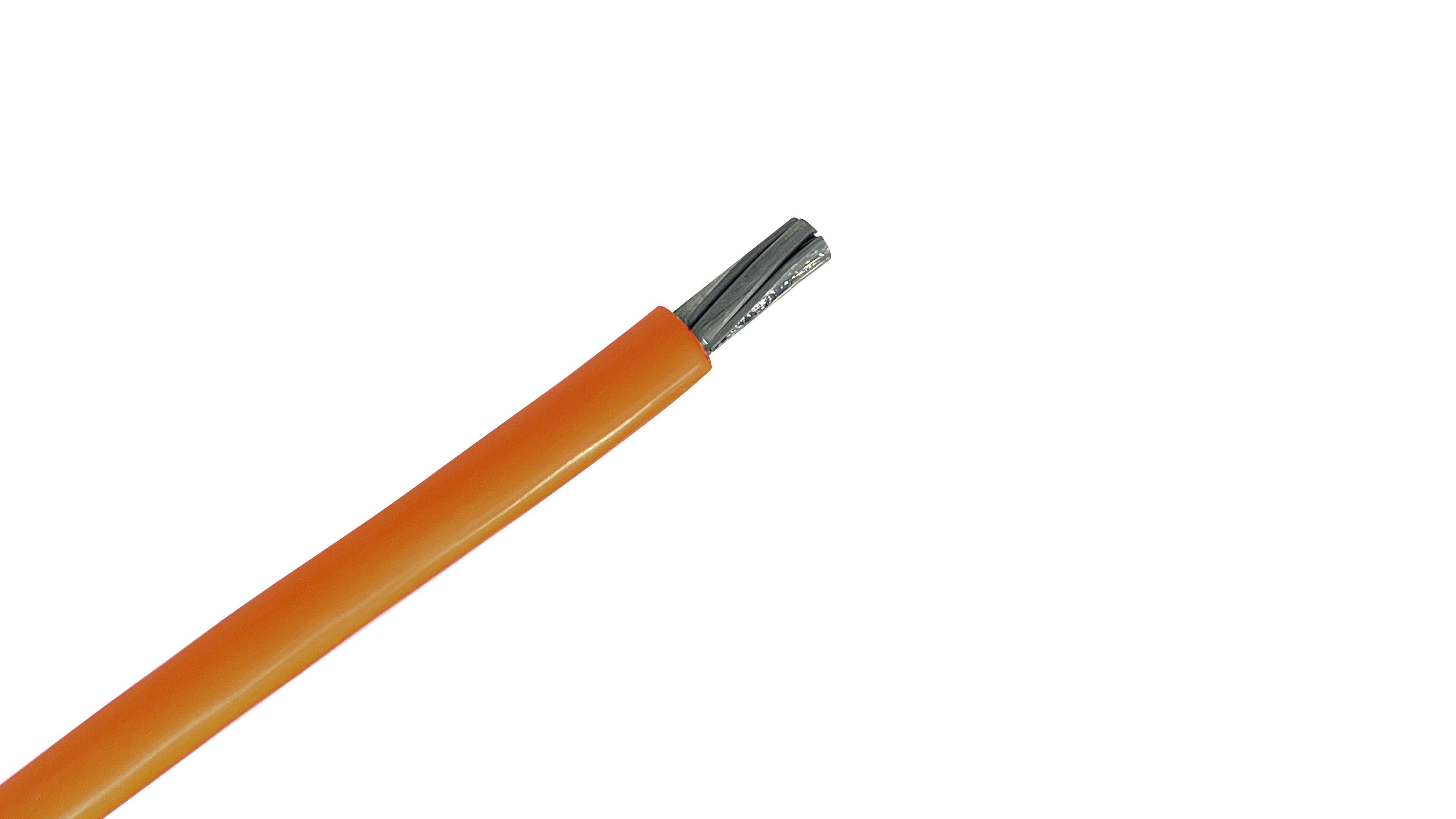

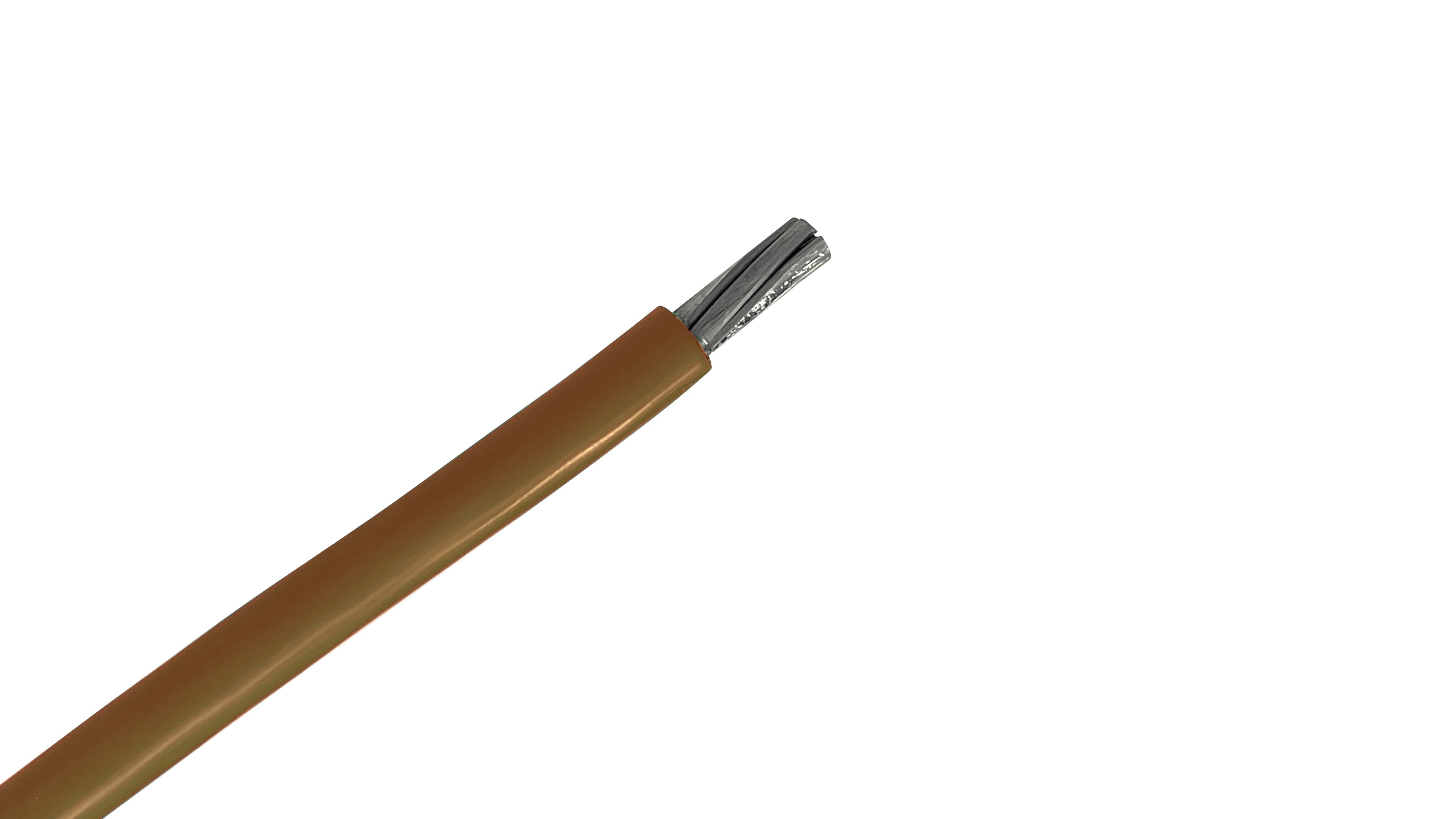

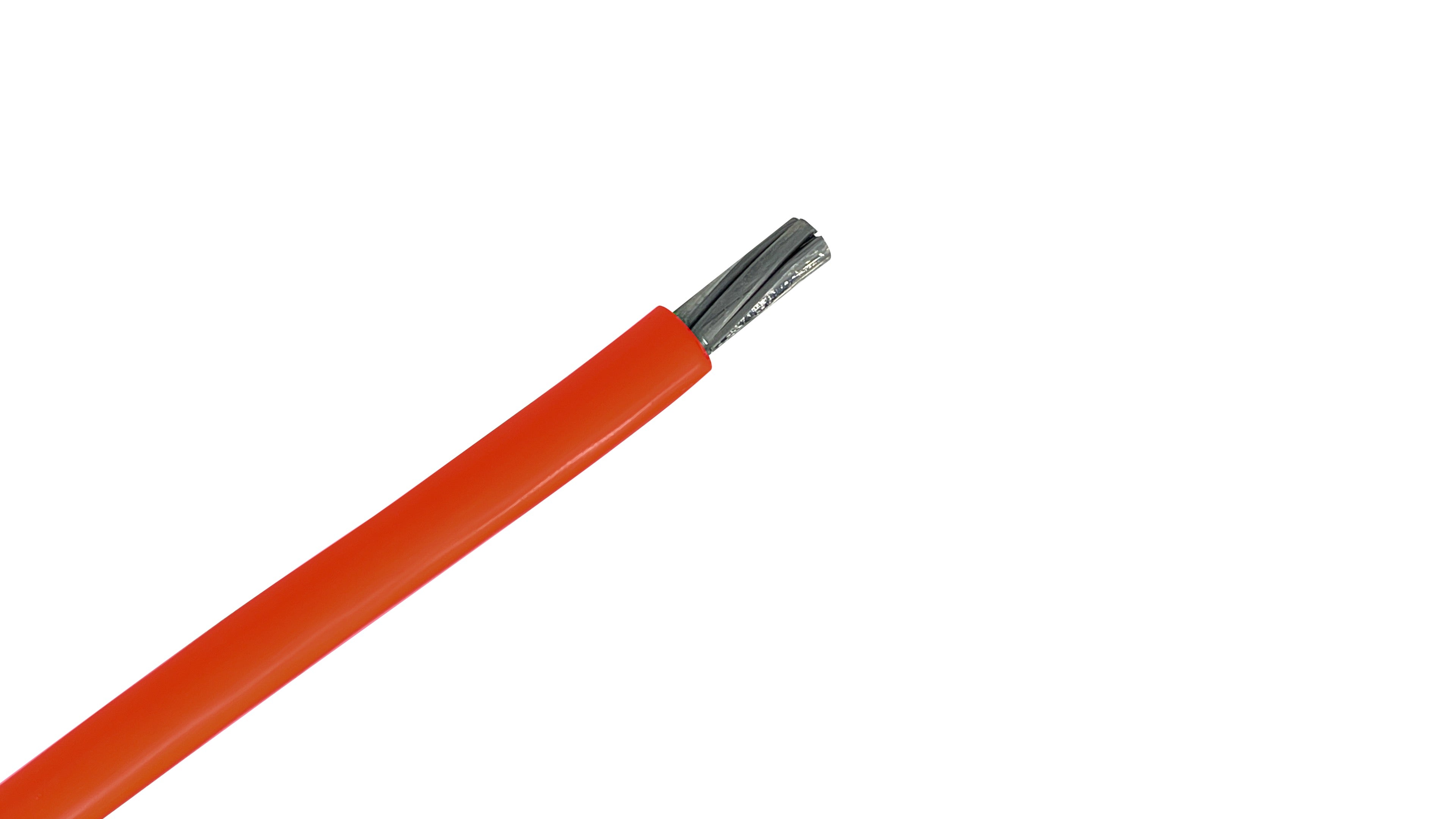

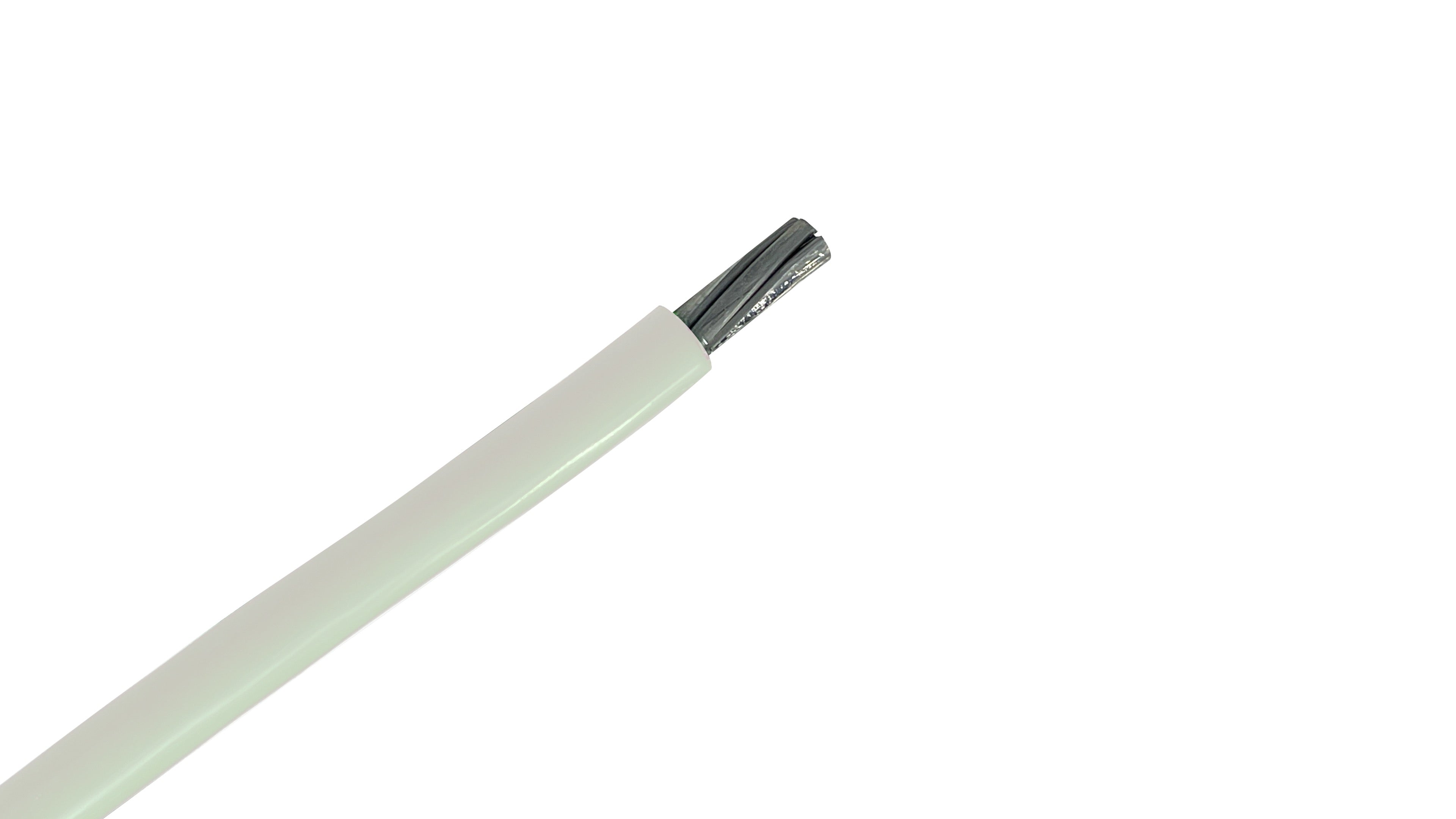

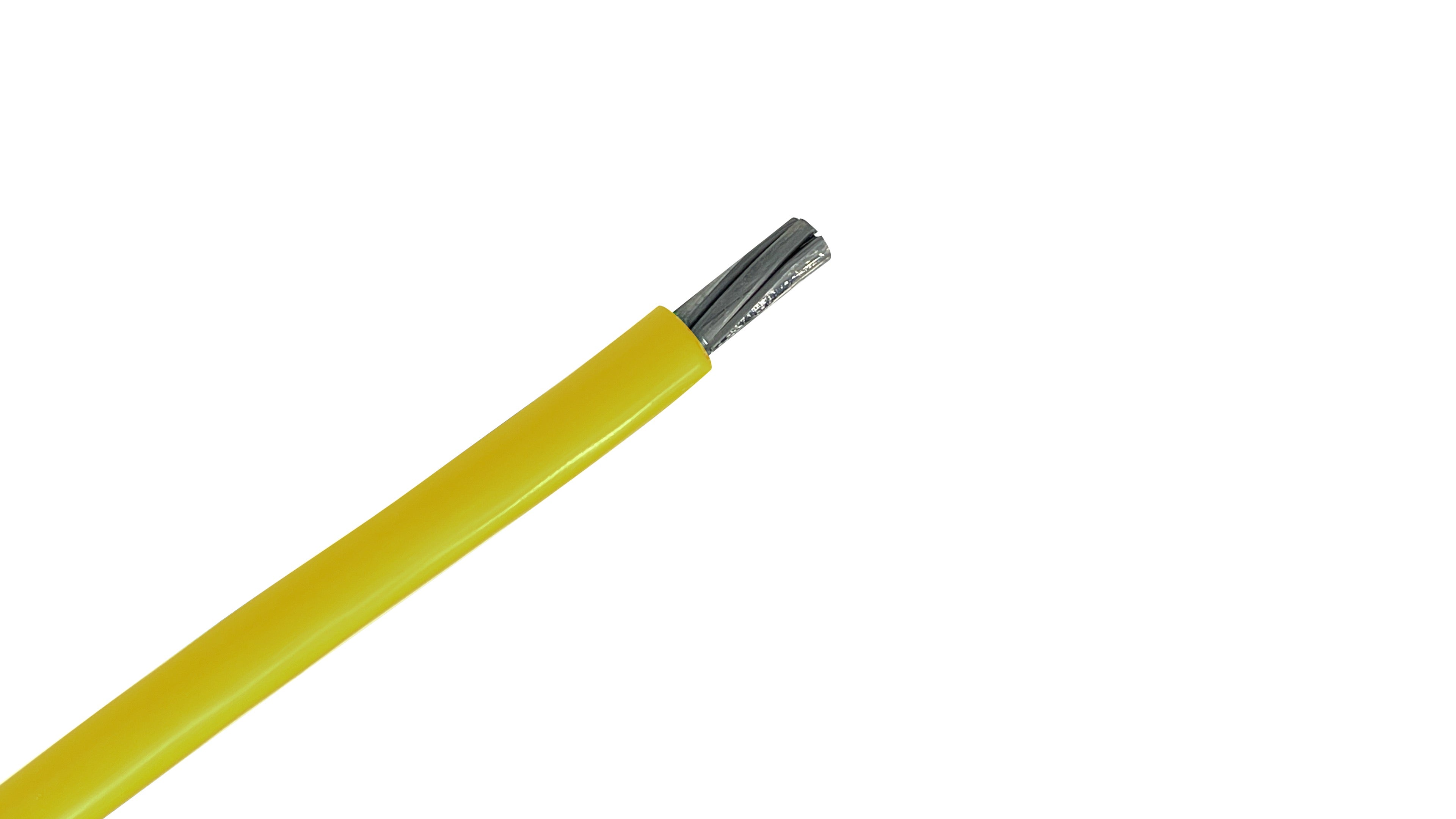

• Phase Color Selection: Offered in Black, Red, White, Green, Blue, Orange, Brown, Yellow, Gray, and Purple for instant phase identification (check the dropdown above for real-time stock).

• Cut-to-Length or Bulk Spools: Order custom lengths cut by the foot to minimize job-site scrap, or purchase bulk spools for high-volume commercial runs.

Technical Specs: 500 MCM Aluminum XHHW-2 Wire

• Conductor Size: 500 MCM (kcmil)

• Conductor Material: AA-8000 Series Compact Stranded Aluminum Alloy (Class B)

• Conductor Diameter: 0.736 inches (18.69 mm)

• Insulation Material: Cross-Linked Polyethylene (XLPE / XLP)

• Insulation Thickness: 0.065 inches (1.65 mm)

• Overall Diameter: 0.869 inches (22.07 mm)

• Approximate Net Weight: 556 lbs per 1,000 ft

• Ampacity (@ 75°C Terminal Rating): 310 Amps

• Ampacity (@ 90°C Terminal Rating): 350 Amps

• Voltage Rating: 600V / 1000V (XHHW-2) | 600V (RW90)

• Temperature Rating: -40°C to 90°C (Wet or Dry)

• Compliance Standards: UL 44 / CSA C22.2 No. 38, UL 1685, ANSI/NEMA WC-70 / ICEA S-95-658, ASTM B800 & B801, Federal Spec A-A-59544A, NFPA 70 (NEC), CSA C22.1

Common 500 MCM Aluminum XHHW-2 Applications

• 310A–350A Commercial Feeder Services: Supplying primary power to 300 Amp and 350 Amp main distribution panels, commercial subpanels, and industrial service equipment.

• Parallel Feeder Runs for 600A–1200A+ Systems: High-capacity workhorse size commonly run in parallel conduit sets to feed 600A, 800A, 1000A, or 1200A commercial main service gear.

• Heavy Industrial & Solar Power Plants: Routing heavy main distribution feeders through underground PVC or metallic conduit for large utility-scale solar arrays, manufacturing facilities, and commercial chiller plants.

DISCLAIMER: All values are nominal and subject to correction. Ampacities for not more than three conductors in raceway or cable or earth (directly buried), based on ambient temperature of 30°C per Table 310.16 of the National Electrical Code.
