500 MCM 3C TECK90 Cable with Ground - 1000V Aluminum Interlocked Armor (AIA)

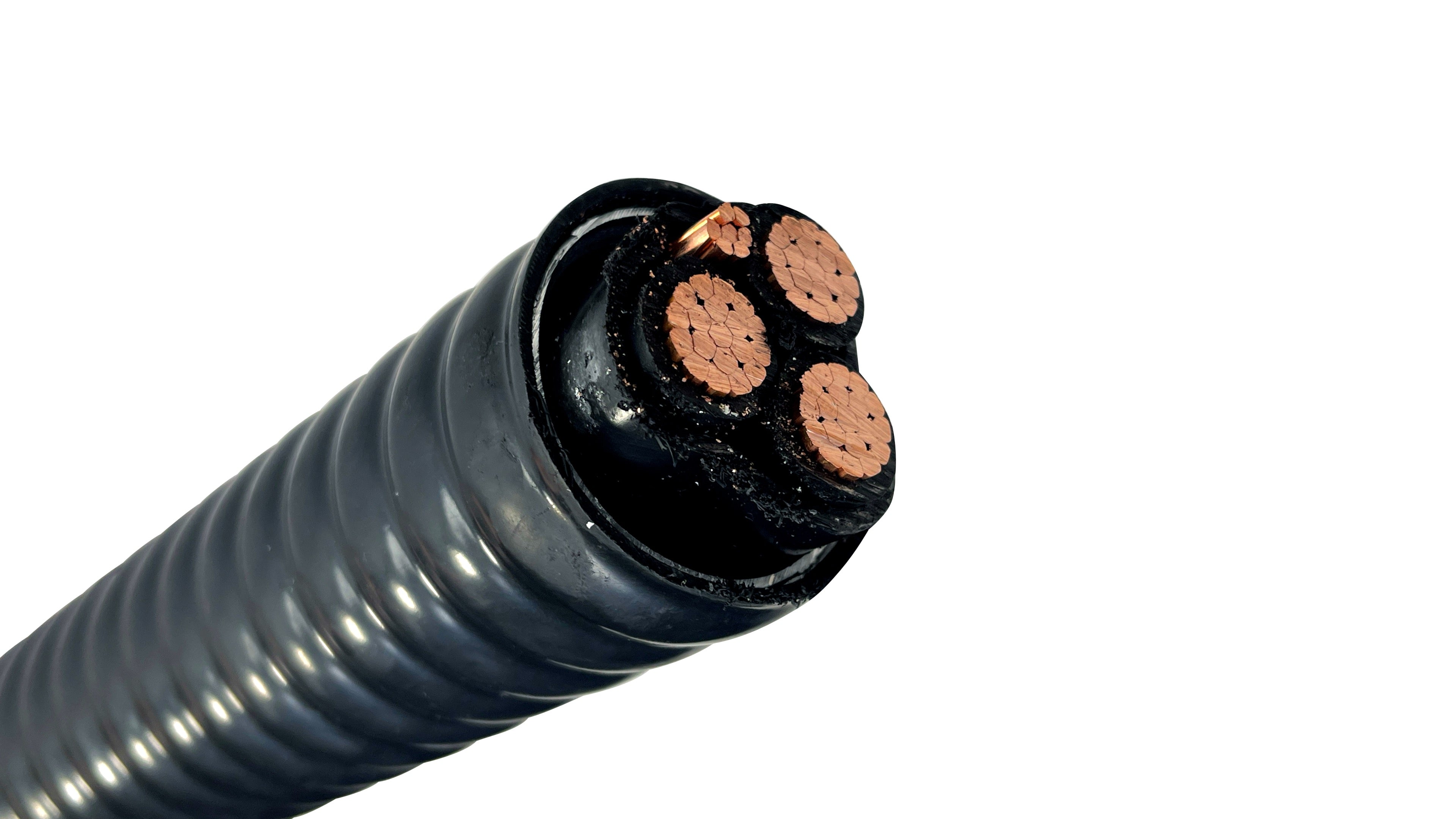

Engineered for harsh industrial and heavy-utility applications, 500 MCM 3-Conductor TECK90 Armored Cable delivers complete 1000V 3-phase power and circuit protection without installing rigid conduit runs.

Featuring three (3) stranded copper conductors, a 3 AWG bare ground wire, dual PVC jackets, and flexible Aluminum Interlocked Armor (AIA), it transitions seamlessly from indoor cable trays and concrete barriers directly into outdoor aerial runs or subterranean direct-burial trenches.

Key Features & Benefits: 500-03 TECK90 Armored Cable 1000V

• Dual-Jacket Direct Burial Protection: The inner bedding PVC cushions the core, while the heavy-duty -40°C outer PVC jacket seals the aluminum armor against water, corrosive soil chemicals, and mechanical abrasion.

• 1000V Heavy-Duty Rating: Built with RW90 XLPE thermoset insulation rated up to 1000V and continuous operating temperatures from -40°C to +90°C in wet or dry locations.

• 3-Phase Power Architecture: Features three 500 MCM stranded bare copper circuit conductors and a 3 AWG bare copper ground wire for high thermal efficiency and continuous 430A load capacity.

• Flexible Interlocked Armor (AIA): The aluminum interlocked armor shields internal conductors from crushing loads and physical impacts while keeping the assembly flexible during pulls.

• Hazardous Location & Acid Gas Certified: Rated CSA HL, FT1/FT4 flame resistant, IEEE 1202, and AG14 compliant for harsh chemical and petrochemical plants.

Technical Specifications: 500 MCM 3C TECK90 Armored Cable

• Conductor Size: 500 MCM (kcmil)

• Number of Power Conductors: 3

• Conductor Material: Class B Stranded Soft-Drawn Bare Copper (ASTM B8)

• Ground Wire Size: 3 AWG Uninsulated Bare Stranded Soft Drawn Copper

• Insulation Type: Cross-Linked Polyethylene (XLPE) / Type RW90

• Insulation Thickness: 0.090 inches

• Inner Jacket: Lead-free, Flame-Retardant, Moisture- & Sunlight-Resistant Black PVC

• Armor Type: AIA (Aluminum Interlocked Armor)

• Protective Outer Jacket: -40°C Black PVC (Water, Chemical, Sunlight & Abrasion Resistant)

• Voltage Rating: 1000 Volts (1kV)

• Temperature Rating: -40°C Minimum / +90°C Continuous Operation

• Ampacity Rating (@ 90°C): 430 Amps (per CE Code Part 1, Table 2)

• Armor Diameter: 2.52 inches

• Approximate Outer Diameter: 2.66 inches

• Approximate Net Weight: 6,586 lbs per 1,000 ft

• Compliance Standards: CSA C22.2 No. 131, CSA C22.2 No. 174 (Hazardous Locations), CSA FT1, CSA FT4, IEEE 383, UL 1581, IEEE 1202, ICEA T-30-520, RoHS Compliant

💡 Technical Installation Note: Approved wet-location/explosion-proof TECK glands (such as Star Teck or TMC series) must be utilized to ensure proper ground bonding continuity and maintain watertight seals at enclosures.

Common 500 MCM 3C TECK90 Cable Applications

• Industrial Machinery & Motor Feeds: Delivering power to localized sub-panels, large HVAC equipment, commercial pumps, and three-phase branch circuits.

• Pulp, Paper, and Chemical Facilities: Routing sub-feeder power lines through highly corrosive processing bays, wet areas, and acid-gas environments.

• Mining & Generating Stations: Transitioning electrical loads across open racks, building gaps, and underground utility paths.

• Direct-Burial & Utility Infrastructure: Laid directly into underground trenches, parking lot lighting loops, or encased in outdoor concrete envelopes.
