4 AWG Central Office Power Cable, L2, 600V

Parent SKU :  COP4-L2

SKU :  COP4-L2-250-RD

FOR POWER DISTRIBUTION IN TELECOM, CENTRAL OFFICES & DATA CENTER BATTERY SYSTEMS
Download Spec Sheet
4 AWG Central Office Power Cable, L2, 600V, Red

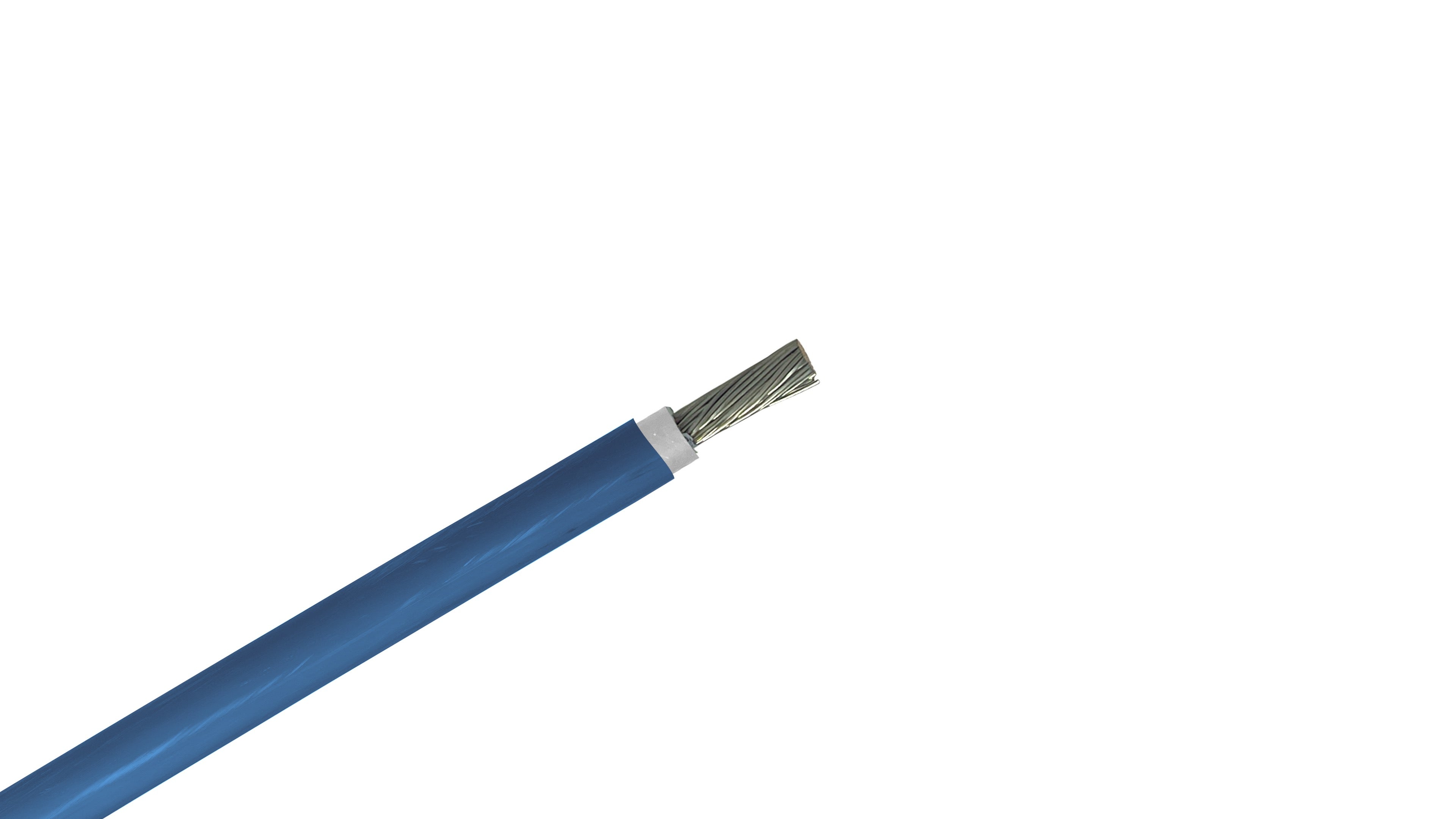

4 AWG Central Office Power Cable, L2, 600V, Blue
4 AWG Central Office Power Cable, L2, 600V, Gray

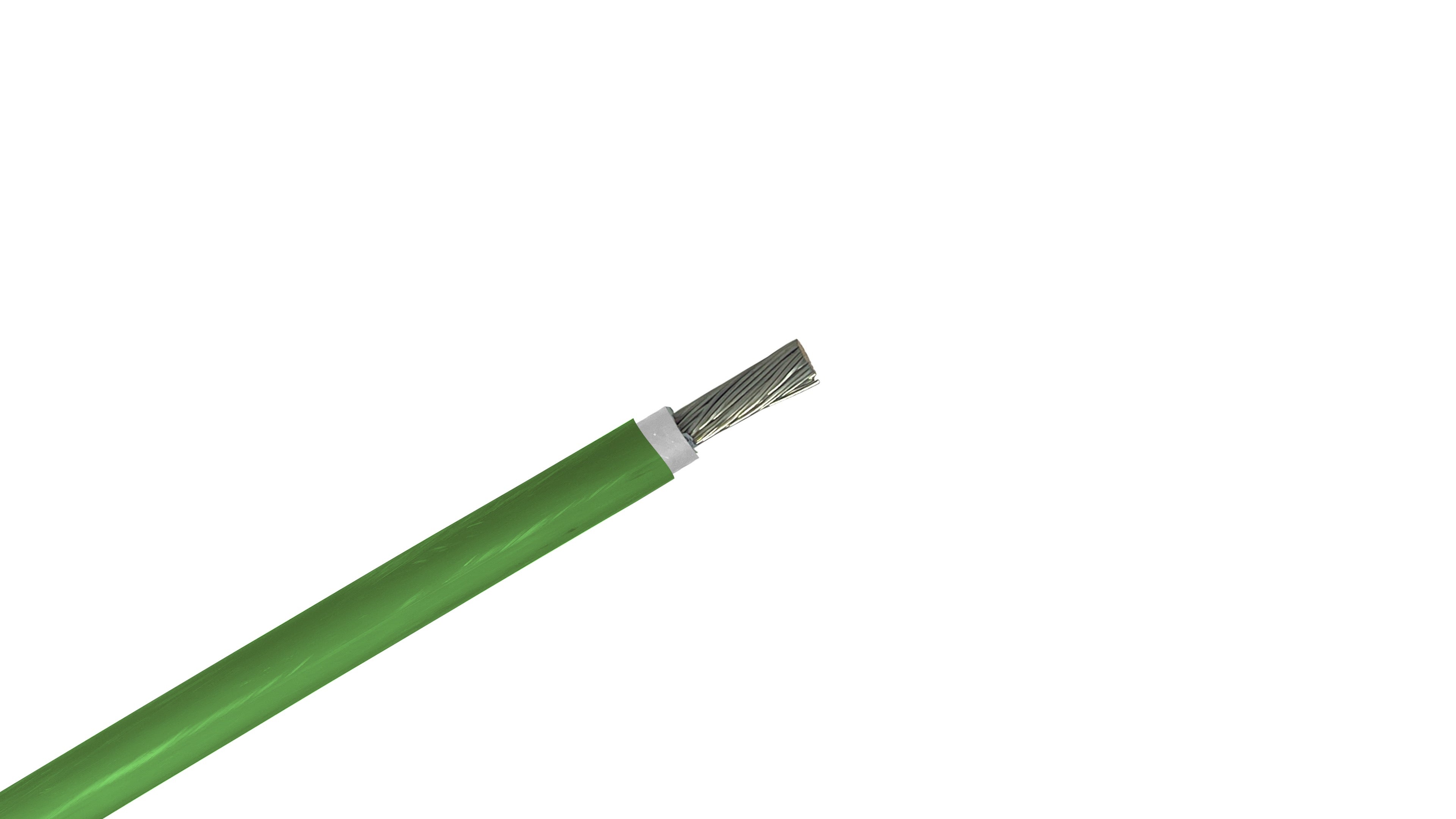

4 AWG Central Office Power Cable, L2, 600V, Green

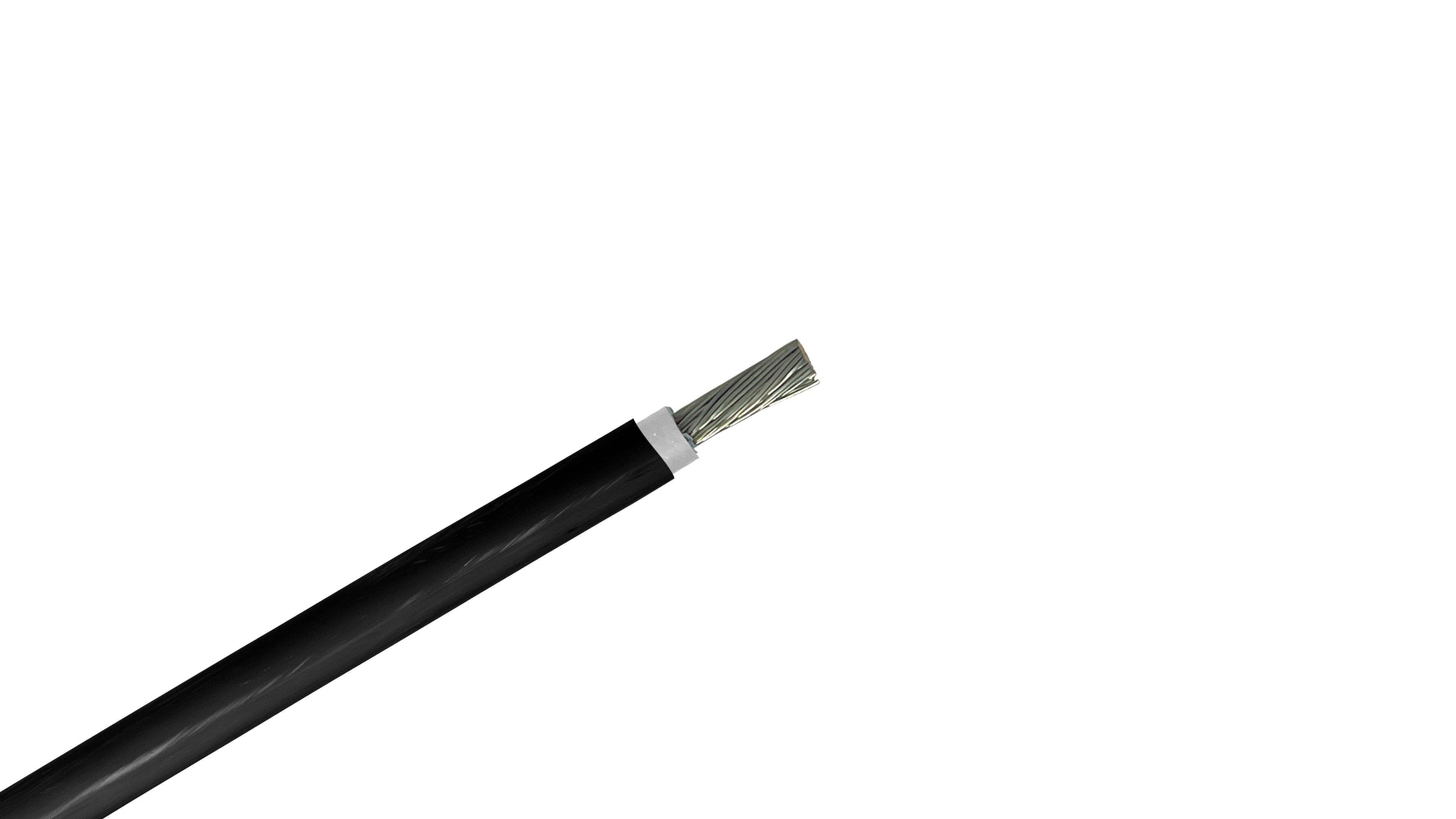

4 AWG Central Office Power Cable, L2, 600V, Black
1/5
Wire Size 4 AWG
Conductor Material Tinned Copper
Strand Count 105
Outer Diameter 0.385 in. / 9.78 mm
Ampacity Rating 95
Weight per Foot 0.186 lb
Download Spec Sheet

Product Details

Product Details
APPLICATION:
Type L2 Central Office Power Cable is a rugged; RHH/RHW rated wire for 600V applications. Central Office Power Cable is suitable for use in telecommunication applications and for power distribution of AC and DC power in conduit or cable trays. Central Office Power Cable is available in a variety of colors.

CONDUCTORS:
Class I stranded tinned copper conductor for increased flexibility in accordance with ASTM B-33 & B-172 and covered with a mylar tape

COLOR CODE:
Red, Blue, Gray, Green or Black

INSULATION:
Low Smoke Zero Halogen LSZH cross linked polyolefin XLPO insulation, which is rated 90°C. Maximum conductor operating temperature: 90°C dry, 75°C wet or dry, maximum short circuits 250°C

AMP RATING:
95

MAX DC RESISTANCE @20C:
0.2740 ohms/kft

TEMPERATURE RATING:
90°C Dry
75°C Wet or Dry

All values are nominal and subject to correction
Ampacity based on NEC table 310.15(B)(16) for no more than three current-carrying conductors in raceway, cable, or earth at 90ËšC conductor temperature and 30ËšC ambient air temperature

Full Specifications

Full Specifications
Download Spec Sheet

Physical Specifications

Wire Size (AWG/MCM) 4 AWG
Conductor Material Tinned Copper
Conductor Type Stranded
Strand Count 105
Outer Diameter (OD) (in/mm) 0.385 in. / 9.78 mm
Conductor Count 1
Shield Unshielded
Insulation Type LSZH (XLPO) Cross Linked Polyolefin
UL Listing Numbers UL 1685, UL 44

Technical Specifications

Voltage Rating 600V
Ampacity Rating 95
Submersible No
Temperature Rating 90°C
Standards UL listed Power Cable for Telephone Central Office Applications
1/0 and larger listed and marked FT4 and for CT use
ST1 per UL1685 Vertical Tray Flame Test,
Meets UL VW-1 flame test
Passes IEEE 1202, FT4 Vertical Tray Flame Test
UL 44 Thermoset Insulated Wires and Cables
Meets Telecordia specification GR-347-CORE
CSA C22.2 No. 38 Thermoset-Insulated Wires and Cables, RW90
Miscellaneous Information All values are nominal and subject to correction. Ampacity based on NEC table 310.15(B)(16) for no more than three current-carrying conductors in raceway, cable, or earth at 90ËšC conductor temperature and 30ËšC ambient air temperature
Industry Standards Met List 2

Usage & Installation

Primary ApplicationsAccess Network Equipment, Edge Routing and Switching, Customer-Facing Services (Non-Core Criticality), Support and Monitoring Systems.
Common Uses
  • DSLAMs (Digital Subscriber Line Access Multiplexers)
  • Optical Line Terminals (OLTs)
  • Cell Site Baseband Units (BBUs)
  • Passive Optical Network (PON) Equipment
  • Edge Routers/Switches
  • Voice over IP (VoIP) Gateways
  • Local Network Monitoring Stations
  • Building Management Systems (BMS).

Packaging & Dimensions:

Weight per Foot 0.186 lb

Shipping and Returns

Shipping and Returns

General Shipping Information

In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.

You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.

Expedited Shipping

Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).

Returns

You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.

Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.

Orders on any items with a material value of $50 or less are non-returnable.

Central Office Power Cable, L2
