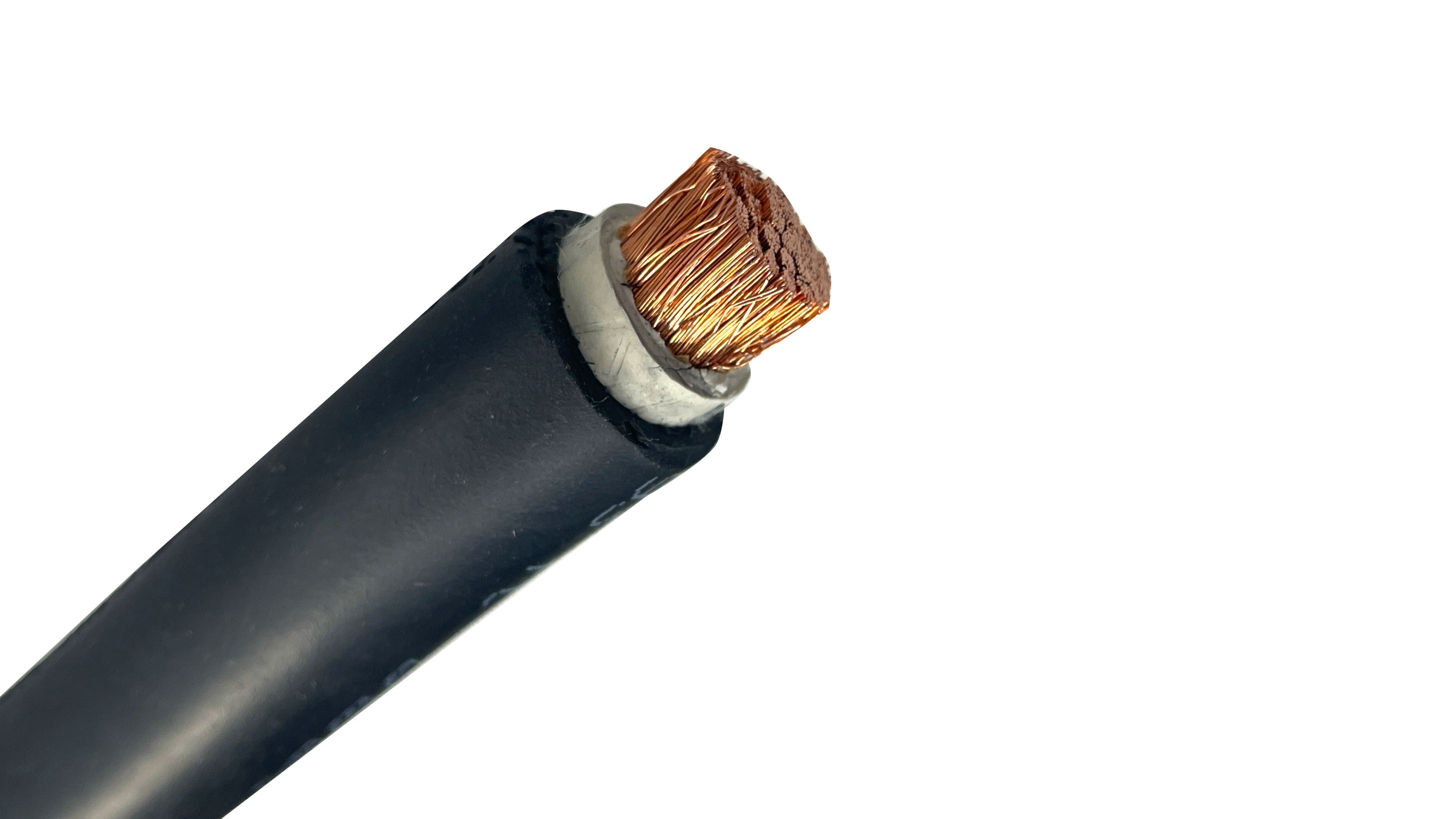

4/0 1C Type W Portable Power Cable, 2000V

4/0 AWG 1-Conductor Type W Portable Power Cable is an extra-flexible 2000V industrial cable engineered for temporary power distribution, mobile equipment, and generator leads. Built with 2007-strand bare copper, EPR insulation, and a heavy-duty CPE jacket, it resists severe abrasion, oil, and extreme cold down to -40°C. Dual-rated as Type RHH/RHW-2 (600V) under UL 44, it smoothly transitions from temporary jobsite leads to permanent cable tray and raceway installations.

Key Features & Benefits

• Extreme Flexibility & High-Strand Copper: Built with 2000+ fine strands of bare copper (ASTM B3), offering effortless bendability that resists metal fatigue, kink damage, and strand cracking under continuous dragging, reeling, and tight jobsite turns.

• Ultra-Rugged Thermoset CPE Jacket: Heavy-duty, pressure-extruded Chlorinated Polyethylene (CPE) outer sheath delivers maximum resistance to severe mechanical impact, crushing, tire run-overs, sharp rock abrasion, oil, grease, and aggressive chemicals.

• Extreme Weather & UV Protection (-40°C to +90°C): Engineered to be highly ozone, sunlight (UV), weather, and flame resistant while enduring light water immersion. It remains 100% pliable in sub-zero cold down to -40°C while delivering full 90°C wet/dry thermal protection under direct sun.

• 2000V Industrial Heavy-Duty Power Rating: Engineered with high-dielectric Ethylene-Propylene Rubber (EPR) insulation to deliver 2000V power density, handling heavy current loads without thermal breakdown or electrical leakage.

• Dual-Rated Compliance (Type W / RHH/RHW-2): Operates as a 2000V portable trailing cable under UL 1650 / NEC Article 400 AND as a 600V permanent RHH/RHW-2 building wire under UL 44, allowing for direct installation in permanent cable trays and conduit.

• Internal Reinforcement Tape: Features a single-faced rubber-filled binder tape applied over the insulation core to lock the jacket in place and prevent sleeve slippage under high drag tension.

Technical Specifications

Engineering Overview

• Voltage Rating: 2000 Volts (Type W) / 600 Volts (RHH/RHW-2).

• Ampacity: 405 Amps (Based on 90°C conductor temperature and 30°C ambient temperature per NEC Table 400.5(A)(2)).

• Conductor Material: Extra-flexible stranded bare copper (1 conductor, 4/0 AWG, 2007 wires).

• Conductor Separator: Suitable tape separator applied between conductor and insulation.

• Insulation Material: Ethylene-Propylene Rubber (EPR), 0.080" (2.03 mm) nominal thickness.

• Reinforcement: Single-faced rubber-filled binder tape over insulation core.

• Jacket Material: Heavy-duty Black Chlorinated Polyethylene (CPE) thermosetting compound.

• Outside Diameter: 0.92 inches (23.3 mm) nominal.

• Approximate Net Weight: 878 lbs / 1,000 ft (1307 kg/km).

• Minimum Bending Radius: 6 x overall cable outer diameter.

• Temperature Rating: -40°C to +90°C (Wet or Dry).

• Approvals & Compliance: UL Listed (E207132 - Sunlight Resistant, Oil Resistant, 90°C Wet or Dry), C(UL) FT1/FT5 (-40°C to +90°C), MSHA Approved (P-7K-268101), ASTM B3, UL 44, UL 1650, CSA C22.2 No. 96-17, RoHS Compliant.

• Common Applications: Temporary power systems, industrial machinery leads, commercial battery banks, generator power tails, and permanent cable tray installations.

(Note: All values are nominal and subject to correction.)

• Portable Diesel Generator Pigtails: Heavy-duty feeder lines for connecting 405A power tails from high-capacity mobile diesel generators to site distribution boards.
• DC Battery Bank & Inverter Wiring: High-amp flex jumper cables for utility-scale battery energy storage systems (BESS), large UPS backups, and commercial solar array inverters.
• Permanent Industrial Cable Trays: UL 44 (RHH/RHW-2) compliant single-conductor feeds installed in ladder racks inside processing plants, paper mills, and heavy manufacturing sites.
• Open-Pit Mining & Dewatering: Dynamic trailing cable powering heavy mobile dewatering pumps, conveyors, and portable crushers in severe rock-abrasion environments.
• Shipyard Shore Power & Welding: Heavy-duty feeds supplying temporary shore-to-ship connections, dry dock maintenance boards, and high-output multi-operator arc welders.
• Concert & Event Power Feeds: Main temporary outdoor event distribution lines laid across pavement, mud, and dirt subjected to severe foot traffic and utility vehicles.

Real-world application examples are provided for educational and general planning purposes only. Project requirements vary based on system design, environmental factors, and local codes. Buyers and specifiers are responsible for verifying that all materials meet exact job specifications and comply with NEC and local electrical regulations. Always consult with a licensed electrician prior to installation.
