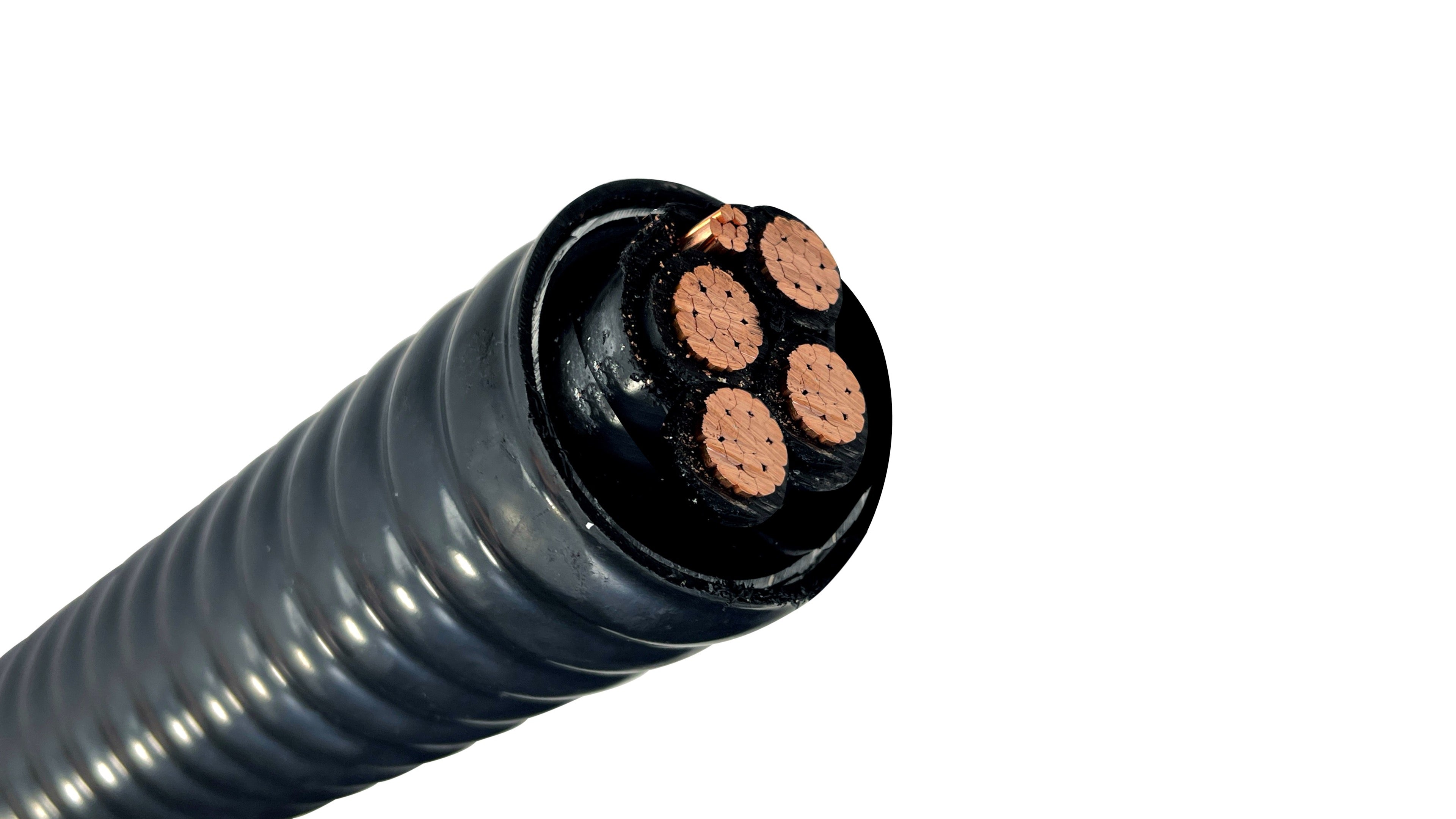

4/0-4C TECK90 Cable with Ground, Aluminum Interlocked Armored 1000V

Parent SKU :  4/0-4TECK90

SKU :  4/0-4TECK90-250

ALUMINUM INTERLOCKED ARMOR • DOUBLE PVC JACKETED • DIRECT BURIAL RATED
Download Spec Sheet
Wire Size 4/0
Conductor Material Copper
Conductor Type Stranded
Outer Diameter 2.31 in. / 58.67 mm
Conductor Count 4
Voltage Rating 1000V
Ampacity Rating 260
Weight per Foot 4.15 lb
Download Spec Sheet

Get Product Details

Get Product Details
APPLICATION:
Teck 90 Cables are for use in power, control and lighting circuits at industrial and chemical plants, pulp and paper mills, steel mills, mines, power generating facilities, food processing plants and commercial centers. It is suitable for installation in wet or dry locations in troughs, trays and in direct burial applications. Teck 90 is for applications up to 1000 volts and temperatures from -40°C to +90°C.

CONDUCTORS:
Class B stranded bare copper compressed concentric round to ASTM B8

COLOR CODE:
Black with numbers printed

GROUND:
1 #4 Uninsulated bare stranded soft drawn grounding conductor

INSULATION:
Cross-Linked Polyethylene (XLPE) insulation, Type RW90


INNER JACKET:
Lead-free, flame-retardant, moisture- and sunlight-resistant black Polyvinyl Chloride (PVC)

OUTER JACKET:
-40°C black Polyvinyl Chloride (PVC) outer jacket, which is water, chemical, sunlight and abrasion resistant

ARMOR:
Aluminum Interlocked Armor (AIA)



All values are nominal and subject to correction
*Ampacity is based on CE Code Part 1, Table 2 for 3 conductors in raceway (conduit). Ampacity of 4 conductor cable is based on 3 current-carrying conductors and 1 neutral. Ampacity at 5 or more conductors is modified by Table 5C.

See Full Specifications

See Full Specifications
Download Spec Sheet

Physical Specifications

Wire Size (AWG/MCM) 4/0
Conductor Material Copper
Conductor Type Stranded
Outer Diameter (OD) (in/mm) 2.31 in. / 58.67 mm
Jacket Type Polyvinyl Chloride (PVC)
Conductor Count 4
Shield Unshielded
Insulation Type Cross-Linked Polyethylene (XLPE)
UL Listing Numbers UL 1581

Technical Specifications

Voltage Rating 1000V
Ampacity Rating 260
Direct Burial Rating Yes
Submersible No
Sunlight Resistance Rating Yes
Temperature Rating -40°C to +90°C
Standards CSA C22.2, No. 131
CSA C22.2, No. 174
CSA FT1 and FT4 flame test
IEEE 383 (70, 000 BTU/hr)
UL 1581 (70, 000 BTU/hr)
IEEE 1202 (70, 000 BTU/hr) CSA FT4
ICEA T-30-520 (70, 000 BTU/hr)
RoHS Compliance Yes

Usage & Installation

Primary ApplicationsPower, Control, Lighting Circuits

Packaging & Dimensions:

Weight per Foot 4.15 lb
