4/0-3C Shielded VFD Cable W/ 3 #2 Grounds

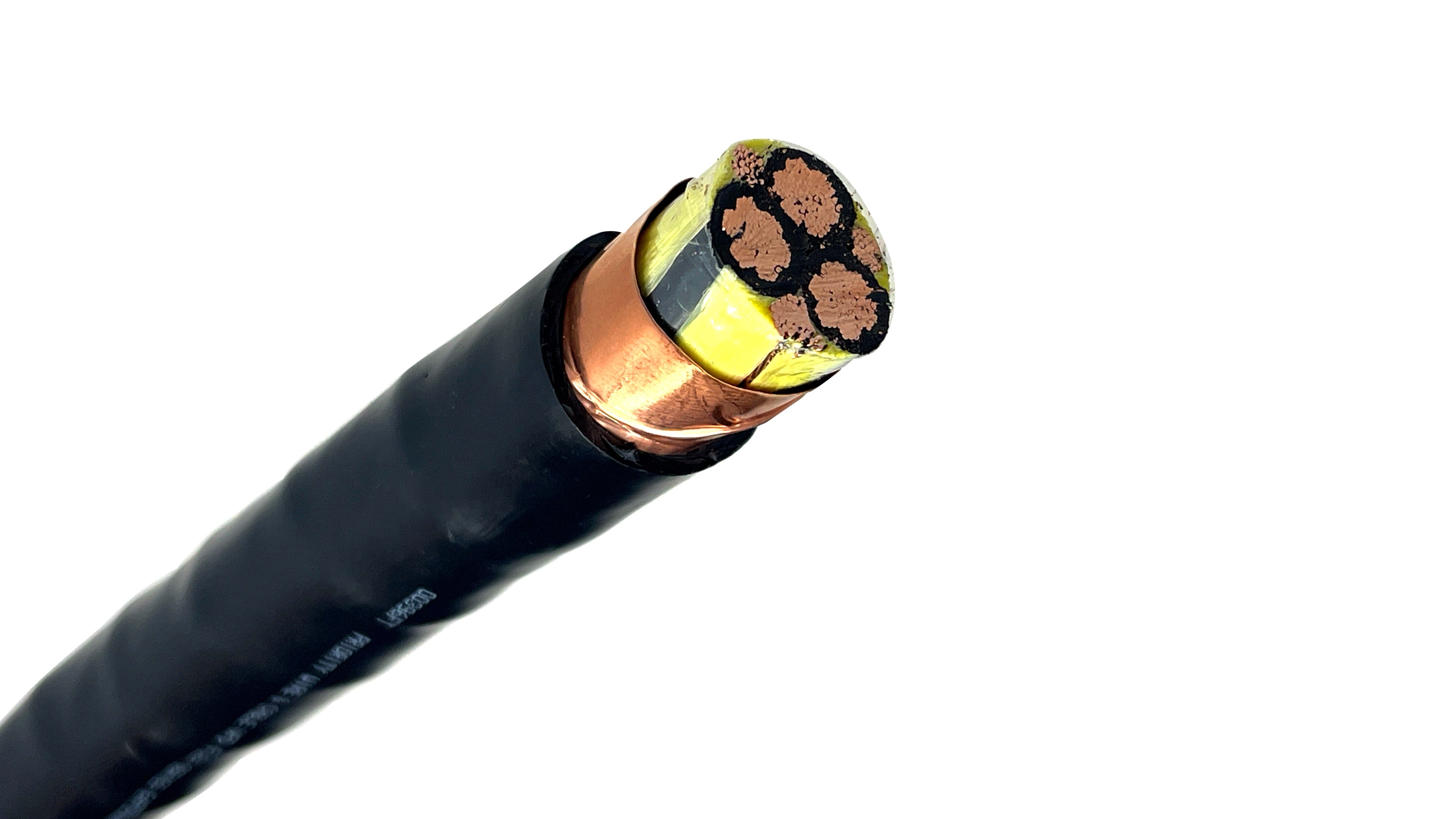

"4/0-3 Shielded VFD Cable W/ 3 #2 Grounds is a heavy-duty, 600V TC-ER / 1000V Flexible Motor Supply rated cable engineered for high-amperage Variable Frequency Drive systems. Constructed with three 4/0 AWG stranded bare copper conductors, XLPE insulation, a 0.005" helical bare copper tape shield with 50% overlap, and three #2 AWG bare copper grounds, this cable provides reliable motor power and heavy-duty noise suppression. Its rugged, direct-burial rated PVC outer jacket resists sunlight, moisture, oil, and abrasion across temperatures ranging from -40°C to 90°C."

Key Features & Benefits: 4/0-3C VFD Cable

Standard power cable breaks down rapidly under PWM voltage spikes and floods adjacent control systems with severe noise. This specialized 3-conductor VFD cable solves these jobsite failures:

• 0.005" Helical Bare Copper Tape Shield: Built with a heavy-duty 0.005" copper tape shield wrapped with a 50% overlap to trap high-frequency noise and protect nearby sensors or PLCs.

• 3 Symmetrical #2 AWG Grounds: Features three stranded bare copper grounds evenly distributed to balance magnetic fields and provide a low-impedance path for stray currents.

• Exposed Run (TC-ER) Rated: Complies with UL 1277 for continuous installation out of cable trays to the motor without rigid metal conduit.

• Heavy-Duty Industrial Jacket: Sunlight, oil, moisture, and abrasion resistant black PVC jacket (0.110" thickness) approved for direct burial in wet or dry environments (-40°C to 90°C).

• Simplified Landing & Termination: The 3-conductor layout with symmetrical grounds simplifies wire routing into cramped VFD enclosures, reducing installation time and overall labor costs.

Technical Specifications: 4/0-3 Shielded VFD Cable W/ 3 #2 Grounds

ENGINEERING OVERVIEW: 4/0 AWG 3C VFD Cable

• Application: Designed for Variable Frequency Drives in applications where an insulated ground is not required.

• Voltage Rating: 600 Volts (UL Type TC-ER) / 1000 Volts (UL Type Motor Supply / WTTC per UL 2277).

• UL Listings: UL 1277 (Type TC-ER), Type XHHW-2, UL 2277 (WTTC).

• Conductor Material: Stranded soft drawn bare copper (4/0 AWG, 133 stranding).

• Ground Wire(s): Three stranded soft drawn bare copper grounds (3#2 AWG).

• Insulation: Thermoset Cross-Linked Polyethylene (XLPE / XLP) (0.055" / 1.40 mm thickness).

• Shielding: 0.005" helical bare copper tape shield with a 50% overlap.

• Color Code: Black insulation with ICEA Method 4 printed numbers ("1-One", "2-Two", "3-Three").

• Jacket Material: Black Polyvinyl chloride (PVC) (0.110" / 2.79 mm thickness).

• Temperature Rating: -40°C to 90°C (90°C Wet/Dry).

• Cable Outer Diameter: 1.73 inches (43.99 mm).

• Compliance Standards: CSA FT-4 vertical tray flame test; CSA AWM I/II A/B singles; C(UL) CIC-TC per CSA C22.2 No. 239 & 230; Meets UL 1202/1583 (70,000 BTU) & ICEA T-29-520 (210,000 BTU) flame tests; Class I Division II Hazardous Location suitable; RoHS II & REACH compliant.

Common 4/0-3 VFD Cable Applications

• Heavy Industrial Conveyors & Primary Drives: Delivering clean power to 4/0 AWG 3-phase motor loads while blocking EMI from reaching nearby control panels.

• Large-Scale HVAC & Chiller Systems: Powering high-horsepower variable speed supply fans, central plant chillers, and industrial pumping systems.

• Process Machinery Interconnects: Interconnecting heavy processing equipment in station trays with streamlined termination.

• Outdoor & Wash-Down Drives: Powering variable-speed drives in wet, direct burial, or outdoor environments where oil and UV resistance are required.

Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.

• Industrial Conveyors & Material Handling Systems: Delivers reliable power to 4/0 AWG motor loads across automated distribution centers, sorting lines, and material handling plants. Heavy-duty copper tape shielding prevents VFD noise from interrupting optical sensors and PLC logic.
• Commercial & Industrial HVAC Systems: Powers high-horsepower variable frequency drive fan motors, chillers, and large cooling towers. Engineered with high-dielectric XLPE insulation, it absorbs destructive reflected wave voltage spikes to protect motor windings from insulation breakdown.
• Municipal Water Treatment & Pumping Stations: Ideal for variable-speed booster pumps, blowers, and sludge processing equipment. Its heavy-duty 0.110" PVC jacket is oil, moisture, and chemical resistant, making it suitable for direct-burial runs between control buildings and outdoor drive motors.
• Factory Automated Machinery & Robotics: Handles high-frequency switching environments in automated machinery, machine tools, and stationary tray interconnects. The 133-strand copper construction provides flexibility for smooth pulls through tight cable trays and raceways.
• Harsh Wash-Down & Outdoor Industrial Facilities: Built for food processing plants, chemical facilities, and outdoor industrial sites. Rated for wet/dry operation from -40°C to 90°C with full UV and sunlight resistance, holding up under high-pressure equipment wash-downs.

Disclaimer: Real-world application examples are provided for educational and general planning purposes only. Project requirements vary based on system design, environmental factors, and local codes. Buyers and specifiers are responsible for verifying that all materials meet exact job specifications and comply with the National Electrical Code (NEC) and local regulations. Always consult with a licensed electrical contractor or project engineer prior to installation.
