Parent SKU : PVAL350
SKU : PVAL350-250-BK

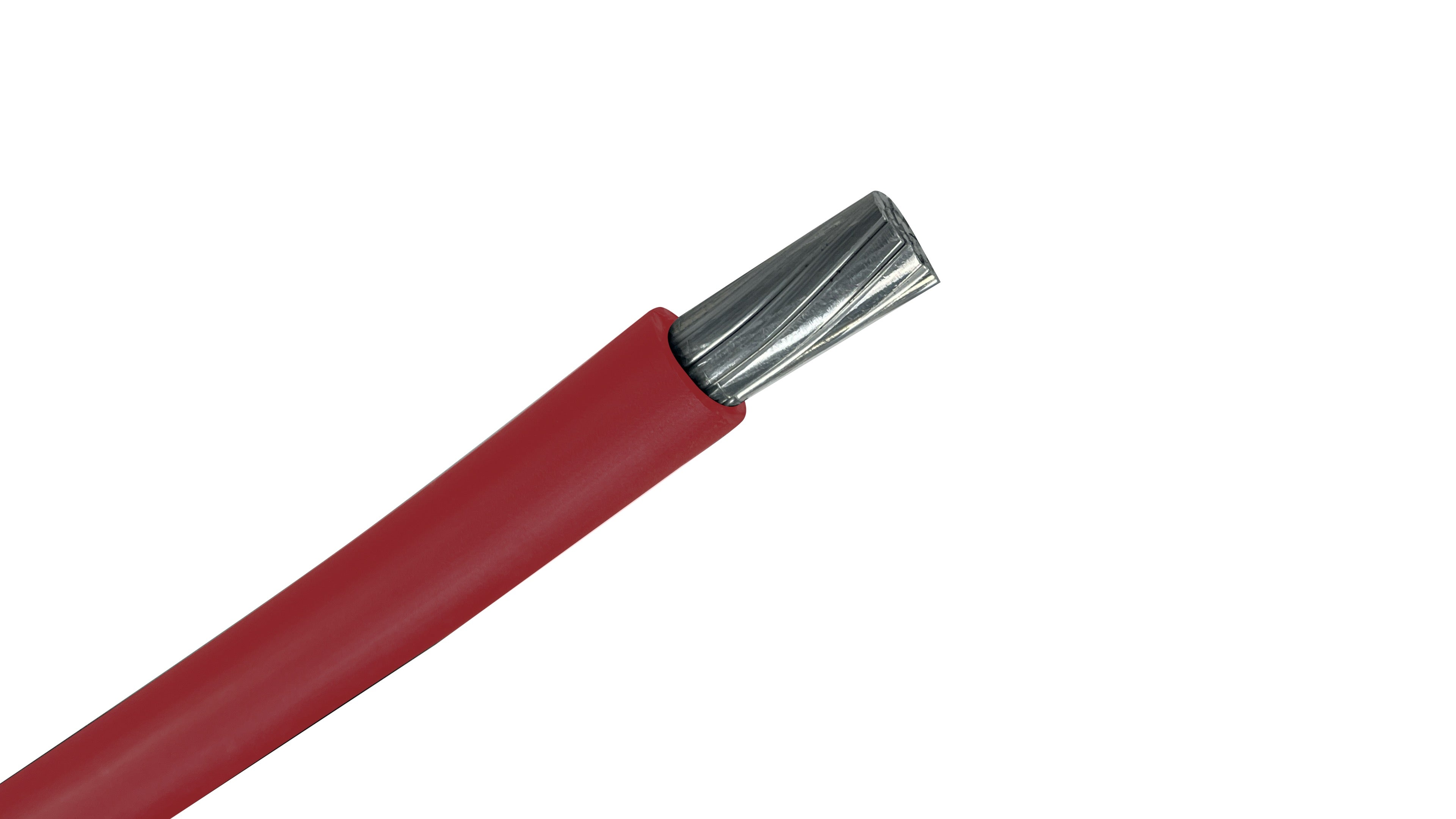

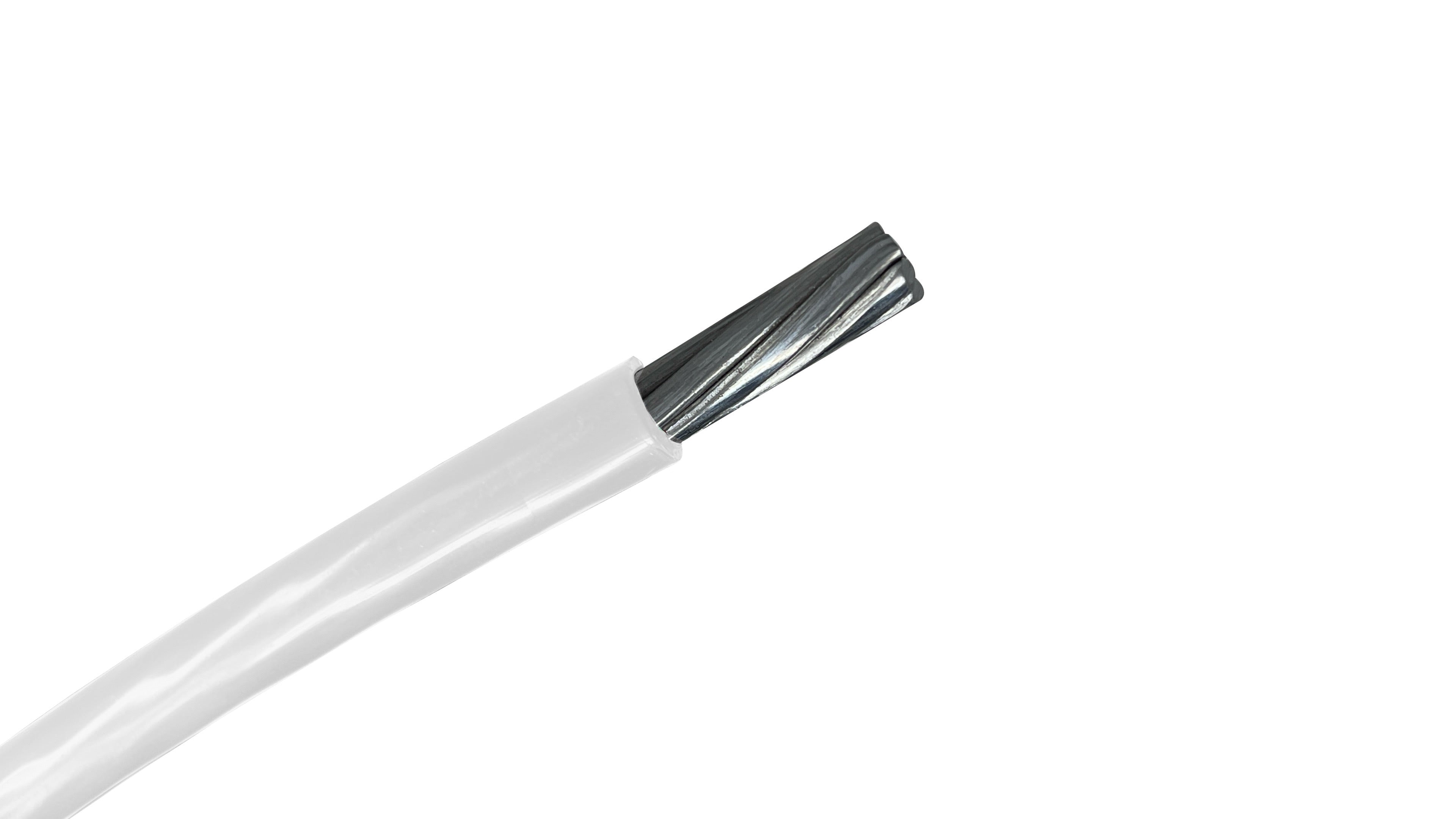

"An advanced, high-voltage single-conductor solution engineered for the critical interconnection wiring of both grounded and ungrounded solar power systems. Built to withstand high-capacity energy generation, this 350 MCM aluminum PV wire provides a lighter, exceptionally cost-effective alternative to copper for commercial utility arrays, field distribution blocks, and renewable energy grids."
Outdoor solar setups require components that stand up to the elements. This 350 MCM solar pv cable delivers dependable service by surrounding a high-grade, 35-strand compact AA-8000 aluminum core with a rugged, UL-listed Sunlight Resistant (SUN RES) cross-linked polyethylene (XLPE) insulating barrier. The thick insulation shield is specifically designed to brave severe outdoor exposure, resisting intense solar UV rays, seasonal frost, shifting soil conditions, and common field chemicals without snapping or wearing down.
High-Capacity 2000V Threshold: Engineered safely for systems running up to 2000 Volts to easily accommodate modern, high-output commercial solar configurations.
Code-Approved Tray Placement: Meets all requirements under NEC Article 690.31 (C) (2) for open, unprotected routing inside exterior cable trays.
Direct Burial and Sunlight Resistant Armor: Formulated with a waterproof, UV-blocking XLPE jacket that is certified for both direct underground burial trenches and long-term, exposed outdoor placement.
Extreme Weather Performance: Engineered to stay structurally stable and completely flexible in temperatures from -40°C up to +90°C.
ENGINEERING OVERVIEW
Conductor Size: 350 MCM (kcmil)
Conductor Type: Compact Stranded 8000 Series Aluminum Alloy (35 Strands)
Insulation Shield: Shrinkback Resistant Cross-Linked Polyethylene (XLPE)
Insulation Thickness: 0.120 Inches
Total Outer Diameter: 0.86 Inches
Maximum Voltage: 2000 Volts (2KV)
Ampacity: 280 Amps (@ 90°C Wet or Dry)
Cable Weight: 467 lbs per 1,000 feet
DC Resistance at 120°C: 0.0496 Ohms/kft
Certifications and Standard Listings: UL 4703 (PV Wire), UL 44 (RHH/RHW-2), UL 854 (USE-2), CSA RPVU90 Listed.
Safety Tests: VW-1 Flame Test Compliant, Direct Burial Approved, Sunlight Resistant, RoHS Compliant.
Solar Array Main Trunks and Combiners: Utilized as a heavy-duty trunk line to safely route high-amperage power from major commercial combiner enclosures over to central inverter stations.
High-Capacity DC Feeders: Perfect for long-distance, main outdoor pathways transferring bulk direct current (DC) across large utility fields or industrial rooftop grids.
Exposed Cable Trays: Fully approved to sit unprotected inside rooftop or ground-mount open metal cable tray paths when installed per NEC standards.
Direct Subsurface Trenching: Certified to be laid straight into underground trenches without requiring protective plastic or metal conduit piping.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
*Ampacities shown are for general use as specified by the National Electric Code, 2017 Edition, Table 310.15(B)(16) based on ambient temperature of 30ËšC.
Â
Â
Â
| Wire Size (AWG/MCM) | 350 MCM |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Strand Count | 35 |
| Outer Diameter (OD) (in/mm) | 0.86 in. / 21.84 mm |
| Conductor Count | 1 |
| Shield | Unshielded |
| Insulation Type | (XLPE) Cross-Linked Polyethylene |
| UL Listing Numbers | UL 44, UL 854, UL 4703 |
| Voltage Rating | 2000V |
| Ampacity Rating | 280 |
| Direct Burial Rating | Yes |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | ASTM B800, B801, B836, B901 UL 44 RHH RHW-2, UL 854 USE-2, UL 4703 PV Wire CSA listed RPVU90 per CSA C22.2 No. 271 ANSI/ICEA S-95-658/NEMA WC 70 VW-1 flame test, Sunlight Resistant, Direct Burial |
| Miscellaneous Information | All values are nominal and subject to correction *Ampacities shown are for general use as specified by the National Electric Code, 2017 Edition, Table 310.15(B)(16) based on ambient temperature of 30ËšC. |
| RoHS Compliance | Yes |
| Primary Applications | Interconnection Wiring for Solar Arrays, Large-Scale Solar Farms, Commercial and Industrial Solar Projects, Feeder Cables (AC and DC Sides) |
| Common Uses |
|
| Weight per Foot | 0.467 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : PVAL350
SKU : PVAL350-250-BK
Parent SKU : PVAL350
SKU : PVAL350-250-BK
"An advanced, high-voltage single-conductor solution engineered for the critical interconnection wiring of both grounded and ungrounded solar power systems. Built to withstand high-capacity energy generation, this 350 MCM aluminum PV wire provides a lighter, exceptionally cost-effective alternative to copper for commercial utility arrays, field distribution blocks, and renewable energy grids."
Outdoor solar setups require components that stand up to the elements. This 350 MCM solar pv cable delivers dependable service by surrounding a high-grade, 35-strand compact AA-8000 aluminum core with a rugged, UL-listed Sunlight Resistant (SUN RES) cross-linked polyethylene (XLPE) insulating barrier. The thick insulation shield is specifically designed to brave severe outdoor exposure, resisting intense solar UV rays, seasonal frost, shifting soil conditions, and common field chemicals without snapping or wearing down.
High-Capacity 2000V Threshold: Engineered safely for systems running up to 2000 Volts to easily accommodate modern, high-output commercial solar configurations.
Code-Approved Tray Placement: Meets all requirements under NEC Article 690.31 (C) (2) for open, unprotected routing inside exterior cable trays.
Direct Burial and Sunlight Resistant Armor: Formulated with a waterproof, UV-blocking XLPE jacket that is certified for both direct underground burial trenches and long-term, exposed outdoor placement.
Extreme Weather Performance: Engineered to stay structurally stable and completely flexible in temperatures from -40°C up to +90°C.
ENGINEERING OVERVIEW
Conductor Size: 350 MCM (kcmil)
Conductor Type: Compact Stranded 8000 Series Aluminum Alloy (35 Strands)
Insulation Shield: Shrinkback Resistant Cross-Linked Polyethylene (XLPE)
Insulation Thickness: 0.120 Inches
Total Outer Diameter: 0.86 Inches
Maximum Voltage: 2000 Volts (2KV)
Ampacity: 280 Amps (@ 90°C Wet or Dry)
Cable Weight: 467 lbs per 1,000 feet
DC Resistance at 120°C: 0.0496 Ohms/kft
Certifications and Standard Listings: UL 4703 (PV Wire), UL 44 (RHH/RHW-2), UL 854 (USE-2), CSA RPVU90 Listed.
Safety Tests: VW-1 Flame Test Compliant, Direct Burial Approved, Sunlight Resistant, RoHS Compliant.
Solar Array Main Trunks and Combiners: Utilized as a heavy-duty trunk line to safely route high-amperage power from major commercial combiner enclosures over to central inverter stations.
High-Capacity DC Feeders: Perfect for long-distance, main outdoor pathways transferring bulk direct current (DC) across large utility fields or industrial rooftop grids.
Exposed Cable Trays: Fully approved to sit unprotected inside rooftop or ground-mount open metal cable tray paths when installed per NEC standards.
Direct Subsurface Trenching: Certified to be laid straight into underground trenches without requiring protective plastic or metal conduit piping.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
*Ampacities shown are for general use as specified by the National Electric Code, 2017 Edition, Table 310.15(B)(16) based on ambient temperature of 30ËšC.
Â
Â
Â
| Wire Size (AWG/MCM) | 350 MCM |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Strand Count | 35 |
| Outer Diameter (OD) (in/mm) | 0.86 in. / 21.84 mm |
| Conductor Count | 1 |
| Shield | Unshielded |
| Insulation Type | (XLPE) Cross-Linked Polyethylene |
| UL Listing Numbers | UL 44, UL 854, UL 4703 |
| Voltage Rating | 2000V |
| Ampacity Rating | 280 |
| Direct Burial Rating | Yes |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | ASTM B800, B801, B836, B901 UL 44 RHH RHW-2, UL 854 USE-2, UL 4703 PV Wire CSA listed RPVU90 per CSA C22.2 No. 271 ANSI/ICEA S-95-658/NEMA WC 70 VW-1 flame test, Sunlight Resistant, Direct Burial |
| Miscellaneous Information | All values are nominal and subject to correction *Ampacities shown are for general use as specified by the National Electric Code, 2017 Edition, Table 310.15(B)(16) based on ambient temperature of 30ËšC. |
| RoHS Compliance | Yes |
| Primary Applications | Interconnection Wiring for Solar Arrays, Large-Scale Solar Farms, Commercial and Industrial Solar Projects, Feeder Cables (AC and DC Sides) |
| Common Uses |
|
| Weight per Foot | 0.467 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||||
Under normal operational guidelines at a standard conductor temperature of 90°C(wet or dry), a single conductor of 350 kcmil Aluminum 2kV PV wire features an allowable ampacity rating of 280 Amps. If your project calls for terminating to a 75°C terminal lug, the calculated ampacity adjusts downward to 250 Amps per National Electrical Code (NEC) guidelines.
Yes, it is fully rated and certified for direct underground burial. This solar wire is constructed with a rugged Cross-Linked Polyethylene (XLPE) insulation jacket and it carries triple-listing compliance under UL 4703 (PV Wire), UL 44 (RHW-2), and UL 854 (USE-2). This guarantees permanent waterproof protection and high soil-chemical resistance without necessitating conduit.
es, absolutely. In accordance with NEC Article 690, single-conductor aluminum PV wire sizes 1/0 AWG and larger are fully approved for deployment in outdoor exposed or concealed cable trays. The XLPE insulation is fundamentally engineered with maximum Sunlight Resistant (UV) and ozone protection to prevent fracturing over decades of direct exposure to intense solar fields.
Can I buy this 350 kcmil Aluminum PV wire cut-to-length by the foot?
Yes. Wire America can cut this 350 MCM aluminum solar wire to your exact length specifications.
Yes, Wire America fulfills and ships our full line of Copper and Aluminum Solar PV Wire directly from our national distribution hubs located across the US and can ship straight to your jobsite. We prioritize shipping pv cables from the warehouse nearest to your job site to keep transit times minimal. Orders typically arrive within 2-4 business days. Expedited shipping options are available at checkout for time-sensitive contractor deadlines.
