Parent SKU : MCA350-4JKT
SKU : MCA350-4JKT-250

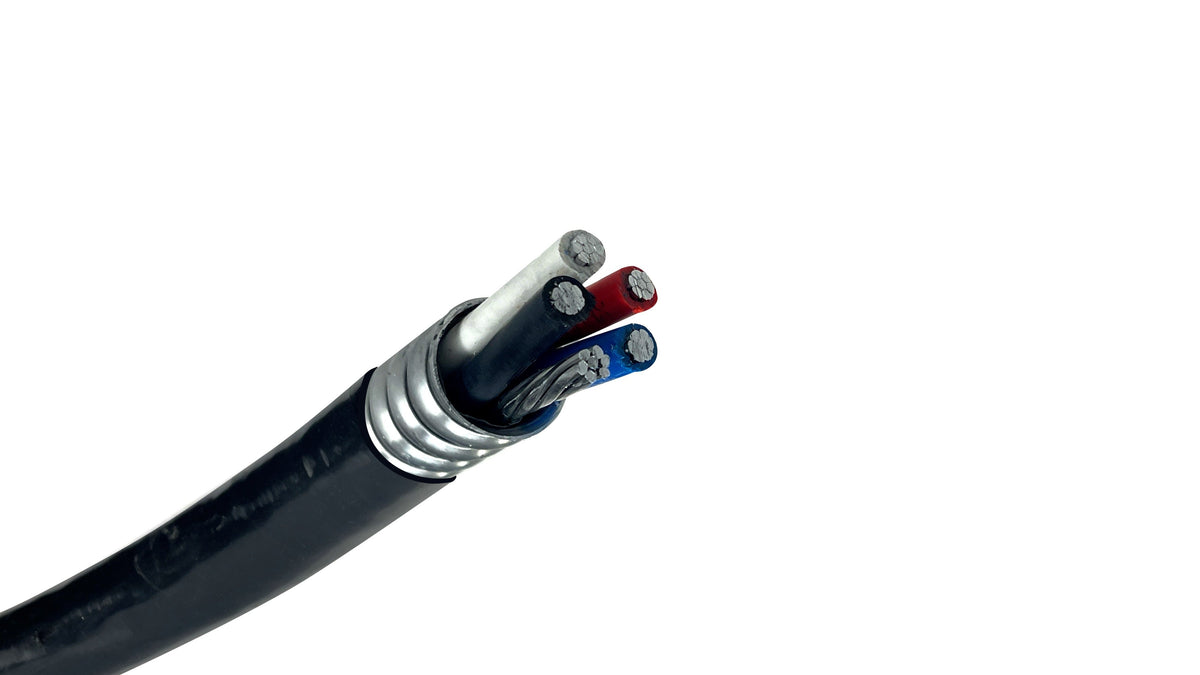

"Engineered for maximum power capacity and tough underground environments, 350 MCM 4-Conductor Direct Burial Aluminum MC Cable delivers complete feeder protection without the added labor or expense of installing underground conduit.
This heavy-duty cable features four 350 MCM compact-stranded aluminum conductors (three phase legs + one full-size neutral) and one 1/0 aluminum bare ground conductor, protected by an interlocked aluminum armor and covered in a rugged, moisture-proof, UV-resistant PVC outer jacket. Fully approved per NEC Article 330 for direct earth burial, wet locations, and cable tray applications, it is the ultimate cost-effective solution for 250A three-phase 4-wire commercial distribution, industrial subpanels, and utility power runs."
Direct Burial Approved (No Conduit Required): The extruded PVC outer jacket isolates the interlocked aluminum armor from moisture, soil chemicals, and ground rot, allowing you to lay cable directly into open trenches.
4-Conductor Commercial Layout: Features three phase conductors and one dedicated full-sized neutral—ideal for 3-phase 4-wire systems or applications requiring separate insulated neutrals.
Compact Stranded AA-8000 Aluminum: Built with lightweight AA-8000 series aluminum alloy that reduces overall cable diameter, making it easier to pull through tight bends without sacrificing ampacity.
Superior Mechanical Armor: The flexible interlocked aluminum armor shields internal wires from soil shifts, sharp rocks, crushed backfill, and physical impacts during installation.
Sunlight & Flame Resistant: Designed to handle direct exposure to sunlight, wet locations, and indoor/outdoor transitions seamlessly.
Conductor Size: 350 MCM (kcmil)
Number of Power Conductors: 4
Conductor Material: AA-8000 Series Compact Stranded Aluminum Alloy
Ground Wire Size: 1/0 Bare Aluminum
Phase Colors: Black, White, Red, BlueÂ
Insulation Type: XLPE / XHHW-2
Armor Type: AIA (Aluminum Interlocked Armor)
Protective Outer Jacket: PVC - Black (Sunlight & Moisture Resistant)
Voltage Rating: 600 Volts
Temperature Rating: -40°C to 90°C
Amp Rating (@ 75°C - NEC): 250 Amps
Amp Rating (@ 90°C - NEC): 280 Amps
Insulation Thickness: 0.065 inches
Jacket Thickness: 0.070 inches
Approximate Nominal Outer Diameter: 2.35 inches
Approximate Net Weight: 2,391 lbs per 1,000 ft
Minimum Bending Radius: 16.45 inches (Calculated as 7x Diameter Over Jacket)
Compliance Standards: UL 44, UL 1569 (Type MC), NEMA WC70 / ICEA S-95-658, IEEE 1202, ASTM B800 & B801, NEC 518.4, NEC 520.5, NEC 645.5, and NEC 300.22.
Primary Service Entrances: Feeding heavy underground main power from utility-side transformers or outdoor meter banks to 250A–300A main breaker panels requiring a full-capacity neutral.
Industrial Feeder Networks: Supplying 3-phase power to manufacturing equipment, high-horsepower industrial water pumps, and primary distribution switchboards.
Commercial Building Feeder Runs: Routing dedicated 4-wire lines for high-output commercial HVAC chillers, backup generator networks, and large institutional complexes.
Concrete Structural Encasement: Laying primary electrical circuits directly within poured concrete foundations, parking garages, and shipping docks.
Cut to Length: Sold by the foot or in master reels to match your exact trench footprint and minimize scrap.
Fast Processing: Ships directly from closest regional distribution hubs to guarantee minimal transit times and reduced freight costs.
Submittal Assistance: Need cut sheets or manufacturer technical data sheets for engineering approval? Call our sales team directly at 833-268-8644 for immediate jobsite support.
Technical Note: To prevent structural degradation from galvanic corrosion, installers must utilize dual-rated AL7CU or AL9CU mechanical compression lugs or mechanical split-bolts when joining this aluminum cable to copper busbars or breaker terminals. Penetrox or similar antioxidant joint compound must be thoroughly applied to all bare aluminum conductors before final structural torquing. While the PVC jacket isolates the interior armor against direct soil or chemical contact, minimum trench depth profiles must strictly comply with NEC Article 300.5 tables (typically requiring 24 inches of earth cover for direct-buried cables not under concrete paths, or 18 inches beneath standard structural landscapes).
DISCLAIMER: The technical information provided is for general reference only. Large-scale high-voltage feeder systems and underground distribution paths must strictly adhere to the National Electrical Code (NEC), local electrical building enforcement, and relevant safety parameters. Always cross-reference the official product submittal data sheet from the chosen manufacturer prior to finalizing structural configurations or executing structural cuts.
| Wire Size (AWG/MCM) | 350 MCM |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Outer Diameter (OD) (in/mm) | 2.35 in. |
| Jacket Type | PVC |
| Conductor Count | 4 |
| Shield | Unshielded |
| Insulation Type | (XLPE) Cross-Linked Polyethylene |
| UL Listing Numbers | UL 44, UL 1569 |
| Voltage Rating | 600V |
| Ampacity Rating | 280 |
| Direct Burial Rating | Yes |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL 44, 83, 1569 for Type MC Cable for CT Use NEMA WC-70/ICEA S-95-658 IEEEE 1202 70, 000 BTU/HR Vertical Tray Flame Test ASTM B800 & B801 NEC 518.4, NEC 520.5, NEC 645.5, and NEC 300.22 for environmental air-handling spaces. |
| Miscellaneous Information | All values are nominal and subject to correction. **Ampacities are based on NEC Table 310.15(B)(16), and show the allowable Ampacities of three current carrying insulated conductors, in a raceway, cable, or earth based on ambient temperature of 30°C (86°F). |
| Primary Applications | Service entrance conductors, Feeders, Branch circuits, Power, lighting, control, and signal circuits |
| Common Uses |
|
| Weight per Foot | 2.391 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : MCA350-4JKT
SKU : MCA350-4JKT-250
Parent SKU : MCA350-4JKT
SKU : MCA350-4JKT-250
"Engineered for maximum power capacity and tough underground environments, 350 MCM 4-Conductor Direct Burial Aluminum MC Cable delivers complete feeder protection without the added labor or expense of installing underground conduit.
This heavy-duty cable features four 350 MCM compact-stranded aluminum conductors (three phase legs + one full-size neutral) and one 1/0 aluminum bare ground conductor, protected by an interlocked aluminum armor and covered in a rugged, moisture-proof, UV-resistant PVC outer jacket. Fully approved per NEC Article 330 for direct earth burial, wet locations, and cable tray applications, it is the ultimate cost-effective solution for 250A three-phase 4-wire commercial distribution, industrial subpanels, and utility power runs."
Direct Burial Approved (No Conduit Required): The extruded PVC outer jacket isolates the interlocked aluminum armor from moisture, soil chemicals, and ground rot, allowing you to lay cable directly into open trenches.
4-Conductor Commercial Layout: Features three phase conductors and one dedicated full-sized neutral—ideal for 3-phase 4-wire systems or applications requiring separate insulated neutrals.
Compact Stranded AA-8000 Aluminum: Built with lightweight AA-8000 series aluminum alloy that reduces overall cable diameter, making it easier to pull through tight bends without sacrificing ampacity.
Superior Mechanical Armor: The flexible interlocked aluminum armor shields internal wires from soil shifts, sharp rocks, crushed backfill, and physical impacts during installation.
Sunlight & Flame Resistant: Designed to handle direct exposure to sunlight, wet locations, and indoor/outdoor transitions seamlessly.
Conductor Size: 350 MCM (kcmil)
Number of Power Conductors: 4
Conductor Material: AA-8000 Series Compact Stranded Aluminum Alloy
Ground Wire Size: 1/0 Bare Aluminum
Phase Colors: Black, White, Red, BlueÂ
Insulation Type: XLPE / XHHW-2
Armor Type: AIA (Aluminum Interlocked Armor)
Protective Outer Jacket: PVC - Black (Sunlight & Moisture Resistant)
Voltage Rating: 600 Volts
Temperature Rating: -40°C to 90°C
Amp Rating (@ 75°C - NEC): 250 Amps
Amp Rating (@ 90°C - NEC): 280 Amps
Insulation Thickness: 0.065 inches
Jacket Thickness: 0.070 inches
Approximate Nominal Outer Diameter: 2.35 inches
Approximate Net Weight: 2,391 lbs per 1,000 ft
Minimum Bending Radius: 16.45 inches (Calculated as 7x Diameter Over Jacket)
Compliance Standards: UL 44, UL 1569 (Type MC), NEMA WC70 / ICEA S-95-658, IEEE 1202, ASTM B800 & B801, NEC 518.4, NEC 520.5, NEC 645.5, and NEC 300.22.
Primary Service Entrances: Feeding heavy underground main power from utility-side transformers or outdoor meter banks to 250A–300A main breaker panels requiring a full-capacity neutral.
Industrial Feeder Networks: Supplying 3-phase power to manufacturing equipment, high-horsepower industrial water pumps, and primary distribution switchboards.
Commercial Building Feeder Runs: Routing dedicated 4-wire lines for high-output commercial HVAC chillers, backup generator networks, and large institutional complexes.
Concrete Structural Encasement: Laying primary electrical circuits directly within poured concrete foundations, parking garages, and shipping docks.
Cut to Length: Sold by the foot or in master reels to match your exact trench footprint and minimize scrap.
Fast Processing: Ships directly from closest regional distribution hubs to guarantee minimal transit times and reduced freight costs.
Submittal Assistance: Need cut sheets or manufacturer technical data sheets for engineering approval? Call our sales team directly at 833-268-8644 for immediate jobsite support.
Technical Note: To prevent structural degradation from galvanic corrosion, installers must utilize dual-rated AL7CU or AL9CU mechanical compression lugs or mechanical split-bolts when joining this aluminum cable to copper busbars or breaker terminals. Penetrox or similar antioxidant joint compound must be thoroughly applied to all bare aluminum conductors before final structural torquing. While the PVC jacket isolates the interior armor against direct soil or chemical contact, minimum trench depth profiles must strictly comply with NEC Article 300.5 tables (typically requiring 24 inches of earth cover for direct-buried cables not under concrete paths, or 18 inches beneath standard structural landscapes).
DISCLAIMER: The technical information provided is for general reference only. Large-scale high-voltage feeder systems and underground distribution paths must strictly adhere to the National Electrical Code (NEC), local electrical building enforcement, and relevant safety parameters. Always cross-reference the official product submittal data sheet from the chosen manufacturer prior to finalizing structural configurations or executing structural cuts.
| Wire Size (AWG/MCM) | 350 MCM |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Outer Diameter (OD) (in/mm) | 2.35 in. |
| Jacket Type | PVC |
| Conductor Count | 4 |
| Shield | Unshielded |
| Insulation Type | (XLPE) Cross-Linked Polyethylene |
| UL Listing Numbers | UL 44, UL 1569 |
| Voltage Rating | 600V |
| Ampacity Rating | 280 |
| Direct Burial Rating | Yes |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL 44, 83, 1569 for Type MC Cable for CT Use NEMA WC-70/ICEA S-95-658 IEEEE 1202 70, 000 BTU/HR Vertical Tray Flame Test ASTM B800 & B801 NEC 518.4, NEC 520.5, NEC 645.5, and NEC 300.22 for environmental air-handling spaces. |
| Miscellaneous Information | All values are nominal and subject to correction. **Ampacities are based on NEC Table 310.15(B)(16), and show the allowable Ampacities of three current carrying insulated conductors, in a raceway, cable, or earth based on ambient temperature of 30°C (86°F). |
| Primary Applications | Service entrance conductors, Feeders, Branch circuits, Power, lighting, control, and signal circuits |
| Common Uses |
|
| Weight per Foot | 2.391 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||
This high-capacity, jacketed armor cable is optimized for permanent installations requiring exceptional ampacity and structural protection without the labor of running rigid pipe conduits. Common uses include:
The most searched question regarding this heavy-gauge cable collection is why a 4-conductor setup is required instead of a 3-conductor line. The answer comes down to 3-Phase Power with a Dedicated Neutral. A 350 MCM 4C cable gives you four insulated wires (typically Black, Red, Blue, and White) plus a bare ground. This allows you to run full 3-phase industrial power with a completely independent neutral leg, which is absolutely essential for safely handling unbalanced building loads and protecting sensitive electronics from stray harmonic currents.
Wire America ships all of our Direct Burial Aluminum MC Cable directly from our centralized fulfillment centers throughout the United States. We are able to cut to length, process, and ship your order within 1–2 business days and ship straight to your job site, commercial, or residential property. Most standard orders arrive at your doorstep within 2 to 4 business days, with expedited shipping options available at checkout.
Stepping up to a massive 350 MCM conductor requires an engineered metallurgy that prioritizes system longevity, safety, and field handling:
No, you should never hitch this cable to a vehicle to pull it. Heavy 350 MCM cables have a Maximum Pulling Tension limit. Vehicles exert uncontrollable force that can stretch the internal aluminum conductors, thin out the insulation, or snap the interlocking metal armor. Always pull the cable by hand, or use a specialized electrical cable tugger equipped with a safety slip-clutch or tension gauge to avoid hidden internal damage.
