Parent SKU : XHW2
SKU : XHW2-250-BK
| Wire Size (AWG/MCM) | 2 AWG |
| Conductor Material | Stranded Copper |
| Conductor Type | Stranded |
| Strand Count | 7 |
| Outer Diameter (OD) (in/mm) | 0.39 in. / 9.906 mm |
| Conductor Count | 1 |
| Shield | Unshielded |
| Insulation Type | (XLPE) Cross-Linked Polyethylene |
| UL Listing Numbers | UL 44, UL 1685 |
| Voltage Rating | 600V |
| Ampacity Rating | 130 |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL 44 UL 1685 RoHS Compliant ASTM B3, B8 ANSI/ICEA S-95-658/NEMA WC-70 NFPA 70 NEC XLPE -40°C FT1 Federal Spec A-A-59550 |
| Miscellaneous Information | All values are nominal and subject to correction. *Ampacities for not more than three conductors in raceway or cable or earth (directly buried), based on ambient temperature of 30°C per Table 310.16 of the National Electrical Code. **Overcurrent protection shall not exceed 15 amps for #14 AWG, 20 amps for #12 AWG, and 30 amps for #10 AWG per NEC. |
| RoHS Compliance | Yes |
| Primary Applications | Main service entrance cables, feeders, branch circuit wiring in conduit and ducts, power distribution, lighting, and control circuits. |
| Common Uses |
|
| Weight per Foot | 0.233 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||

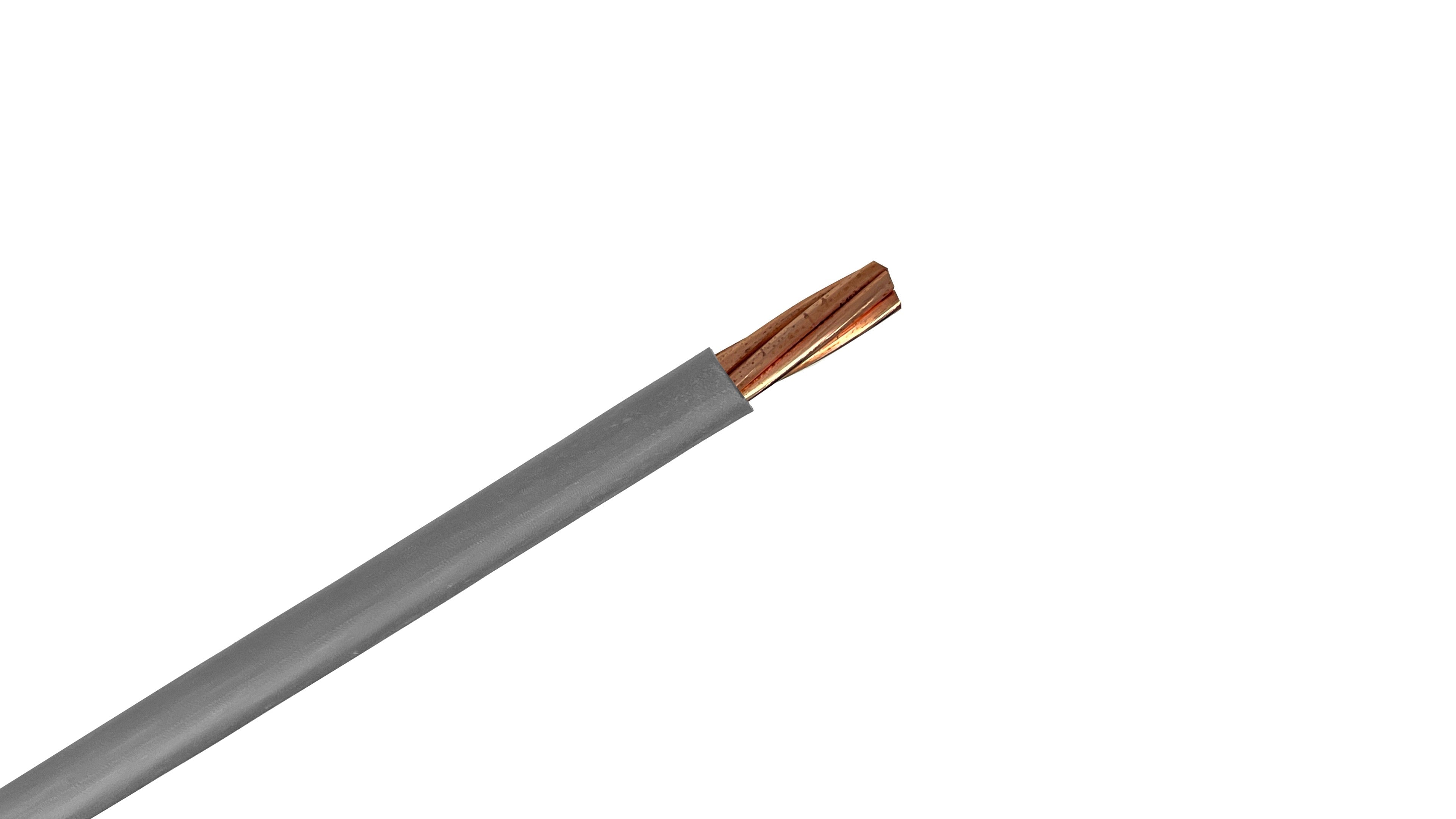

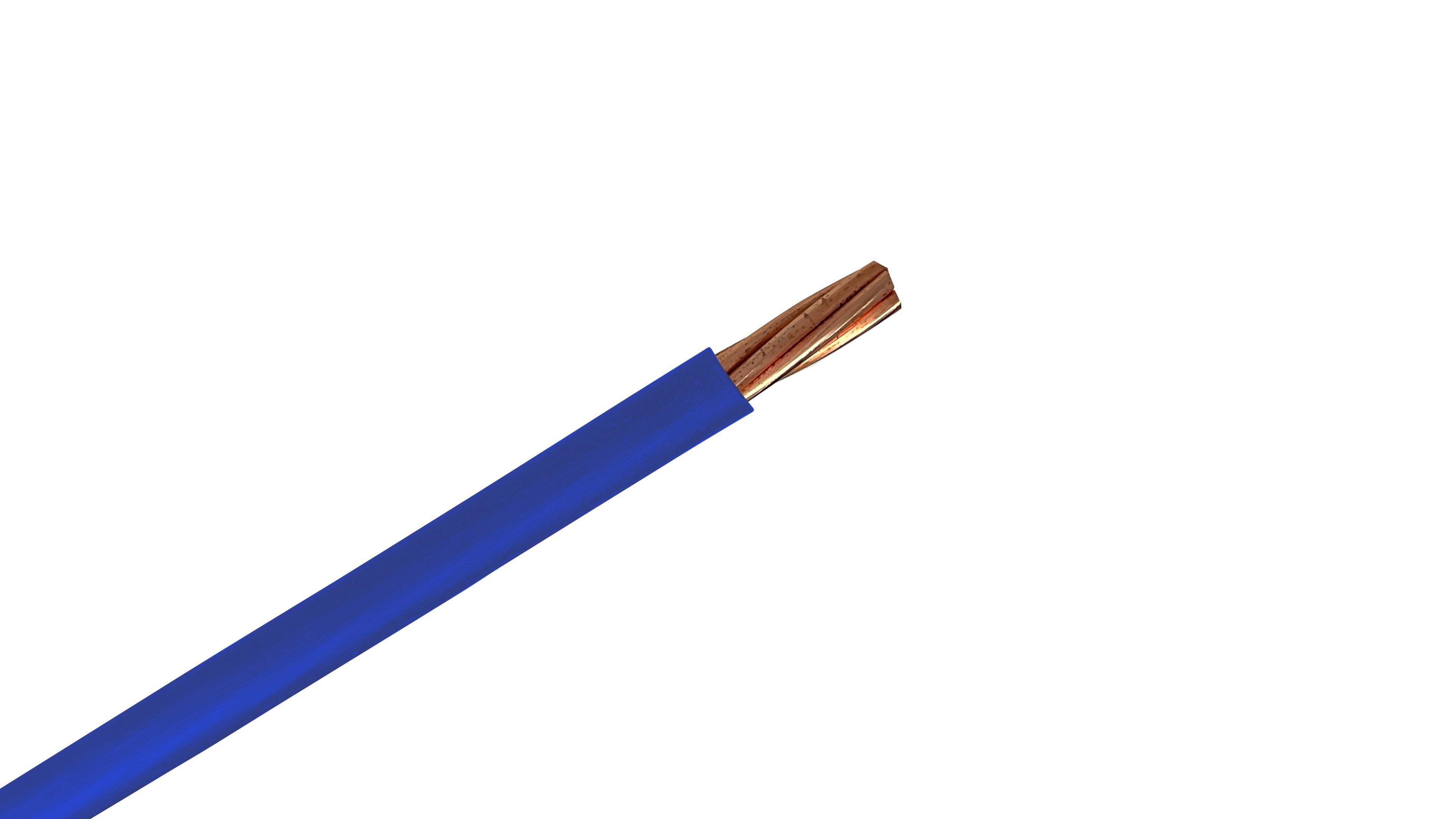

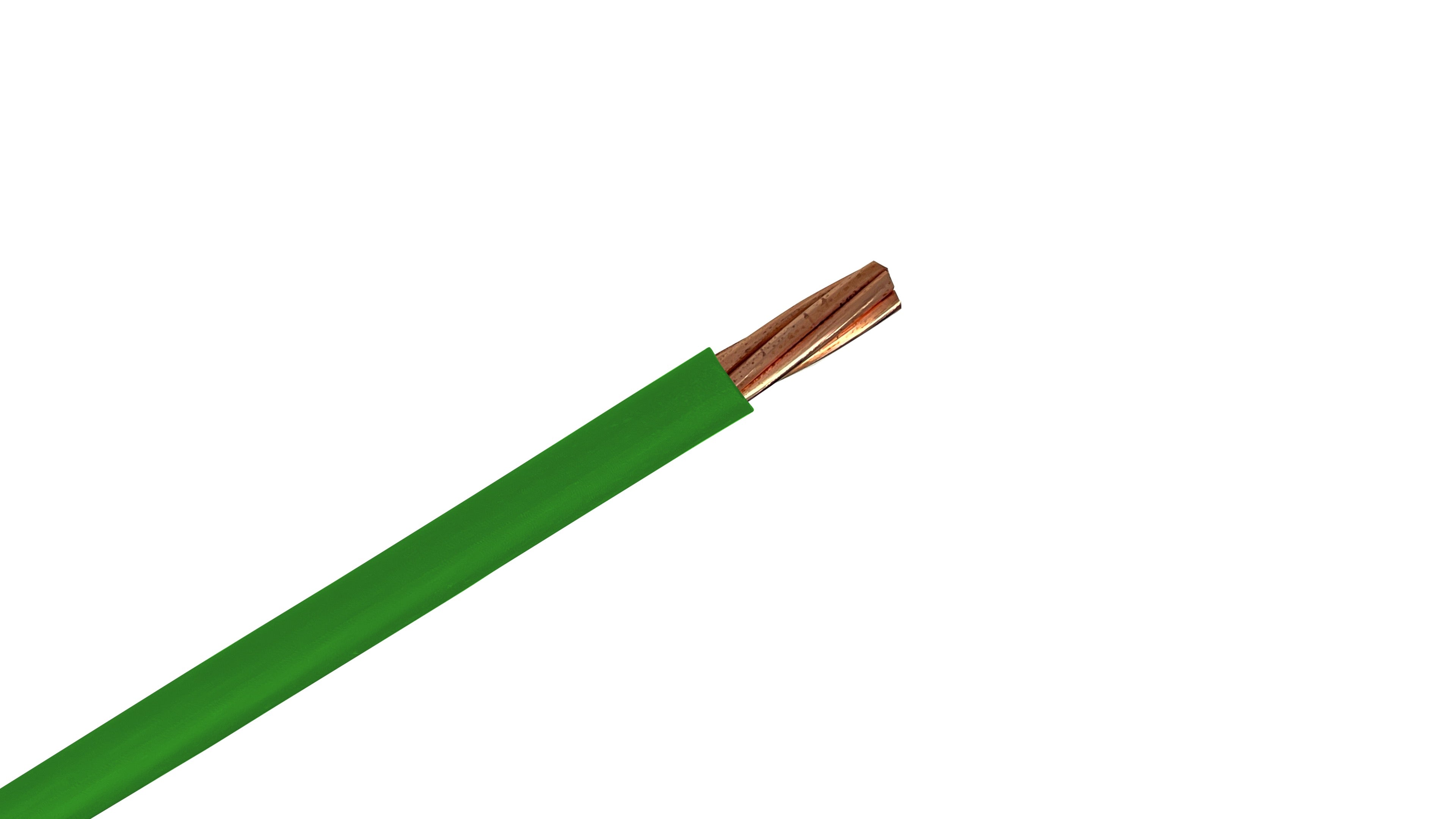

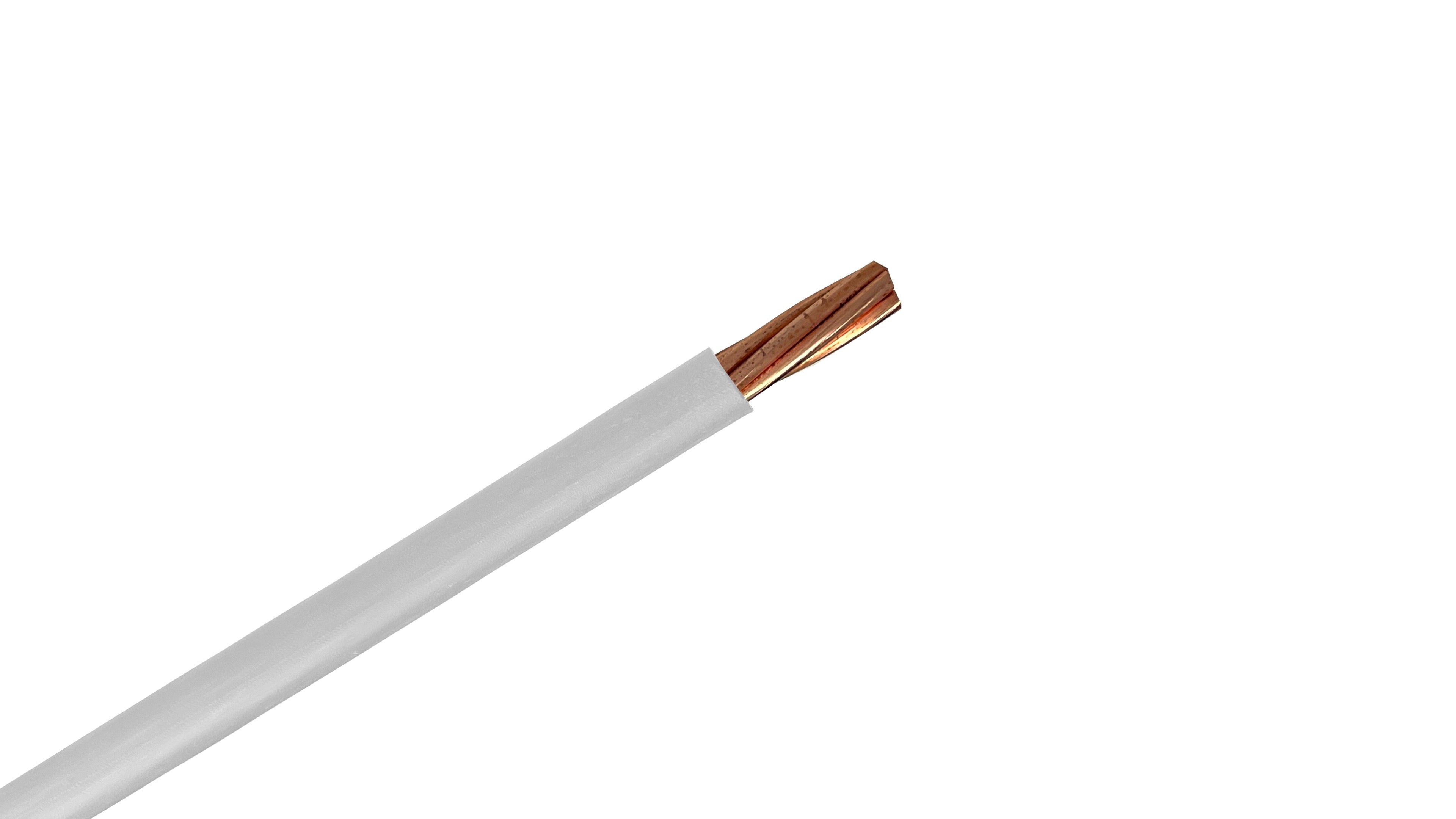

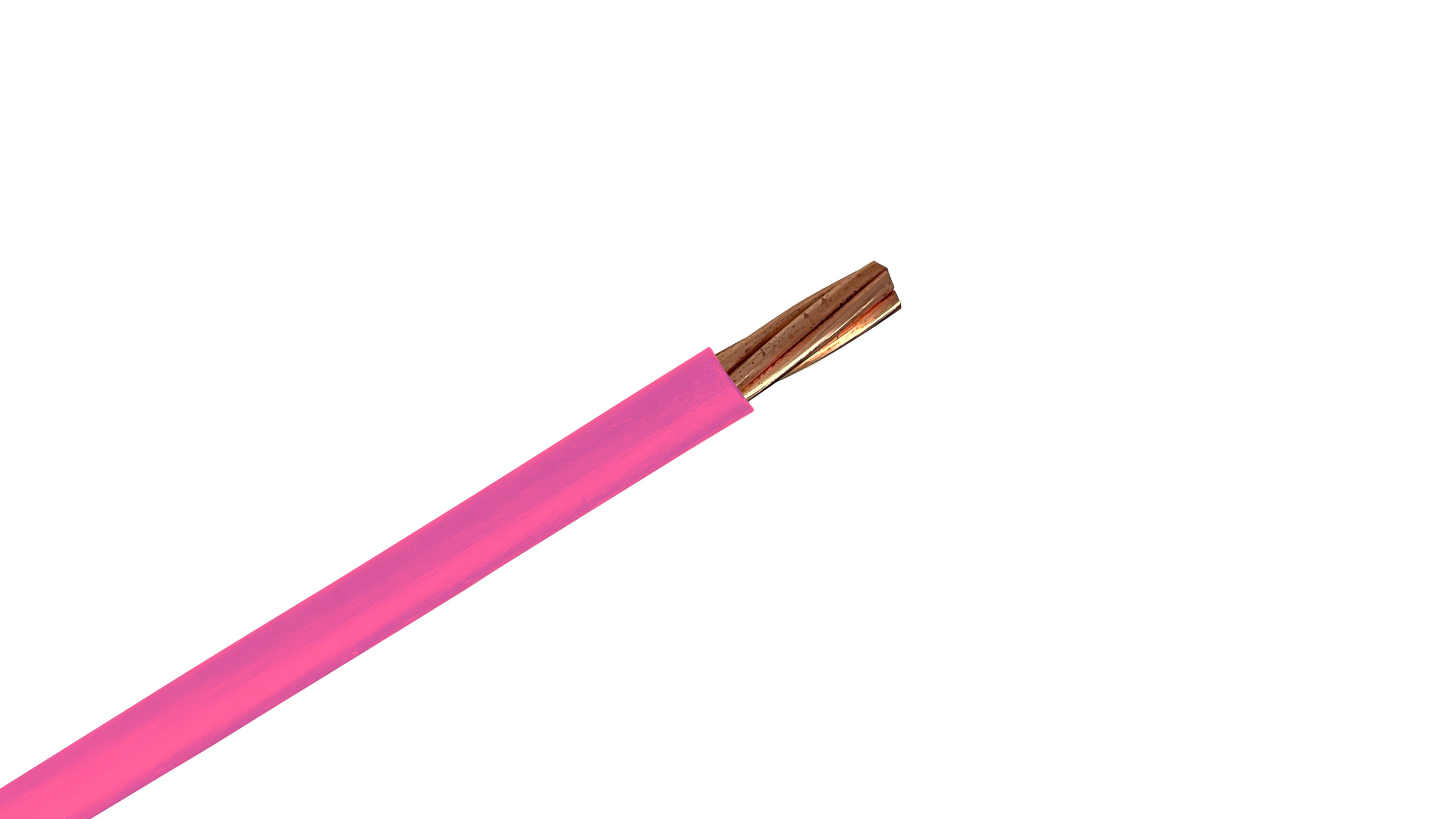

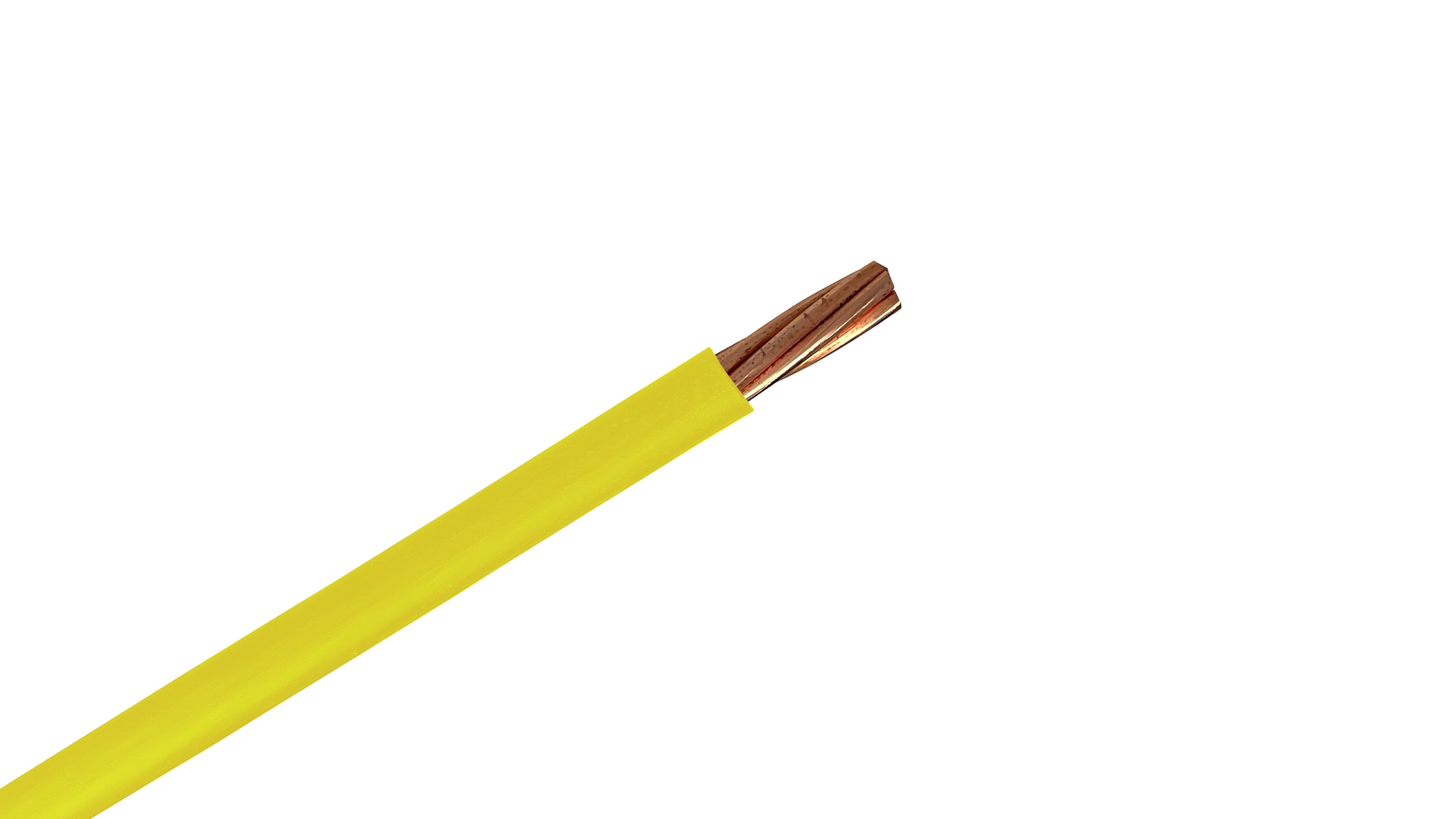

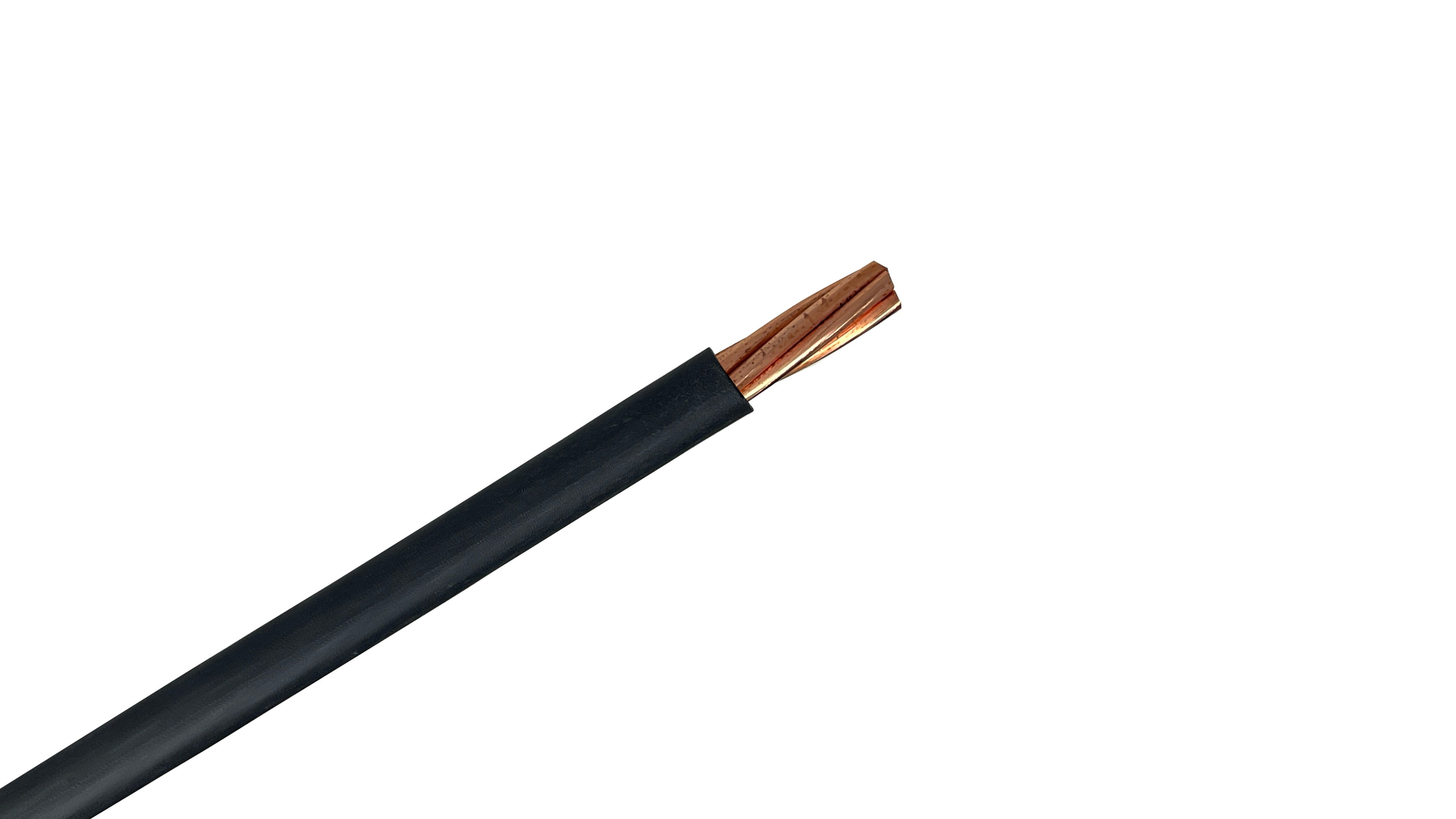

#2 AWG Copper XHHW-2 Building Wire is a high-performance electrical wire primarily used for power distribution in various applications. It features soft drawn bare copper conductors and robust cross-linked polyethylene (XLP) insulation, designed for durability and safety in demanding environments. This wire is suitable for both wet and dry locations and is dual-rated for 600V or 1000V applications.
The acronym XHHW-2 breaks down the key characteristics of the wire's insulation and performance:
This wire is widely used for power distribution in various settings. Common applications include:
Yes, #2 AWG XHHW-2 wire is specifically designed and rated for use in both wet and dry locations. Its cross-linked polyethylene (XLPE) insulation provides excellent resistance to moisture, allowing for consistent performance at temperatures up to 90°C in either environment.
While XHHW-2 wire is generally suitable for various applications, specifically for cable tray use, only sizes 1/0 AWG and larger are approved. Therefore, #2 AWG XHHW-2 wire is not approved for cable tray use.
