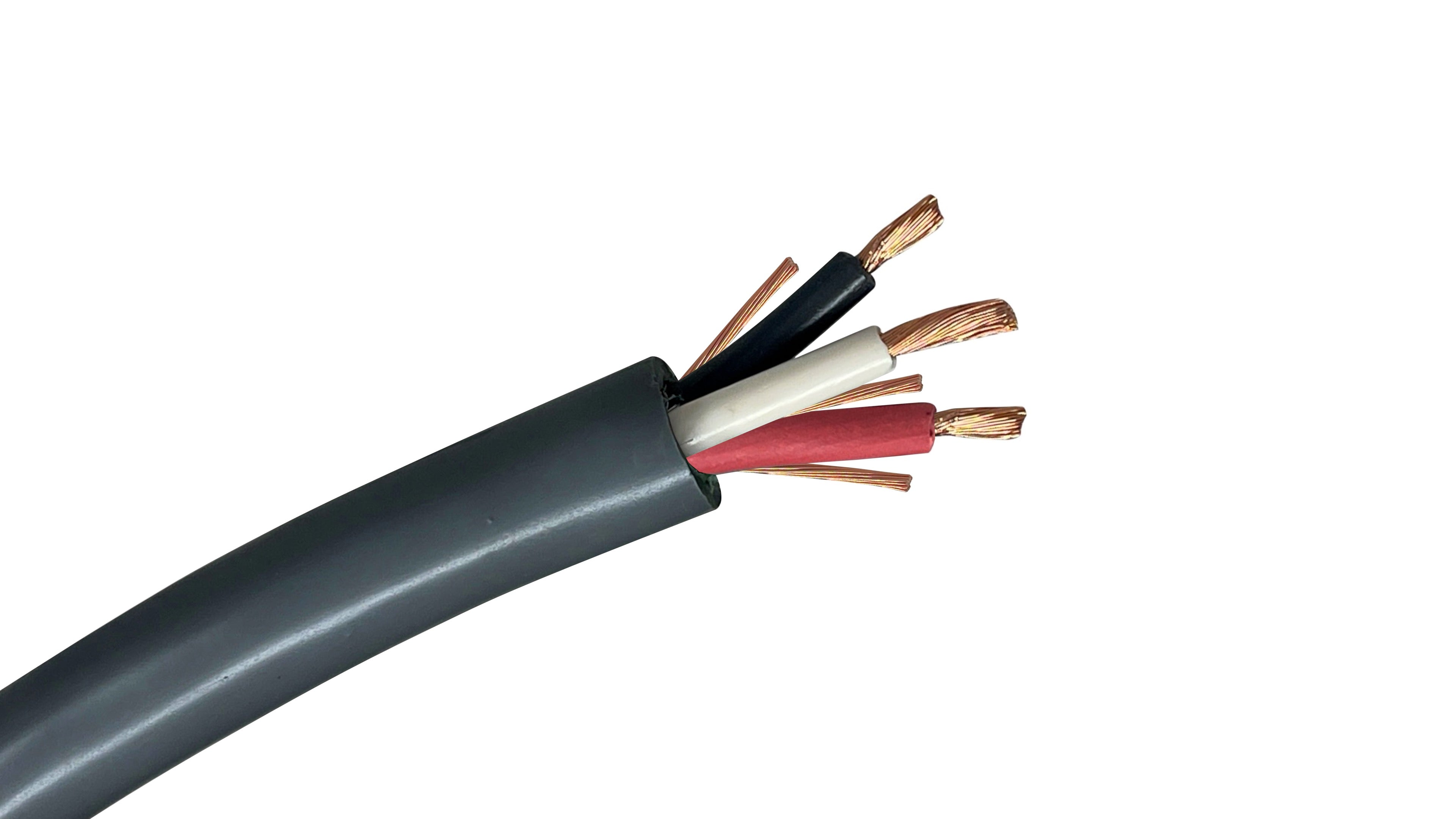

2/3 Bus Drop Cable — 600V, Bare Copper, UL Listed

"Designed for overhead branch circuit drops from busways to stationary or portable industrial machinery, 2/3 Bus Drop Cable 600V provides flexible, durable power distribution in demanding manufacturing environments. Built with Class C stranded annealed bare copper conductors and three bare copper ground wires, this cable is enclosed in a rugged gray PVC jacket rated for 60°C oil resistance and outdoor use. It features 90°C wet/dry rated PVC insulation and passes the UL VW-1 flame test, making it ideal for machine tools, industrial control systems, and branch circuit connections."

Key Features & Benefits: 2/3 Bus Drop Cable 600V

• Class C Stranded Bare Copper: Built with 19 strands of 2 AWG annealed bare copper for reliable flexibility and vibration resistance in overhead drops.

• Symmetrical 3-Ground Construction: Includes three 12 AWG bare copper ground wires cabled symmetrically alongside the circuit conductors to ensure balanced grounding protection.

• Oil & Weather Resistant Gray PVC Jacket: Tough gray PVC outer jacket rated for 60°C oil exposure and approved for outdoor use.

• 90°C Rated PVC Insulation: Polyvinylchloride (PVC) insulation rated for continuous operation at 90°C in wet or dry locations.

• Industrial Code Compliance: UL 509 Listed as Bus Drop Cable and approved for use in Class I, Division 2 hazardous locations.

• Cut-to-Length Flexibility: Available cut by the foot to match exact overhead drop heights and eliminate job-site waste.

Technical Specs: 2/3 Bus Drop Cable 600V

• Conductor Size: 2 AWG

• Number of Conductors: 3 Conductors + 3 Bare Copper Grounds (12 AWG)

• Conductor Stranding: 19 Strands (Class C Bare Copper)

• Conductor Color Code: Black, White, Red

• Insulation Material: Polyvinylchloride (PVC), rated 90°C Wet or Dry

• Insulation Thickness: 0.060 inches (1.52 mm)

• Jacket Material: Gray Polyvinylchloride (PVC), rated 60°C Oil Resistant

• Jacket Thickness: 0.080 inches (2.03 mm)

• Overall Diameter: 1.100 inches (27.94 mm)

• Approximate Net Weight: 1,115 lbs per 1,000 ft

• Voltage Rating: 600V

• Flame Rating: Individual conductors pass the UL VW-1 Flame Test

• Compliance Standards: UL Standard 509 (Bus Drop Cable), UL Listed Outdoor, Class I Div 2 Hazardous Locations, ICEA S-73-532, RoHS & REACH Compliant

Common 2/3 Bus Drop Cable 600V Applications

• Overhead Machine Feeder Drops: Connecting overhead busways to high-capacity industrial machine tools, metalworking equipment, and heavy stamping presses.

• Industrial Facility Power Branching: Providing flexible 600V power drops in manufacturing plants, automotive assembly facilities, and machine shops.

• Class I Division 2 Hazardous Locations: Safe power distribution in designated industrial environments where flammable gases or vapors may occasionally be present.

All values are nominal and subject to correction.
