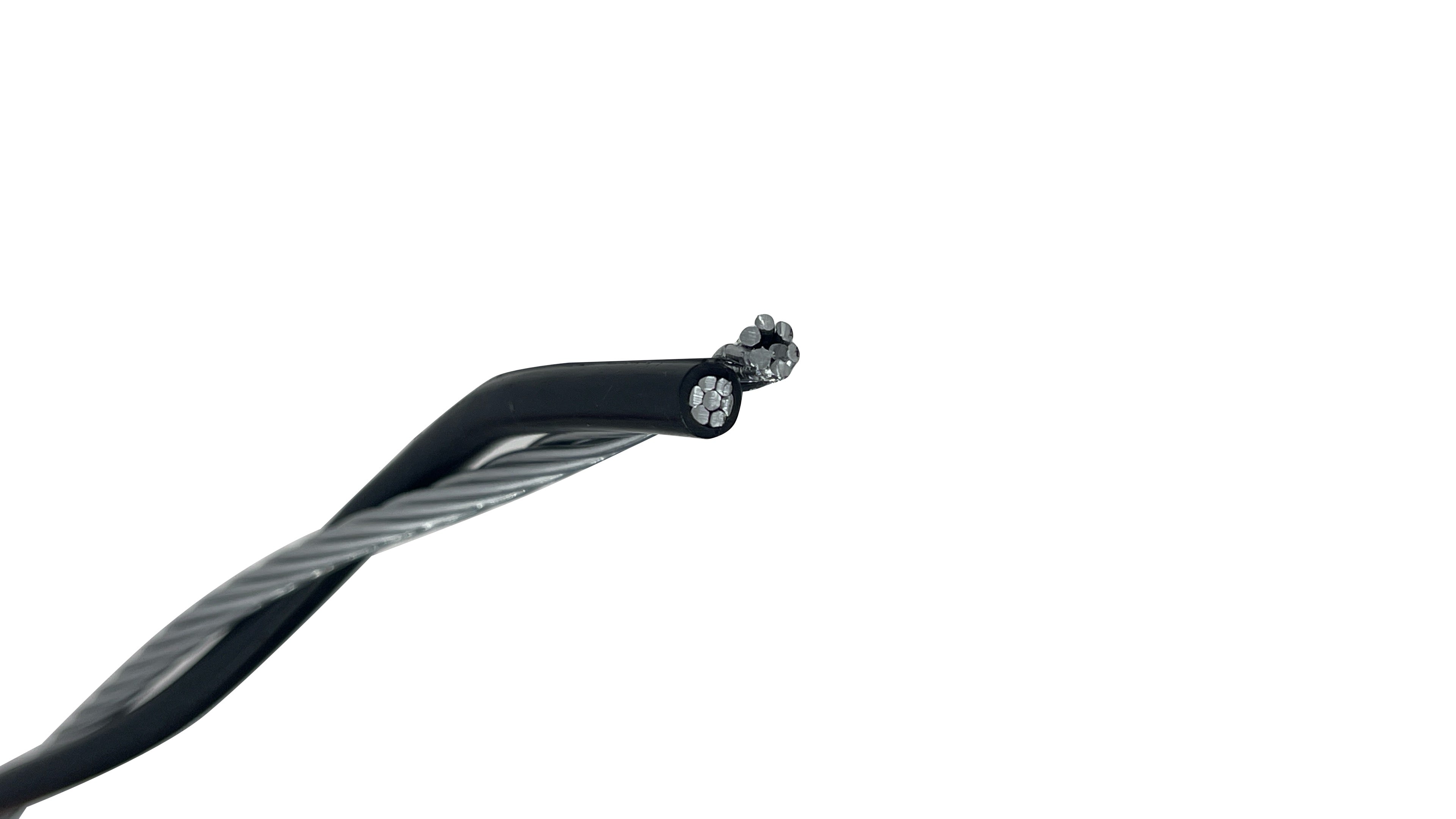

2-2 Duplex Aluminum Overhead Service Drop Cable (Chow)

"The industry standard for heavy-duty 120V overhead utility drops, commercial outdoor lighting, and high-demand temporary jobsite power. Engineered for dependable 600V aerial power delivery, this 2-conductor duplex cable features weather-resistant XLP insulation and a high-strength steel-reinforced ACSR neutral messenger built to withstand heavy environmental strain."

Key Features & Benefits: 2-2 Duplex Overhead Service Drop Cable

The 2-2 Chow Duplex Cable is built for high-capacity overhead single-phase 120V secondary power distribution requiring maximum current delivery in a duplex configuration. Designed to span long overhead runs from utility poles to building weatherheads, it provides a stable, sag-resistant solution for heavy-duty overhead power drops, high-amp construction site temp power, and commercial street lighting installations.

By utilizing stranded 1350-H19 series aluminum conductors paired with a heavy-duty ACSR neutral messenger, Chow duplex provides extreme physical tensile strength with lightweight ease of installation. The cross-linked polyethylene (XLP) insulation offers superior protection against sunlight, freezing temperatures, and environmental wear.

• 600V Aerial Reliability: Rated for continuous 120V aerial service (up to 600V max) at conductor temperatures up to 90°C with XLP insulation.

• Heavy-Duty ACSR Messenger: Features a 6/1 steel-reinforced ACSR neutral messenger delivering 2,850 lbs of breaking strength to prevent sag and withstand severe ice and wind loads.

• Sunlight & Weather-Resistant XLP: Heavy-duty black cross-linked polyethylene insulation prevents UV degradation, cracking, and moisture damage in outdoor environments.

• Cut to Length by the Foot: Order only the exact span length needed for your project, eliminating jobsite waste and unused spools.

Technical Specifications: Chow 2-2 Duplex Overhead Cable

• Application: Overhead secondary power drops (120V single-phase), temporary jobsite power feeds, and outdoor/street lighting runs.

• Code Word: Chow.

• Voltage Rating: 600 Volts Maximum.

• Phase Conductor Size & Stranding: 2 AWG (7-strand 1350-H19 Series Aluminum).

• Neutral Messenger Size & Stranding: 2 AWG ACSR (6 Aluminum / 1 Steel Strand).

• Messenger Breaking Strength: 2,850 lbs.

• Insulation Material: Black Cross-Linked Polyethylene (XLP).

• Insulation Thickness: 0.045 inches (1.14 mm).

• Nominal Outer Diameter: 0.70 inches (17.53 mm).

• Approximate Cable Weight: 182 lbs per 1,000 ft.

• Ampacity (90°C XLP Conductor): 150 Amps.

• Ampacity (75°C Poly Conductor): 120 Amps.

• Compliance & Standards: ASTM B-230, ASTM B-231, ASTM B-232, ICEA S-76-474, RUS Accepted.

Common 2-2 Chow Duplex Overhead Applications

• High-Capacity Utility Service Drops: 120V aerial power runs from utility pole transformers to residential weatherheads, commercial facilities, or agricultural outbuildings.

• Temporary Construction Power: Rugged overhead power delivery for large temporary meter main poles and heavy-duty jobsite distribution equipment.

• Commercial & Highway Lighting: High-amp aerial runs for municipal street lamps, large parking lot light poles, and security perimeter systems.

Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.

Ampacity Reference: Based on conductor temperature of 90°C for XLP (75°C for Poly), 40°C ambient temperature, 0.9 emissivity, and 2 ft/sec wind in full sun. Reference applicable NEC articles for site-specific installation guidelines.
