Parent SKU : BCTSTR2/0-19
SKU : BCTSTR2/0-19-250

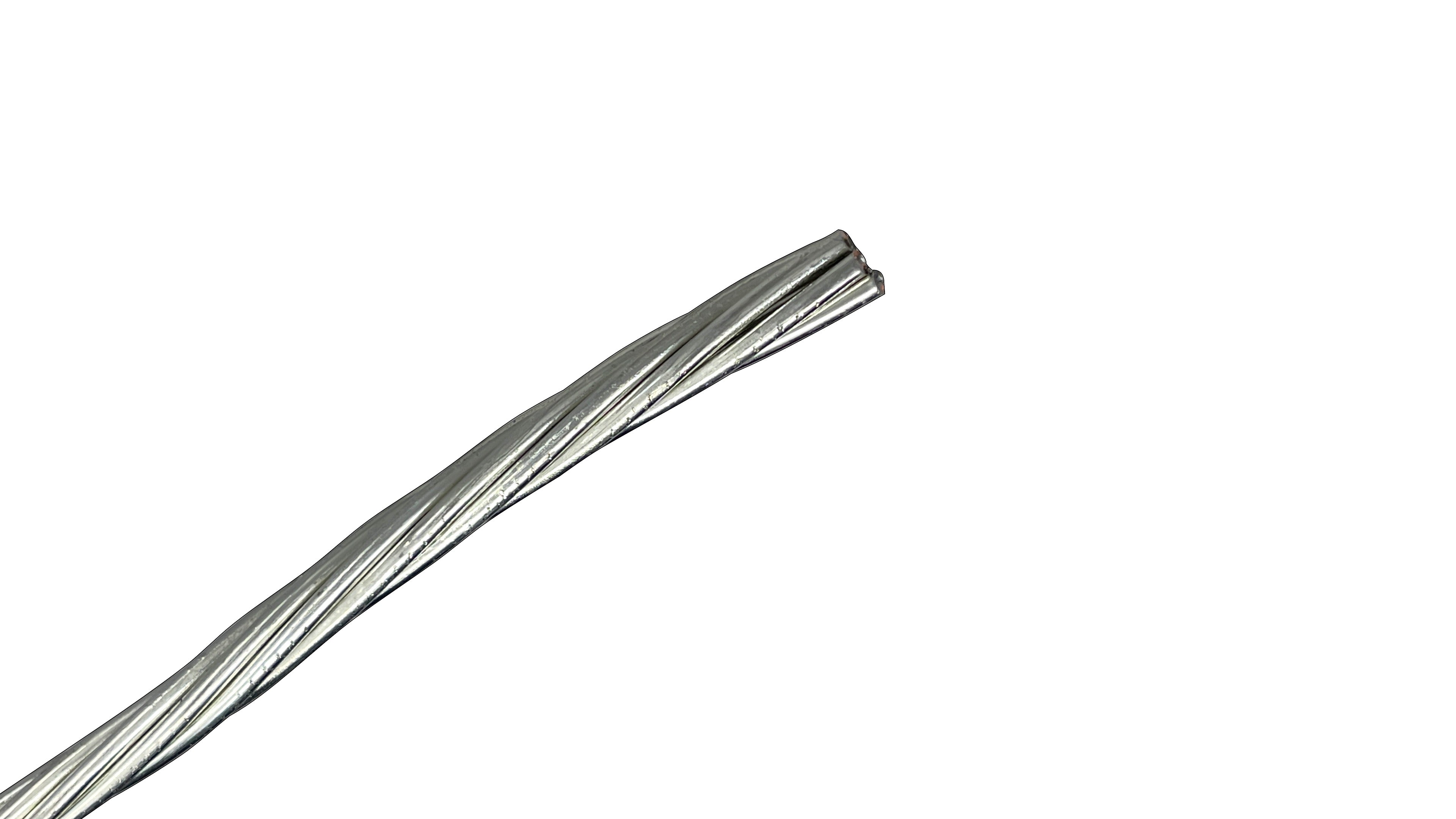

"Designed for overhead electrical transmission, distribution, and grounding systems where high conductivity, flexibility, and corrosion resistance are required, 2/0 Stranded Tinned Bare Copper Wire delivers long-lasting performance in demanding environments. Manufactured using soft temper stranded tin-coated copper conductors (hot dipped or electroplated with tin), this wire significantly improves resistance against oxidation and corrosion. Built in a 19-strand construction, it provides exceptional flexibility for grounding electrical systems, substation grids, and utility applications."
Corrosion-Resistant Tin Coating: Hot dipped or electroplated tin coating significantly improves resistance to corrosion, moisture, and oxidation.
Soft Temper Stranded Copper: Soft drawn (annealed) copper conductor provides high conductivity and excellent flexibility for grounding applications.
19-Strand Flexibility: Concentric-lay stranded design with 19 individual strands ensures smooth bending and handling during installation.
High-Conductivity Grounding: 2/0 AWG cross-sectional area offers low DC resistance (0.07949 Ohms/1000 ft) for overhead distribution and electrical system grounding.
Cut-to-Length Availability: Available cut by the foot to fit exact job requirements or on bulk reels for large utility projects.
Conductor Size: 2/0Â
Number of Strands: 19 Strands
Conductor Material: Soft Temper Tin-Coated Copper
Overall Diameter: 0.418 inches
Approximate Net Weight: 410.9 lbs per 1,000 ft
Allowable Ampacity: 355 Amps (based on 75°C conductor temp, 25°C ambient, 2ft./sec. wind in sun)
Rated Strength: 4,024 lbs
Soft-Drawn DC Resistance @ 20°C: 0.07949 Ohms/1000 ft
Applicable Standards: ASTM B-3 (Soft or Annealed Copper), ASTM B-8 (Concentric-Lay Stranded), ASTM B-33 (Tinned Soft/Annealed Copper), ASTM B-258, Federal Spec QQ-W-343
Overhead Transmission & Distribution: Power transmission lines and overhead branch connections requiring high conductivity and corrosion resistance.
Electrical System Grounding: Heavy-duty grounding for industrial electrical systems, substation grids, and equipment bonding.
Corrosive & Outdoor Environments: Outdoor, high-moisture, or chemical exposure areas where bare copper would prematurely oxidize.
All values are nominal and subject to correction.Â
| Wire Size (AWG/MCM) | 2/0 |
| Conductor Material | Tinned Copper |
| Conductor Type | Stranded |
| Strand Count | 19 |
| Outer Diameter (OD) (in/mm) | 0.418 in. |
| Conductor Count | 1 |
| Shield | Unshielded |
| Ampacity Rating | 355 |
| Direct Burial Rating | Yes |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Standards | ASTM B-1 Hard-drawn copper wire ASTM B-2 Medium-hard drawn copper wire ASTM B-3 Soft or annealed copper wire ASTM B-8 Concentric-lay stranded copper conductors: hard, medium-hard, or soft ASTM B-33 Tinned soft or annealed copper wire ASTM B-258 Federal Sepc QQ-W-368 |
| Miscellaneous Information | All values are nominal and subject to correction. *Ampacity based on 75ºC conductor temperature; 25ºC ambient temperature; 2ft./sec. wind in sun. |
| Primary Applications | Grounding Systems, Overhead Power Distribution, Ground Wire for Lightning Protection, Bonding Applications, Messenger and Support Wires |
| Common Uses |
|
| Weight per Foot | 0.4109 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : BCTSTR2/0-19
SKU : BCTSTR2/0-19-250
Parent SKU : BCTSTR2/0-19
SKU : BCTSTR2/0-19-250
"Designed for overhead electrical transmission, distribution, and grounding systems where high conductivity, flexibility, and corrosion resistance are required, 2/0 Stranded Tinned Bare Copper Wire delivers long-lasting performance in demanding environments. Manufactured using soft temper stranded tin-coated copper conductors (hot dipped or electroplated with tin), this wire significantly improves resistance against oxidation and corrosion. Built in a 19-strand construction, it provides exceptional flexibility for grounding electrical systems, substation grids, and utility applications."
Corrosion-Resistant Tin Coating: Hot dipped or electroplated tin coating significantly improves resistance to corrosion, moisture, and oxidation.
Soft Temper Stranded Copper: Soft drawn (annealed) copper conductor provides high conductivity and excellent flexibility for grounding applications.
19-Strand Flexibility: Concentric-lay stranded design with 19 individual strands ensures smooth bending and handling during installation.
High-Conductivity Grounding: 2/0 AWG cross-sectional area offers low DC resistance (0.07949 Ohms/1000 ft) for overhead distribution and electrical system grounding.
Cut-to-Length Availability: Available cut by the foot to fit exact job requirements or on bulk reels for large utility projects.
Conductor Size: 2/0Â
Number of Strands: 19 Strands
Conductor Material: Soft Temper Tin-Coated Copper
Overall Diameter: 0.418 inches
Approximate Net Weight: 410.9 lbs per 1,000 ft
Allowable Ampacity: 355 Amps (based on 75°C conductor temp, 25°C ambient, 2ft./sec. wind in sun)
Rated Strength: 4,024 lbs
Soft-Drawn DC Resistance @ 20°C: 0.07949 Ohms/1000 ft
Applicable Standards: ASTM B-3 (Soft or Annealed Copper), ASTM B-8 (Concentric-Lay Stranded), ASTM B-33 (Tinned Soft/Annealed Copper), ASTM B-258, Federal Spec QQ-W-343
Overhead Transmission & Distribution: Power transmission lines and overhead branch connections requiring high conductivity and corrosion resistance.
Electrical System Grounding: Heavy-duty grounding for industrial electrical systems, substation grids, and equipment bonding.
Corrosive & Outdoor Environments: Outdoor, high-moisture, or chemical exposure areas where bare copper would prematurely oxidize.
All values are nominal and subject to correction.Â
| Wire Size (AWG/MCM) | 2/0 |
| Conductor Material | Tinned Copper |
| Conductor Type | Stranded |
| Strand Count | 19 |
| Outer Diameter (OD) (in/mm) | 0.418 in. |
| Conductor Count | 1 |
| Shield | Unshielded |
| Ampacity Rating | 355 |
| Direct Burial Rating | Yes |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Standards | ASTM B-1 Hard-drawn copper wire ASTM B-2 Medium-hard drawn copper wire ASTM B-3 Soft or annealed copper wire ASTM B-8 Concentric-lay stranded copper conductors: hard, medium-hard, or soft ASTM B-33 Tinned soft or annealed copper wire ASTM B-258 Federal Sepc QQ-W-368 |
| Miscellaneous Information | All values are nominal and subject to correction. *Ampacity based on 75ºC conductor temperature; 25ºC ambient temperature; 2ft./sec. wind in sun. |
| Primary Applications | Grounding Systems, Overhead Power Distribution, Ground Wire for Lightning Protection, Bonding Applications, Messenger and Support Wires |
| Common Uses |
|
| Weight per Foot | 0.4109 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||
2/0 Tinned Copper Wire is primarily used for heavy-duty grounding grids, bonding main service equipment, lightning protection, and direct-burial grounding loops where resistance to moisture and soil corrosion is critical.
The tin coating acts as a protective barrier against oxidation, corrosion, and chemical exposure, significantly extending the wire's lifespan in wet, underground, or outdoor environments without sacrificing electrical conductivity.
Yes. Because it is manufactured with soft-drawn (annealed) copper and stranded in a Class B 19-strand configuration, it bends much more easily than hard-drawn or solid conductors during installation.
Wire America supplies a broad inventory of tinned bare copper grounding conductors available cut by the foot or on master spools. Orders are typically processed and shipped within 1 to 2 business days, delivering directly to your shop or job site within 2 to 4 business days once in transit.
We ship your order from the closest regional distribution hub to your job site to keep transit times and freight costs as low as possible. Expedited shipping options are also available at checkout.
Working against a tight job site or inspection deadline? Call our sales team directly at 833-268-8644 to request priority processing!
