Parent SKU : RG2/0-L2
SKU : RG2/0-L2-250-RD
APPLICATION:
The RG Flex Family of telecommunications power products has been tested and certified by Telcordia and meets the functional performance requirements of GR-347 Issue 3, TPR.9212 and ATIS-0600017.2020. Telcordia affirms that L2, L3 and L4 power cables are suitable for use in all telecommunications facilities including central offices, remote terminal applications and outside plant remote cabinets that house electronics equipment.
CONDUCTORS:
Class I annealed stranded tinned copper
COLOR CODE:

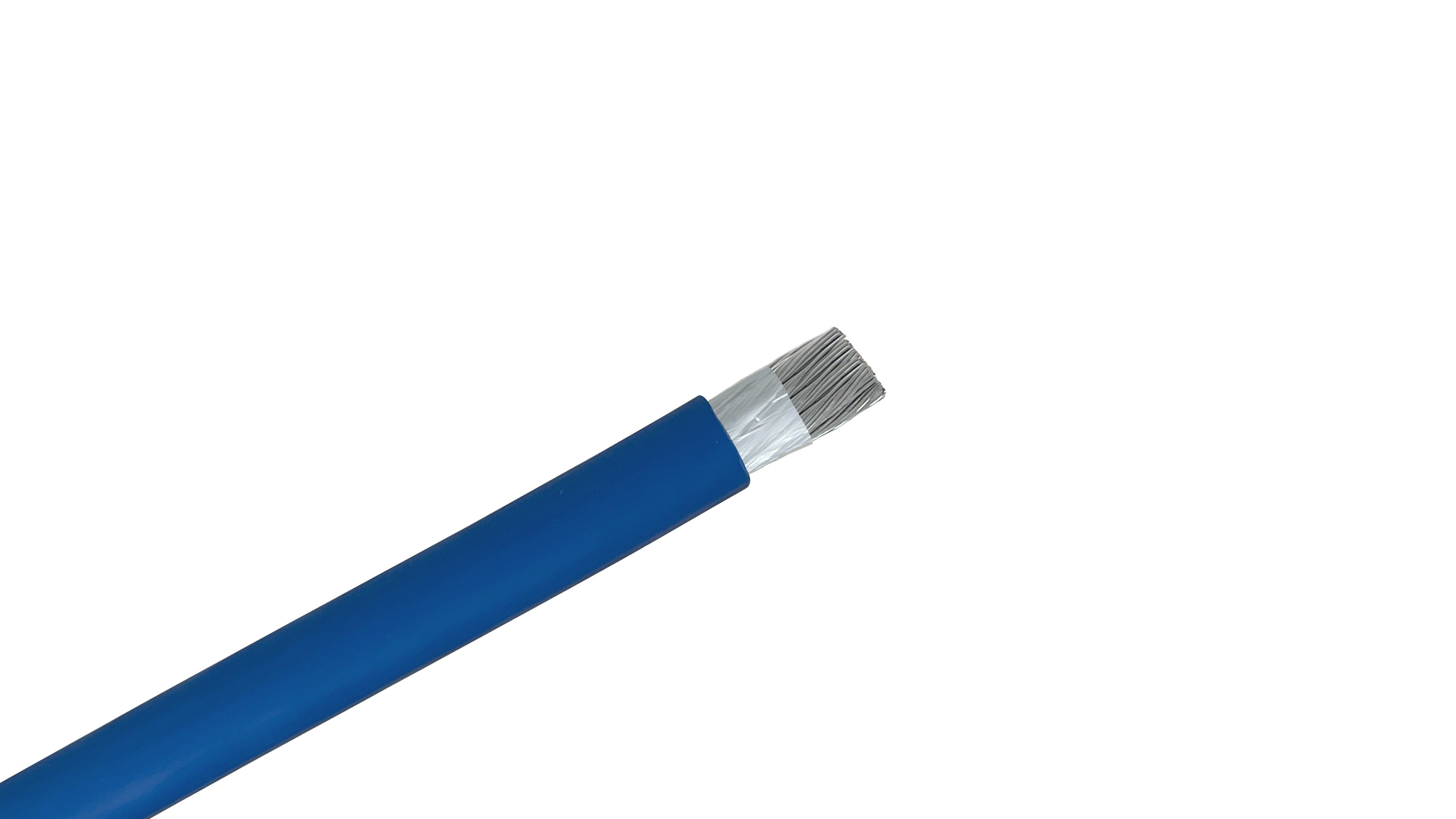

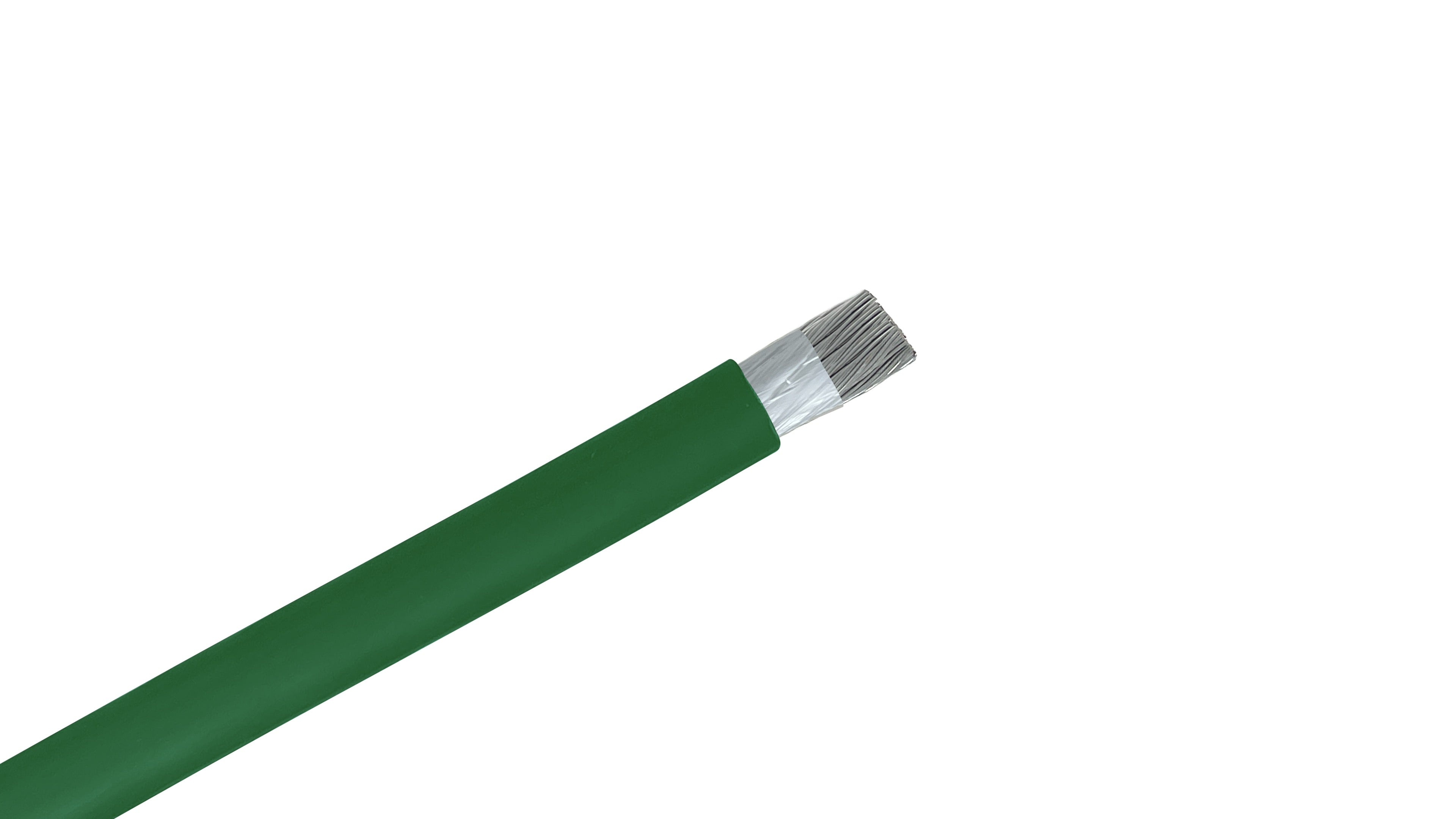

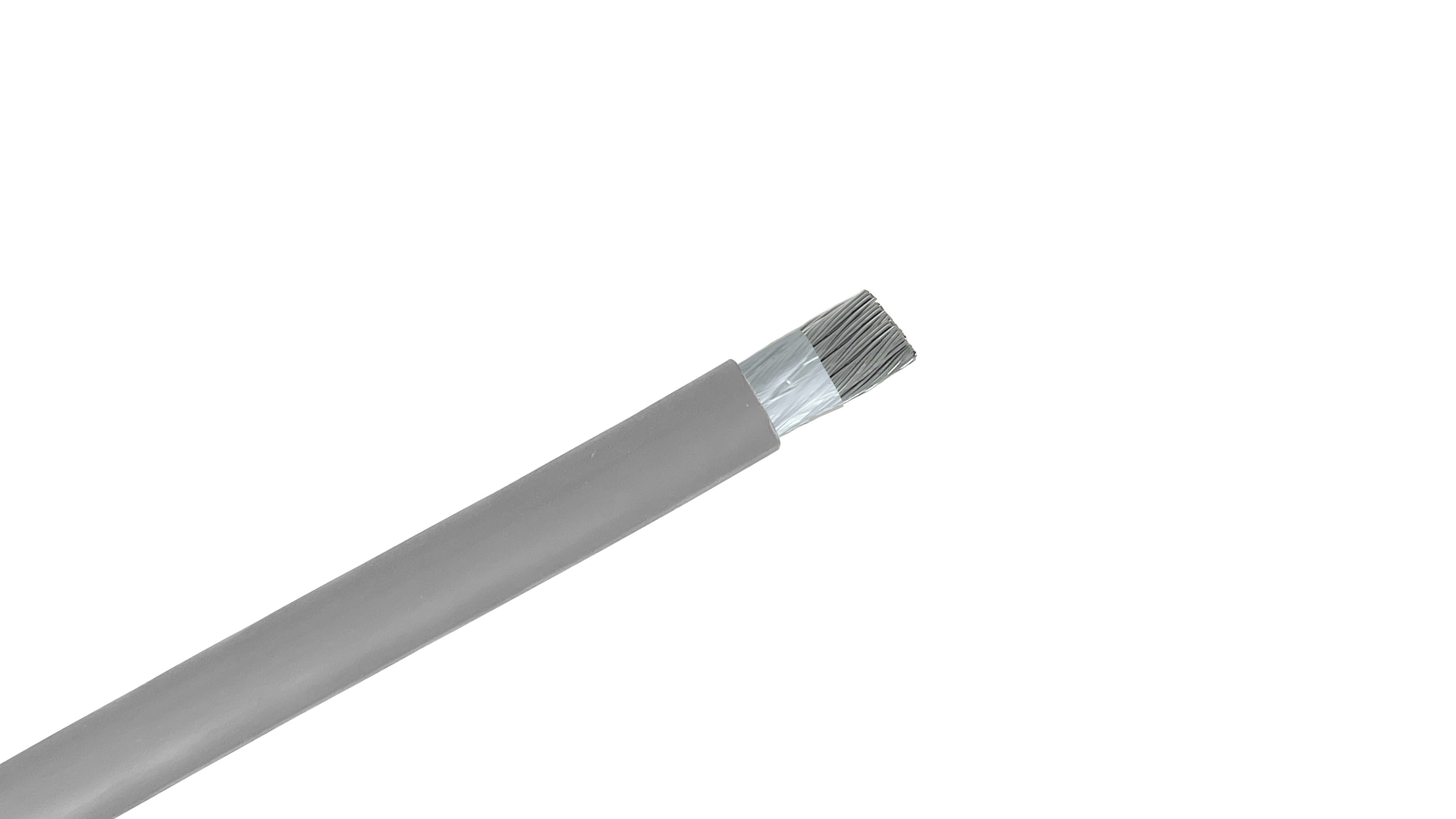

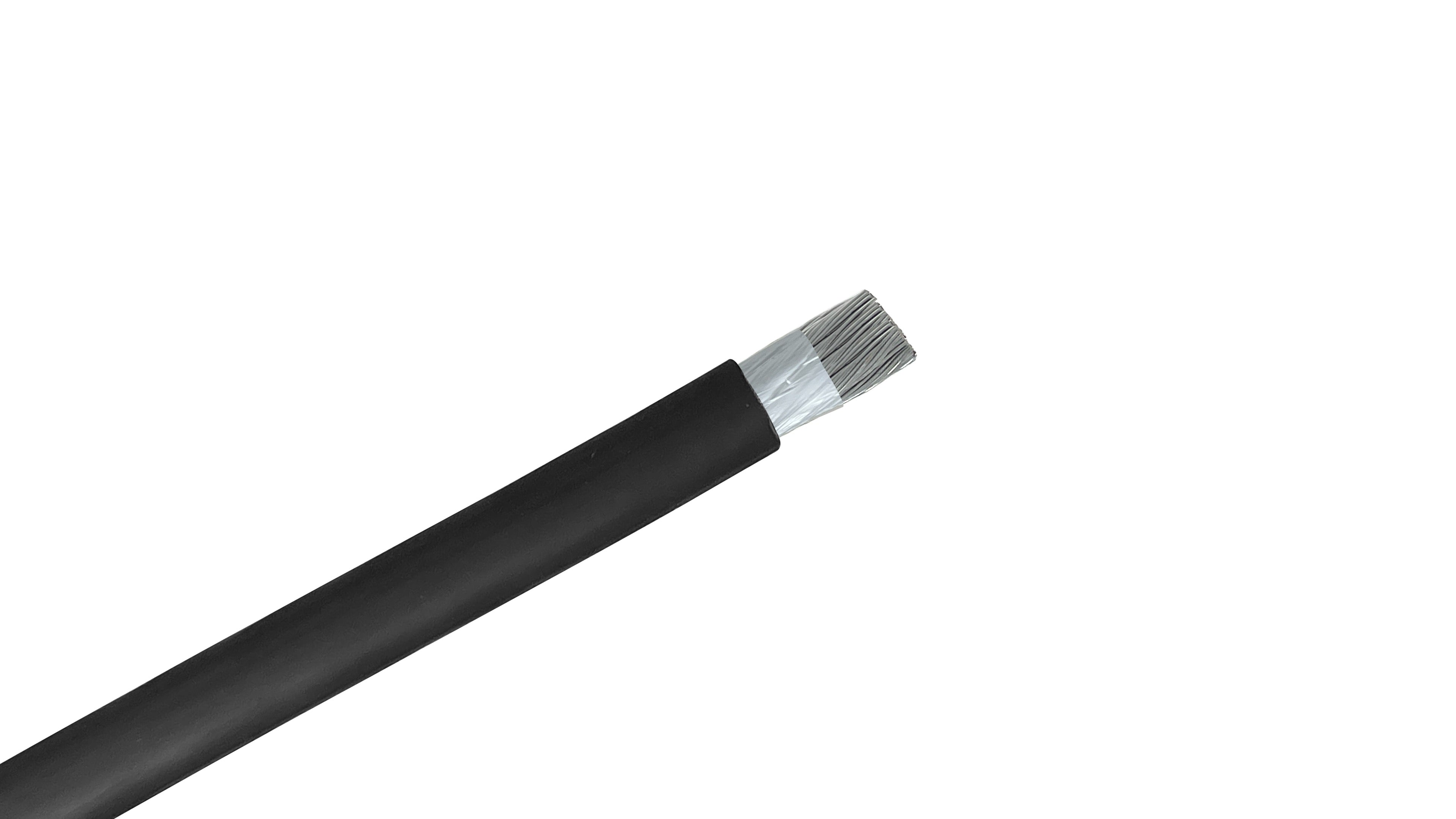

Red, Blue, Gray, Green or Black
INSULATION:
Thermosetting LSZH, lead-free, silicone-free
SEPARATOR:
Mylar tape over conductor
Max DC Resistance @20C:
0.087 ohms/kft
Flame Test:
VW-1 and FT4
Physical and electrical testing in accordance with the requirements of UL Standard 44, Subject 509 and 758, and CSA Standard C22.2 No. 210.2 M90 as AWM. AWG 18 and 16 comply with UL 66.
| Wire Size (AWG/MCM) | 2/0 |
| Conductor Material | Tinned Copper |
| Conductor Type | Stranded |
| Strand Count | 342 |
| Outer Diameter (OD) (in/mm) | 0.630 in. / 16.00 mm |
| Conductor Count | 1 |
| Shield | Unshielded |
| Insulation Type | Thermosetting LSZH |
| UL Listing Numbers | UL 44, UL 66, UL 758, UL 2731 |
| Voltage Rating | 600V |
| Direct Burial Rating | Yes |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 105°C |
| Standards | Telcordia GR-347-CORE Compliant ATIS 0600017.2020 Compliant TPR.9212 Compliant UL 2731 Telecommunications Central Office Power Cable UL Listed Standard 44: Thermoset Insulated Type RHH/RHW/ST1 UL Listed Standard 66: Thermoset Insulated Type RFHH-2 UL Listed: For Tray Cable Use (1/0 & Larger) FT-4 Flame Test Compliant VW-1 Flame Test Compliant CSA AWM 1 B 105C Zero Halogen IEC 60754 and IEC 60332 Compliant RoHS / Reach Compliant |
| Miscellaneous Information | Physical and electrical testing in accordance with the requirements of UL Standard 44, Subject 509 and 758, and CSA Standard C22.2 No. 210.2 M90 as AWM. AWG 18 and 16 comply with UL 66. |
| Industry Standards Met | List 2 |
| RoHS Compliance | Yes |
| Primary Applications | Access Network Equipment, Edge Routing and Switching, Customer-Facing Services (Non-Core Criticality), Support and Monitoring Systems. |
| Common Uses |
|
| Weight per Foot | 0.516 lb |
