From $0.20/ft
128 Products
-
Solid THHN/THWN-2 WireFrom $0.20/ft -
Solid THHN/THWN-2 WireFrom $0.20/ft - Solid THHN/THWN-2 WireFrom $0.20/ft
- Solid THHN/THWN-2 WireFrom $0.20/ft
Parent SKU : THRMPL18-8
SKU : THRMPL18-8-250-WT
| Wire Size (AWG/MCM) | 18 AWG |
| Conductor Material | Copper |
| Conductor Type | Solid |
| Strand Count | Solid |
| Outer Diameter (OD) (in/mm) | 0.210 in. |
| Jacket Type | PVC |
| Conductor Count | 8 |
| Shield | Unshielded |
| Insulation Type | PVC |
| UL Listing Numbers | UL 13, UL 444 |
| Plenum Rating | true |
| Voltage Rating | 150V |
| Submersible | No |
| Flexibility Rating | Very Good |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 60°C |
| Standards | UL 13, CL2P UL 444, CM NEC Article 725, 800 Sunlight Resistant |
| Miscellaneous Information | All values are nominal and subject to correction. |
| Primary Applications | Residential and Commercial HVAC Systems, Boilers and Furnaces, Air Conditioning Units, Heat Pumps, Zoning Systems, General Purpose Control. |
| Weight per Foot | 0.053 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : THRMPL18-8
SKU : THRMPL18-8-250-WT
Parent SKU : THRMPL18-8
SKU : THRMPL18-8-250-WT
| Wire Size (AWG/MCM) | 18 AWG |
| Conductor Material | Copper |
| Conductor Type | Solid |
| Strand Count | Solid |
| Outer Diameter (OD) (in/mm) | 0.210 in. |
| Jacket Type | PVC |
| Conductor Count | 8 |
| Shield | Unshielded |
| Insulation Type | PVC |
| UL Listing Numbers | UL 13, UL 444 |
| Plenum Rating | true |
| Voltage Rating | 150V |
| Submersible | No |
| Flexibility Rating | Very Good |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 60°C |
| Standards | UL 13, CL2P UL 444, CM NEC Article 725, 800 Sunlight Resistant |
| Miscellaneous Information | All values are nominal and subject to correction. |
| Primary Applications | Residential and Commercial HVAC Systems, Boilers and Furnaces, Air Conditioning Units, Heat Pumps, Zoning Systems, General Purpose Control. |
| Weight per Foot | 0.053 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||

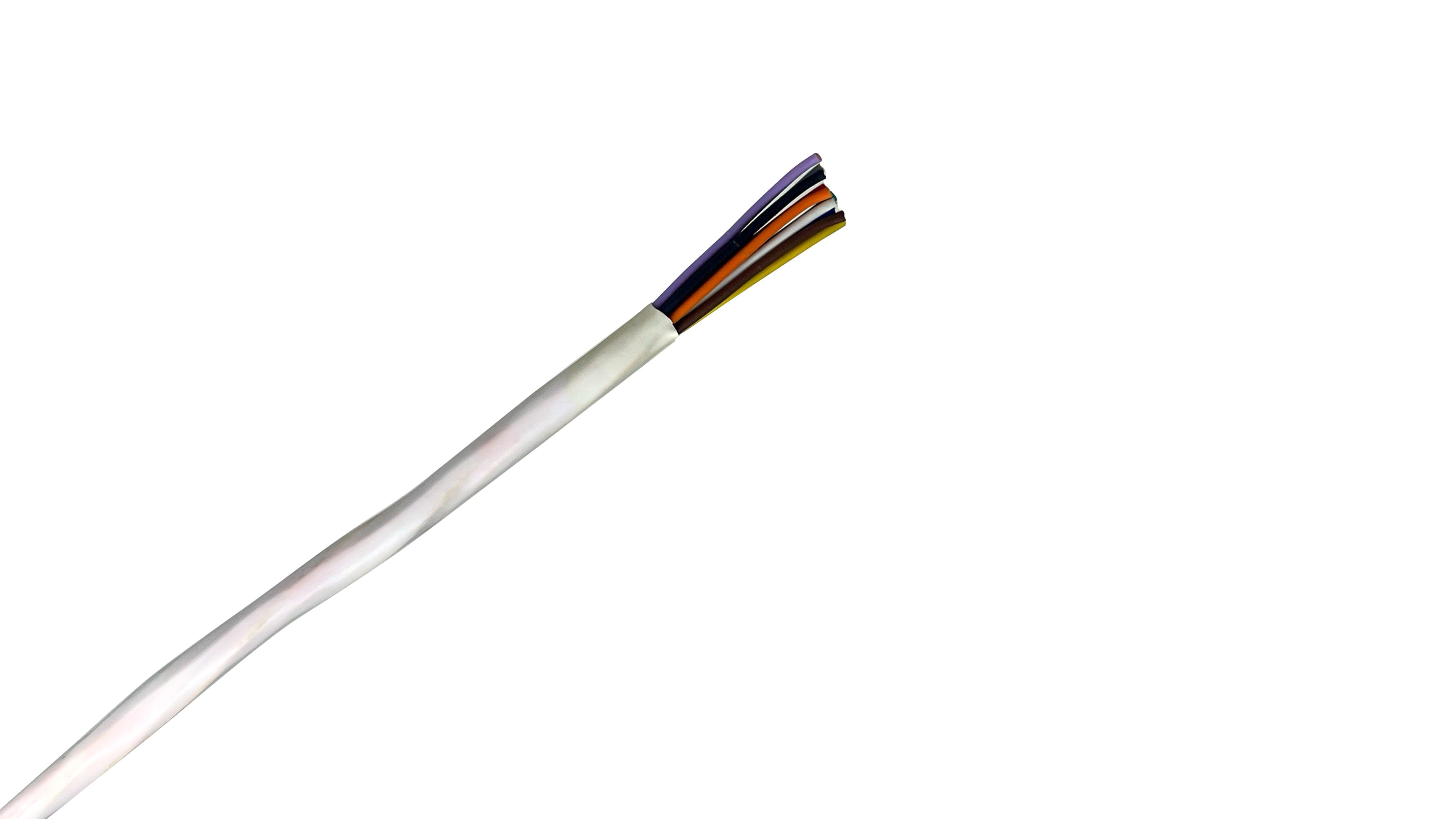

This is a specialized low-voltage cable designed for control circuits in HVAC systems, thermostats, and other power-limited applications. Its "plenum" rating signifies it is engineered to meet strict fire safety standards for use in air-handling spaces within buildings. The 18-8C indicates it has 8 conductors, each 18 American Wire Gauge (AWG).
The "Plenum" rating is crucial because it means the wire is designed with a special jacket that is fire-resistant and produces minimal smoke and toxic fumes in the event of a fire. This is a critical safety requirement for cables installed in air-handling spaces (plenums) to prevent the rapid spread of fire and harmful smoke throughout a building.
This wire is primarily used in plenum spaces without conduit for power-limited circuits. Common applications include thermostats, air conditioning and heat pump systems, bell and alarm systems, signal systems, doorbells, and remote control units.
"18" refers to the American Wire Gauge (AWG) of each conductor, indicating its thickness. "8C" means the cable contains 8 individual conductors (wires) bundled together within the outer jacket. This configuration allows for more complex control signals in advanced HVAC systems.
