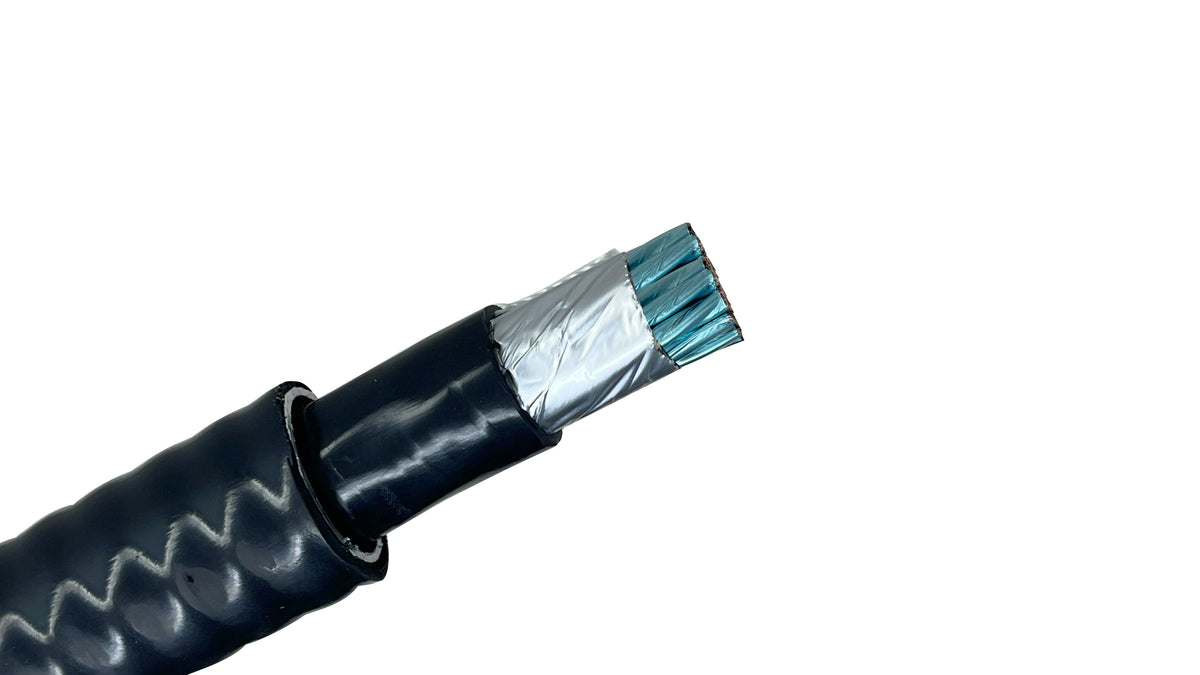

16-12 Pair MC-HL Armored Cable, Individual & Overall Shield, PVC-Nylon/PVC, 600V

Parent SKU :  MCHL16-12P-SPOS

SKU :  MCHL16-12P-SPOS-250

CCW ALUMINUM ARMOR • CLASS I, DIV 1 RATED • DIRECT BURIAL
Download Spec Sheet
Wire Size 16 AWG
Conductor Material Copper
Conductor Type Stranded
Outer Diameter 1.22 in. / 30.99 mm
Conductor Count 24
Voltage Rating 600V
Weight per Foot 0.674 lb
Download Spec Sheet

Get Product Details

Get Product Details
APPLICATION:
Type MC-HL SPOS, STOS Instrumentation Cables features 16 AWG pairs or triad construction with an overall foil shield and drain wire. It is suitable for use in Class I, II & III Division 1 and 2 hazardous locations. This includes Remote-Control Signaling circuits, or where 600V cable is needed for process control, instrumentation or computer cable transmitting at levels above 100 mili-volts in circuits where minimum noise is required. The individual group shields along with the overall shield provide protection from interference among groups as wells as external interference. It may be installed indoors or outside, in wet or dry locations and is sunlight resistant and can be direct buried. It may also be used in cable tray. It is often used in industrial plant settings including oil, gas, petrochemical, chemical, food processing plants, metals, mining, petrochemical, power generation, pulp & paper, transportation.

CONDUCTORS:
Stranded, soft drawn annealed copper

INSULATION:
Polyvinyl Chloride (PVC)

INNER JACKET:
Polyvinyl Chloride (PVC) with rip cord for easy removal

OUTER JACKET:
Polyvinyl Chloride (PVC)

COLOR CODE:
Black and White with Numbers

SHIELD:
Individual & Overall aluminum / polyester shield with 7-strand tinned copper drain wire

ARMOR:
Continuously welded, impervious, corrugated aluminum armor. Exceeds the grounding requirements of NEC 250.122.



See Full Specifications

See Full Specifications
Download Spec Sheet

Physical Specifications

Wire Size (AWG/MCM) 16 AWG
Conductor Material Copper
Conductor Type Stranded
Outer Diameter (OD) (in/mm) 1.22 in. / 30.99 mm
Jacket Type (PVC) Polyvinyl Chloride
Conductor Count 24
Shield Coverage % 1
Shield Type Aluminum Polyester
Shield Individual and Overall Shield
Insulation Type (PVC) Polyvinyl Chloride
UL Listing Numbers UL83, UL1581, UL1569, UL2225

Technical Specifications

Voltage Rating 600V
Direct Burial Rating Yes
Submersible No
Sunlight Resistance Rating Yes
Temperature Rating 90ºC
Standards UL Listed MC Cable
UL Listed as Type MC-HL
UL Listed for cable tray use
UL83, UL1581, UL1569, UL2225
Meets NEC Articles 250-118, 501, 502, 503, 504, 505, and 725 for hazardous locations
Sunlight Resistant, Direct Burial, Oil Resistant

Usage & Installation

Primary ApplicationsPetrochemical or oil & gas processing plants, food processing, metals,mining, power generation, pulp & paper, transportation, and other industrial plant settings.

Packaging & Dimensions:

Weight per Foot 0.674 lb
