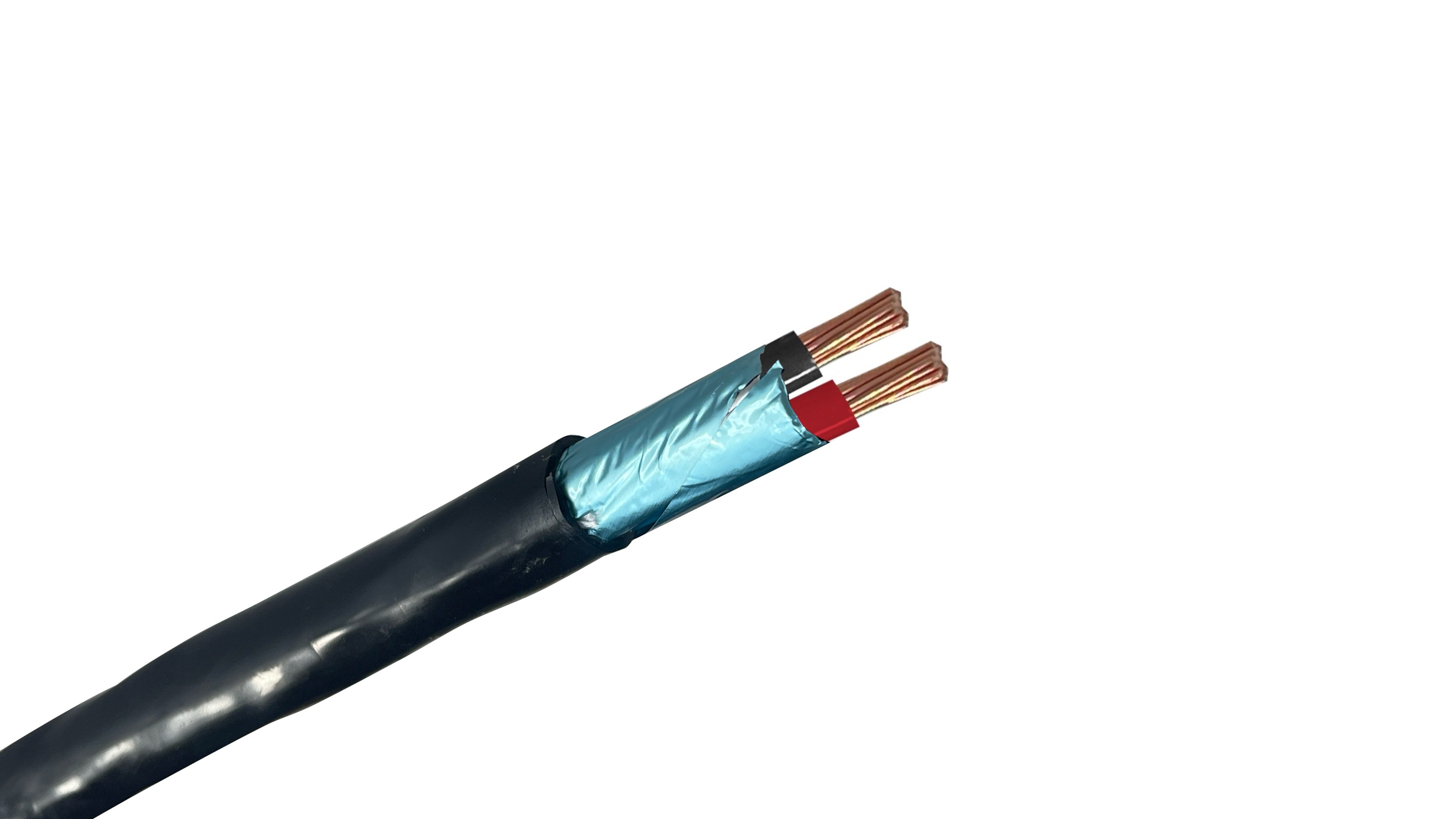

16-2 Shielded VNTC Tray Cable, TFFN/PVC ( Black, Red)

This 16 AWG, 2-conductor shielded VNTC (Vinyl Nylon Tray Cable) is an industrial-grade control and instrumentation cable designed for signal transmission in protected environments. Utilizing TFFN (Thermoplastic Flexible Fixture Nylon) conductors, this cable provides a balance of higher ampacity and superior flexibility for routing through raceways where electromagnetic interference (EMI) must be suppressed.

Key Features of 16-2 Shielded VNTC

• 100% EMI/RFI Shielding: Features an overall aluminum foil-polyester tape shield with a tinned copper drain wire. This provides a total barrier to protect sensitive 4-20mA loops or digital signals from the electrical noise generated by nearby power cables and motors.

• Flexible TFFN Conductors: The 16 AWG stranded copper conductors are more flexible than standard THHN, making the cable easier to pull through conduit and terminate within compact control cabinets or junction boxes.

• Rugged Insulation System: The PVC insulation with a tough nylon skin offers excellent resistance to abrasion, moisture, and common industrial chemicals, ensuring long-term circuit integrity.

• Industrial Compliance: Rated for 600V and 90°C (dry). The jacket is sunlight-resistant and flame-retardant, approved for use in Class I, Division 2 hazardous locations per NEC.

Common Applications

• Instrumentation Signal Loops: Connecting pressure transmitters, flow meters, and other field instruments to PLC input modules.

• DC Control Power: Frequently used for 24V DC control runs where the Black and Red conductors provide easy polarity identification.

• Critical Signaling: Providing a shielded path for low-voltage signals in refineries, water treatment plants, and manufacturing facilities.

• Security and Access Control: Suitable for shielded power and data runs for industrial gate controllers and security sensors.

Conductor Identification: DC/Custom Color Code

• Conductor 1: Black

• Conductor 2: Red

Technical Specifications

• Conductor Size: 16 AWG

• Number of Conductors: 2

• Conductor Material: Bare Annealed Copper (Stranded)

• Insulation: TFFN (PVC with Nylon Skin)

• Shielding: Overall Aluminum Foil-Polyester Tape (100% coverage)

• Drain Wire: Tinned Copper

• Jacket: Flame-Retardant, Sunlight-Resistant PVC (Black)

• Voltage Rating: 600V

• Temperature Rating: 90°C Dry / 75°C Wet

• Compliance: UL 1277 (Type TC), UL 66 (TFFN), IEEE 1202, RoHS Compliant

Technical Note: As this cable is not TC-ER rated, it is designed for installation in cable trays, conduits, or raceways. It generally cannot be run as an unsupported cable between a tray and equipment for distances exceeding 6 feet.

To ensure the shield functions effectively, terminate the tinned copper drain wire to a clean ground at the source end only; terminating at both ends can create a ground loop that introduces more interference than it eliminates.

CABLE TYPE: 16/2 Shielded VNTC (TFFN/PVC)

RATING: Type TC (Non TC-ER)

COLOR CODE: Black, Red
