Parent SKU : SRGK14-5
SKU : SRGK14-5-250

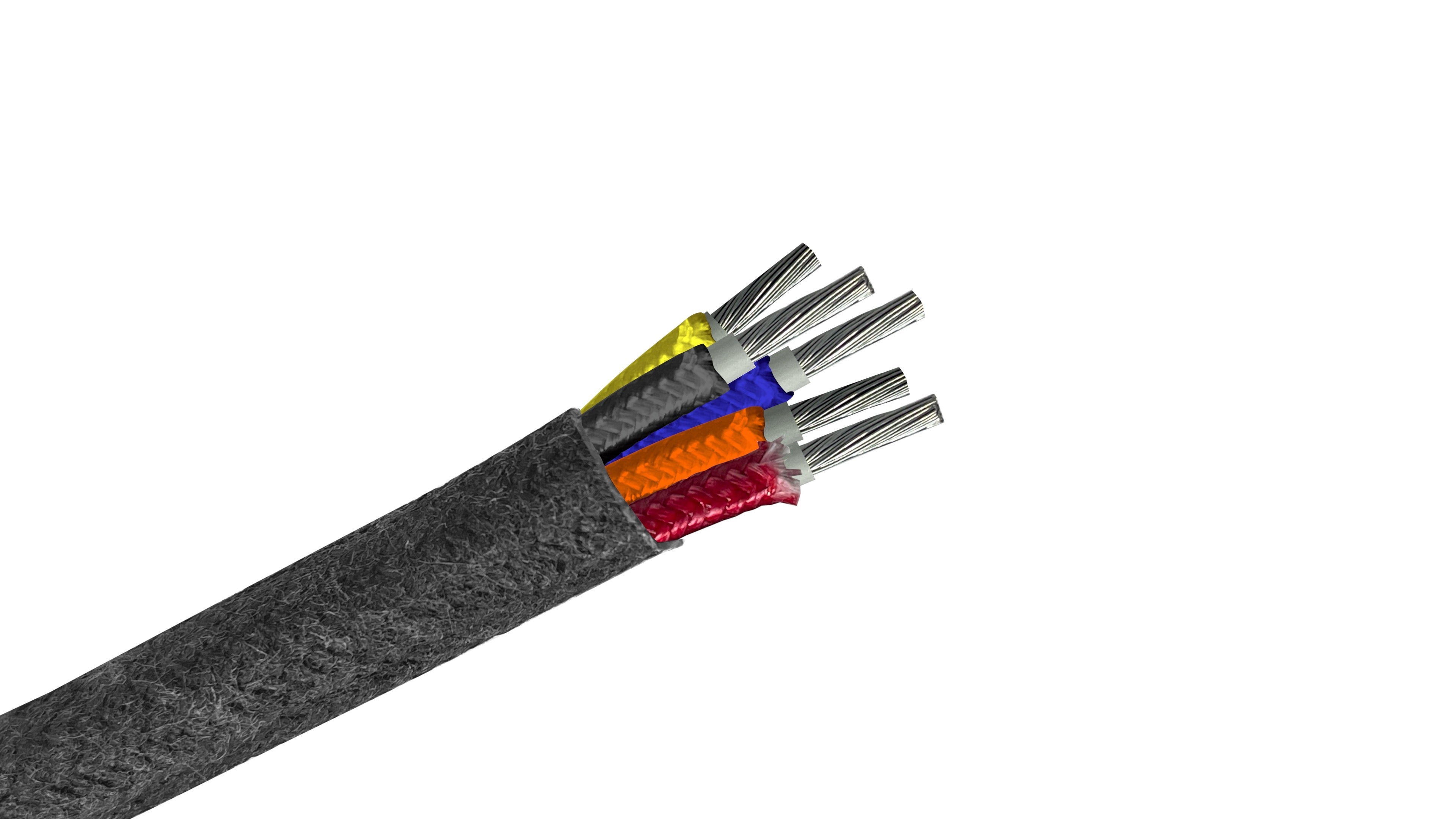

Specifically engineered for high-density control and multi-phase motor applications in extreme thermal zones, this 14 AWG 5-conductor SRG-K assembly provides elite performance where standard cables would degrade. Rated for continuous operation at 200°C, this wire combines high-flexibility stranded copper with a specialized silicone rubber and fiberglass armor system.
SRG-K (Silicone Rubber Glass - K for Kevlar-Fiber) is the industrial standard for "hot-zone" wiring. The 14 AWG gauge offers a perfect balance of significant current-carrying capacity and a compact outer diameter. The 5-conductor configuration is highly versatile, commonly used for 3-phase motor leads requiring a dedicated neutral and ground, or for complex sensor feedback loops in thermal processing equipment.
Elite Thermal Resilience: Rated for continuous service up to 200°C, ensuring electrical integrity in proximity to industrial burners, heating elements, and high-efficiency motors.
High-Flexibility Stranding: Utilizes fine-stranded Class K tinned copper conductors, allowing the cable to be easily routed through tight enclosures and conduit bends without work-hardening or conductor fatigue.
Silicone & Fiberglass Shielding: The silicone rubber insulation provides superior dielectric strength and moisture resistance, while the lacquered fiberglass braid provides essential abrasion resistance and prevents the silicone from tearing during installation.
Tinned Copper Conductors: The tin coating on the copper strands prevents oxidation and corrosion, which is accelerated in high-heat environments, ensuring long-term termination reliability.
Conductor Size: 14 AWG
Number of Conductors: 5
Color Code: Typically Black, Red, Blue, Orange, Yellow (Industry standard or per customer spec)
Voltage Rating: 600V
Max Temperature: 200°C
Insulation Material: Silicone Rubber
Outer Jacket: Fiberglass Braid with High-Temp Finish
Conductor Material: Stranded Tinned Copper (Class K)
Standards: NEMA WC 3, IEEE-383, ICEA T-27-581
Multi-Phase Motor Leads: Ideal for connecting high-horsepower motors in industrial fans, kiln blowers, and pumps.
Industrial Heating Systems: The primary choice for wiring plastic injection molding machines, commercial ovens, and heat-treating furnaces.
Internal Wiring of Appliances: Frequently used in professional-grade commercial kitchen equipment and industrial drying systems.
Power & Control in Smelting: Perfectly suited for machinery operating in foundries or glass manufacturing facilities where ambient temperatures consistently exceed 100°C.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
RADIX PART# KD14AT05G
| Wire Size (AWG/MCM) | 14 AWG |
| Conductor Material | Tinned Copper |
| Conductor Type | Stranded |
| Strand Count | 7 |
| Outer Diameter (OD) (in/mm) | 0.480 in. / 12.19 mm |
| Jacket Type | Aramid Fiber Braid |
| Conductor Count | 5 |
| Shield | Unshielded |
| Insulation Type | Silicone Rubber, Fiberglass Braid |
| Voltage Rating | 600V |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 200ºC |
| Standards | NEMA WC 3 Flame Propogation Test IEEE 1202 Vertical Cable Tray Flame Test |
| Miscellaneous Information | The data shown are approximate and subject to standard industry and manufacturer tolerances |
| RoHS Compliance | Yes |
| Primary Applications | Used for leads to motors, transformers or other electrical equipment where hazardous and/or high temperature conditions exist requiring flexible heat resistant conductors at 600 volts |
| Common Uses |
|
| Weight per Foot | 0.125 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||
This 14 AWG, 5-conductor wire is a specialized industrial cable designed for the internal wiring of motors, appliances, and high-heat processing equipment. Unlike standard portable cords that melt at 90°C, SRG-K is engineered to operate continuously at 200°C (392°F). It is the specific requirement for environments where high ambient temperatures and electrical heat generation would cause standard insulation to become brittle, crack, or catch fire.
The SRG-K designation refers to a high-performance "Silicone-Rubber-Glass" composite construction:
Since this wire is often used in the lead-heads of large motors, flexibility and vibration resistance are critical.
A 5-conductor configuration (14/5C) in this heat class is typically used for complex machinery requiring more than simple power delivery:
14/5C SRG-K is built to survive where others fail:
