Parent SKU : BUS14-3
SKU : BUS14-3-250

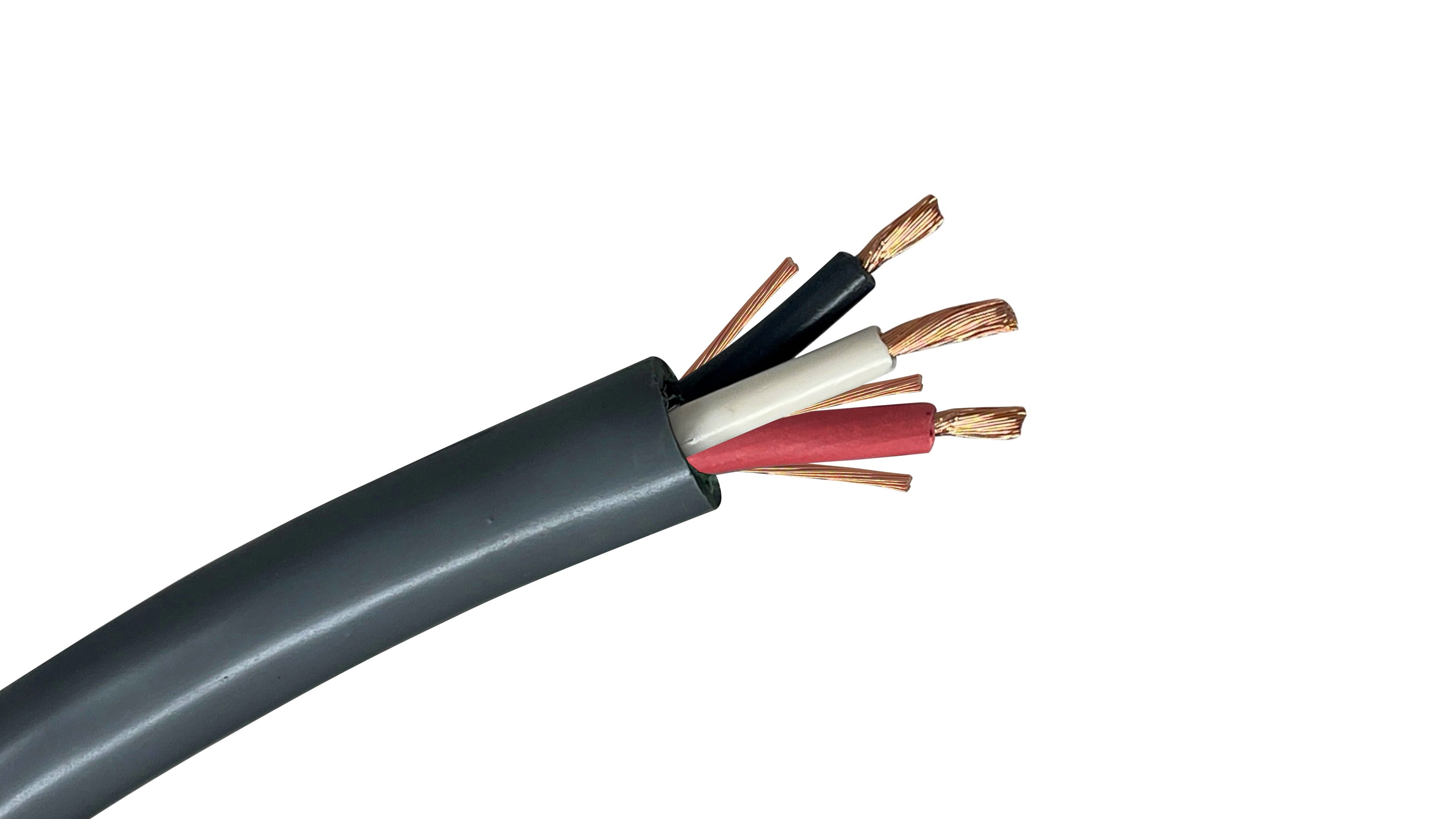

"Engineered for branches from overhead busways to stationary or semi-stationary industrial equipment, 14/3 Bus Drop Cable provides reliable, flexible 600V power distribution in factories, machine shops, and industrial manufacturing facilities. Built with three 14 AWG stranded annealed bare copper conductors and three 18 AWG bare copper grounding wires, this cable is insulated with 90°C (194°F) wet or dry PVC and jacketed in a heavy-duty, oil-resistant gray PVC outer jacket. It is UL listed for outdoor use, passes the VW-1 flame test, and is suitable for Class I, Division 2 hazardous locations."
Integrated Grounding Protection: Features three 18 AWG bare copper ground wires cabled into the assembly for reliable equipment grounding.
Oil & Environmental Resistance: Specially formulated gray PVC outer jacket resists industrial oils, grease, lubricants, moisture, and outdoor weather exposure.
Hazardous Location Approved: UL listed for outdoor use and suitable for use in Class I, Division 2 hazardous locations.
19-Strand Bare Copper Flexibility: Stranded annealed bare copper conductors ensure smooth handling and easy installation during overhead dropline drops.
Standard Phase Color Code: Insulated conductors are color-coded Black, White, and Red for quick and accurate phase identification.
Cut-to-Length Availability: Available cut by the foot for exact overhead drop lengths or on bulk spools for full plant installations.
Conductor Size: 14 AWG
Number of Conductors: 3 Conductors
Conductor Stranding: 19 Strands
Conductor Material: Annealed Bare Copper
Grounding Wires: (3) 18 AWG Bare Copper Grounds
Insulation Material: Polyvinylchloride (PVC) — 90°C (194°F) Wet or Dry Rated
Insulation Thickness: 0.030 inches (0.76 mm)
Jacket Material: Gray Polyvinylchloride (PVC) — 60°C (140°F) Oil Resistant
Jacket Thickness: 0.045 inches (1.14 mm)
Overall Diameter: 0.390 inches (9.91 mm)
Approximate Net Weight: 118 lbs per 1,000 ft
Voltage Rating: 600 Volts
Temperature Rating: -20°C to 90°C (Dry) / 60°C (Oil)
Color Code: Black, White, Red
Compliance Standards: UL 509 (Bus Drop Cable), UL Oil Resistant, UL Outdoor Rated, UL VW-1 Flame Test, Class I Div 2, ICEA S-73-532, RoHS & REACH Compliant
Overhead Busway Branch Drops: Connecting overhead industrial busway distribution systems to stationary machine tools, CNC equipment, and distribution panels.
Factory Power Distribution: Overhead feeder lines in automotive assembly plants, machine shops, and manufacturing facilities.
Industrial & Hazardous Locations: Approved for Class I, Division 2 environments and outdoor raceway/cable tray drops requiring oil and weather resistance.
All values are nominal and subject to correction.
| Wire Size (AWG/MCM) | 14 AWG |
| Conductor Material | Bare Copper |
| Conductor Type | Stranded |
| Strand Count | 19 |
| Outer Diameter (OD) (in/mm) | 0.390 in. / 9.91 mm |
| Jacket Type | PVC |
| Conductor Count | 3 |
| Shield | Unshielded |
| Insulation Type | PVC |
| UL Listing Numbers | UL 509 |
| Voltage Rating | 600V |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Standards | Cable is suitable for use in Class I Division II hazardous locations UL listed as Bus Drop Cable per UL Standard 509 UL approved for Oil Resistant applications UL listed for outdoor Individual conductors pass UL VW-1 flame test Meets ICEA S-73-532, where applicable RoHS & REACH compliant |
| Miscellaneous Information | All values are nominal and subject to correction |
| Other Certifications | Reach Compliant |
| RoHS Compliance | Yes |
| Primary Applications | Overhead Power Distribution Branches, Industrial Machinery Power, Industrial Machinery Power, Workstation & Tool Connections, Pendant Switches |
| Common Uses |
|
| Weight per Foot | 0.118 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : BUS14-3
SKU : BUS14-3-250
Parent SKU : BUS14-3
SKU : BUS14-3-250
"Engineered for branches from overhead busways to stationary or semi-stationary industrial equipment, 14/3 Bus Drop Cable provides reliable, flexible 600V power distribution in factories, machine shops, and industrial manufacturing facilities. Built with three 14 AWG stranded annealed bare copper conductors and three 18 AWG bare copper grounding wires, this cable is insulated with 90°C (194°F) wet or dry PVC and jacketed in a heavy-duty, oil-resistant gray PVC outer jacket. It is UL listed for outdoor use, passes the VW-1 flame test, and is suitable for Class I, Division 2 hazardous locations."
Integrated Grounding Protection: Features three 18 AWG bare copper ground wires cabled into the assembly for reliable equipment grounding.
Oil & Environmental Resistance: Specially formulated gray PVC outer jacket resists industrial oils, grease, lubricants, moisture, and outdoor weather exposure.
Hazardous Location Approved: UL listed for outdoor use and suitable for use in Class I, Division 2 hazardous locations.
19-Strand Bare Copper Flexibility: Stranded annealed bare copper conductors ensure smooth handling and easy installation during overhead dropline drops.
Standard Phase Color Code: Insulated conductors are color-coded Black, White, and Red for quick and accurate phase identification.
Cut-to-Length Availability: Available cut by the foot for exact overhead drop lengths or on bulk spools for full plant installations.
Conductor Size: 14 AWG
Number of Conductors: 3 Conductors
Conductor Stranding: 19 Strands
Conductor Material: Annealed Bare Copper
Grounding Wires: (3) 18 AWG Bare Copper Grounds
Insulation Material: Polyvinylchloride (PVC) — 90°C (194°F) Wet or Dry Rated
Insulation Thickness: 0.030 inches (0.76 mm)
Jacket Material: Gray Polyvinylchloride (PVC) — 60°C (140°F) Oil Resistant
Jacket Thickness: 0.045 inches (1.14 mm)
Overall Diameter: 0.390 inches (9.91 mm)
Approximate Net Weight: 118 lbs per 1,000 ft
Voltage Rating: 600 Volts
Temperature Rating: -20°C to 90°C (Dry) / 60°C (Oil)
Color Code: Black, White, Red
Compliance Standards: UL 509 (Bus Drop Cable), UL Oil Resistant, UL Outdoor Rated, UL VW-1 Flame Test, Class I Div 2, ICEA S-73-532, RoHS & REACH Compliant
Overhead Busway Branch Drops: Connecting overhead industrial busway distribution systems to stationary machine tools, CNC equipment, and distribution panels.
Factory Power Distribution: Overhead feeder lines in automotive assembly plants, machine shops, and manufacturing facilities.
Industrial & Hazardous Locations: Approved for Class I, Division 2 environments and outdoor raceway/cable tray drops requiring oil and weather resistance.
All values are nominal and subject to correction.
| Wire Size (AWG/MCM) | 14 AWG |
| Conductor Material | Bare Copper |
| Conductor Type | Stranded |
| Strand Count | 19 |
| Outer Diameter (OD) (in/mm) | 0.390 in. / 9.91 mm |
| Jacket Type | PVC |
| Conductor Count | 3 |
| Shield | Unshielded |
| Insulation Type | PVC |
| UL Listing Numbers | UL 509 |
| Voltage Rating | 600V |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Standards | Cable is suitable for use in Class I Division II hazardous locations UL listed as Bus Drop Cable per UL Standard 509 UL approved for Oil Resistant applications UL listed for outdoor Individual conductors pass UL VW-1 flame test Meets ICEA S-73-532, where applicable RoHS & REACH compliant |
| Miscellaneous Information | All values are nominal and subject to correction |
| Other Certifications | Reach Compliant |
| RoHS Compliance | Yes |
| Primary Applications | Overhead Power Distribution Branches, Industrial Machinery Power, Industrial Machinery Power, Workstation & Tool Connections, Pendant Switches |
| Common Uses |
|
| Weight per Foot | 0.118 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||
14/3 Bus Drop Cable is an industrial-grade power distribution cable designed for connecting overhead busways to stationary or semi-stationary industrial equipment. It provides reliable, flexible 600V power in environments like factories, machine shops, and manufacturing facilities, offering a removable electrical connection without disrupting plant power.
In 14/3 Bus Drop Cable, the "14" refers to the 14 AWG size of the three primary power phase conductors. The "3" indicates that there are three insulated power conductors inside the assembly (Black, White, Red). Additionally, this cable includes three uninsulated 18 AWG bare copper grounding wires cabled into the assembly for equipment grounding.
Featuring three separate 18 AWG bare copper grounds rather than a single large ground is a key engineering trait of bus drop cable. Symmetry around the active phase conductors makes the overall cable rounder, more flexible, and easier to suspend. It also helps balance induced currents and improves fault-to-ground path protection across the assembly.
While both are rated for 600V in demanding industrial plants, Bus Drop Cable is specifically engineered for stationary or semi-stationary overhead drops supported by strain-relief grips. SOOW cables are designed for general-purpose portable power and continuous flexing applications (like hand tools or portable machinery). Bus Drop Cable should not be used for continuous flexing or portable equipment.
Yes! The heavy-duty gray PVC outer jacket is specifically formulated to be 60°C oil-resistant, UL listed for outdoor weather exposure, and suitable for use in Class I, Division 2 hazardous locations.
