Parent SKU : TCTHN14-25SH
SKU : TCTHN14-25SH-250

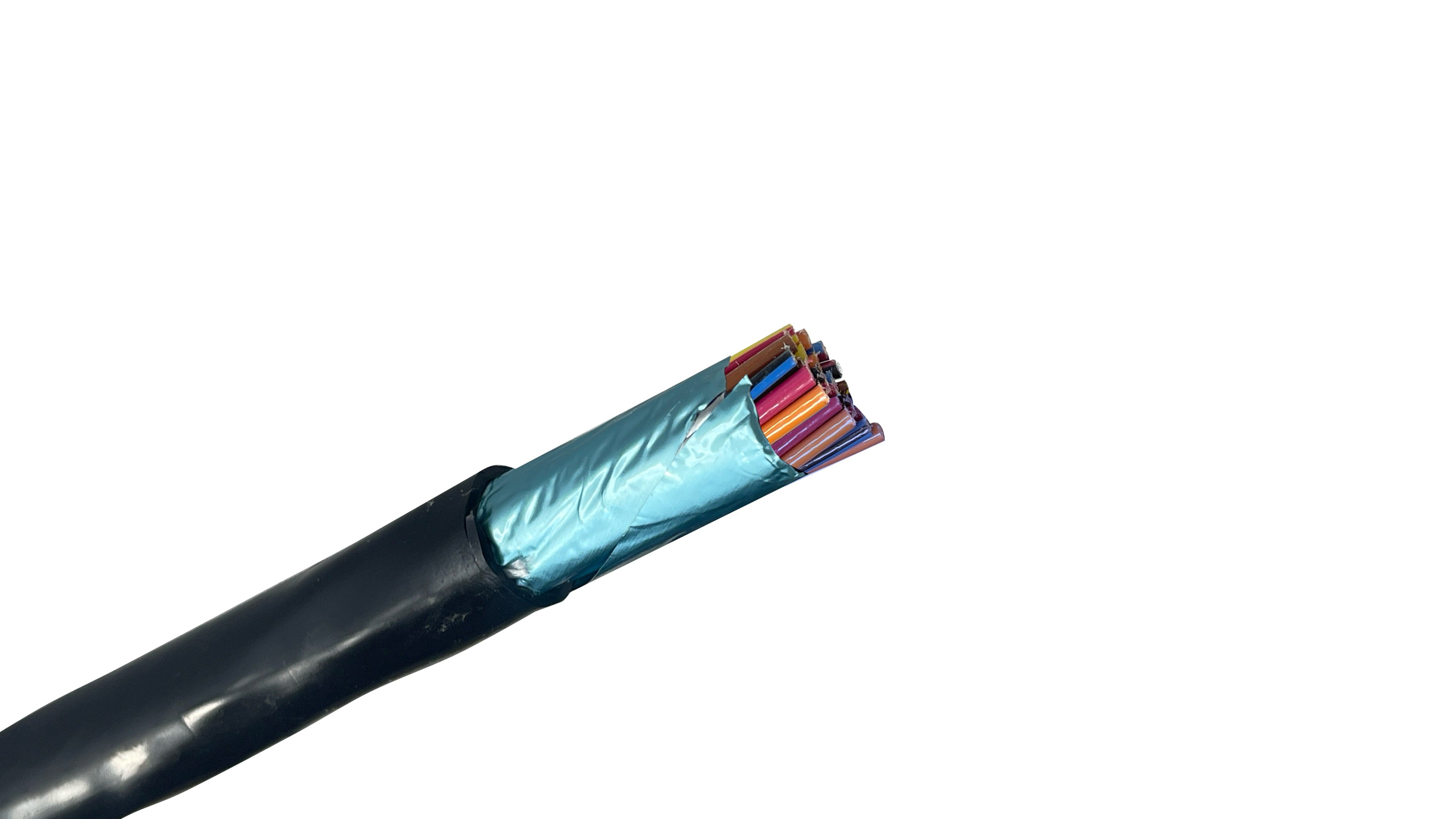

APPLICATION:
Tray Cable UL Type TC / TC-ER with THHN Insulation is primarily used for power, control, signal, communication, and lighting circuits in commercial and industrial environments. Suitable for installations in cable trays, supported by messenger wire in open air, raceways, channels, conduits and ducts, direct burial or joist pull applications not exceeding 600 volts and outdoors in cable trays where sunlight resistant is required.
CONDUCTORS:
Fully annealed bare copper Class B compressed strand per ASTM B3 and B8
CONDUCTOR SIZE:
14 AWG
CONDUCTOR COUNT:
25
E2 COLOR CODE:
Black, Red, Blue, Orange, Yellow, Brown, Red/Black, Blue/Black, Orange/Black, Yellow/Black, Brown/Black, Black/Red, Blue/Red, Orange/Red, Yellow/Red, Brown/Red, Black/Blue, Red/Blue, Orange/Blue, Yellow/Blue, Brown/Blue, Black/Orange, Red/Orange, Blue/Orange and Yellow/Orange
INSULATION:
THHN/THWN Heat and moisture resistant Polyvinylchloride (PVC) with a Nylon jacket
JACKET:
Sunlight resistant PVC rated 90°C per UL 1277. Ripcord provided for jackets with thickness of 60 mils or less
SHIELD:
Overall polyester-backed aluminum tape with stranded 22AWG tinned copper drain wire
ASSEMBLY:
Conductors are cabled together with or without fillers as required to form a round, compact cable core with a binder tape as needed
All values are nominal and subject to correction.
| Wire Size (AWG/MCM) | 14 AWG |
| Conductor Material | Copper |
| Conductor Type | Stranded |
| Strand Count | 7 |
| Outer Diameter (OD) (in/mm) | 0.785 in. / 19.94 mm |
| Jacket Type | (PVC) Polyvinyl Chloride |
| Conductor Count | 25 |
| Shield Coverage % | 1 |
| Shield Type | Overall polyester-backed aluminum tape |
| Shield | Shielded |
| Insulation Type | PVC with a Nylon Jacket |
| UL Listing Numbers | UL 66, UL 83, UL1277, UL 1685 |
| Voltage Rating | 600V |
| Direct Burial Rating | Yes |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL 66, UL 83, UL1277 UL 1685 Vertical-Tray Fire-Propagation and Smoke-Release Test Approved as Type TC or TC-ER-JP, Sunlight Resistant, Direct Burial ASTM B3, ASTM B8 NEC Article 336, Article 501, Article 725 for class 1 circuits. |
| Miscellaneous Information | All values are nominal and subject to correction. |
| Primary Applications | Industrial Power and Control Systems, Building Automation and Energy Management, Utility and Substation Wiring, Instrumentation and Process Control, Cable Tray Installations, Outdoor and Direct Burial. |
| Common Uses |
|
| Weight per Foot | 0.528 lb |
