Parent SKU : FAP-USHDNY14-1P
SKU : FAP-USHDNY14-1P-500
APPLICATION:

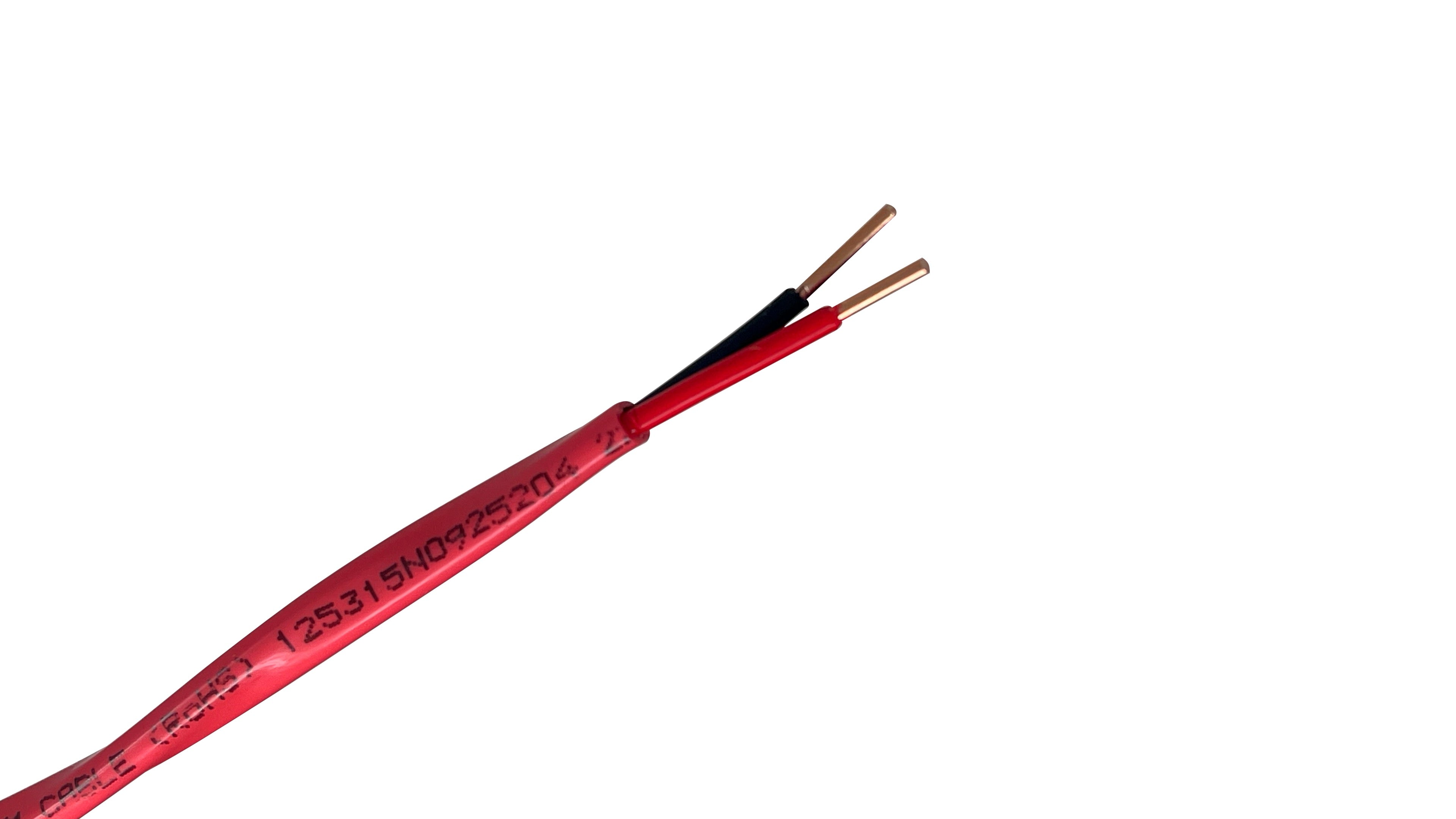

Our 14/2 FPLP NYC Certified Plenum Rated Fire Alarm Cable is used for wiring fire alarms, smoke detectors, voice communications, burglar alarms, and approved for NYC LL39 (formerly LL5) fire protective circuits installed in the City of New York. Applications not to exceed 300 volts, suitable for use up to 200°C.
CONDUCTORS:
Fully annealed solid bare copper per ASTM B3 & B258.
ASSEMBLY:
Insulated conductors cabled together with or without shield under an overall jacket. Ripcord and sequential footage markings to facilitate installation.
CONDUCTOR COLORS:
Black and Red
JACKET COLOR:
Red
INSULATION:
Premium-grade, color-coded FEP.
Why Professionals Choose This 14/2 FPLP NYC Approved Cable:
LL39 Compliance Guaranteed: Printed with the mandatory NYC-certified legend to ensure immediate approval by DOB electrical inspectors.
Maximum Power Delivery: The 14-gauge solid copper construction is designed to overcome voltage drop on massive high-rise runs, ensuring every strobe flashes in sync.
200°C FEP Construction: Featuring Fluorinated Ethylene Propylene (FEP) insulation and jacketing, this cable provides a critical safety margin that standard PVC plenum wires cannot match.
Fast-Strip Unshielded Design: Without the extra foil layer, this 14/2 pair is faster to strip and terminate, significantly reducing labor time on projects with hundreds of device connections.
Plenum Rated (FPLP): UL-listed for installation in air-handling spaces and high-rise plenums without requiring additional conduit.
Installer’s Note:
"When your NYC high-rise project calls for long-distance notification loops, the 14/2 Unshielded 200°C FPLP NYC cable is the most reliable tool in your van. By utilizing the lower resistance of 14-gauge copper and the extreme thermal stability of an LL39-certified FEP jacket, you’re guaranteeing that your horns and strobes perform at peak output, even at the very end of a 500-foot run."
All values are nominal and subject to correction.
| Wire Size (AWG/MCM) | 14 |
| Conductor Material | Copper |
| Conductor Type | Solid |
| Strand Count | 1 |
| Outer Diameter (OD) (in/mm) | 0.240 in. / 6.09 mm |
| Jacket Type | Plenum-Rated FEP |
| Conductor Count | 2 |
| Shield | Unshielded |
| Insulation Type | (FEP) Fluorinated Ethylene Propylene |
| UL Listing Numbers | UL 13, UL 444, UL1424 |
| Plenum Rating | true |
| Voltage Rating | 300V |
| Submersible | No |
| Flexibility Rating | Very Good |
| Temperature Rating | 200ºC |
| Standards | NYC Local Law 39 (Formerly LL5) UL 13 Power-Limited Circuit Cable UL 444 Communication Cables UL1424 Cables for Power-Limited Fire-Alarm Circuits UL Listed Type FPLP, 200°C NFPA 262 Test for Flame Travel and Smoke of Wires and Cables for Use in Air Handling Spaces NEC Article 725, 760, 803 |
| Miscellaneous Information | All values are nominal and subject to correction. |
| Other Certifications | NYC LL5/LL39 |
| RoHS Compliance | Yes |
| Primary Applications | NYC LL39 (formerly LL5) fire protective circuits installed in the City of New York. |
| Common Uses |
|
| Weight per Foot | 0.05 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : FAP-USHDNY14-1P
SKU : FAP-USHDNY14-1P-500
Parent SKU : FAP-USHDNY14-1P
SKU : FAP-USHDNY14-1P-500
APPLICATION:
Our 14/2 FPLP NYC Certified Plenum Rated Fire Alarm Cable is used for wiring fire alarms, smoke detectors, voice communications, burglar alarms, and approved for NYC LL39 (formerly LL5) fire protective circuits installed in the City of New York. Applications not to exceed 300 volts, suitable for use up to 200°C.
CONDUCTORS:
Fully annealed solid bare copper per ASTM B3 & B258.
ASSEMBLY:
Insulated conductors cabled together with or without shield under an overall jacket. Ripcord and sequential footage markings to facilitate installation.
CONDUCTOR COLORS:
Black and Red
JACKET COLOR:
Red
INSULATION:
Premium-grade, color-coded FEP.
Why Professionals Choose This 14/2 FPLP NYC Approved Cable:
LL39 Compliance Guaranteed: Printed with the mandatory NYC-certified legend to ensure immediate approval by DOB electrical inspectors.
Maximum Power Delivery: The 14-gauge solid copper construction is designed to overcome voltage drop on massive high-rise runs, ensuring every strobe flashes in sync.
200°C FEP Construction: Featuring Fluorinated Ethylene Propylene (FEP) insulation and jacketing, this cable provides a critical safety margin that standard PVC plenum wires cannot match.
Fast-Strip Unshielded Design: Without the extra foil layer, this 14/2 pair is faster to strip and terminate, significantly reducing labor time on projects with hundreds of device connections.
Plenum Rated (FPLP): UL-listed for installation in air-handling spaces and high-rise plenums without requiring additional conduit.
Installer’s Note:
"When your NYC high-rise project calls for long-distance notification loops, the 14/2 Unshielded 200°C FPLP NYC cable is the most reliable tool in your van. By utilizing the lower resistance of 14-gauge copper and the extreme thermal stability of an LL39-certified FEP jacket, you’re guaranteeing that your horns and strobes perform at peak output, even at the very end of a 500-foot run."
All values are nominal and subject to correction.
| Wire Size (AWG/MCM) | 14 |
| Conductor Material | Copper |
| Conductor Type | Solid |
| Strand Count | 1 |
| Outer Diameter (OD) (in/mm) | 0.240 in. / 6.09 mm |
| Jacket Type | Plenum-Rated FEP |
| Conductor Count | 2 |
| Shield | Unshielded |
| Insulation Type | (FEP) Fluorinated Ethylene Propylene |
| UL Listing Numbers | UL 13, UL 444, UL1424 |
| Plenum Rating | true |
| Voltage Rating | 300V |
| Submersible | No |
| Flexibility Rating | Very Good |
| Temperature Rating | 200ºC |
| Standards | NYC Local Law 39 (Formerly LL5) UL 13 Power-Limited Circuit Cable UL 444 Communication Cables UL1424 Cables for Power-Limited Fire-Alarm Circuits UL Listed Type FPLP, 200°C NFPA 262 Test for Flame Travel and Smoke of Wires and Cables for Use in Air Handling Spaces NEC Article 725, 760, 803 |
| Miscellaneous Information | All values are nominal and subject to correction. |
| Other Certifications | NYC LL5/LL39 |
| RoHS Compliance | Yes |
| Primary Applications | NYC LL39 (formerly LL5) fire protective circuits installed in the City of New York. |
| Common Uses |
|
| Weight per Foot | 0.05 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||||||
New York City requires fire alarm cables to meet specific standards beyond standard NEC rules, specifically Local Law 39 (LL39) and Local Law 5. This means the cable must feature specialized Fluoropolymer insulation (like FEP) that is strictly flame-retardant and low-smoke. These cables carry a high temperature rating (often 200°C), providing a critical safety margin for high-rise life safety systems that standard fire wire cannot match.
Unshielded: Ideal for standard notification appliance circuits (NACs), speaker circuits, and pull stations where electromagnetic interference (EMI) is not a concern. It is more flexible and faster to terminate.
Shielded: Required for data communication links (SLC loops) or installations near high-voltage lines, elevator motors, or heavy fluorescent lighting to prevent signal interference and "nuisance alarms."
14/2 Unshielded FPLP cable is the "Heavy-Duty" choice for NYC life-safety systems, typically used for:
Important Note: Consult Your Licensed NYC Electrician
While our cables are NYC Approved and manufactured to meet Local Law 39 standards, fire alarm requirements can vary based on your specific building type, occupancy, and the latest FDNY bulletins.
NYC Approved FPLP (Plenum): Must be used in "plenum" spaces (areas used for air circulation). They feature low-smoke, high-fire-resistance jackets.
NYC Approved FPLR (Riser): Used for vertical runs between floors.
Standard Practice: In NYC commercial construction, engineers almost always specify FPLP (Plenum) even for non-plenum areas to ensure maximum system survivability and compliance with Local Law 39.
It almost always comes down to Voltage Drop and Line Loss. In NYC high-rises, wire runs can span hundreds of feet. 18 AWG or 16 AWG may lose too much power over those distances, causing strobes to dim or speakers to fail. 14 AWG provides the lowest resistance, ensuring your system passes the FDNY functional test on the first pull.
Important Note: Consult Your Licensed NYC Electrician
While our cables are NYC Approved and manufactured to meet Local Law 39 standards, fire alarm requirements can vary based on your specific building type, occupancy, and the latest FDNY bulletins.
Yes. This is an FPLP (Fire Power-Limited Plenum) rated cable. It is UL-listed for installation in air-handling spaces, drop ceilings, and raised floors without the need for conduit, significantly reducing labor costs on NYC commercial projects.
While standard for skyscrapers, this high-spec cable is also the go-to for Hospitals, Schools, and Industrial Facilities where "Maximum Survivability" is mandated by the project engineer to meet Local Law 39 compliance.
⚠️ Pro Note: Consult Your Licensed NYC Electrician
NYC fire codes are among the strictest in the world. We always recommend verifying your wire schedule with your Licensed Master Electrician or Fire Alarm Designer to ensure your gauge and conductor count meet the specific requirements of your building's occupancy and height.
