Parent SKU : LAND14-2
SKU : LAND14-2-500

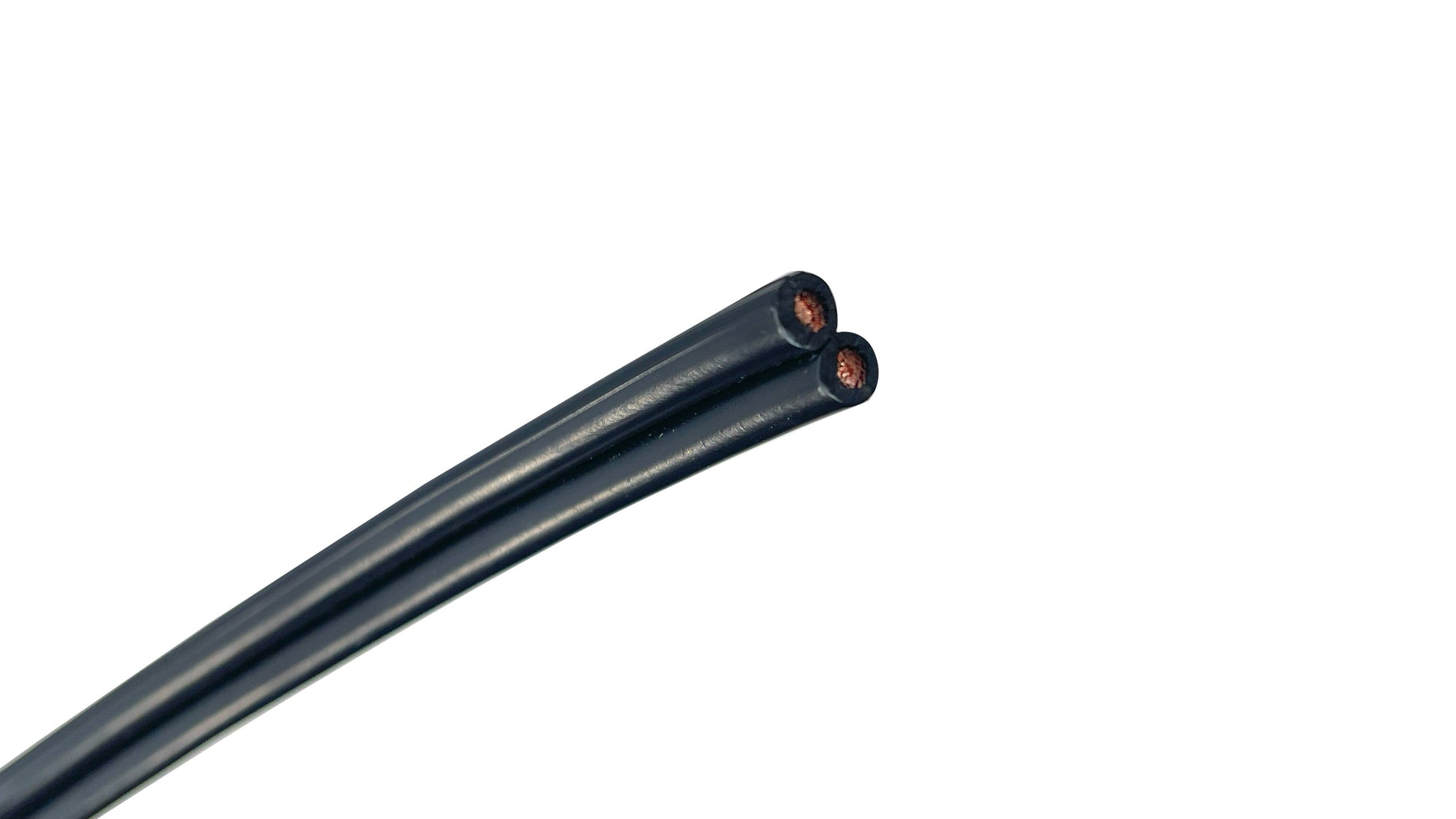

"Engineered for direct burial without conduit, 14 AWG 2-Conductor Low Voltage Landscape Cable delivers reliable power to outdoor path lights, spotlights, and hardscape fixtures. Built with flexible stranded bare copper, an integral PVC jacket, and raised polarity ridges, it routes effortlessly through soil, mulch, and garden beds."
Direct Burial Protection: Built with integral lead-free black PVC that seals conductors against moisture, soil chemicals, and ground rot when laid directly in subterranean trenches.
Sunlight & Weather Resistant: Formulated to withstand continuous UV exposure and outdoor temperature extremes from -20°C to +60°C without cracking or degrading.
Flexible High-Strand Bare Copper: Features 41 strands of 30 AWG bare copper per conductor, providing the flexibility needed to navigate tight curves around plants, trees, and patio borders.
Built-In Polarity Identification: Designed in a flat parallel configuration with distinct surface ridges on one conductor for rapid, mistake-free polarity matching during field splices.
Dual UL & CSA Safety Certified: Complies with UL 1493 (150V) and c(UL) 30V LVLL FT-1 standards for residential and commercial low-voltage lighting infrastructure.
Conductor Size: 14 AWG
Number of Conductors: 2 (Flat Parallel)
Conductor Stranding: 41/30 (41 Strands of 30 AWG Bare Copper)
Conductor Material: Annealed Soft Bare Copper (ASTM B-172 & B-174)
Insulation/Jacket Material: Integral Black Sunlight-Resistant Direct-Burial PVC
Insulation Thickness: 0.045 inches (1.14 mm)
Overall Cable Dimensions: 0.175 in. x 0.350 in.
Approximate Net Weight: 43 lbs per 1,000 ft
Voltage Rating: 150V AC (UL 1493) / 30V (c(UL) ULECC LVLL)
Temperature Rating: -20°C Minimum to +60°C Continuous Operation
Compliance Standards: UL 1493, ULECC 150V AC, c(UL) ULECC 30V LVLL FT-1, CSA C22.2 No. 35, ASTM B-172 & B-174
💡 Technical Installation Note: To maintain optimal brightness across all light fixtures, calculate total circuit wattage and voltage drop over distance. For 14 AWG wire, keep main cable runs under 100 feet from the 12V/15V transformer to prevent noticeable dimming toward the end of the line. Always use gel-filled, silicone outdoor wire connectors or waterproof heat-shrink caps to seal splices against water intrusion.
Pathway & Garden Illumination: Supplying low-voltage power to LED path lights, bollards, and garden walkway fixtures.
Accent & Architectural Spotlights: Powering tree uplights, flowerbed floodlights, and building facade accent lights.
Deck, Patio & Hardscape Lighting: Routing along retaining walls, deck steps, cap lights, and outdoor kitchen perimeters.
Low-Voltage Security & Motion Lights: Direct power delivery for low-voltage outdoor motion sensors and fence-line security lights.
DISCLAIMER: The technical values provided are nominal metrics for general reference. Outdoor low-voltage lighting installations must strictly comply with the National Electrical Code (NEC Article 411), local municipal codes, and transformer manufacturer load guidelines. Always verify transformer output ratings before finalizing run distances.
| Wire Size (AWG/MCM) | 14 |
| Conductor Material | Copper |
| Conductor Type | Stranded |
| Strand Count | 41/30 |
| Outer Diameter (OD) (in/mm) | 0.175 in. x 0.350 in. |
| Conductor Count | 2 |
| Shield | Unshielded |
| Insulation Type | PVC |
| UL Listing Numbers | UL 1493 |
| Voltage Rating | 150V |
| Direct Burial Rating | Yes |
| Submersible | No |
| Flexibility Rating | Very Good |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 60ºC |
| Standards | UL 1493 ULECC 150V AC c(UL) ULECC 30V LVLL FT-1 CSA C22.2 No. 35 ASTM B-172 & B-174 |
| Miscellaneous Information | All values are nominal and subject to correction |
| RoHS Compliance | Yes |
| Primary Applications | Low-Voltage Landscape Lighting Systems, Spotlights and Floodlights, Path Lights, Deck and Patio Lighting, Well Lights and Underwater Lights, Direct Burial Feeds, Powering Low-Voltage Outdoor Accessories. |
| Common Uses |
|
| Weight per Foot | 0.043 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : LAND14-2
SKU : LAND14-2-500
Parent SKU : LAND14-2
SKU : LAND14-2-500
"Engineered for direct burial without conduit, 14 AWG 2-Conductor Low Voltage Landscape Cable delivers reliable power to outdoor path lights, spotlights, and hardscape fixtures. Built with flexible stranded bare copper, an integral PVC jacket, and raised polarity ridges, it routes effortlessly through soil, mulch, and garden beds."
Direct Burial Protection: Built with integral lead-free black PVC that seals conductors against moisture, soil chemicals, and ground rot when laid directly in subterranean trenches.
Sunlight & Weather Resistant: Formulated to withstand continuous UV exposure and outdoor temperature extremes from -20°C to +60°C without cracking or degrading.
Flexible High-Strand Bare Copper: Features 41 strands of 30 AWG bare copper per conductor, providing the flexibility needed to navigate tight curves around plants, trees, and patio borders.
Built-In Polarity Identification: Designed in a flat parallel configuration with distinct surface ridges on one conductor for rapid, mistake-free polarity matching during field splices.
Dual UL & CSA Safety Certified: Complies with UL 1493 (150V) and c(UL) 30V LVLL FT-1 standards for residential and commercial low-voltage lighting infrastructure.
Conductor Size: 14 AWG
Number of Conductors: 2 (Flat Parallel)
Conductor Stranding: 41/30 (41 Strands of 30 AWG Bare Copper)
Conductor Material: Annealed Soft Bare Copper (ASTM B-172 & B-174)
Insulation/Jacket Material: Integral Black Sunlight-Resistant Direct-Burial PVC
Insulation Thickness: 0.045 inches (1.14 mm)
Overall Cable Dimensions: 0.175 in. x 0.350 in.
Approximate Net Weight: 43 lbs per 1,000 ft
Voltage Rating: 150V AC (UL 1493) / 30V (c(UL) ULECC LVLL)
Temperature Rating: -20°C Minimum to +60°C Continuous Operation
Compliance Standards: UL 1493, ULECC 150V AC, c(UL) ULECC 30V LVLL FT-1, CSA C22.2 No. 35, ASTM B-172 & B-174
💡 Technical Installation Note: To maintain optimal brightness across all light fixtures, calculate total circuit wattage and voltage drop over distance. For 14 AWG wire, keep main cable runs under 100 feet from the 12V/15V transformer to prevent noticeable dimming toward the end of the line. Always use gel-filled, silicone outdoor wire connectors or waterproof heat-shrink caps to seal splices against water intrusion.
Pathway & Garden Illumination: Supplying low-voltage power to LED path lights, bollards, and garden walkway fixtures.
Accent & Architectural Spotlights: Powering tree uplights, flowerbed floodlights, and building facade accent lights.
Deck, Patio & Hardscape Lighting: Routing along retaining walls, deck steps, cap lights, and outdoor kitchen perimeters.
Low-Voltage Security & Motion Lights: Direct power delivery for low-voltage outdoor motion sensors and fence-line security lights.
DISCLAIMER: The technical values provided are nominal metrics for general reference. Outdoor low-voltage lighting installations must strictly comply with the National Electrical Code (NEC Article 411), local municipal codes, and transformer manufacturer load guidelines. Always verify transformer output ratings before finalizing run distances.
| Wire Size (AWG/MCM) | 14 |
| Conductor Material | Copper |
| Conductor Type | Stranded |
| Strand Count | 41/30 |
| Outer Diameter (OD) (in/mm) | 0.175 in. x 0.350 in. |
| Conductor Count | 2 |
| Shield | Unshielded |
| Insulation Type | PVC |
| UL Listing Numbers | UL 1493 |
| Voltage Rating | 150V |
| Direct Burial Rating | Yes |
| Submersible | No |
| Flexibility Rating | Very Good |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 60ºC |
| Standards | UL 1493 ULECC 150V AC c(UL) ULECC 30V LVLL FT-1 CSA C22.2 No. 35 ASTM B-172 & B-174 |
| Miscellaneous Information | All values are nominal and subject to correction |
| RoHS Compliance | Yes |
| Primary Applications | Low-Voltage Landscape Lighting Systems, Spotlights and Floodlights, Path Lights, Deck and Patio Lighting, Well Lights and Underwater Lights, Direct Burial Feeds, Powering Low-Voltage Outdoor Accessories. |
| Common Uses |
|
| Weight per Foot | 0.043 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||||
14/2 Low Voltage Landscape Lighting Cable is a 2-conductor 14 AWG wire designed for 12V–15V AC outdoor lighting systems. It is commonly used to power LED and incandescent path lights, spotlights, deck lights, and garden fixtures from a low-voltage transformer.
Yes! The cable features a heavy-duty integral PVC jacket engineered specifically for direct earth burial. It isolates the copper conductors from moisture, soil chemicals, and rot without needing protective conduit pipe.
Under National Electrical Code (NEC Article 411) guidelines for low-voltage lighting systems operating at 30V or less, landscape wire typically needs to be buried at least 6 inches deep in soil or mulch to protect it from lawn mowers, aerators, and gardening tools.
To avoid excessive voltage drop and fixture dimming, standard 14 AWG landscape wire is typically recommended for total run lengths up to 100 feet (assuming a standard LED load under 100 Watts on a 12V–15V tap). For longer runs or heavier wattage loads, stepping up to 12 AWG or 10 AWG wire is recommended.
14/2 landscape cable features an integral flat parallel design where one conductor has smooth outer PVC and the other has raised surface ridges molded into the jacket. These ridges allow installers to easily identify and match positive/negative or hot/common legs across all fixtures.
This cable is rated for up to 150V AC under UL 1493 and 30V under c(UL) Low Voltage Landscape Lighting (LVLL)
