Parent SKU : XHW12
SKU : XHW12-250-BK
| Wire Size (AWG/MCM) | 12 AWG |
| Conductor Material | Stranded Copper |
| Conductor Type | Stranded |
| Strand Count | 7 |
| Outer Diameter (OD) (in/mm) | 0.15 in. / 3.81 mm |
| Conductor Count | 1 |
| Shield | Unshielded |
| Insulation Type | (XLPE) Cross-Linked Polyethylene |
| UL Listing Numbers | UL 44, UL 1685 |
| Voltage Rating | 600V |
| Ampacity Rating | 30 |
| Submersible | No |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | UL 44 UL 1685 RoHS Compliant ASTM B3, B8 ANSI/ICEA S-95-658/NEMA WC-70 NFPA 70 NEC XLPE -40°C FT1 Federal Spec A-A-59545 |
| Miscellaneous Information | All values are nominal and subject to correction. *Ampacities for not more than three conductors in raceway or cable or earth (directly buried), based on ambient temperature of 30°C per Table 310.16 of the National Electrical Code. **Overcurrent protection shall not exceed 15 amps for #14 AWG, 20 amps for #12 AWG, and 30 amps for #10 AWG per NEC. |
| RoHS Compliance | Yes |
| Primary Applications | Main service entrance cables, feeders, branch circuit wiring in conduit and ducts, power distribution, lighting, and control circuits. |
| Common Uses |
|
| Weight per Foot | 0.026 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||

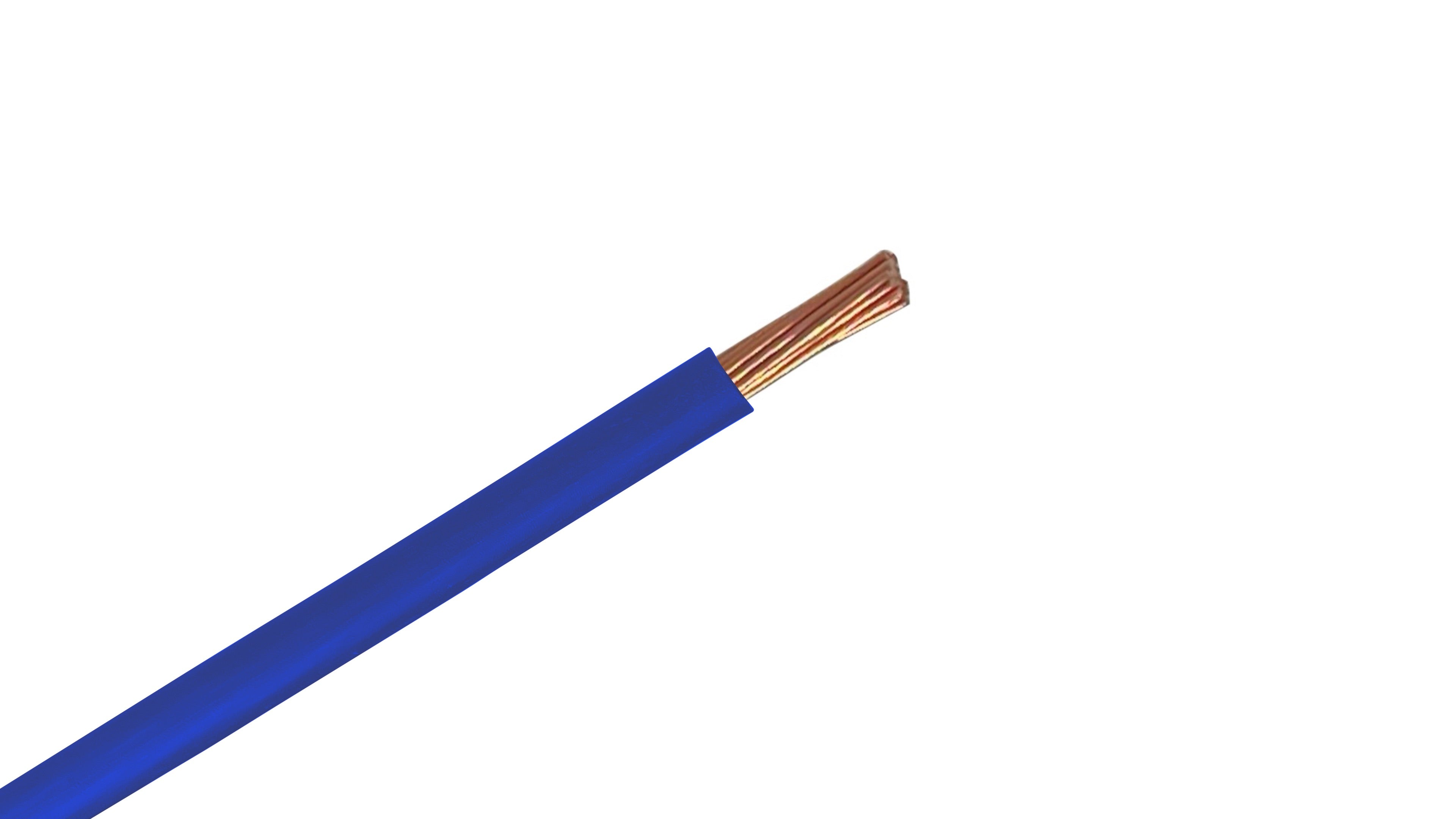

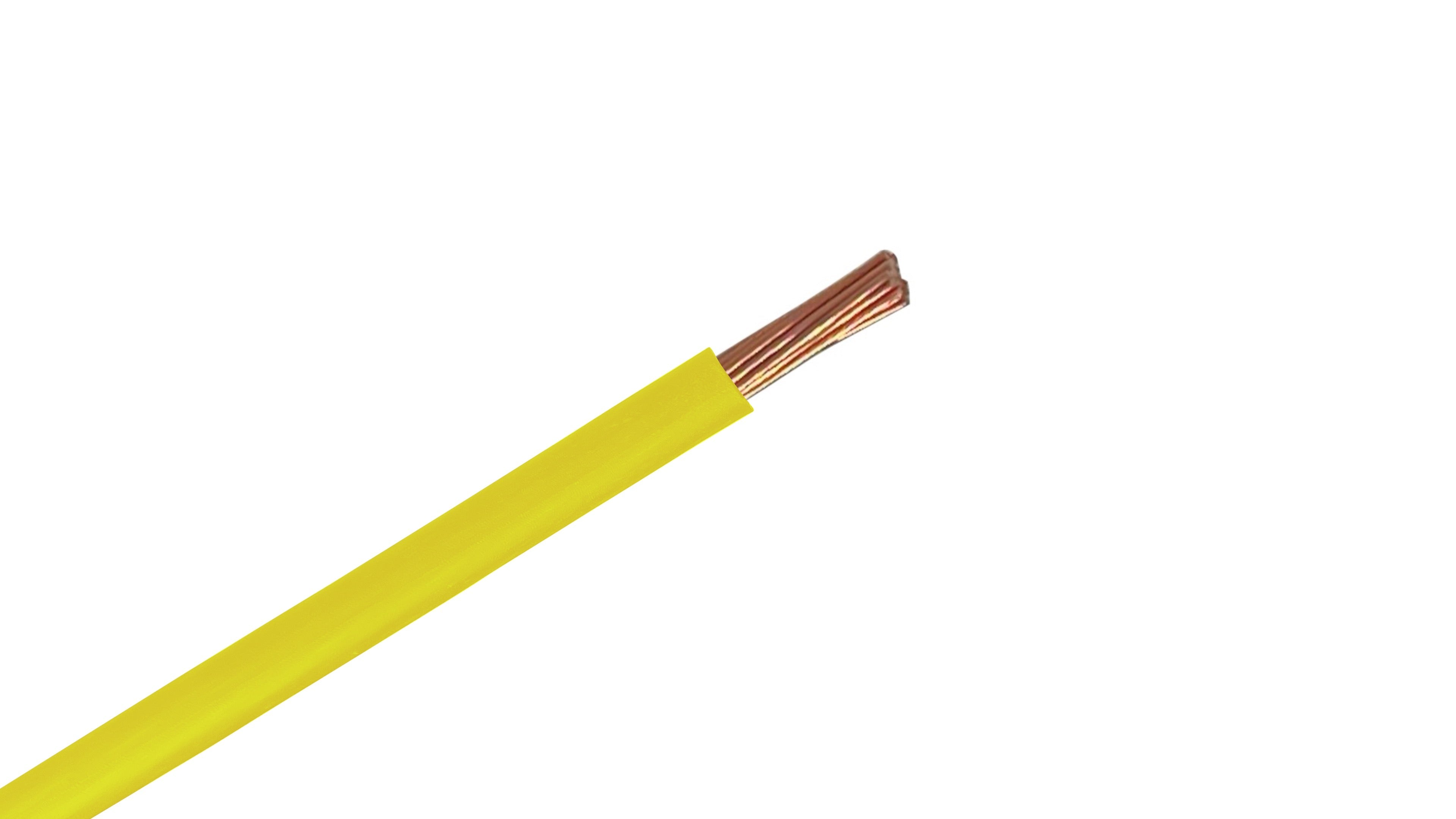

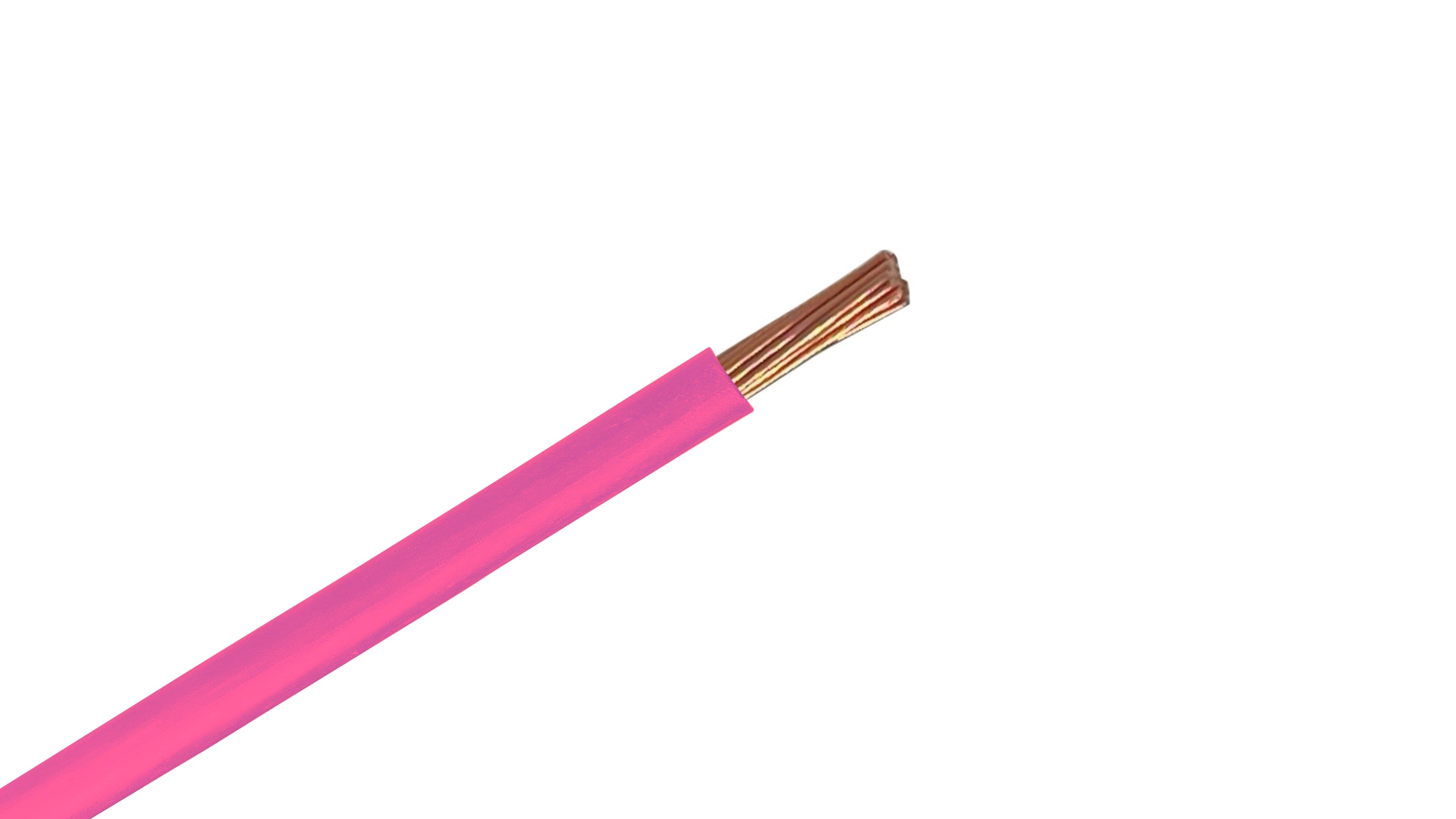

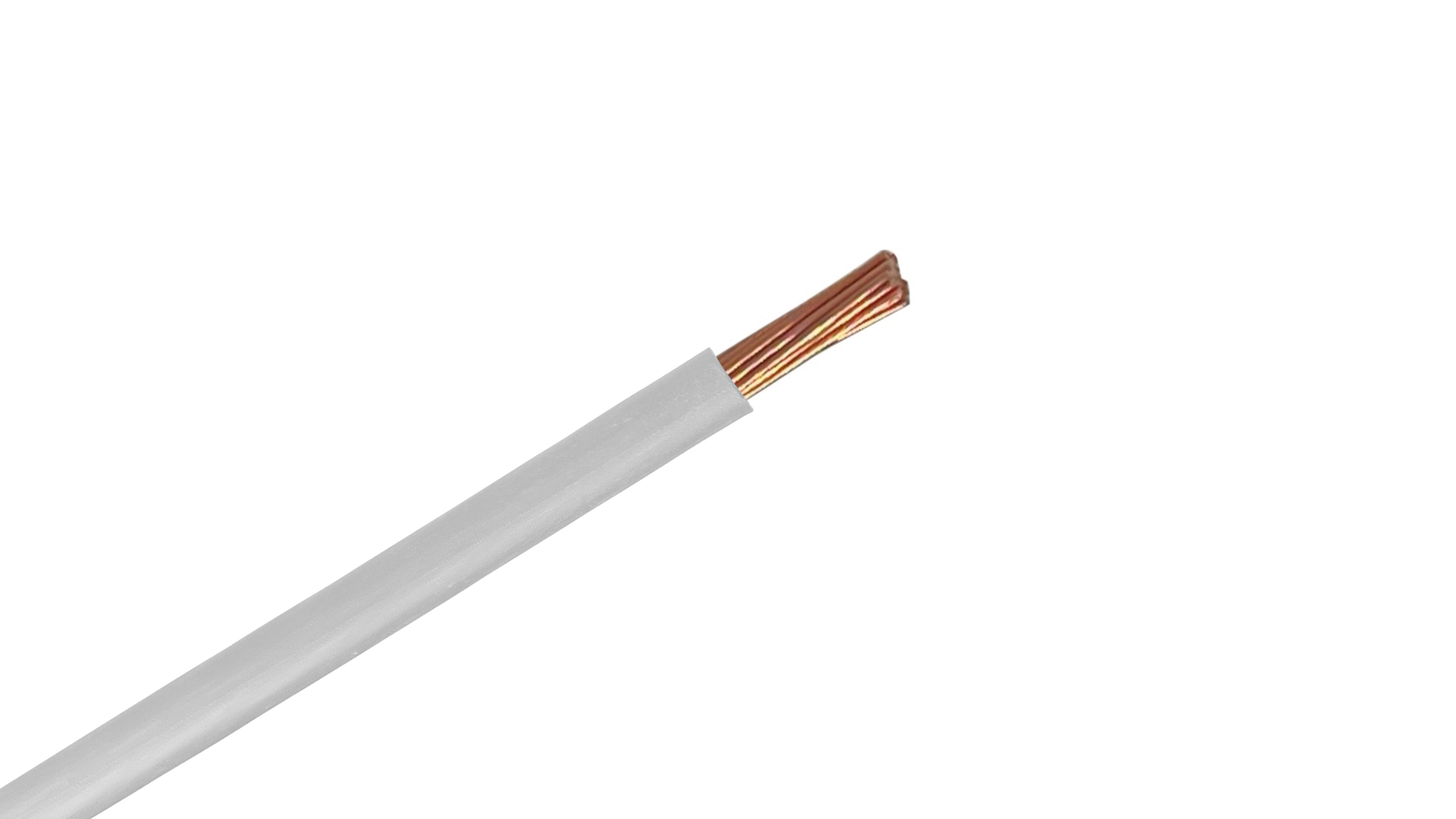

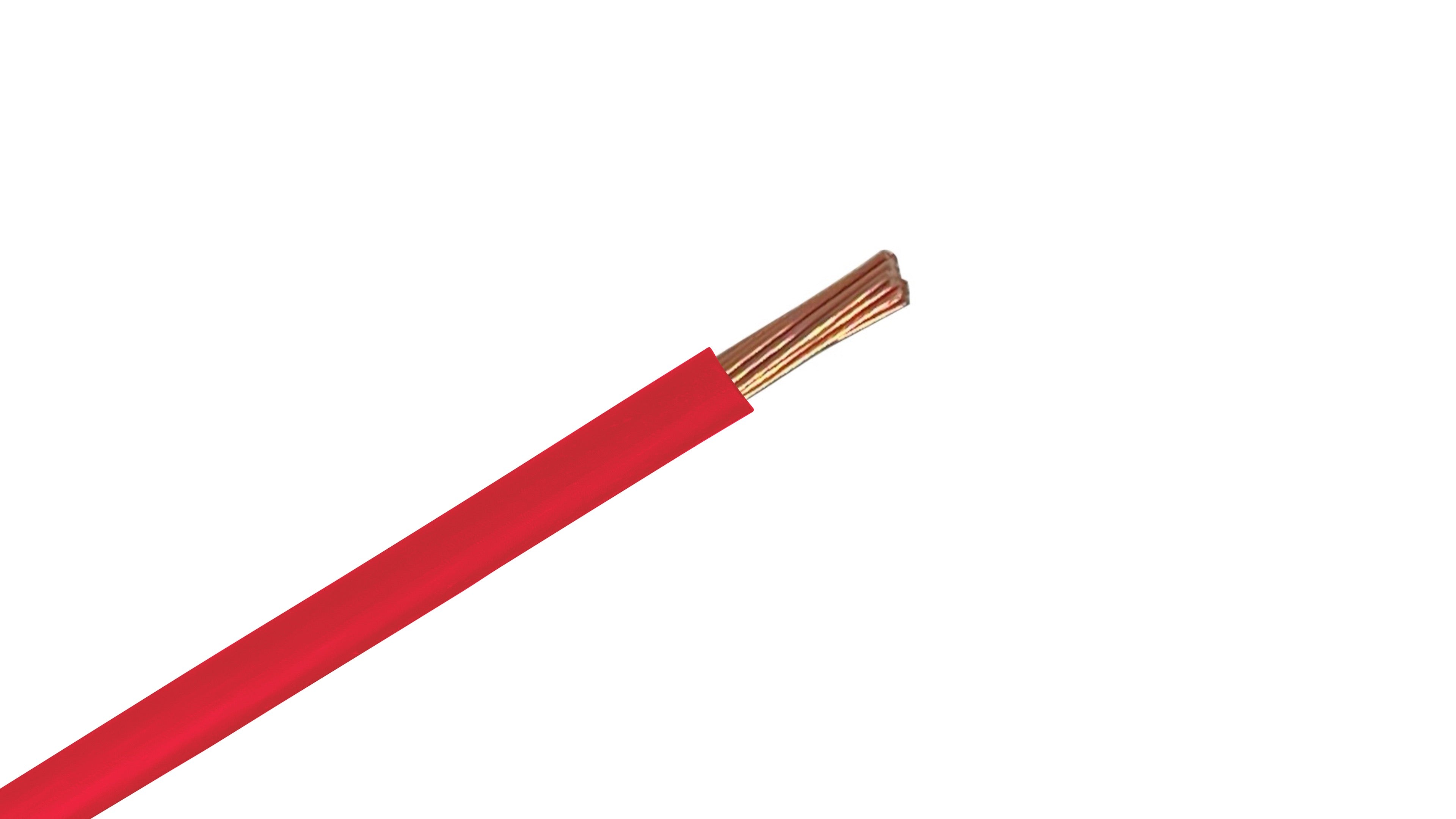

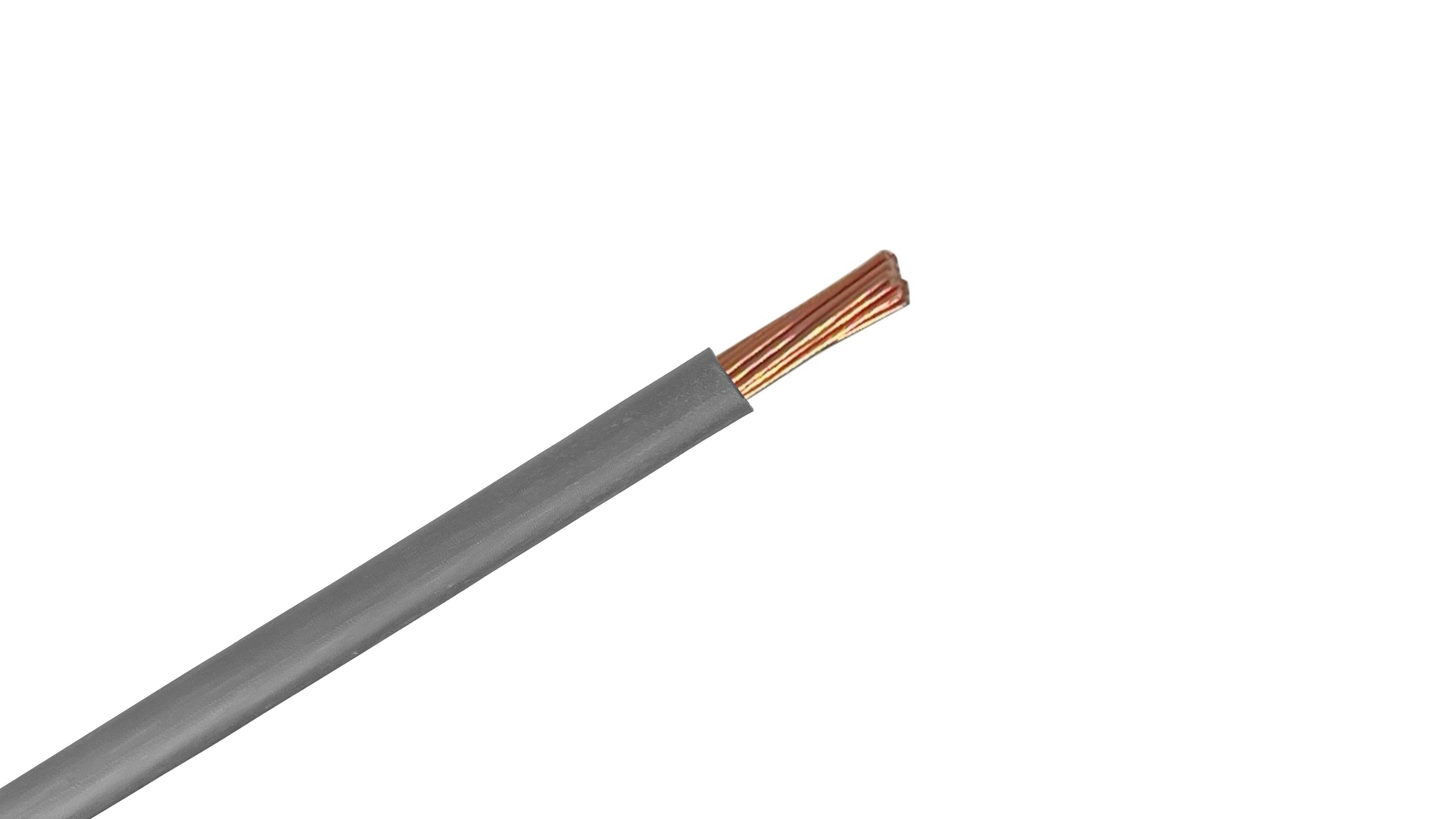

#12 AWG Copper XHHW-2 Building Wire is a high-performance electrical conductor primarily used for power distribution in various building applications. It features a soft drawn bare copper conductor with robust cross-linked polyethylene (XLPE) insulation, designed for excellent resistance to heat, moisture, and abrasion. This wire is suitable for both wet and dry locations.
XHHW-2 is an acronym that stands for "Cross-linked Polyethylene (XLPE) High Heat-resistant Water-resistant." The "-2" indicates that the wire has an enhanced temperature rating of 90°C in both wet and dry locations, offering superior performance compared to its predecessor.
This wire is primarily used for power distribution in conduit or other recognized raceways for services, feeders, and branch circuit wiring, as specified by the National Electrical Code (NEC). It is commonly found in commercial, industrial, and residential buildings for general purpose wiring.
The main difference lies in their insulation. XHHW-2 uses cross-linked polyethylene (XLPE) insulation, which is a thermoset material, providing superior resistance to heat, moisture, chemicals, and abrasion, along with greater flexibility. THHN wire typically uses thermoplastic PVC insulation with a nylon jacket, which is generally thinner, less flexible in cold temperatures, and may be more susceptible to chemical damage or moisture leakage, though it is often more cost-effective. XHHW-2 also maintains a 90°C rating in both wet and dry conditions, while older THHN might have a lower wet rating.
