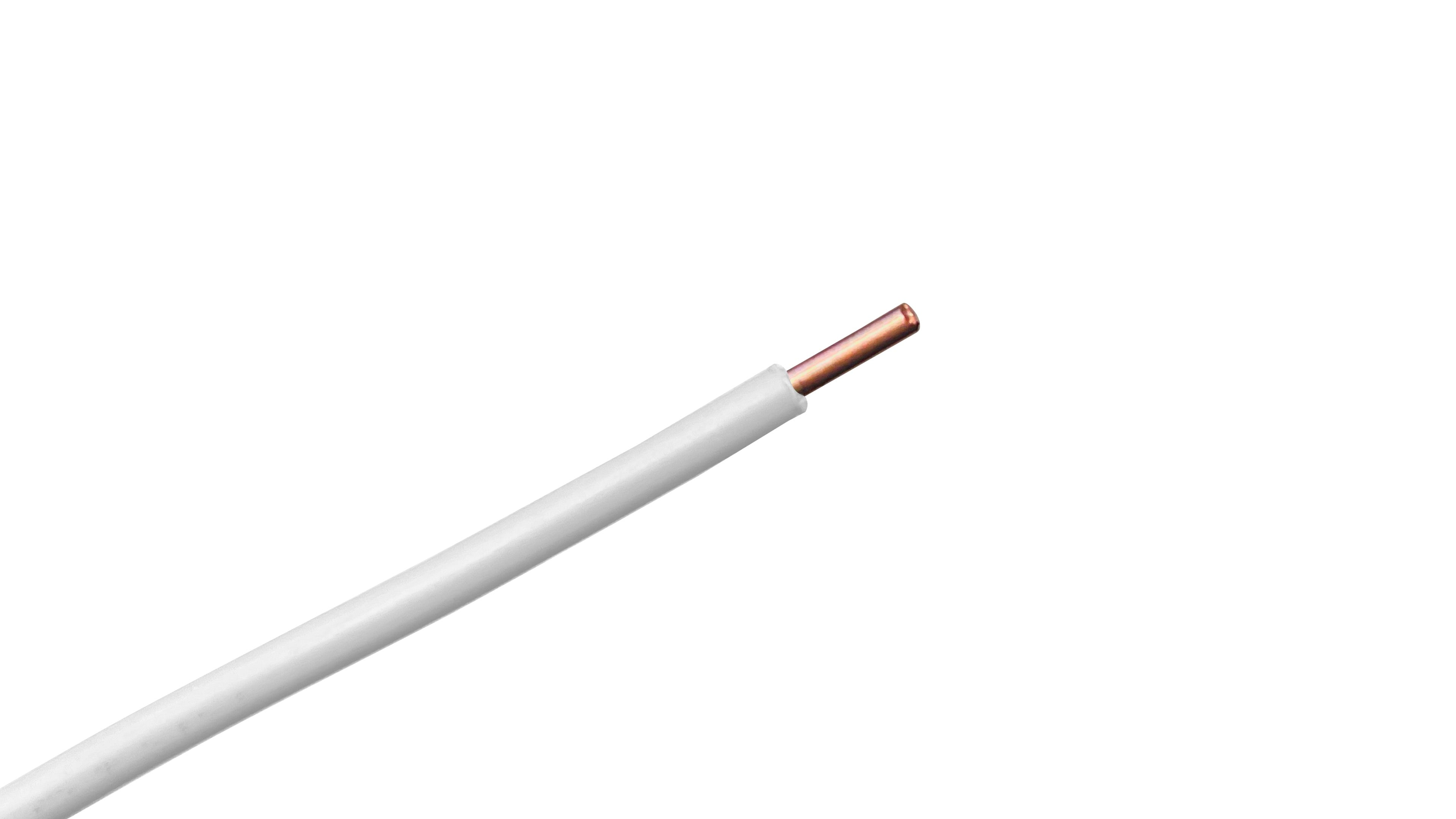

12 AWG High-Strength Copper Clad Steel Tracer Wire PE-45

12 AWG High Strength (HS) Copper Clad Steel (CCS) PE-45 Tracer Wire is a reliable, solid core underground locating utility line engineered for open-trench excavations, mid-range utility installations, and standard municipal infrastructure networks. Combining the structural durability of a solid steel core with the electrical conductivity of a concentric copper skin, this tracer wire features a 45-mil, high-density high-molecular-weight polyethylene (HDPE / HMWPE) insulation layer specifically designated under the industry standard PE-45 rating.

This asset is optimized for open-trench utility construction, main water lines, gas distribution loops, and telecom conduit layouts. It provides an uninterrupted, highly localized electromagnetic path for utility line locating equipment to track non-metallic (PVC, HDPE, PE, fiberglass) underground pipelines without breaking or stretching under installation and backfill stresses.

TENSILE BREAK LOAD PERFORMANCE

Unlike standard soft-drawn or hard-drawn pure copper wire, which stretches, narrows, and snaps under the mechanical pulling forces of rocky soil backfills and utility pulling equipment, High Strength Copper Clad Steel is mechanically rated for excellent structural durability:

• High Strength (HS) Rating: 424 LBS minimum break load This represents the structural pulling threshold before mechanical failure occurs. The 424 lb rating provides roughly double the tensile strength of a standard solid copper wire of the same gauge, allowing this 12 AWG tracer wire to withstand severe soil shifting and structural backfill impacts without risking internal core breaks.

Key Features

• High Strength (HS) Carbon Steel Core: Engineered using a specialized carbon steel center that provides superior structural tensile strength compared to standard copper wires, effectively preventing line snapping caused by soil settlement, stone impacts, or root intrusion.

• Metallurgically Bonded Copper Clad Layer: A continuous, concentric bare copper skin is molecularly bonded to the steel core. Because high-frequency utility locating signals travel strictly along the outer surface of a conductor (The Skin Effect), the copper skin provides identical signal transmission performance to a solid copper wire while maintaining a tough steel backbone.

• Heavy-Duty 45-Mil PE-45 Insulation: Extruded with a thick 45-mil coating of high-density polyethylene. This specialized formulation provides exceptional resistance to sharp gravel scrapes, long-term water immersion, acid or alkaline soil chemistry, and voltage tracking failures.

• Optimal High-Frequency Traceability: Delivers excellent electrical conductivity at standard underground locating frequencies (such as 9.8 kHz, 33 kHz, and 83 kHz), ensuring long-range, crystal-clear signal paths for standard field receivers.

• Corrosion-Resistant Armor Skin: The non-degradable PE-45 jacket completely encapsulates the copper clad core, blocking moisture migration and preventing galvanic corrosion over the multi-decade lifespan of the buried pipe asset.

Common Applications

• Standard Open-Trench Excavation: Placed directly over non-metallic utility pipes inside gravel or rocky backfill trenches to enable future top-side tracking.

• Municipal Infrastructure Networks: Tracing mid-sized PVC water mains, municipal gas networks, and sewer force mains.

• Gas Distribution Loops: Ideal for running along main neighborhood gas networks and commercial property supply routes.

• Telecommunication Conduit Tracing: Installed as a continuous locator line alongside buried fiber optic micro-ducts and multi-conduit banks.

Industry Standard APWA Color Code Guide

Tracer wire outer PE-45 insulation is color-coded to comply directly with the American Public Works Association (APWA) uniform color matrix for instant visual verification of the hidden asset below:

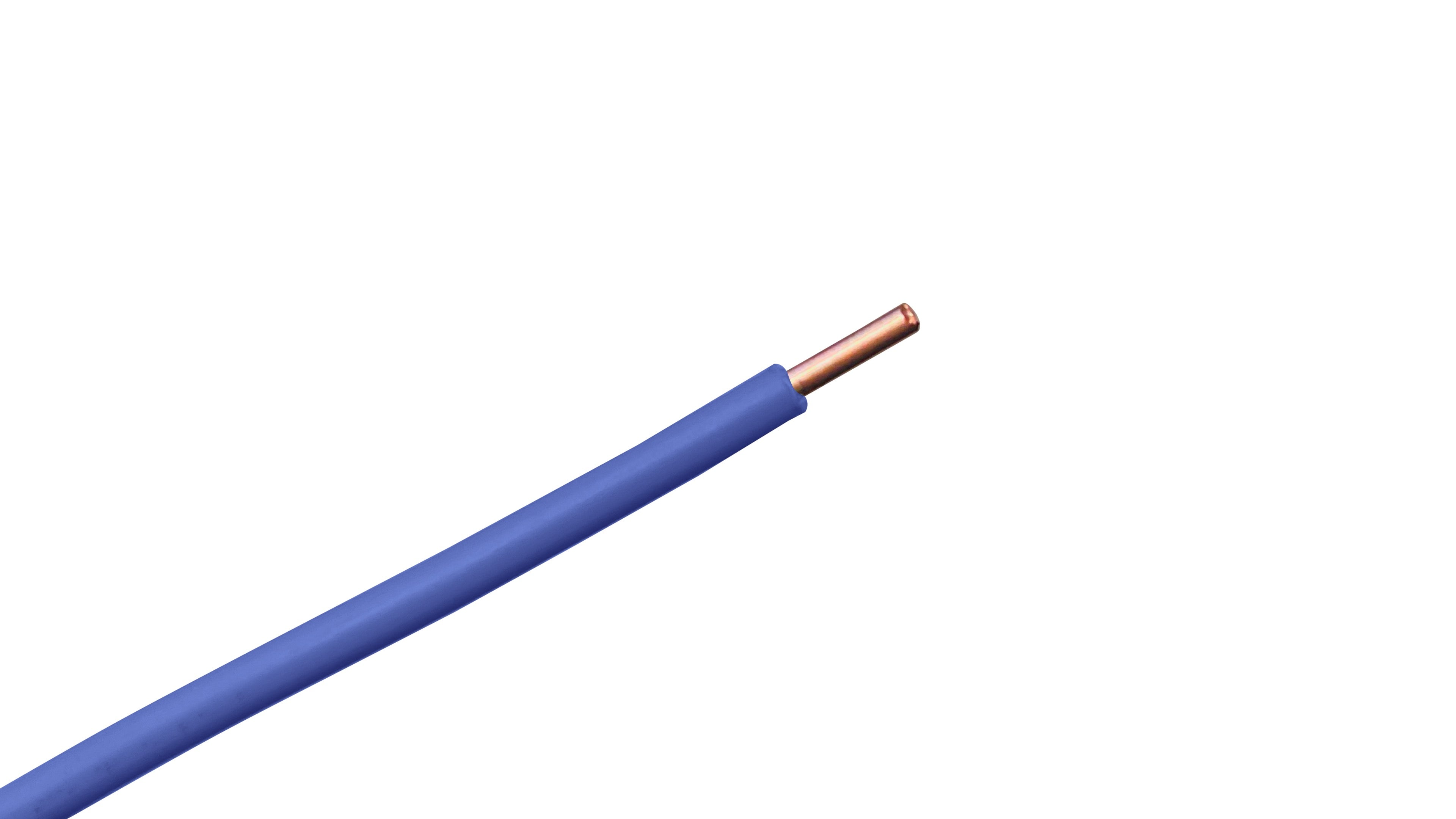

• Safety Precaution Blue: Designated strictly for Potable (Drinking) Water Systems.

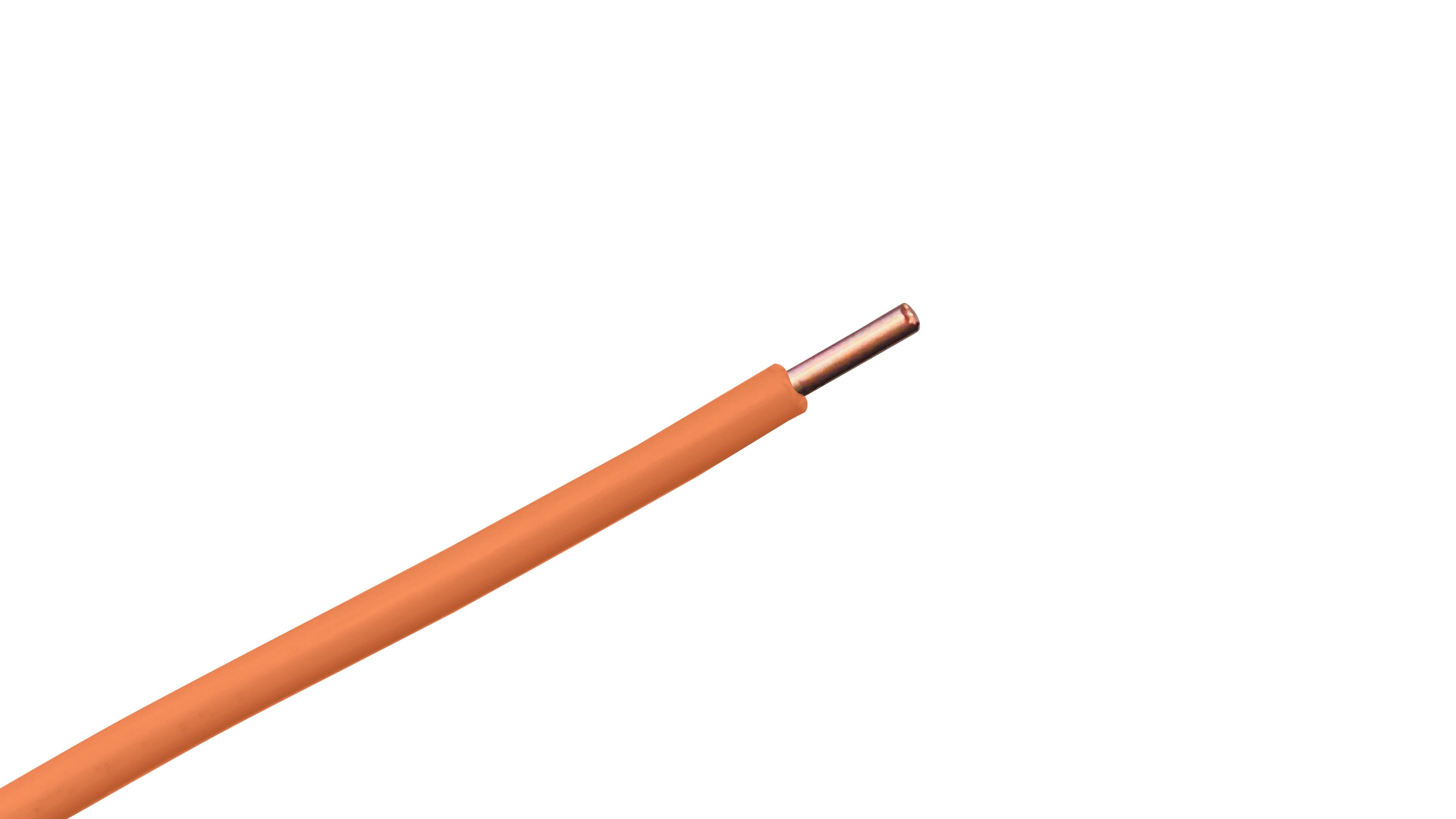

• Safety Alert Orange: Used for Telecommunications, Fiber Optic Networks, and Traffic Signal loops.

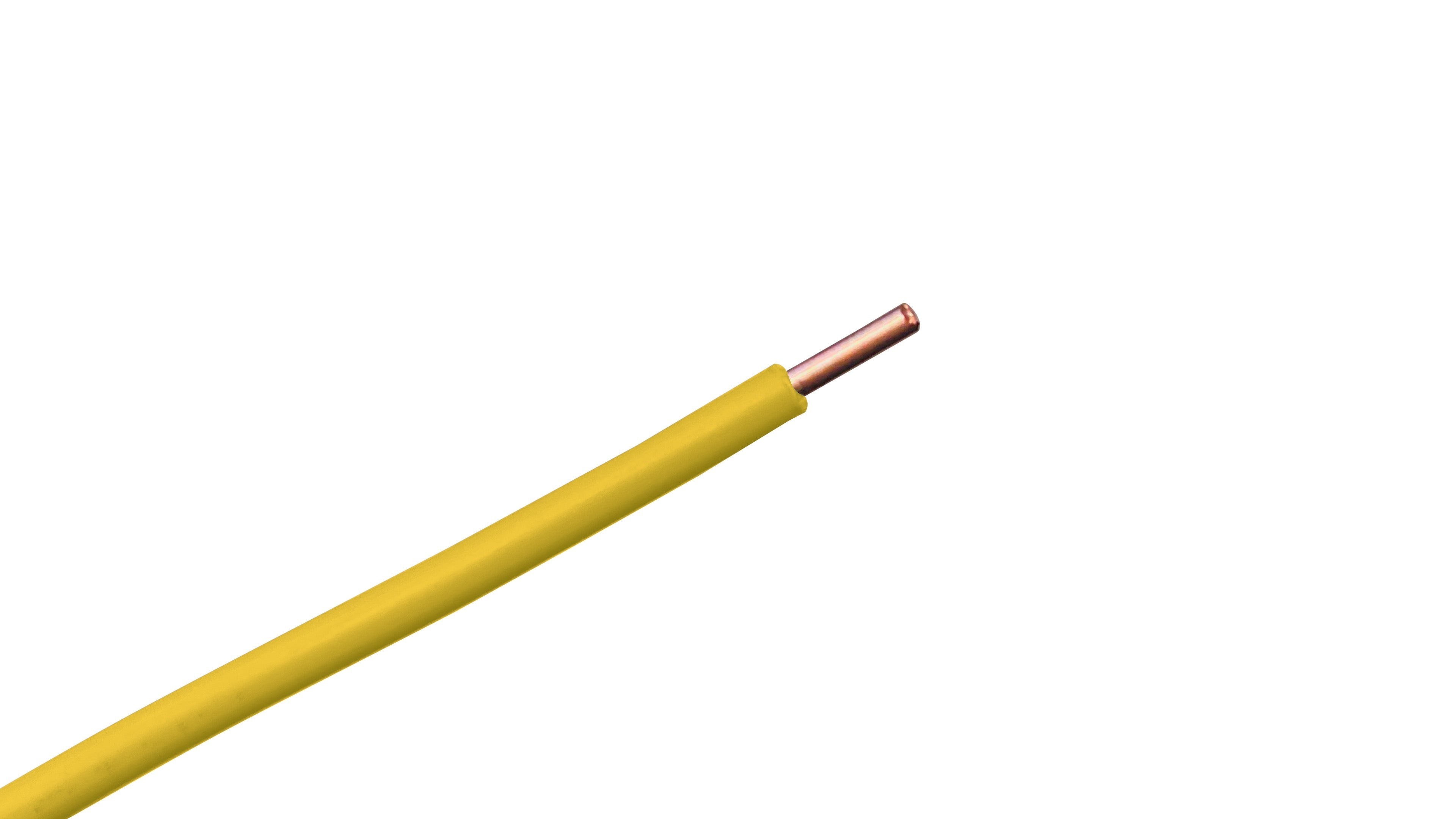

• High Visibility Yellow: Reserved exclusively for Natural Gas, Petroleum, and other Gaseous or Hazardous Materials.

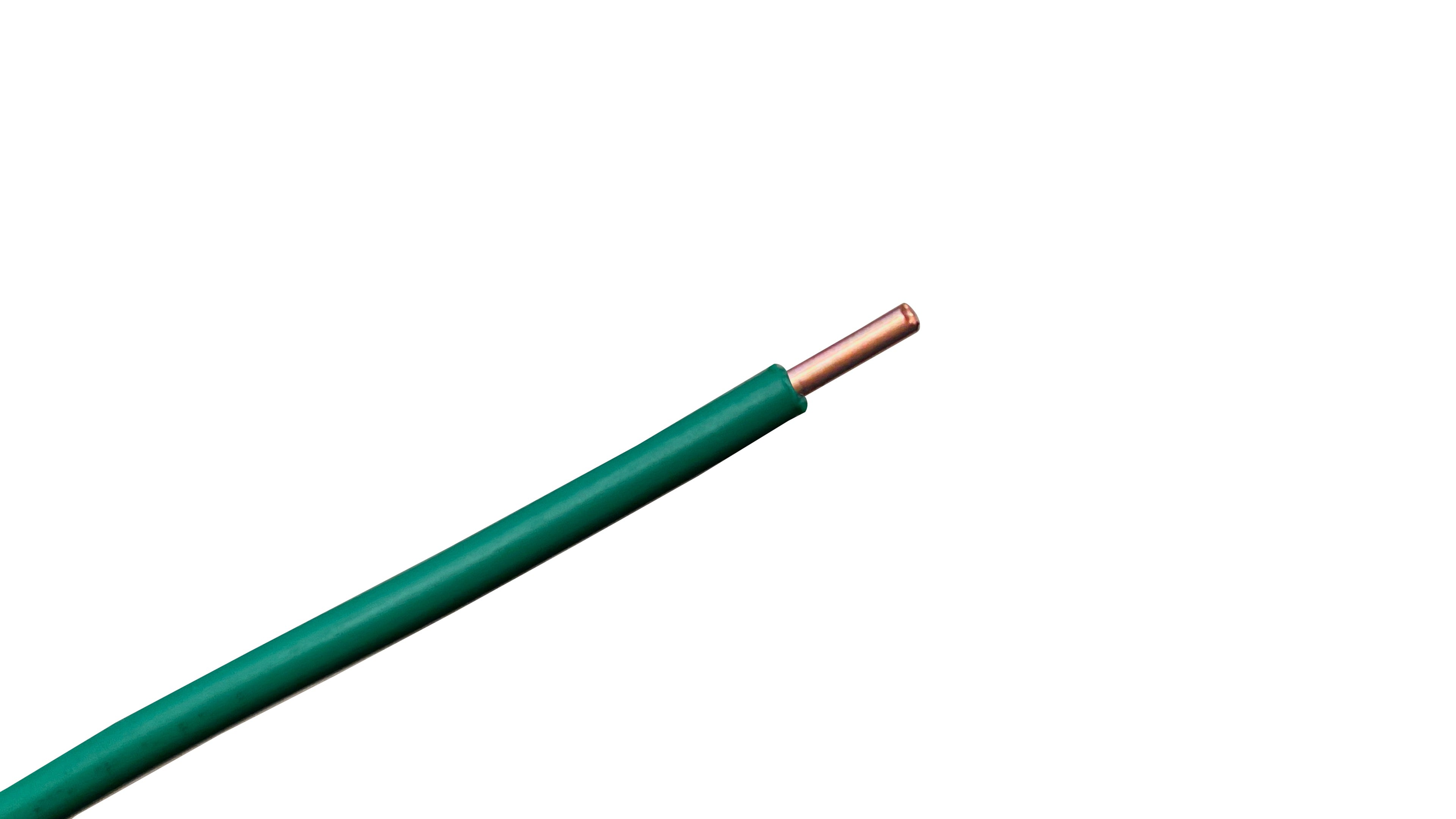

• Safety Public Works Green: Assigned to Sanitary Sewers, Force Mains, and Drain Lines.

• Safety Purple: Utilized for Reclaimed Water, Irrigation Systems, and Slurry Lines.

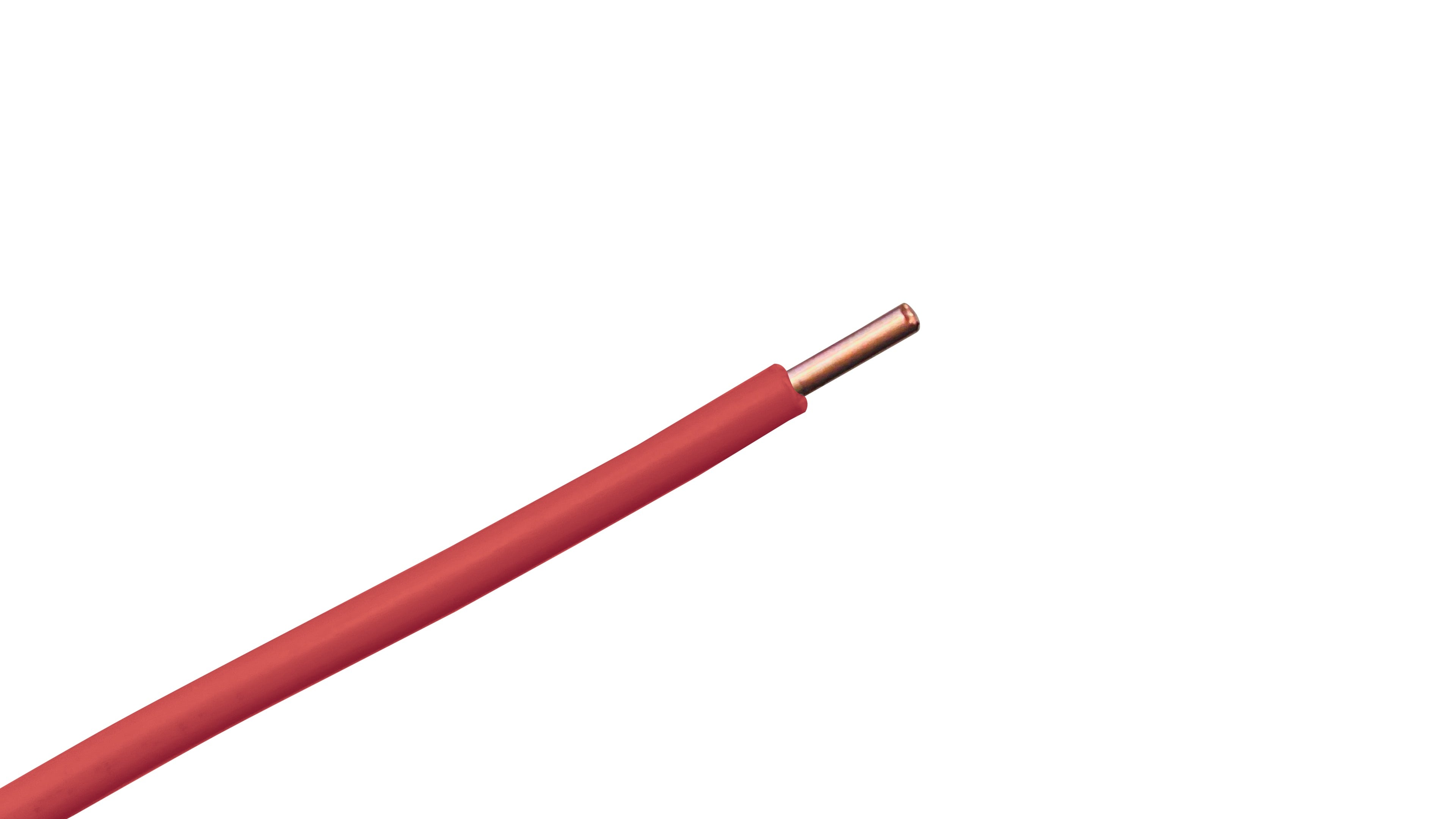

• Safety Alert Red: Deployed for Electric Power Distribution circuits and high-voltage Conduit Trunks.

Technical Specifications

• Conductor Size: 12 AWG

• Conductor Type: High Strength Copper Clad Steel (HS-CCS)

• Steel Core Type: Carbon Steel

• Copper Clad Volume: 21% Conductivity (Minimum thickness matches ASTM B910 specifications)

• Insulation Material: High-Density Polyethylene (HDPE / HMWPE - PE-45 Rating)

• Insulation Thickness: 45 Mils (1.14 mm)

• Tensile Strength: 424 lbs minimum break load

• Voltage Rating: 30 Volts (Locating signaling systems only)

• Operating Temperature: -40 degrees C to +80 degrees C Continuous Burial

• Compliance Standards: ASTM B910, ASTM D1248, APWA Color Code Compliant, Buy American Act Approved

Technical Note: To maintain an uninterrupted electromagnetic trace path, underground connections must never be wrapped with standard electrical tape or connected with non-watertight wire nuts. All 12 AWG HS tracer wire splices must utilize fully sealed, moisture-proof directional connectors (such as silicone-filled outer locking lugs).

Exposing the copper clad core to direct soil moisture or chemical trace acids will lead to localized oxidation and galvanic cell breakdown, which breaks the signal continuity and renders the entire downstream section invisible to locator tracking rigs.

CABLE TYPE: 12 AWG Single-Conductor High Strength (HS) Copper Clad Steel Tracer Wire (45-Mil PE-45 Insulation)

DISCLAIMER: The technical information provided is for general reference only. Civil engineering profiles, underground excavation boundaries, and utility tracing loops must strictly adhere to the American Public Works Association (APWA) design parameters, National Utility Locating Contractors Association (NULCA) provisions, and local municipal utility regulations. Always cross-reference the official product submittal data sheet from the chosen manufacturer prior to finalizing underground infrastructure layouts or specifying mechanical pulling loads.
