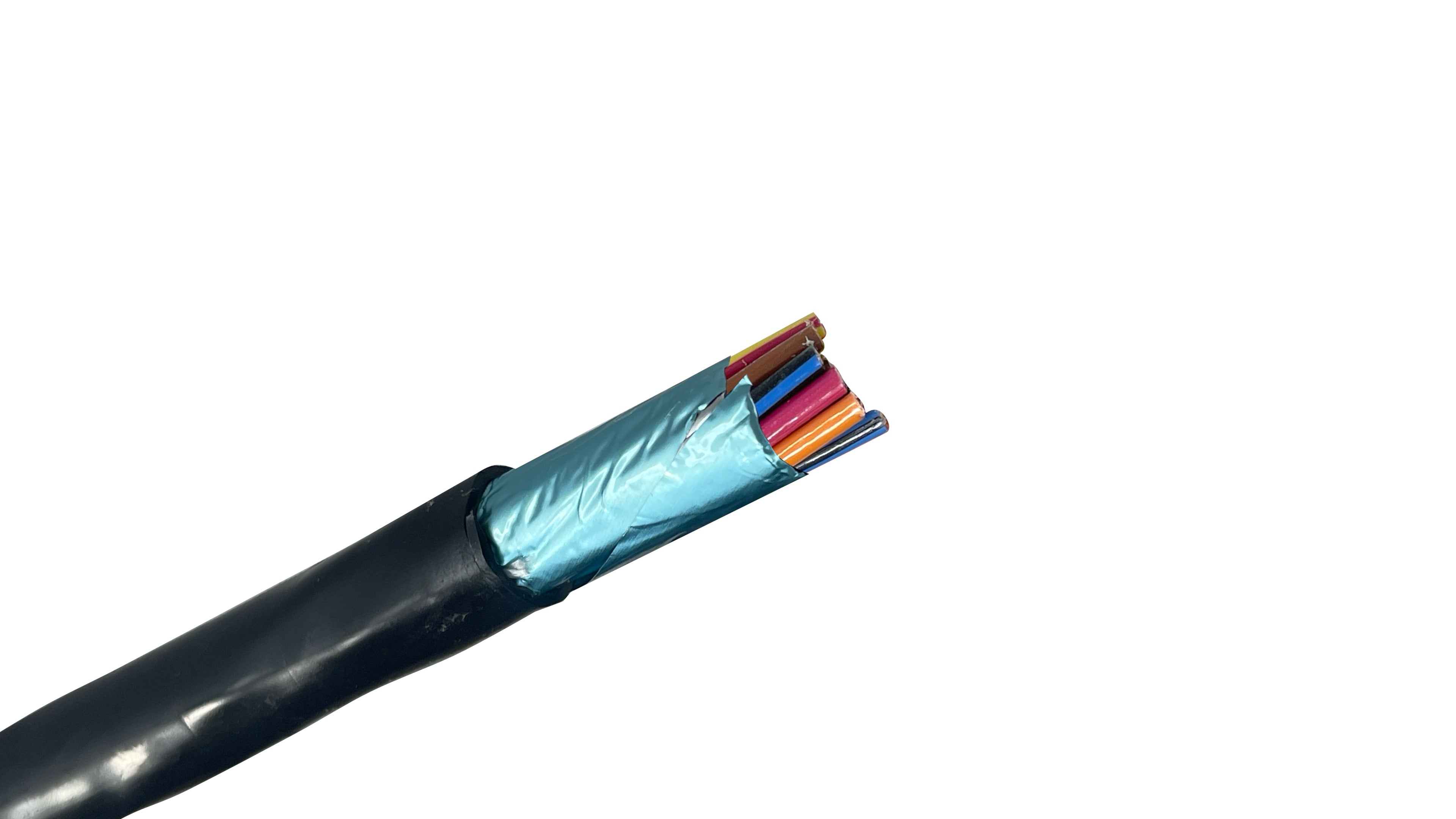

12-9 Shielded VNTC Tray Cable Type TC-ER (THHN PVC 600V)

This 12 AWG, 9-conductor shielded VNTC (Vinyl Nylon Tray Cable) is a dual-rated Type TC-ER industrial cable, designed for high-density control and power applications requiring maximum protection against electromagnetic interference (EMI). The TC-ER (Exposed Run) rating offers superior installation flexibility, permitting the cable to transition from a tray to equipment without the need for conduit.

Key Features of 12-9 Shielded VNTC (TC-ER)

• Exposed Run (TC-ER) Rated: This cable has passed the rigorous UL 1277 crush and impact tests. Per NEC 336.10, it can be routed between a cable tray and the equipment it connects for distances up to 6 feet without continuous support or conduit.

• 100% EMI/RFI Shielding: The overall aluminum foil-polyester tape shield, combined with a tinned copper drain wire, provides a 100% barrier against electrical noise, protecting sensitive digital and analog signals from distortion.

• Heavy-Duty Conductor Profile: 12 AWG stranded copper conductors offer higher current-carrying capacity and lower resistance than standard control gauges, making this cable ideal for long industrial runs where voltage drop is a factor.

• Environmental Resistance: Featuring THHN/THWN-2 conductors and a flame-retardant, sunlight-resistant PVC jacket, this cable is resistant to moisture, heat, and oils. It is approved for direct burial and use in Class I, Division 2 hazardous locations.

Common Applications

• Industrial Control Systems: Ideal for connecting main control panels to multiple remote sensors, actuators, and solenoid banks in a single shielded run.

• Variable Frequency Drives (VFDs): Used for auxiliary control and monitoring circuits near high-noise motor drives to ensure signal integrity.

• Telemetry and Monitoring: Suitable for complex signaling in power plants, refineries, and water treatment facilities where high conductor counts are necessary.

• Automated Manufacturing: Consolidates multiple control lines into one organized, high-strength cable assembly for robotic cells and assembly lines.

Conductor Identification: E2 Color Code

• Conductor 1: Black

• Conductor 2: Red

• Conductor 3: Blue

• Conductor 4: Orange

• Conductor 5: Yellow

• Conductor 6: Brown

• Conductor 7: Red with Black Stripe

• Conductor 8: Blue with Black Stripe

• Conductor 9: Orange with Black Stripe

Technical Specifications

• Conductor Size: 12 AWG

• Number of Conductors: 9

• Conductor Material: Bare Annealed Copper (Stranded)

• Insulation: THHN/THWN-2 (PVC with Nylon Skin)

• Shielding: Overall Aluminum Foil-Polyester Tape (100% coverage)

• Drain Wire: Tinned Copper

• Jacket: Flame-Retardant, Sunlight-Resistant PVC (Black)

• Ratings: 600V | 90°C Dry / 75°C Wet | Type TC-ER

• Compliance: UL 1277, UL 1581, IEEE 1202, RoHS Compliant

Technical Note: For the shield to function correctly, the tinned copper drain wire must be properly terminated to a ground bus at the source end. When utilizing the TC-ER rating for exposed runs, ensure the cable is secured and protected from physical damage in accordance with NEC requirements.

CABLE TYPE: 12/9 Shielded VNTC (THHN/PVC)

RATING: Type TC-ER

COLOR CODE: E2 Standard

DISCLAIMER: The technical information, ampacity ratings, and color codes provided are for general reference only. Specifications may vary by manufacturer and are subject to change without notice. Always consult with a licensed electrical engineer or local building authorities to ensure compliance with the National Electrical Code (NEC) and all local safety regulations before installation.
