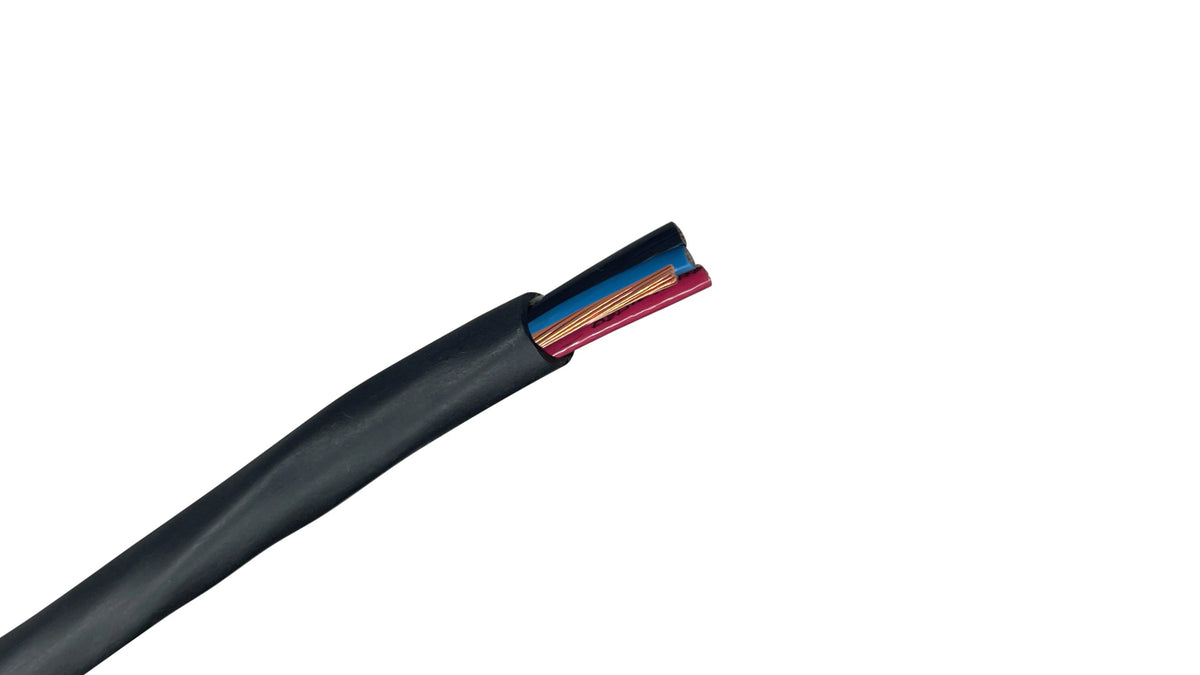

12-3 w/ Ground Tray Cable - THHN/PVC

Parent SKU :  TCTHN12-3G

SKU :  TCTHN12-3G-250

VNTC TYPE TC-ER. SUNIGHT RESISTANT & DIRECT BURIAL RATED.
Download Spec Sheet
Wire Size 12 AWG
Conductor Type Stranded
Outer Diameter 0.385 in.
Conductor Count 3
Voltage Rating 600V
Ampacity Rating 30
Temperature Rating 90ºC
Download Spec Sheet

Get Product Details

Get Product Details
APPLICATION:
Tray Cable UL Type TC / TC-ER with THHN/THWN-2 Insulation is primarily used for power, control, signal, communication, and lighting circuits in commercial and industrial environments. Suitable for installations in cable trays, supported by messenger wire in open air, raceways, channels, conduits and ducts, direct burial applications not exceeding 600 volts.

CONDUCTORS:
Fully annealed bare copper Class B compressed strand per ASTM B3 and B8

CONDUCTOR SIZE:
12 AWG

CONDUCTOR COUNT:
3 + 1 Ground

CONDUCTOR COLORS:
Black, Red and Blue

GROUND:
#12 Soft bare annealed copper, Class B stranding per ASTM B3 and B8

INSULATION:
THHN/THWN-2 Heat and moisture resistant Polyvinylchloride (PVC) with a Nylon jacket, per UL 83.

ASSEMBLY:
Conductors are cabled together with or without fillers as required to form a round, compact cable core with a binder tape.

AMP RATING:
@ 90°C - 30 Amps



All values are nominal and subject to correction *Ampacities for not more than three current-carrying conductors in raceway, cable, or earth (directly buried) at ambient temperature of 30°C per NEC table 310.16. Refer to the NEC for deratings due to different conditions.

See Full Specifications

See Full Specifications
Download Spec Sheet

Physical Specifications

Wire Size (AWG/MCM) 12 AWG
Conductor Material Copper
Conductor Type Stranded
Strand Count 7
Outer Diameter (OD) (in/mm) 0.385 in.
Jacket Type PVC with a Nylon Jacket
Conductor Count 3
Shield Unshielded
Insulation Type (PVC) Polyvinyl Chloride

Technical Specifications

Voltage Rating 600V
Ampacity Rating 30
Direct Burial Rating Yes
Submersible No
Sunlight Resistance Rating Yes
Temperature Rating 90ºC
Standards UL 66, UL 83, UL1277
UL 1685 Vertical-Tray Fire-Propagation and Smoke-Release Test
Approved as Type TC or TC-ER-JP, Sunlight Resistant, Direct Burial
ASTM B3, ASTM B8
NEC Article 336, Article 501, Article 725 for class 1 circuits.
Miscellaneous Information All values are nominal and subject to correction.
Other Certifications UL 66, UL 83, UL1277, UL 1685

Usage & Installation

Primary ApplicationsIndustrial Power and Control Systems, Building Automation and Energy Management, Utility and Substation Wiring, Instrumentation and Process Control, Cable Tray Installations, Outdoor and Direct Burial.
Common Uses
  • Control circuits for motors
  • machinery
  • automated equipment
  • connecting sensors
  • actuators
  • and controllers for HVAC
  • lighting
  • and security systems.
