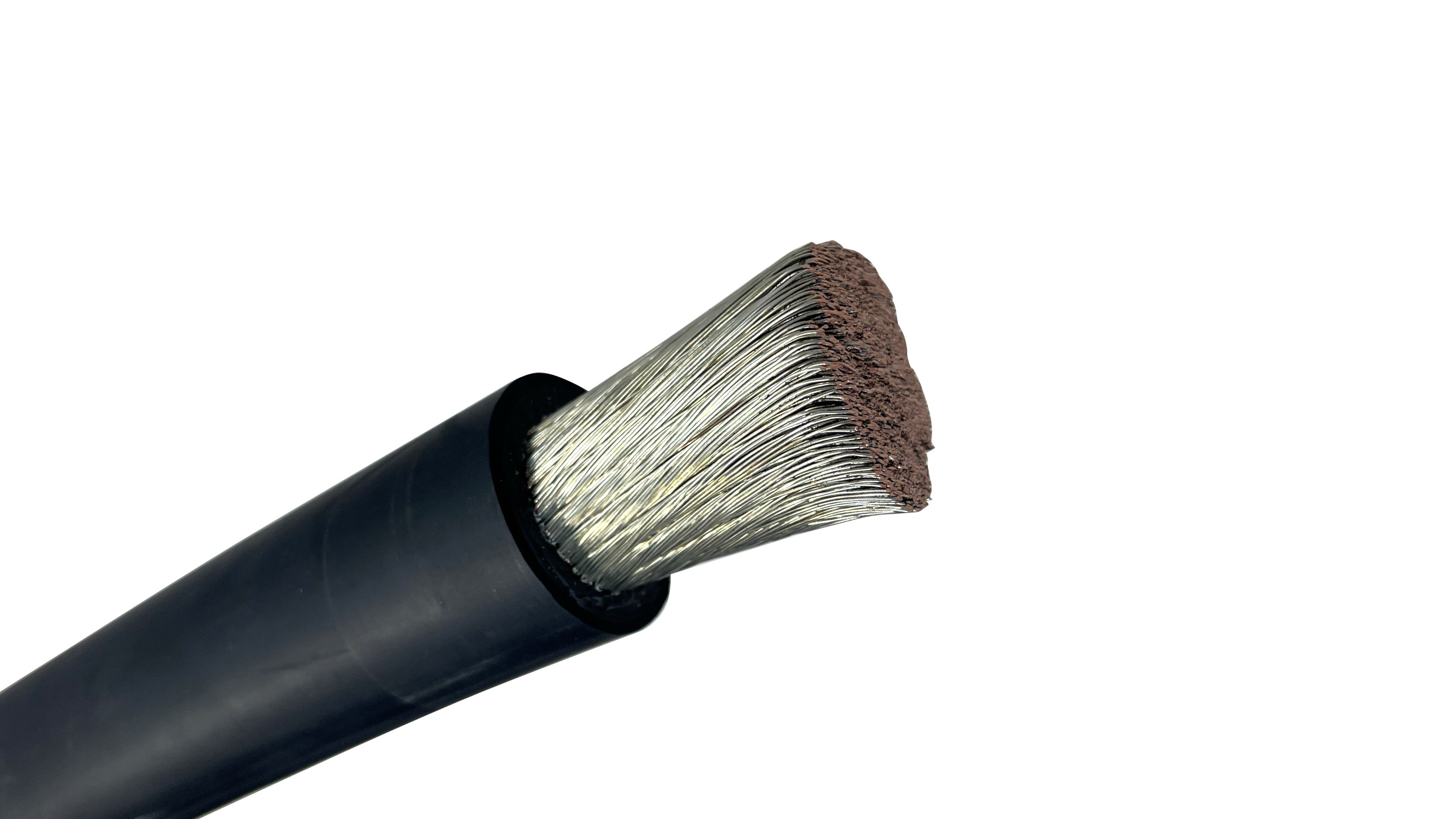

1111 MCM Diesel Locomotive Cable, 2000V

1111 MCM Diesel Locomotive Cable (DLO) is an ultra-heavy-duty, single-conductor portable power cable designed for massive industrial power distribution networks and maximum high-stress electrical setups. Engineered to safely manage a continuous electrical pressure of 2000 Volts, this high-capacity power line is built to survive heavy vibration, aggressive mechanical handling, and unforgiving field conditions.

While originally developed to feed high-voltage electrical energy from traction generators to the drive motors of heavy diesel-electric locomotives, its raw strength and exceptional flexibility make it a top choice for stationary and mobile applications. It serves as an ultra-flexible alternative to standard, stiff commercial building wire (such as THHN or XHHW-2) in complex commercial installations requiring tight bends or continuous dynamic motion.

ELECTRICAL AMPACITY & PERFORMANCE DATA

Thanks to its dense network of fine-drawn strands and a thick dual-layer insulation assembly, 1111 MCM DLO exhibits outstanding thermal dissipation properties and ultra-high-current handling limits:

• Maximum Current Capacity (30 degrees C Ambient Air): 1225 AMPS This premium capacity rating is evaluated based on a continuous 90 degrees C conductor temperature operating in an open-air cable tray environment.

• National Electrical Code Adjustments: When packing multiple single-conductor 1111 MCM DLO lines inside a closed structural conduit, wire trough, or enclosed raceway, electricians must apply NEC Article 310 derating adjustments based on ambient room temperatures and total enclosed conductor counts.

Key Features

• Extreme-Flexibility Class I Tinned Copper Conductor: Composed of 2755 individual strands of fully annealed tinned copper. This ultra-fine layout allows a massive 1,111,000 circular mil (MCM) conductor to bend smoothly around architectural structures without kinking, while the outer tin layer neutralizes copper oxidation and simplifies lug terminations.

• Premium EPR (Ethylene Propylene Rubber) Insulation: Shielded by a thick layer of high-dielectric EPR insulation. This thermoset material resists softening, melting, or cracking under extreme temperature fluctuations and protects the core against internal voltage tracking failures under 2000V loads.

• Heavy-Duty CPE (Chlorinated Polyethylene) Outer Jacket: Wrapped in an industrial-grade, abrasion-resistant black CPE jacket. It stands up to grease, fuel oils, petrochemical solvents, ozone, severe structural impacts, and nonstop open-air sunlight exposure.

• Multi-Certified Safety Standard Ratings: Dual-listed as Type RHH/RHW-2 under UL 44, making it fully code-compliant for continuous permanent installation at 90 degrees C in both wet and dry architectural applications.

Common Applications

• Diesel-Electric Locomotive Networks: Distributing high-amp energy paths between central engine generator blocks, dynamic braking grids, and heavy-duty wheel traction motors.

• Oil and Gas Drilling Rigs: Powering massive mud pumps, top drives, drawworks equipment, and offshore marine drilling platforms.

• Data Centers & Bulk Battery Storage Hubs: Interconnecting massive Uninterruptible Power Supply (UPS) systems, utility-scale battery storage arrays, and high-voltage emergency backup setups.

• Industrial Motor & Generator Leads: Acting as a flexible, high-current feeder line on mining shovels, heavy manufacturing motors, and large mobile generator sets.

• Shipboard & Marine Power Distribution: Supplying heavy-duty flexible power trunks across shipyards, commercial transport vessels, and marine docks.

Cable Layer Architecture (From Core to Jacket)

1. Central Conductor: 1111 MCM rope-lay, bunch-stranded tinned copper core (2755/24 layout configuration).

2. Separator Layer: Clear polyester or paper binding tape to prevent the fine copper strands from sticking to the primary insulation layer during high-heat stripping and termination work.

3. Primary Insulation: Premium-grade Ethylene Propylene Rubber (EPR).

4. Outer Protective Armor: Rugged, thermoset, weather-proof Black Chlorinated Polyethylene (CPE) jacket.

Technical Specifications

• Conductor Size: 1111 MCM (1,111,000 Circular Mils)

• Conductor Stranding Count: 2755 Strands (24 AWG individual strand size)

• Conductor Material: Tinned Annealed Copper

• Insulation Material: Ethylene Propylene Rubber (EPR)

• Jacket Material: Chlorinated Polyethylene (CPE)

• Nominal Outer Diameter: Approx. 1.75 to 1.84 inches (Varies slightly by manufacturer)

• Approximate Net Weight: Approx. 4150 to 4300 lbs per 1000 feet

• Voltage Rating: 2000 Volts Maximum

• Maximum Conductor Temperature: 90 degrees C (Continuous wet or dry)

• Compliance Standards: UL Listed Type RHH/RHW-2, CSA Type RW90/RW90-TC (1kV), MSHA Approved (Mine Safety), ICEA S-95-658, NEMA WC-70, IEEE 1202/FT4 Flame Test Compliant

Technical Note Regarding Lugs: Because 1111 MCM DLO cable is engineered with extra-fine Class I stranding, standard mechanical compression lugs or standard commercial building wire barrels must never be used. Trying to crush fine stranding into a standard building wire lug will tear the individual copper fibers and create a serious fire hazard due to loose electrical connections. Installers must exclusively use specialty chamfered compression lugs explicitly stamped and rated for "Flexible Strand, Class I, or DLO Cable" and secure them using calibrated crimping dies.

CABLE TYPE: 1111 MCM Single-Conductor Flexible 2000V Diesel Locomotive Power Cable (Black CPE Jacket)

DISCLAIMER: The technical information provided is for general reference only. Industrial high-voltage power networks and flexible cable trays must strictly comply with the National Electrical Code (NEC), local municipal safety enforcement mandates, and individual equipment installation datasheets. Always verify official product submittal listings and exact core metrics with your electrical component manufacturer prior to configuring terminal arrays or subjecting lines to high pulling forces.

⚠️ The applications listed below are for informational and educational purposes only. Electrical code requirements vary significantly by region. Always consult a licensed electrician and your local building authority to verify compliance with the National Electrical Code (NEC®) for your specific project before purchasing or installing cable.

Common 1111 MCM DLO 2000V Use Cases

• Mega-Watt Traction Motor Supplies: Functions as the ultimate high-amperage, high-flexibility power main connecting massive diesel generators to heavy traction motors on freight trains and rapid transit propulsion systems.
• Oil Rig Main Power Distribution: Deployed as the central power backbone trunk cable on onshore and offshore oil drilling rigs, supplying continuous 2000V electricity to massive top drives and high-pressure mud pump systems.
• Massive Telecom & Data Center Power Trunks: Connects ultra-high-capacity backup generator plants and massive central uninterruptible power supply (UPS) battery rooms to primary data grids and server distribution frames.
• Heavy Utility & Substation Jumper Systems: Utilized by utility providers as highly flexible, heavy-duty temporary bypass cabling or permanent grounding transformer leads inside high-voltage substations.
• Shipboard Propelling & Shore Power Leads: Serves as the primary power linkage for large commercial shipping vessels, marine thrust engines, and high-wattage ship-to-shore utility stations.
• Heavy Mining Shovels & Dragline Mainlines: Routes raw electrical loads across the highly dynamic articulation points of massive continuous mining machinery, draglines, and electric excavators.

Who Relies on 1111 MCM DLO 2000V?

Target Industries

• Railroad & Mass Transit Engineering: Required by major locomotive builders and regional rail authorities for heavy freight and high-speed passenger train overhauls.
• Offshore Energy & Heavy Infrastructure: Extensively utilized by marine engineering firms, oilfield operators, and deep-sea drilling platforms.
• Enterprise Cloud & Telecom Infrastructure: Integrated into hyperscale data center designs to handle bulk power distribution for massive computing blocks.
• Heavy Industrial Mills & Mining Operations: Selected by mining operators, steel factories, and heavy manufacturing foundries for high-power equipment leads.

Core Professionals & Buyers

• Industrial & Marine Electrical Engineers: Field specialists who specify 1111 MCM Diesel Locomotive Cable (DLO) because its fine Class I tinned copper stranding (consisting of 2745 individual 24 AWG strands) allows an ultra-thick 1.5-inch diameter cable to flex into tight radius spaces.
• Data Center Facility Architects: Procurement managers who rely on DLO's premium Ethylene Propylene Rubber (EPR) insulation to provide unmatched 2000V dielectric protection and heat handling in dense spaces.
• Industrial Project Estimators: Procurement officers tracking long-term maintenance cycles who count on the heavy Chlorinated Polyethylene (CPE) thermoset jacket to resist oil, chemicals, acids, and ozone without cracking or peeling.
• Safety & Code Compliance Inspectors: Field regulatory officers who look for Dual-Rated RHH/RHW-2 attributes and MSHA flame-retardant listings to approve hazardous location or open cable tray wire configurations.
