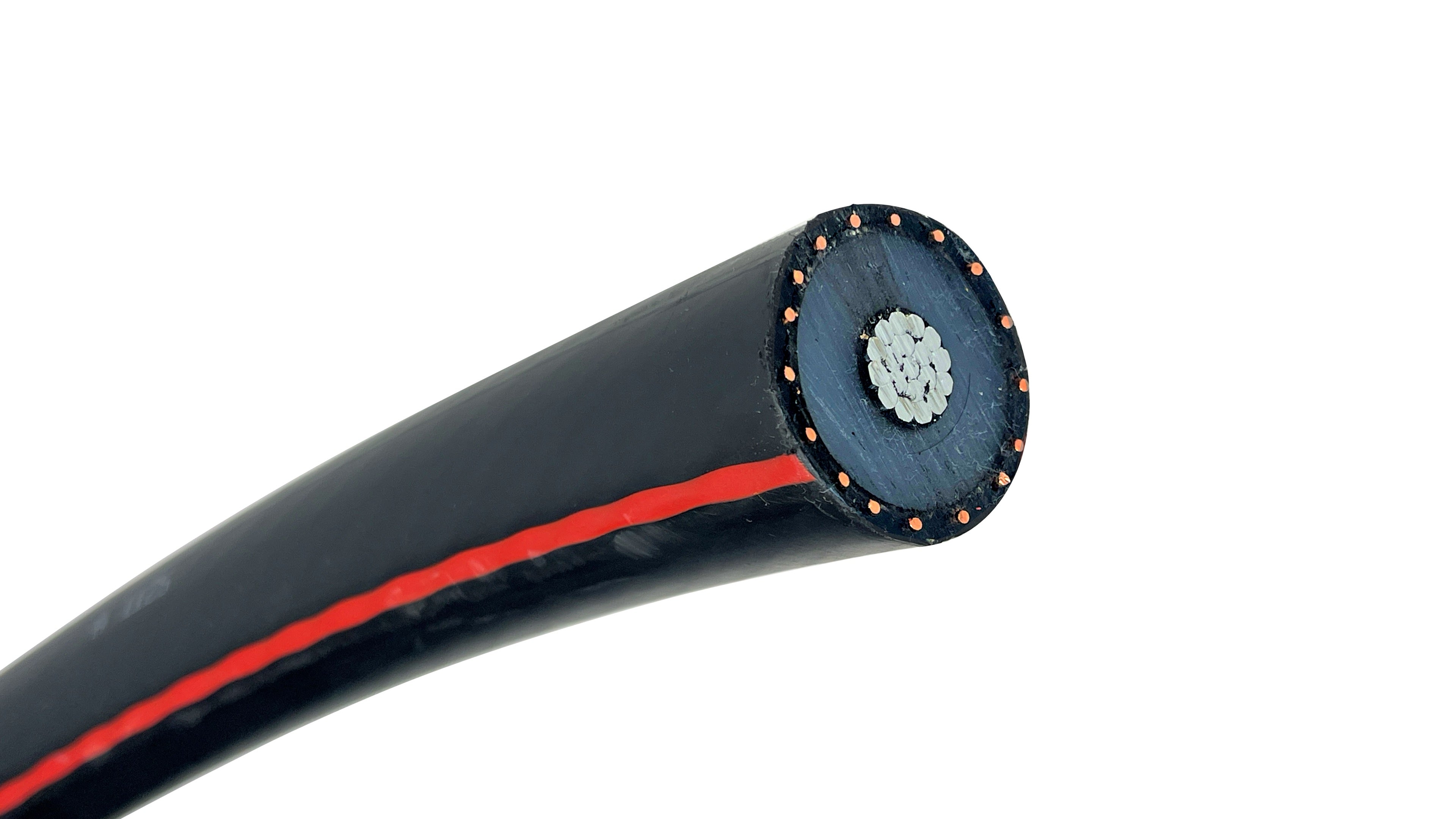

1000 MCM Aluminum URD Cable 35kV 100% Insulation | Water Block 1/6 Neutral

Parent SKU :  ALURDWB-35K-1000-1/6

SKU :  ALURDWB-35K-1000-1/6-250

TR-XLPE INSULATED • WATER BLOCK TECHNOLOGY • DIRECT BURIAL RATED
Download Spec Sheet
Wire Size 1000 MCM
Conductor Material Aluminum
Outer Diameter 2.39 in. / 60.71 mm
Weight per Foot 2.69 lb
Download Spec Sheet

Product Details

Product Details
APPLICATION:
Aluminum Conductor MV-105 35KV water blocked URD cable is primary used for underground power distribution for residential and commercial applications, installed in duct or direct burial. 35KV URD cable is suitable for use in wet or dry locations.

CONDUCTORS:
Compact or compressed aluminum 1350 in Class B stranding

CONDUCTOR WATER BLOCK:
Water block compound filled conductor or water swellable tape over the conductor.

CONDUCTOR SHIELD:
Semi-conducting compound extruded over the conductor

INSULATION:
Naturally high dielectric strength TR-XLPE in 100% insulation level extruded over the conductor shield

INSULATION SHIELD:
Semi-conducting compound extruded over the insulation, strippable

CONCENTRIC NEUTRAL WATER BLOCK:
Semi-conducting water swellable tape over the insulation shield or water-swellable powder between the concentric neutral strands

CONCENTRIC NEUTRAL:
16 #12 Annealed bare copper wires helically wrapped over the insulation shield, in 1/6 or other conductivities of the conductor

JACKET:
Sunlight resistant XLPE, black with three red stripes

CABLE MARKING:
PRIORITY WIRE AL TR-XLPE 35KV 100% INSUL LEVEL 345 MILS (UL) E364254 TYPE MV-105 XLPE WB SUN RES . Marking on Extruded Insulation Shield: SEMICONDUCTIVE – REMOVE BEFORE TERMINATING OR SPLICING




All values are nominal and subject to correction. Non-stock item available for order

Full Specifications

Full Specifications
Download Spec Sheet

Physical Specifications

Wire Size (AWG/MCM) 1000 MCM
Conductor Material Aluminum
Conductor Type Stranded
Outer Diameter (OD) (in/mm) 2.39 in. / 60.71 mm
Jacket Type XLPE
Conductor Count 1
Shield Shielded
Insulation Type TR-XLPE
UL Listing Numbers UL 1072

Technical Specifications

Voltage Rating 35kV
Direct Burial Rating Yes
Submersible No
Sunlight Resistance Rating Yes
Temperature Rating 105ºC
Standards ASTM B230 Aluminum 1350–H19 Wire for Electrical Purposes
ASTM B231 Concentric-Lay-Stranded Aluminum 1350 Conductors
ASTM B400 Compact Round Concentric-Lay-Stranded Aluminum 1350 Conductors
ASTM B3 Soft or Annealed Copper Wire
UL 1072 Medium-Voltage Power Cables
ICEA S-94-649 Concentric Neutral Cables Rated 5 Through 46KV
AEIC CS8 Extruded Dielectric, Shielded Power Cables Rated 5 Through 46KV
For 105°C continuous, 140°C emergency overload and 250°C short-circuit operation
Miscellaneous Information All values are nominal and subject to correction. Non-stock item available for order

Packaging & Dimensions:

Weight per Foot 2.69 lb
