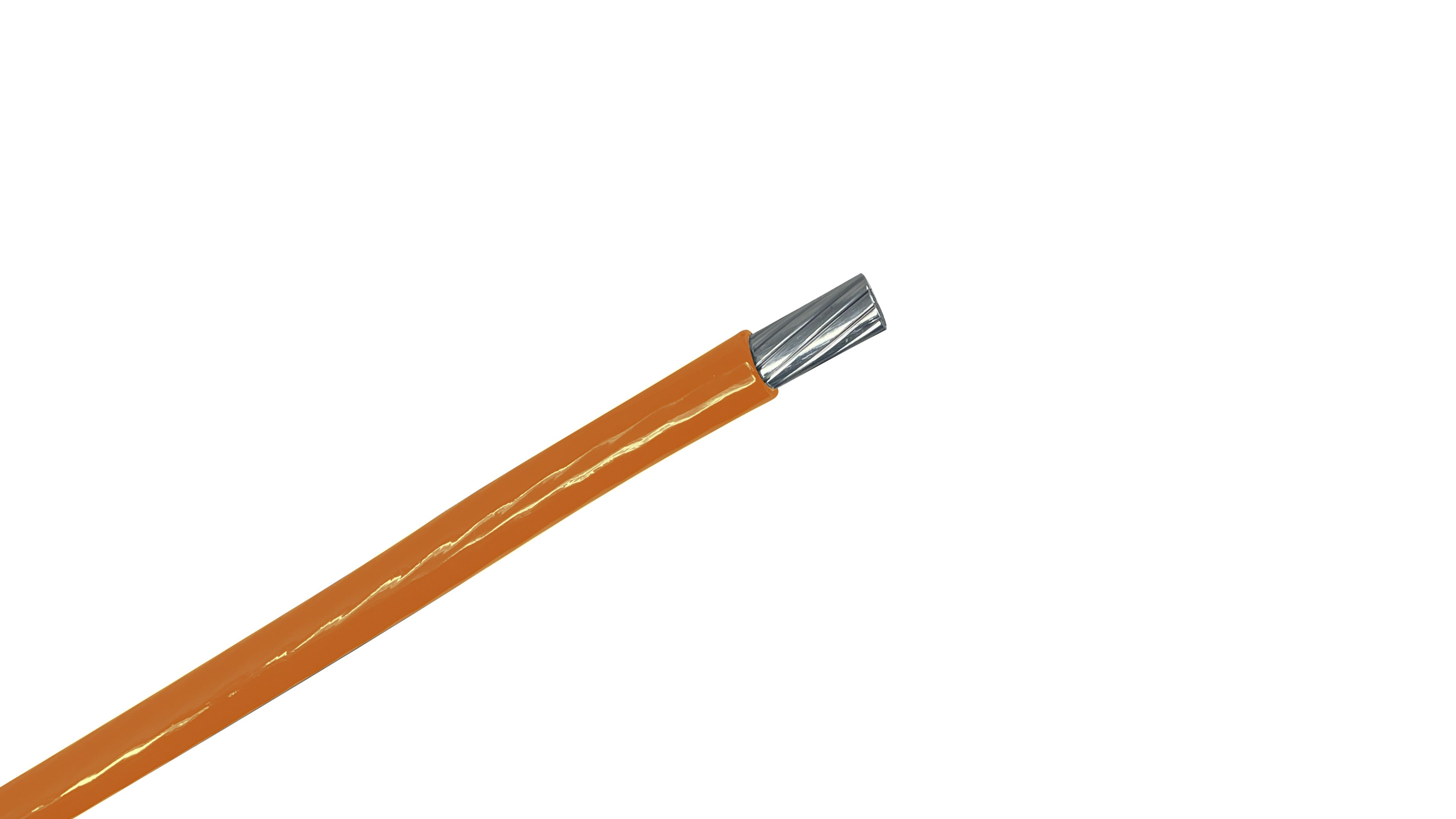

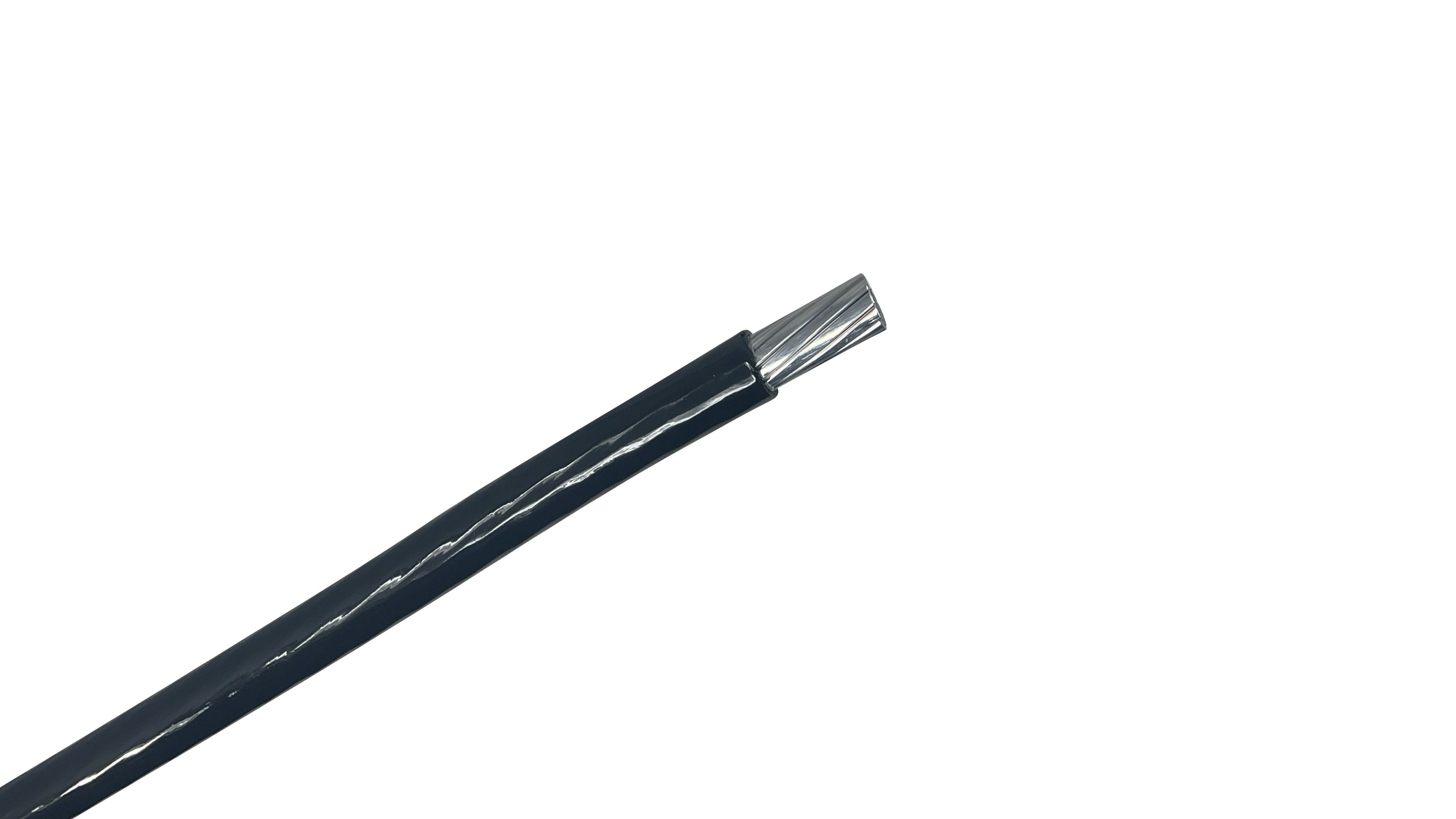

1000 MCM Aluminum THHN / THWN-2 Building Wire

"The industry standard for lightweight, cost-effective subpanel feeds, commercial equipment power connections, and branch circuit wiring. Engineered for reliable power distribution inside conduit and raceways, this 1000 MCM compact-stranded aluminum wire features triple THHN (dry), THWN-2 (wet), and CSA T90 temperature ratings. Protected by a heat- and moisture-resistant PVC insulation and a slick, abrasion-resistant nylon outer jacket, it pulls smoothly without requiring pulling lubricant."

Key Features & Benefits: 1000 MCM Aluminum THHN / THWN-2 Building Wire

1000 MCM Aluminum THHN/THWN-2/T90 electrical wire delivers dependable 600V power distribution for secondary panels, heavy equipment, and branch circuits at a fraction of the weight and cost of copper conductors. Designed for installation in conduit, cable trays, and approved raceways, it provides a reliable, code-compliant solution for commercial buildings, workshop circuits, and agricultural equipment. Featuring compact-stranded AA-8000 series aluminum alloy conductors, 1000 MCM THHN offers exceptional flexibility and long-term connection reliability. The durable PVC insulation and slick nylon jacket provide high resistance against heat, moisture, gasoline, oil, and mechanical friction during tough conduit pulls.

• Dual 90°C Wet/Dry Rating: Dual-rated as THHN for dry locations up to 90°C and THWN-2 for wet or dry locations up to 90°C (600V maximum).

• AA-8000 Series Aluminum Alloy: Manufactured with high-grade compact-stranded AA-8000 series aluminum for dependable electrical conductivity, reduced weight, and easier handling.

• Cable Tray (CT) Approved: Approved for use in cable trays (1/0 AWG and larger) as well as conduit and raceways.

• Low-Friction Nylon Outer Jacket: Abrasion-, heat-, and moisture-resistant PVC insulation encapsulated in a clear, slick nylon jacket that allows installation without pulling lubricant.

• Cut to Length by the Foot: Order only the exact footage required for your run, eliminating jobsite waste and unused spools.

Technical Specifications: 1000 MCM Aluminum THHN / THWN-2 Wire

• Application: General-purpose 600V building wire applications in commercial feeders, high-amp equipment connections, cable trays, or rewiring for wet or dry locations.

• Conductor Size: 1000 MCM (kcmil).

• Conductor Material: Compact Bare AA-8000 Series Aluminum (Class B Stranded).

• Conductor Diameter: 1.060 inches.

• Voltage Rating: 600 Volts Maximum.

• Insulation Material: Polyvinyl Chloride (PVC).

• Insulation Thickness: 0.080 inches.

• Jacket Material: Clear Abrasion, Heat, & Moisture-Resistant Nylon.

• Jacket Thickness: 0.009 inches.

• Overall Diameter: 1.238 inches.

• Net Weight: 1,161 lbs per 1,000 ft.

• Ampacity (60°C Conductor Rating - NEC): 375 Amps.

• Ampacity (75°C Conductor Rating - NEC): 445 Amps.

• Ampacity (90°C Conductor Rating - NEC): 500 Amps.

• Compliance & Standards: UL 83, UL 1685, CUL, CSA C22.2 No. 75 (T90), CT Use Rated (1/0 & larger), NEC, CEC, NEMA WC-70/ICEA S-95-658, ASTM B800, ASTM B801, ASTM B836, Federal Spec AA-59544, VW-1/FT1 Flame Test, Sunlight Resistant, Gas & Oil Resistant II.

Common 1000 MCM THHN / THWN-2 Applications

• Commercial & Industrial Main Feeders: Main feeder circuits supplying high-amperage power from primary service disconnects to major distribution switchboards, commercial subpanels, and industrial load centers.

• Heavy Industrial Equipment & Machinery Feeds: Dedicated power runs for heavy commercial chillers, large manufacturing machinery, industrial HVAC plants, and high-capacity transformer connections.

• Cable Tray & Underground Conduit Runs: High-capacity power distribution pulled through PVC, EMT, or rigid metal conduit, as well as overhead industrial cable tray systems.

• Utility & Renewable Energy Systems: Main feeder circuits for commercial solar power combiner hubs, agricultural complex distribution centers, and secondary utility power feeds.

Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.

**Ampacities shown are for general use as specified by the National Electrical Code 2017 Edition, Section 310.15 and 240.4(D). Unless the equipment is marked for use at higher temperatures, the conductor ampacities shall be limited to the follwing per NEC 110.14(C): 60°C - When terminated to equipment for circuits rated 100 amperes or less marked for 14 through 1 AWG conductors. 75°C - When terminated to equipment for circuits rated over 100 amperes or marked for conductors larger than 1 AWG. 90°C - THHN dry locations and THWN wet or dry locations for ampacity adjustment purposes using NEC section 310.15.
