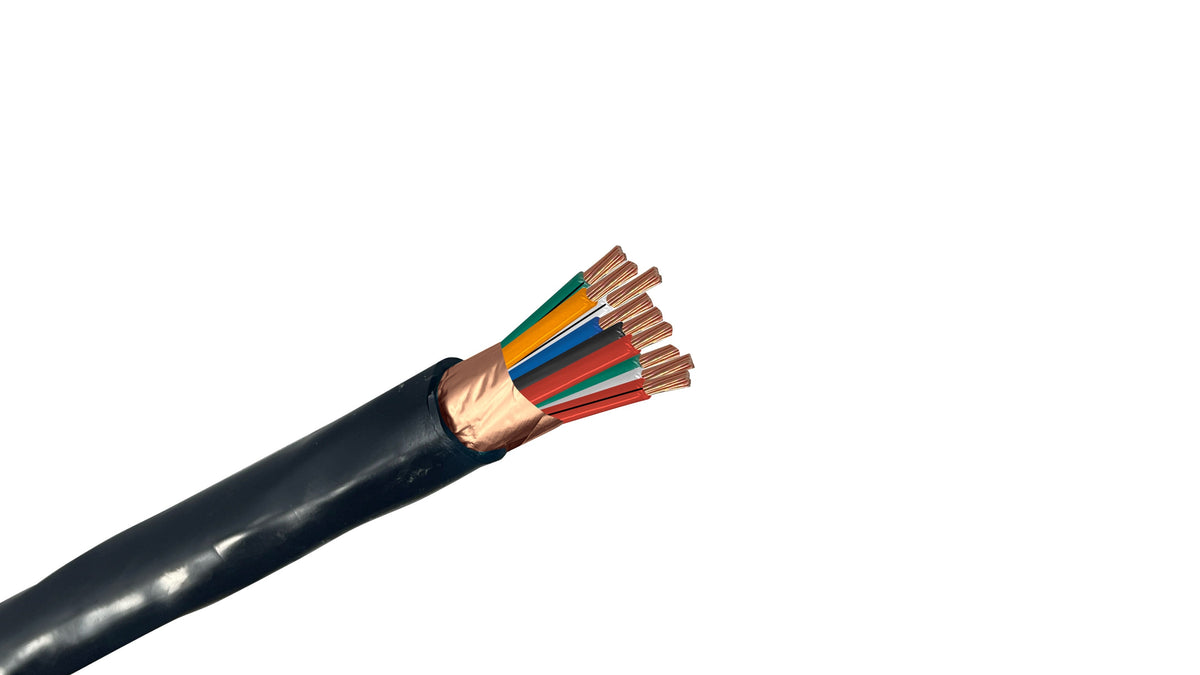

10/9 Shielded Substation Control Cable - 20/10 PE/PVC

Parent SKU :  SUB10-9SH-20/10

SKU :  SUB10-9SH-20/10-250

20/10 PE/PVC • SUNLIGHT RESISTANT • UTILITY GRADE
Wire Size 10 AWG
Conductor Material Copper
Conductor Type Stranded
Outer Diameter 0.759 in. / 19.28 mm
Conductor Count 9
Voltage Rating 600V
Weight per Foot 0.505 lb

Get Product Details

Get Product Details

This 10 AWG, 9-conductor shielded substation control cable is a heavy-duty utility cable engineered for demanding multi-circuit supervisory control, metering, and protective relaying circuits. Built to strict ICEA S-73-532 standards, it features a composite 20/10 PE/PVC insulation system and a high-performance copper tape shield. This construction provides exceptional dielectric strength and critical shielding against transient voltage surges and electromagnetic interference (EMI) typical in high-voltage substation switchyards.

Key Features of 10/9 Shielded 20/10 Substation Cable

  • Heavy-Duty 20/10 Composite Insulation: Each of the 9 conductors is insulated with 20 mils of Natural Polyethylene (PE) for primary electrical strength and low dielectric loss, paired with a 10 mil Polyvinyl Chloride (PVC) outer skin layer for color coding and robust physical protection.

  • Superior EMI/RFI Shielding: Wrapped with a helically applied 5-mil bare copper tape shield (minimum 20% overlap). This provides a low-resistance path to ground, suppressing dangerous high-frequency transients and induced magnetic/electrostatic currents caused by breaker operations and inductive switching.

  • Utility-Grade Durability: Protected by a rugged, flame-retardant, and sunlight-resistant black PVC jacket. This enables versatile installation paths—approved for wet or dry conditions, direct burial, open air, cable trays, troughs, or embedded conduit networks.

  • Corrosion-Resistant Base: Features premium Class B concentrically stranded bare copper conductors conforming to ASTM B3 and B8, balancing structural stability with industrial installation flexibility.

Common Applications

  • Substation Control Networks: Consolidating multiple digital or analog signal paths between control houses, switchyard equipment, marshalling kiosks, and terminal cabinets into a single run.

  • Protective Relaying & Telemetry: Connecting arrays of current transformers (CTs), potential transformers (PTs), and circuit breaker trip circuits where false signals from ambient electrical noise must be prevented.

  • Utility Metering & Monitoring: Long-run multi-point data interconnects and power monitoring loops operating in high thermal or electrical stress zones near extra-high-voltage (EHV) busses.

  • Industrial Heavy Duty Control: General-purpose, low-impedance control functions in power generation plants, chemical refineries, and heavy manufacturing facilities.

Conductor Identification: ICEA E-1 Color Code Sequence

  • Black, White, Red, Green, Orange, Blue, White/Black, Red/Black, Green/Black

Technical Specifications

  • Conductor Size: 10 AWG

  • Number of Conductors: 9

  • Conductor Material: Bare Soft Annealed Copper (Class B Stranded)

  • Insulation System: 20 mils PE / 10 mils PVC (Total 30 mils per conductor)

  • Shielding: 0.005" (5 mil) Helical Bare Copper Tape Shield

  • Jacket: Flame-Retardant, Moisture- & Sunlight-Resistant Black PVC

  • Voltage Rating: 600V (Available up to 1000V for heavy inductive breaking profiles)

  • Temperature Rating: 75°C Wet or Dry

  • Compliance Standards: ICEA S-73-532 / NEMA WC 57, ASTM B3 & B8, RoHS Compliant


Technical Note: Utility standards for high-voltage substations (especially 138 kV and above) often require copper tape shields to be grounded at multiple points (at minimum both ends) to mitigate high-frequency transient voltages produced by switchyard arcs, rather than grounding at only the source end to prevent low-frequency ground loops. When implementing the E-1 color code, ensure field technicians cross-reference terminal blocks to avoid using the #4 Green or #2 White conductors as active control legs if your facility reserves those colors exclusively for ground and neutral paths.

CABLE TYPE: 10 AWG / 9-Conductor Shielded Substation Control Cable




DISCLAIMER: The technical information provided is for general reference only. Utility substation construction guidelines are rigorous and highly specific. Always consult with a licensed power utility electrical engineer and comply with ICEA, NEMA, and National Electrical Safety Code (NESC) regulations prior to system deployment.

See Full Specifications

See Full Specifications

Physical Specifications

Wire Size (AWG/MCM) 10 AWG
Conductor Material Copper
Conductor Type Stranded
Strand Count 7
Outer Diameter (OD) (in/mm) 0.759 in. / 19.28 mm
Jacket Type PVC
Conductor Count 9
Shield Coverage % 1
Shield Type Copper Tape Shield
Shield Shielded
Insulation Type PE + PVC

Technical Specifications

Voltage Rating 600V
Direct Burial Rating Yes
Submersible No
Sunlight Resistance Rating Yes
Temperature Rating 75ºC
Standards ICEA S-73-532/NEMA WC 57
Direct burial
Sunlight resistant
REACH compliant
Miscellaneous Information All values are nominal and subject to correction.
Other Certifications Reach Compliant
RoHS Compliance Yes

Usage & Installation

Primary ApplicationsIndustrial, Utility, Interconnection
Common Uses
  • 600V
  • low voltage
  • control circuits
  • connecting protective devices
  • remote signaling in switchyards

Packaging & Dimensions:

Weight per Foot 0.505 lb
