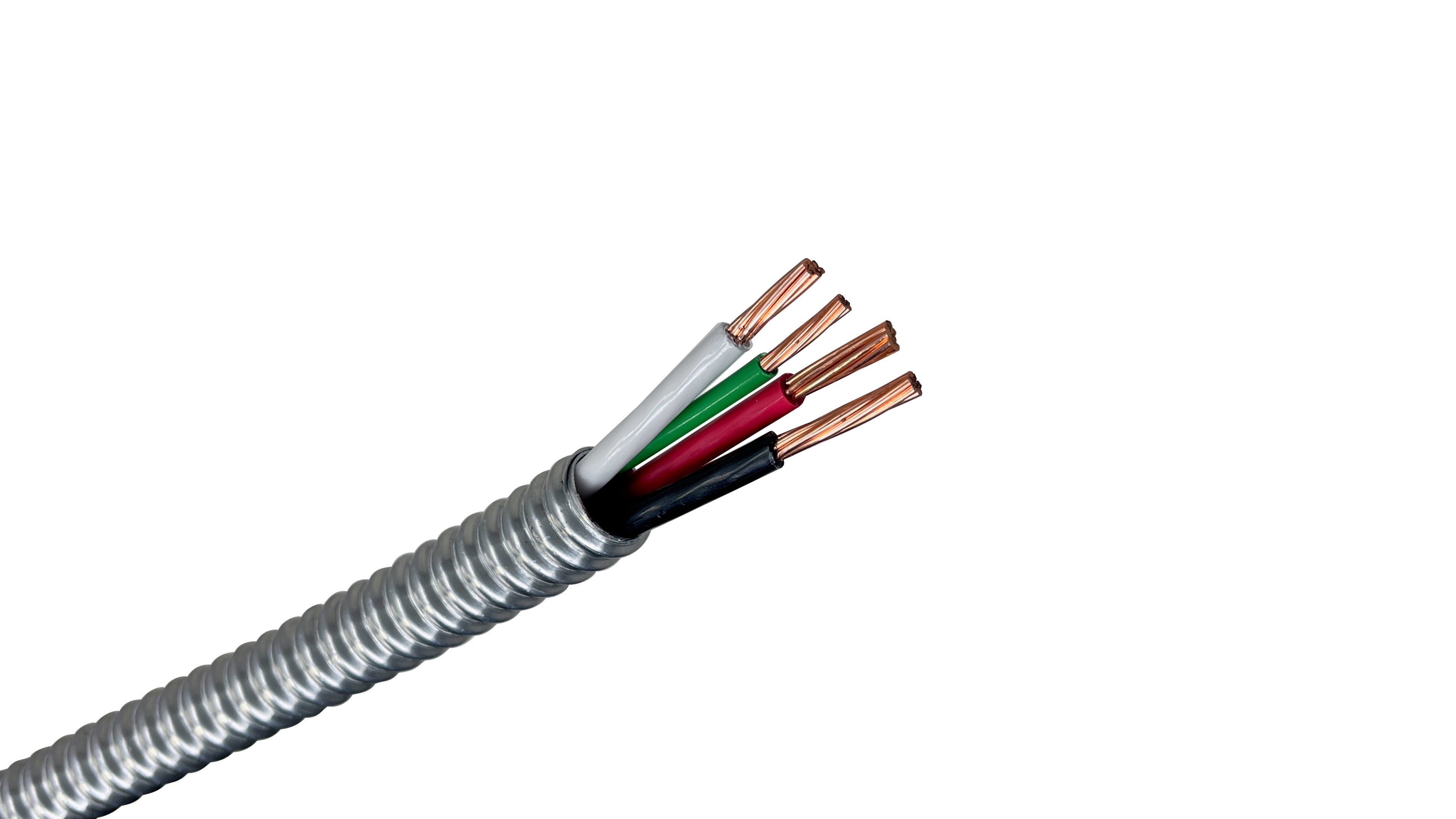

10/3 Stranded Copper MC Cable W/ Ground

Parent SKU :  MCCUSTR10-3

SKU :  MCCUSTR10-3-250

3 CONDUCTOR + GROUND • COPPER THHN/THWN-2 • INTERLOCKED ARMOR • 600V
Download Spec Sheet
Wire Size 10 AWG
Conductor Material Copper
Conductor Type Stranded
Outer Diameter 0.630 In.
Conductor Count 3
Voltage Rating 600V
Weight per Foot 0.22 lb
Download Spec Sheet

Get Product Details

Get Product Details
APPLICATION:
Copper conductor MC (Metal Clad) Cable is suitable for use in branch, feeder and distribution circuits in commercial, industrial, institutional and multiresidential applications. MC Cable is approved for power, lighting, control and signal circuits. MC Cable can be used in cable tray and other approved raceways and can be exposed or concealed. MC Cable can be used in places of assembly of 100 people or more, such as studios and theaters. Voltage ratings should not exceed 600V in any application.

CONDUCTOR:
Stranded bare copper conductors

COLORS CODE:
120V/208V System -- White, Black, Red

GROUND SIZE:
10 AWG Green insulation

INSULATION:
Moisture and flame resistant Polyvinyl chloride (PVC)/nylon rated THHN/THWN

ASSEMBLY:
All conductors are cabled together and wrapped with Mylar Tape

ARMOR:
Overall aluminum interlocked armor applied over the assembly. The temperature rating is 90°C dry




All values are nominal and subject to correction

See Full Specifications

See Full Specifications
Download Spec Sheet

Physical Specifications

Wire Size (AWG/MCM) 10 AWG
Conductor Material Copper
Conductor Type Stranded
Outer Diameter (OD) (in/mm) 0.630 In.
Conductor Count 3
Shield Unshielded
Insulation Type PVC
UL Listing Numbers UL 83, Ul 1569, UL 1581, UL 2556

Technical Specifications

Voltage Rating 600V
Submersible No
Temperature Rating 90ºC
Standards UL Standards 83, 1569, 1581 & 2556
IEEE 1202 vertical tray flame test, 70, 000 BTU/hr
ASTM B3, B258
NEC Articles 300.22, 330, 518.4, 520.5, 530, 545.4 & 645
Class I Div. 2, Class II Div. 2 and Class III Div. 1 Div. 2 for hazardous locations
Federal Specification A-A59544
Miscellaneous Information All values are nominal and subject to correction.
RoHS Compliance Yes

Usage & Installation

Primary ApplicationsCommercial Branch Circuits, Industrial Facilities, Lighting Systems, Residential Multi-Family Housing, Environmental Air Spaces, Exposed and Concealed Wiring
Common Uses
  • Drop Ceiling Runs
  • Wall Cavity Fishing
  • Surface-Mounted Power
  • HVAC Equipment Connections
  • Appliance Hookups
  • Data Centers

Packaging & Dimensions:

Weight per Foot 0.22 lb
