Parent SKU : MCA1-3
SKU : MCA1-3-250
"An excellent choice for commercial service entrance conductors, primary building feeders, and heavy industrial branch circuits. Engineered as a Type MC certified assembly, this 3-conductor plus bare ground system features high-capacity 600V cross-linked polyethylene (XHHW-2) insulated conductors encased within a rugged, lightweight interlocked aluminum armor shield."
When wiring industrial plants, multi-residential complexes, or commercial retail grids, balancing physical protection and labor time is paramount. The 1 AWG 3-Conductor Aluminum MC Cable offers a highly cost-effective, lightweight alternative to heavy copper building wires in rigid pipe systems.
Fabricated with Class B compact stranded AA-8000 series aluminum alloy, the assembly features individual Cross-Linked Polyethylene (XLPE) insulated wires wrapped securely in structural binder tape before armor application. It functions effortlessly under extreme dry heat, environments requiring high impact resistance, and specialized environmental air-handling plenum spaces while preserving excellent installation bend flexibility.

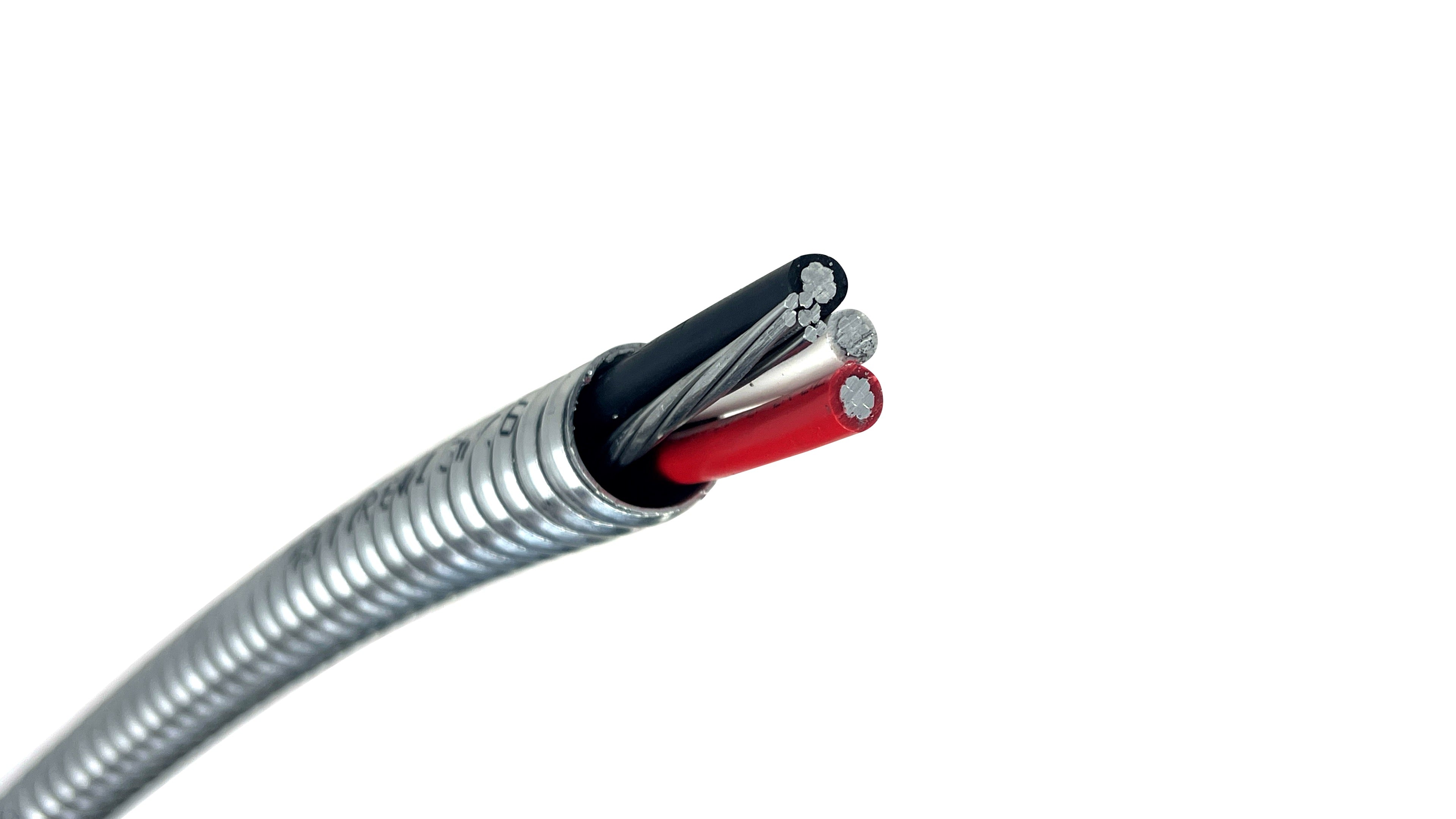

ENGINEERING OVERVIEW: 1 AWG 3-Conductor Aluminum Metal Clad Cable with Bare Ground (Type MC)
Cable Classification: Type MC (Metal-Clad Cables)
Conductor Configuration: 3 Insulated Phase Conductors + 1 Bare Ground Wire
Conductor Size: 1 AWG
Conductor Material: AA-8000 Series Compact Stranded Aluminum Alloy
Conductor Insulation: Cross-linked Polyethylene (XLPE), XHHW-2 rated per UL standards
Conductor Colors: Black, Red, and White insulation wraps.
Ground Wire Size: 4 AWG (Bare Aluminum Conductor)
Armor:Â Overall aluminum interlocked armor.
Voltage Rating: 600 Volts
Temperature Rating: -40°C to 90°C
Amp Rating (@ 75°C Terminals): 100 Amps
Amp Rating (@ 90°C Terminals): 115 Amps
Compliance Standards: UL 44, 1569 for Type MC Cable for CT Use • NEMA WC-70/ICEA S-95-658 • IEEEE 1202 70,000 BTU/HR Vertical Tray Flame Test • ASTM B800 & B801 • NEC 518.4, NEC 520.5, NEC 645.5, and NEC 300.22 for environmental air-handling spaces • Temperature Rating: -40°C to 90°C
Commercial & Industrial Feeders: The premier choice for running high-capacity feeder panels through commercial warehouses, casinos, manufacturing plants, and institutional facilities.
Service Entrance Conductor Lateral Loops: Extensively deployed to route secondary service power feeds from main enclosures out to independent electrical distribution hubs.
Environmental Plenum Applications: Certified by code for open deployment inside multi-story vertical structural risers and environmental air-handling plenums.
Heavy HVAC Conditioning Infrastructure: Ideal for wiring high-capacity commercial climate control grids, industrial building chillers, and large refrigeration equipment blocks.
Cost-Conscious Commercial Retrofits: Eliminates the grueling step of bending, anchoring, and pulling wire through commercial EMT or rigid steel conduit pipe.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
Ampacity Note: Values calculated based on the National Electrical Code (NEC) ampacity standards. Because most commercial distribution panels, main breakers, and terminal lugs for 100-Amp circuits feature standard 75°C termination points, circuits should be designed around the conservative 100-Amp limit. The 115-Amp rating at 90°C is utilized for ampacity adjustment, crowding adjustments, and correction factors.
Â
| Wire Size (AWG/MCM) | 1 AWG |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Outer Diameter (OD) (in/mm) | 1.25 in. |
| Conductor Count | 3 |
| Shield | Unshielded |
| Insulation Type | (XLPE) Cross-Linked Polyethylene |
| Voltage Rating | 600V |
| Ampacity Rating | 115 |
| Submersible | No |
| Temperature Rating | 90ºC |
| Standards | UL 44, 83, 1569 for Type MC Cable for CT Use NEMA WC-70/ICEA S-95-658 IEEEE 1202 70, 000 BTU/HR Vertical Tray Flame Test ASTM B800 & B801 NEC 518.4, NEC 520.5, NEC 645.5, and NEC 300.22 for environmental air-handling spaces. |
| Miscellaneous Information | All values are nominal and subject to correction. **Ampacities are based on NEC Table 310.15(B)(16), and show the allowable Ampacities of three current carrying insulated conductors, in a raceway, cable, or earth based on ambeient temperature of 30°C (86°F). |
| Primary Applications | Service entrance conductors, Feeders, Branch circuits, Power, lighting, control, and signal circuits |
| Common Uses |
|
| Weight per Foot | 0.548 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : MCA1-3
SKU : MCA1-3-250
Parent SKU : MCA1-3
SKU : MCA1-3-250
"An excellent choice for commercial service entrance conductors, primary building feeders, and heavy industrial branch circuits. Engineered as a Type MC certified assembly, this 3-conductor plus bare ground system features high-capacity 600V cross-linked polyethylene (XHHW-2) insulated conductors encased within a rugged, lightweight interlocked aluminum armor shield."
When wiring industrial plants, multi-residential complexes, or commercial retail grids, balancing physical protection and labor time is paramount. The 1 AWG 3-Conductor Aluminum MC Cable offers a highly cost-effective, lightweight alternative to heavy copper building wires in rigid pipe systems.
Fabricated with Class B compact stranded AA-8000 series aluminum alloy, the assembly features individual Cross-Linked Polyethylene (XLPE) insulated wires wrapped securely in structural binder tape before armor application. It functions effortlessly under extreme dry heat, environments requiring high impact resistance, and specialized environmental air-handling plenum spaces while preserving excellent installation bend flexibility.
ENGINEERING OVERVIEW: 1 AWG 3-Conductor Aluminum Metal Clad Cable with Bare Ground (Type MC)
Cable Classification: Type MC (Metal-Clad Cables)
Conductor Configuration: 3 Insulated Phase Conductors + 1 Bare Ground Wire
Conductor Size: 1 AWG
Conductor Material: AA-8000 Series Compact Stranded Aluminum Alloy
Conductor Insulation: Cross-linked Polyethylene (XLPE), XHHW-2 rated per UL standards
Conductor Colors: Black, Red, and White insulation wraps.
Ground Wire Size: 4 AWG (Bare Aluminum Conductor)
Armor:Â Overall aluminum interlocked armor.
Voltage Rating: 600 Volts
Temperature Rating: -40°C to 90°C
Amp Rating (@ 75°C Terminals): 100 Amps
Amp Rating (@ 90°C Terminals): 115 Amps
Compliance Standards: UL 44, 1569 for Type MC Cable for CT Use • NEMA WC-70/ICEA S-95-658 • IEEEE 1202 70,000 BTU/HR Vertical Tray Flame Test • ASTM B800 & B801 • NEC 518.4, NEC 520.5, NEC 645.5, and NEC 300.22 for environmental air-handling spaces • Temperature Rating: -40°C to 90°C
Commercial & Industrial Feeders: The premier choice for running high-capacity feeder panels through commercial warehouses, casinos, manufacturing plants, and institutional facilities.
Service Entrance Conductor Lateral Loops: Extensively deployed to route secondary service power feeds from main enclosures out to independent electrical distribution hubs.
Environmental Plenum Applications: Certified by code for open deployment inside multi-story vertical structural risers and environmental air-handling plenums.
Heavy HVAC Conditioning Infrastructure: Ideal for wiring high-capacity commercial climate control grids, industrial building chillers, and large refrigeration equipment blocks.
Cost-Conscious Commercial Retrofits: Eliminates the grueling step of bending, anchoring, and pulling wire through commercial EMT or rigid steel conduit pipe.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
Ampacity Note: Values calculated based on the National Electrical Code (NEC) ampacity standards. Because most commercial distribution panels, main breakers, and terminal lugs for 100-Amp circuits feature standard 75°C termination points, circuits should be designed around the conservative 100-Amp limit. The 115-Amp rating at 90°C is utilized for ampacity adjustment, crowding adjustments, and correction factors.
Â
| Wire Size (AWG/MCM) | 1 AWG |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Outer Diameter (OD) (in/mm) | 1.25 in. |
| Conductor Count | 3 |
| Shield | Unshielded |
| Insulation Type | (XLPE) Cross-Linked Polyethylene |
| Voltage Rating | 600V |
| Ampacity Rating | 115 |
| Submersible | No |
| Temperature Rating | 90ºC |
| Standards | UL 44, 83, 1569 for Type MC Cable for CT Use NEMA WC-70/ICEA S-95-658 IEEEE 1202 70, 000 BTU/HR Vertical Tray Flame Test ASTM B800 & B801 NEC 518.4, NEC 520.5, NEC 645.5, and NEC 300.22 for environmental air-handling spaces. |
| Miscellaneous Information | All values are nominal and subject to correction. **Ampacities are based on NEC Table 310.15(B)(16), and show the allowable Ampacities of three current carrying insulated conductors, in a raceway, cable, or earth based on ambeient temperature of 30°C (86°F). |
| Primary Applications | Service entrance conductors, Feeders, Branch circuits, Power, lighting, control, and signal circuits |
| Common Uses |
|
| Weight per Foot | 0.548 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||
1/3 Aluminum MC (Metal Clad) Cable is a heavy-duty electrical conductor used primarily for main feeders and high-amperage branch circuits in commercial, industrial, and residential settings. Due to its integrated interlocking aluminum armor jacket, it provides its own protective pathway and can be routed directly through walls and ceilings without conduit pipe. It is commonly specified for wiring 100-Amp sub-panels, large commercial HVAC complexes, and institutional distribution networks.
The ampacity of 1/3 Aluminum Cable is;:
Amp Rating (@ 75°C): 100 Amps
Amp Rating (@ 90°C): 115 Amps
No. Standard Aluminum MC cable with open, interlocked metal armor is engineered strictly for dry, indoor, concealed, or exposed installations. It cannot be buried directly in soil or embedded in concrete without a protective, fluid-tight PVC outer jacket (often designated as "Direct Burial MC" or "PVC-Jacketed MC"). For underground runs, you must use an approved underground feeder cable (like MHF or URD) or run standalone conductors through a buried conduit system.
Yes! Wire America carries a full line of PVC-jacketed Direct Burial MC Cable. Standard bare-armor MC cable is rated exclusively for dry indoor or concealed locations. If your project involves underground trenching or wet outdoor locations, check out our 1 AWG 3-Conductor Direct Burial Aluminum MC Cable, which features a sunlight- and moisture-resistant PVC jacket extruded over the armor for direct earth burial without conduit.
Wire America supplies an extensive inventory of 4/3 Aluminum MC cable cut by the foot or on master reels. Most cut-to-length orders are processed and shipped within 24 to 48 hours, delivering directly to your shop or jobsite within 2 to 4 business days once in transit.
We route your order from the regional distribution hub with stock closest to your jobsite to keep transit times and freight costs as low as possible. Expedited shipping options are also available at checkout.
Working against a tight jobsite or inspection deadline? Call our team directly at 833-268-8644 to request priority processing!
The core differences come down to material cost, physical weight, and total ampacity. Copper possesses higher natural conductivity, allowing a 1/3 Copper MC cable to carry up to 130 Amps (75°C threshold) and support a standard 125A breaker, whereas 1/3 Aluminum MC is capped at a 100-Amp circuit profile. However, 1/3 Aluminum MC is significantly less expensive and substantially lighter. This makes it the clear economic and physical choice for long-distance 100-Amp panel feeds where copper would add excessive material costs and physical resistance to the pull run.
Per the National Electrical Code (NEC Table 310.16), 1 AWG aluminum conductors carry a maximum allowable ampacity threshold of 100 Amps at standard 75°C terminal connections. Therefore, this cable can be safely paired with a standard 100-Amp circuit breaker for residential or commercial sub-panel installations.
Important Note on Distance: If your circuit run extends over 100 to 150 feet, you must calculate your expected voltage drop. Long distances may require you to upsize the run to a larger conductor (like 1/0 or 2/0) to ensure proper equipment performance. As always, please consult with a local licensed electrician or project engineer when determining the best wire size for your specific layout.
