Transformer Riser Wire Guide: High-Voltage Solutions for Utility Connections

Connecting an overhead utility line to a transformer's primary bushings requires a highly specific, robust conductor engineered to manage voltage up the pole while resisting environmental faults.

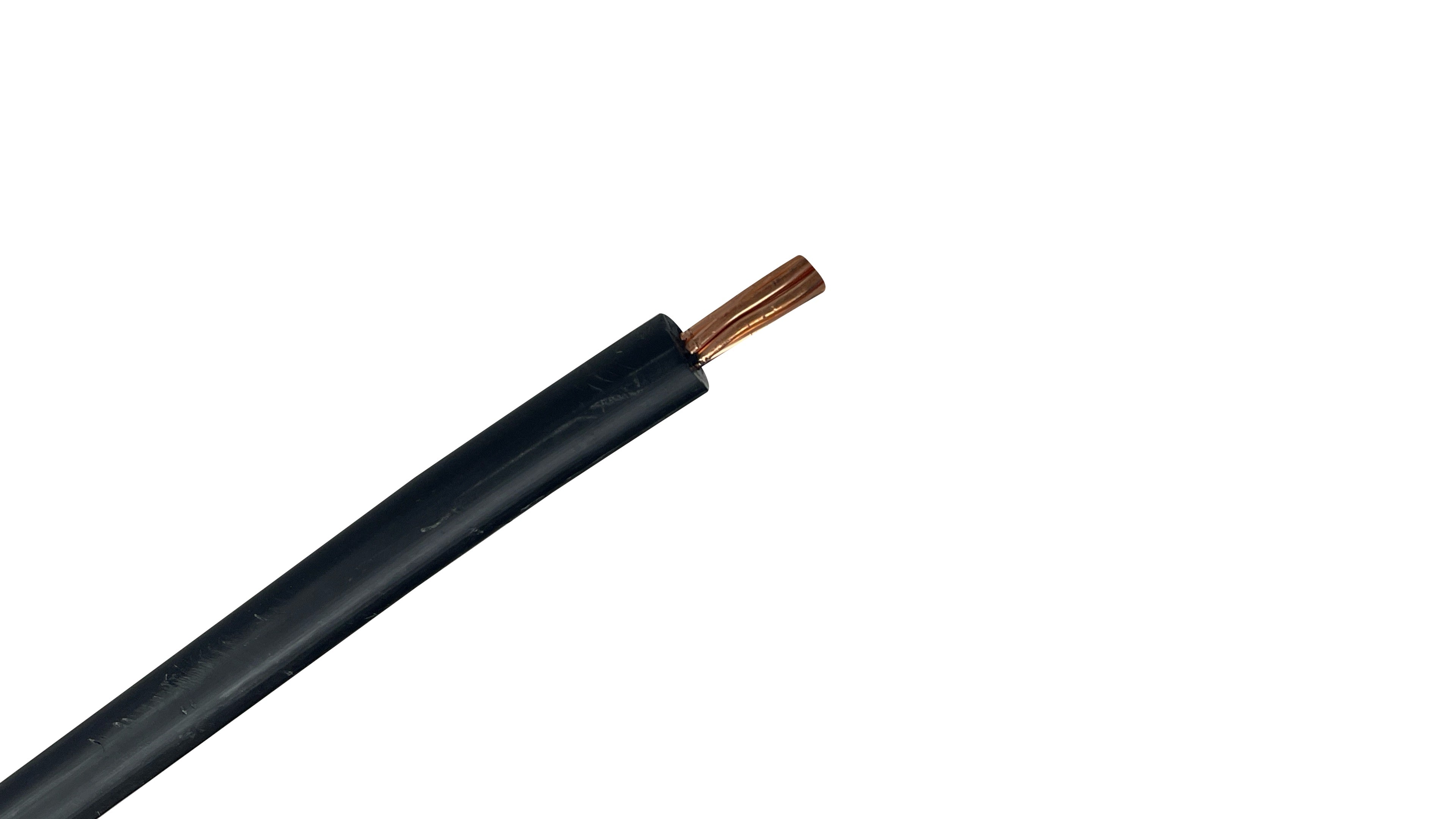

Our Transformer Riser Wire is a specialized, un-insulated primary conductor suitable for service at voltages up to and including 13,200 Volts. It is the ideal, cost-effective choice for utility contractors and engineers transitioning power from the line to the transformer.

Here is some information about the construction and application of this critical component.

1. Construction: The Copper, Un-insulated Standard

This product serves as the raw electrical connection, relying on the air and surrounding equipment for primary insulation, while its covering provides essential external protection.

• Conductor Material: The core is highly conductive (stranded or solid) Copper conductor (from 8 AWG, 6 AWG, down to 4/0). Copper is chosen for its superior ampacity and long-term reliability in high-voltage utility applications.

• Primary Function: Un-insulated Conductor: This wire is fundamentally treated as an un-insulated conductor for primary voltage. The covering is not rated as insulation and does not replace the requirement for clearance, separation, or the use of protective riser conduit.

• Voltage Rating: The wire is specifically rated for utility applications up to 13,200 Volts (or 13.2kV).

2. Understanding Insulation: HMWPE vs. XLPE (XLP)

Transformer Riser Wire is constructed with either an HMWPE or XLPE insulation.  HMWPE and XLPE are insulation materials used when the cable is rated for true dielectric strength, which is not the function of this Riser Wire's covering.

• High Molecular Weight Polyethylene (HMWPE):

  • Properties: Excellent resistance to abrasion, crushing, and moisture penetration. It is commonly used as a tough jacket material or as insulation in older or less critical underground residential distribution (URD) systems.

  • Limitation: Prone to "water treeing" (microscopic insulation breakdown paths due to moisture and voltage stress) over decades of service, which limits its lifespan compared to XLPE.

• Cross-Linked Polyethylene (XLPE or XLP):

  • Properties: Superior dielectric strength, thermal stability, and long-term resistance to electrical stress. It is the preferred insulation material for most modern fully insulated MV power cables.

  • Benefit: Offers significantly better protection against water treeing, making it the industry standard for maximum cable longevity.

3. The Protective Covering: Reducing Faults

Although the covering does not function as a safety insulator, it provides crucial protection against common environmental and mechanical issues that cause service interruptions.

• Atmospheric Fault Reduction: The covering reduces the likelihood of faults caused by atmospheric conditions, such as contact with rain, heavy fog, or humidity, which can lead to flashing or tracking.

• Vibration and Movement: The protective layer minimizes short-circuits caused by excessive vibrations common on utility poles, where wind or equipment operation can cause the leads to briefly touch.

• Object Crossing Protection: The covering offers essential defense against minor faulting caused by objects crossing the leads, such as tree limbs, birds, or accidental contact from other non-conductive foreign materials.

4. Application & Compliance Notes

Proper installation procedures are paramount, as this wire must adhere to safety standards for exposed, high-voltage equipment.

• Installation Method (Riser): The wire is typically run inside riser conduit (PVC or galvanized steel) for mechanical protection as it descends the pole. The covering simplifies installation near grounded components compared to fully bare conductor.

• Termination: The wire is crimped directly to standard line and equipment terminals. The ends must be trimmed cleanly to ensure proper clearance and termination integrity at the transformer bushings and the overhead line tap.

• Sizes: This wire is commonly available for distribution primary feeders from 8 AWG up to 4/0, which is suitable for standard residential and small commercial service taps.

• Compliance: Installation must strictly follow all local utility standards and the National Electrical Safety Code (NESC), ensuring proper clearances are maintained for un-insulated conductors.

5. Why Buy Transformer Riser Wire?

Transformer Riser Wire is a specialized, high-performance Copper conductor for overhead-to-transformer transitions up to 13,200 Volts. This utility wire provides critical, cost-effective defense against environmental flashovers and mechanical faults, improving the reliability of the entire feeder circuit.

Wire America is proud to offer this product by the foot or by the spool with fast shipping to your location.
