Parent SKU : NDM-4URD
SKU : NDM-4URD-100
"The industry-standard for secondary three-phase residential, farm, and commercial power distribution. Engineered for reliable 600V delivery, this cable is rated for both direct burial and duct installations, featuring sunlight-resistant XLP insulation for robust, long-term underground performance."

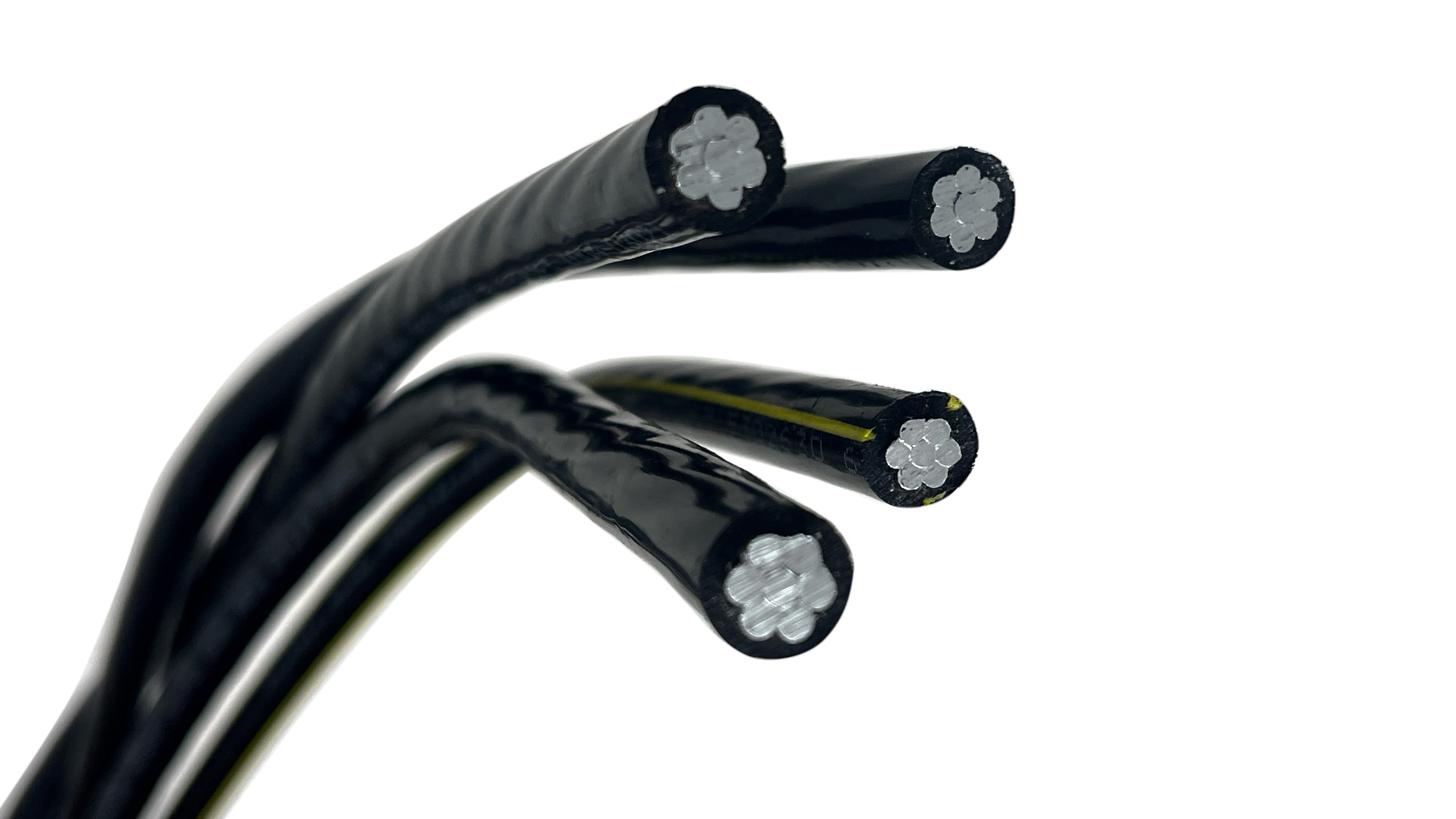

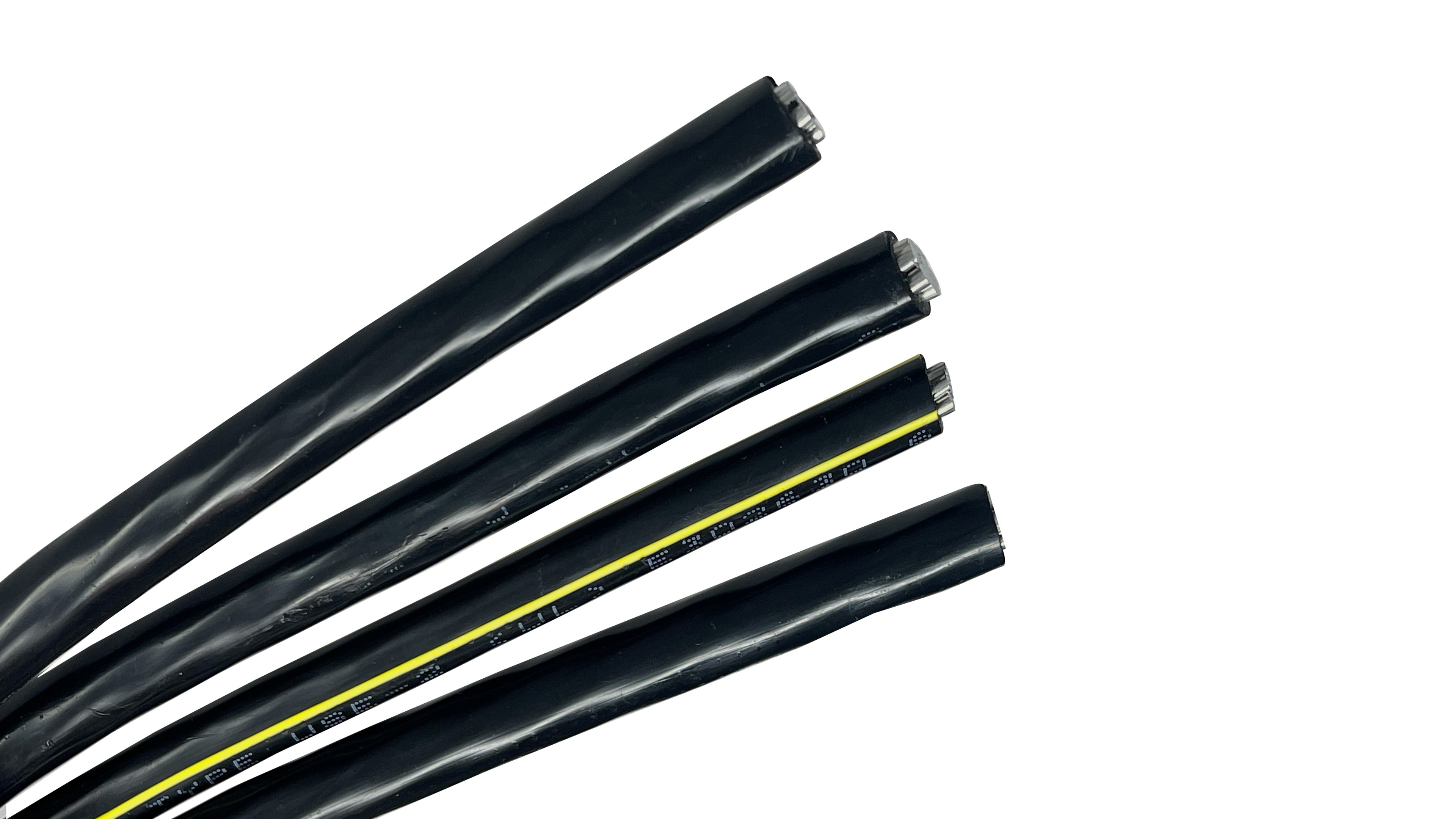

The Notre Dame 1/0-1/0-1/0-2 URD cable is the preferred solution for secondary underground three-phase power distribution in high-capacity applications. Specifically designed for projects requiring three phase conductors and a reduced neutral, it provides a stable, high-performance solution for commercial storefronts, heavy-duty agricultural feeds, and large residential sub-panels. By utilizing high-conductivity 1350-H19 aluminum and heavy-duty, sunlight-resistant XLP insulation, it offers superior resistance to environmental degradation, moisture ingress, and thermal stress.
600V Reliability: Rated for continuous operation in wet or dry locations at temperatures up to 90°C.Â
Sunlight-Resistant XLP: Advanced cross-linked polyethylene insulation prevents premature aging caused by UV exposure at termination points and service entrances.
Reduced Neutral Efficiency: Features a #2 AWG neutral for systems where the neutral carries only the unbalanced load, reducing overall cable weight and cost without sacrificing safety.
Direct Burial Ready: Specifically built for the harsh conditions of underground utility distribution; can be installed directly in the earth or within conduit/duct systems.
ENGINEERING OVERVIEW: 1/0-1/0-1/0-2 Quadruplex URD
Application: Quadruplex Aluminum 600V URD cable is designed for use in secondary distribution circuits, where installed in duct or direct burial applications.
Voltage Rating: 600 Volts.
UL Listing: UL 854 (Service-Entrance Cable).
Conductor Material: Concentric stranded 1350-H19 series aluminum.
Phase Insulation: Black sunlight-resistant XLP (Cross-Linked Polyethylene).
Neutral Insulation: Black XLP with 3 extruded yellow stripes for easy identification.
Temperature Rating: 90°C (Wet or Dry).
Phase Conductor Size: 1/0 AWG.
Neutral Conductor Size: #2 AWG (Reduced Neutral).
Ampacity (Direct Burial): 200 Amps.
Ampacity (In Duct): 150 Amps.
Compliance Standards: UL 854; Type USE-2; RUS Accepted; ASTM B-230, B-231, B-609, B-901; ICEA S-105-692.
Commercial Service Entrances: Ideal for retail units, offices, or workshops requiring a dedicated 150-Amp 3-phase service entrance.
Large Agricultural Sub-Panels: Frequently used to power detached barns, large irrigation systems, and grain drying equipment where 3-phase power is required.
Multi-Family Feeder Lines: The standard choice for running power from a main utility transformer to multi-unit residential meter banks.
Industrial Site Infrastructure: A durable and cost-effective solution for providing power to remote site facilities, security stations, or pump houses.
Direct Burial or Conduit: Flexible enough for direct-trench installation in rural areas or pull-through duct runs in developed commercial sites.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
Ampacity: 90°C conductor temperature, 20°C ambient temperature, RHO 90, 100% load factor. Single and Quadruplex based on 3/C. Neutral wire carries unbalanced load only. Reference NEC article 310.15 for NEC installations.
| Wire Size (AWG/MCM) | 1/0 |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Strand Count | 7 |
| Outer Diameter (OD) (in/mm) | 1.24 in. / 31.496 mm |
| Jacket Type | XLPE |
| Conductor Count | 4 |
| Shield | Unshielded |
| Insulation Type | (XLPE) Cross-Linked Polyethylene |
| Voltage Rating | 600 |
| Ampacity Rating | 200 |
| Direct Burial Rating | Yes |
| Submersible | No |
| Flexibility Rating | Medium |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | ASTM B-230 Aluminum 1350-H19 Wire for Electrical Purposes ASTM B-231 Concentric-Lay-Stranded Aluminum 1350 Conductors ASTM B-609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes ASTM B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire Construction ICEA S-105-692 600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables Federal Specification A-A-59544A UL 854 Service-Entrance Cables Sunlight Resistant RUS Accepted |
| Miscellaneous Information | All values are nominal and subject to correction. *Not RUS accepted size **Ampacity: 90°C conductor temperature, 20°C ambient temperature, RHO 90, 100% load factor. Single and Quadruplex based on 3/C. Neutral wire carries unbalanced load only. Reference NEC article 310.15 for NEC installations. |
| Primary Applications | Underground Secondary Power Distribution |
| Common Uses |
|
| Weight per Foot | 0.56 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : NDM-4URD
SKU : NDM-4URD-100
Parent SKU : NDM-4URD
SKU : NDM-4URD-100
"The industry-standard for secondary three-phase residential, farm, and commercial power distribution. Engineered for reliable 600V delivery, this cable is rated for both direct burial and duct installations, featuring sunlight-resistant XLP insulation for robust, long-term underground performance."
The Notre Dame 1/0-1/0-1/0-2 URD cable is the preferred solution for secondary underground three-phase power distribution in high-capacity applications. Specifically designed for projects requiring three phase conductors and a reduced neutral, it provides a stable, high-performance solution for commercial storefronts, heavy-duty agricultural feeds, and large residential sub-panels. By utilizing high-conductivity 1350-H19 aluminum and heavy-duty, sunlight-resistant XLP insulation, it offers superior resistance to environmental degradation, moisture ingress, and thermal stress.
600V Reliability: Rated for continuous operation in wet or dry locations at temperatures up to 90°C.Â
Sunlight-Resistant XLP: Advanced cross-linked polyethylene insulation prevents premature aging caused by UV exposure at termination points and service entrances.
Reduced Neutral Efficiency: Features a #2 AWG neutral for systems where the neutral carries only the unbalanced load, reducing overall cable weight and cost without sacrificing safety.
Direct Burial Ready: Specifically built for the harsh conditions of underground utility distribution; can be installed directly in the earth or within conduit/duct systems.
ENGINEERING OVERVIEW: 1/0-1/0-1/0-2 Quadruplex URD
Application: Quadruplex Aluminum 600V URD cable is designed for use in secondary distribution circuits, where installed in duct or direct burial applications.
Voltage Rating: 600 Volts.
UL Listing: UL 854 (Service-Entrance Cable).
Conductor Material: Concentric stranded 1350-H19 series aluminum.
Phase Insulation: Black sunlight-resistant XLP (Cross-Linked Polyethylene).
Neutral Insulation: Black XLP with 3 extruded yellow stripes for easy identification.
Temperature Rating: 90°C (Wet or Dry).
Phase Conductor Size: 1/0 AWG.
Neutral Conductor Size: #2 AWG (Reduced Neutral).
Ampacity (Direct Burial): 200 Amps.
Ampacity (In Duct): 150 Amps.
Compliance Standards: UL 854; Type USE-2; RUS Accepted; ASTM B-230, B-231, B-609, B-901; ICEA S-105-692.
Commercial Service Entrances: Ideal for retail units, offices, or workshops requiring a dedicated 150-Amp 3-phase service entrance.
Large Agricultural Sub-Panels: Frequently used to power detached barns, large irrigation systems, and grain drying equipment where 3-phase power is required.
Multi-Family Feeder Lines: The standard choice for running power from a main utility transformer to multi-unit residential meter banks.
Industrial Site Infrastructure: A durable and cost-effective solution for providing power to remote site facilities, security stations, or pump houses.
Direct Burial or Conduit: Flexible enough for direct-trench installation in rural areas or pull-through duct runs in developed commercial sites.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
Ampacity: 90°C conductor temperature, 20°C ambient temperature, RHO 90, 100% load factor. Single and Quadruplex based on 3/C. Neutral wire carries unbalanced load only. Reference NEC article 310.15 for NEC installations.
| Wire Size (AWG/MCM) | 1/0 |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Strand Count | 7 |
| Outer Diameter (OD) (in/mm) | 1.24 in. / 31.496 mm |
| Jacket Type | XLPE |
| Conductor Count | 4 |
| Shield | Unshielded |
| Insulation Type | (XLPE) Cross-Linked Polyethylene |
| Voltage Rating | 600 |
| Ampacity Rating | 200 |
| Direct Burial Rating | Yes |
| Submersible | No |
| Flexibility Rating | Medium |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | ASTM B-230 Aluminum 1350-H19 Wire for Electrical Purposes ASTM B-231 Concentric-Lay-Stranded Aluminum 1350 Conductors ASTM B-609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes ASTM B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire Construction ICEA S-105-692 600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables Federal Specification A-A-59544A UL 854 Service-Entrance Cables Sunlight Resistant RUS Accepted |
| Miscellaneous Information | All values are nominal and subject to correction. *Not RUS accepted size **Ampacity: 90°C conductor temperature, 20°C ambient temperature, RHO 90, 100% load factor. Single and Quadruplex based on 3/C. Neutral wire carries unbalanced load only. Reference NEC article 310.15 for NEC installations. |
| Primary Applications | Underground Secondary Power Distribution |
| Common Uses |
|
| Weight per Foot | 0.56 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||||
URD stands for Underground Residential Distribution. This is a specific classification of electrical cable designed to carry power from utility transformers to secondary service entrances (like your home or a commercial sub-panel). Because this 1/0 is a URD cable, it is engineered with rugged XLP insulation that allows it to be buried directly in the earth without the need for a protective conduit. While it has "Residential" in the name, it is the industry standard for underground power in commercial, agricultural, and industrial applications as well.
Yes. Notre Dame is a URD Type USE-2 cable specifically designed for direct burial. The rugged XLP insulation is built to survive moisture and soil-based stressors without the need for protective conduit for the entire run.
The Notre Dame is engineered for high-performance power delivery:
Note: These ratings are based on a 90°C conductor temperature. Always consult with your local electrical inspector and reference NEC Table 310.15 to ensure the cable meets your specific load and environmental requirements.
Yes. When installed in a conduit/duct system, Notre Dame 1/0 is rated for 150 Amps. If you are burying the cable directly in a trench, the rating increases to 200 Amps. This makes it an incredibly versatile cable for commercial storefronts or larger residential sub-feeds that require more than a standard 100-Amp service.
Important: Always consult a licensed electrical installer who is up to date on all local codes before selecting a size. Keep in mind of voltage drops over 100ft.
Yes. Because 1/0 is a larger conductor than #2, it handles voltage drop much more effectively. If you are running 100A–125A power over a long distance (e.g., 200+ feet), stepping up to 1/0 Notre Dame helps ensure your voltage stays within the required 3%–5% drop range.
Important: Always consult a licensed electrical installer who is up to date on all local codes before selecting a size.
The outside diameter (OD) of our 1/0-1/0-1/0-2 Notre Dame is approximately 1.24 inches (31.5 mm).
Pro Tip: If your run is exceptionally long or has more than three 90-degree bends, some installers prefer stepping up to a 2.5-inch conduit to further minimize pulling tension. Always verify your specific plan with a licensed electrical installer and refer to an official NEC conduit fill chart.
Aluminum URD is the industry standard for underground utility feeds because it is significantly more cost-effective and lighter than copper. At the 2/0 AWG size, aluminum provides the necessary ampacity for large residential and commercial feeds at a fraction of the cost.
We stock a comprehensive range of URD cable configurations to meet residential, farm, and commercial power needs. This includes , Erskine (6-6-6), Vassar (4-4-4), Stephens (2-2-4), Brenau (1/0-1/0-2), Converse (2/0-2/0-1/0), and Sweetbriar (4/0-4/0-2/0). You can browse our complete inventory and view detailed specifications for each gauge in our Full Aluminum URD Collection here.
