Parent SKU : ROC-3URD
SKU : ROC-3URD-100

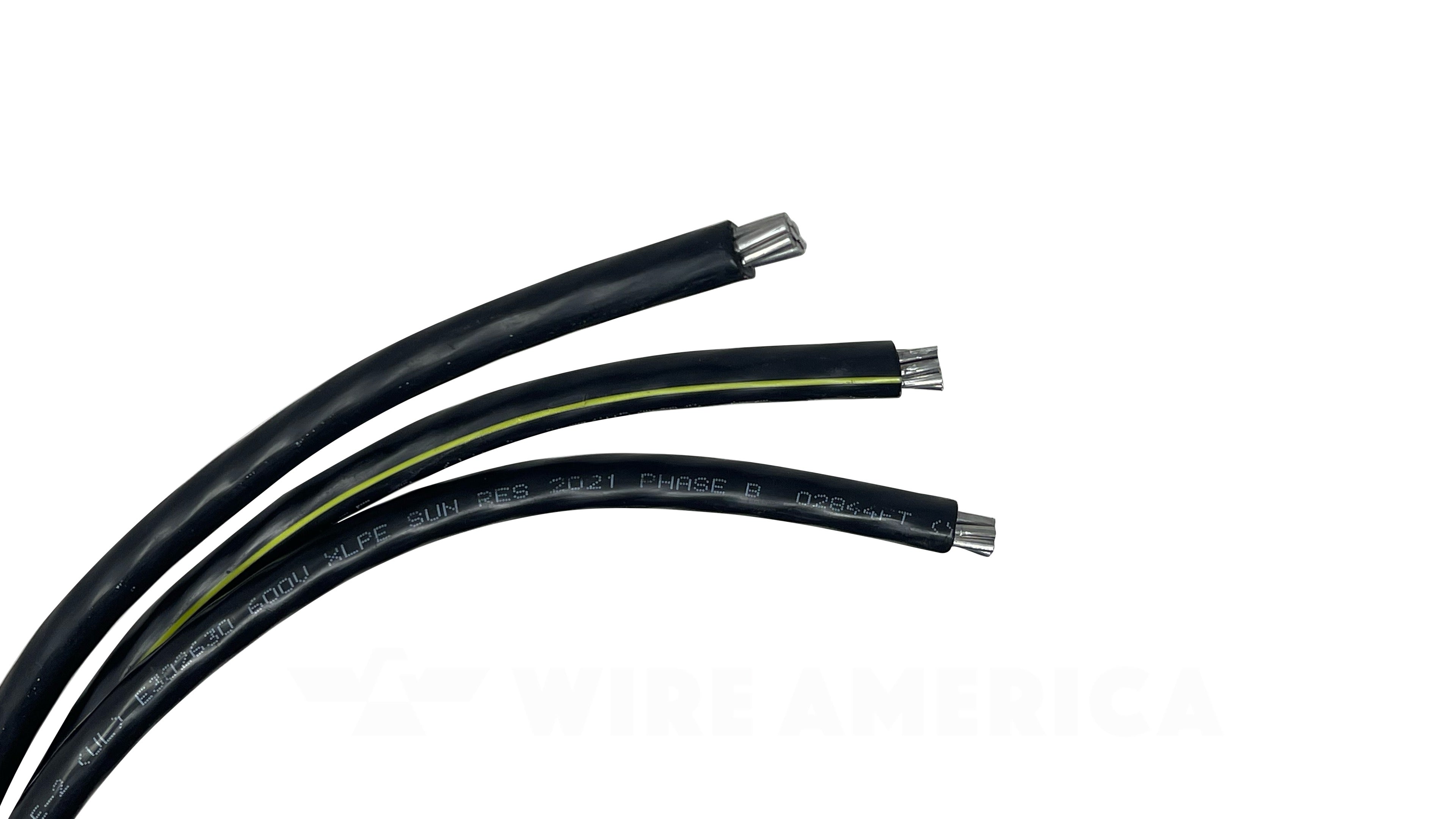

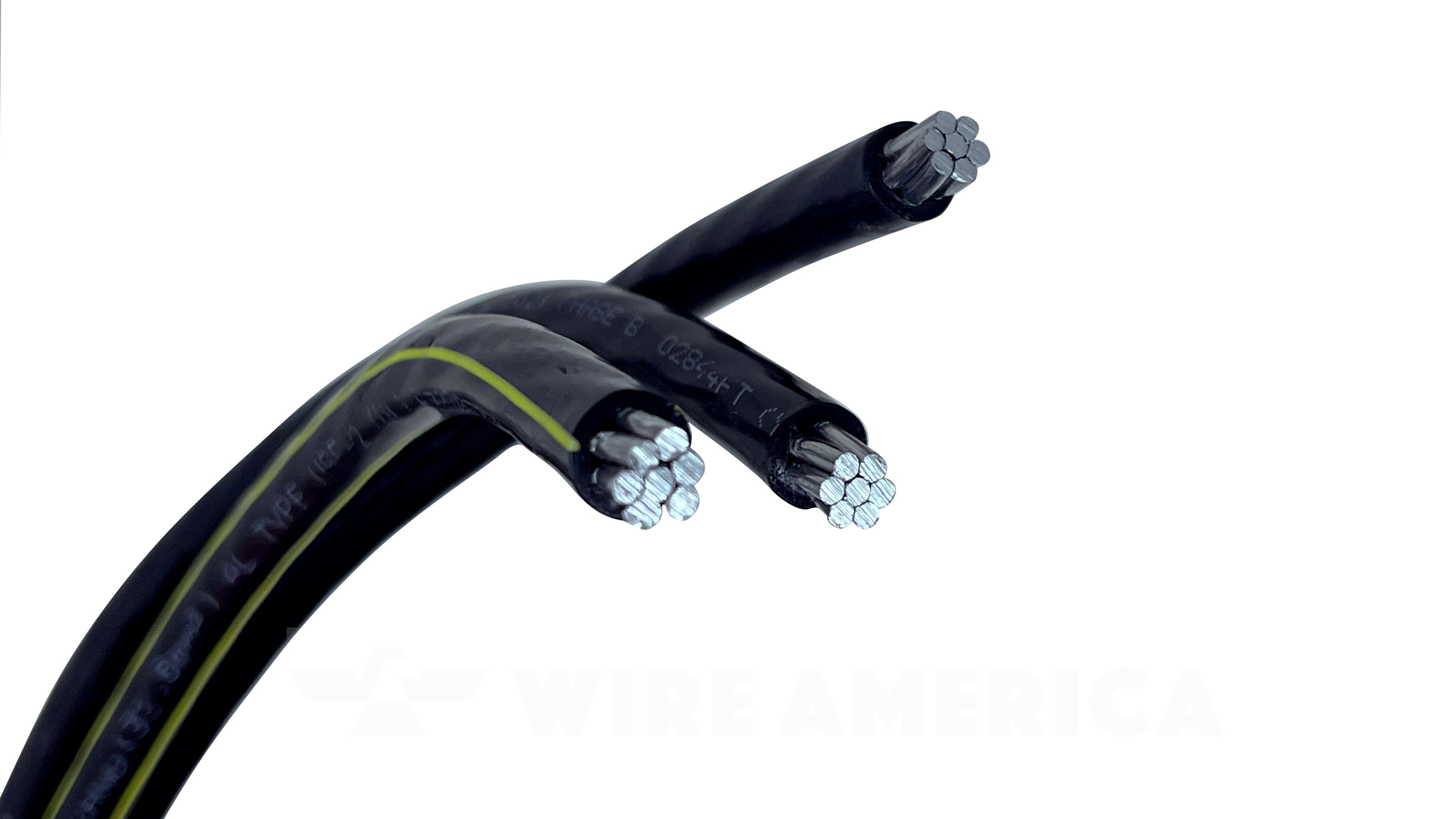

"The Rockland 3/0-3/0-3/0 triplex URD cable is engineered for heavy-duty secondary power distribution. Built to withstand the harshest underground conditions, this cable features high-conductivity 1350-H19 aluminum and robust, sunlight-resistant XLP insulation, making it the ideal choice for high-amperage residential and commercial service entrances."
For projects requiring high current capacity and long-term reliability, the Rockland triplex URD is an excellent option. This configuration provides superior power delivery for demanding electrical loads while offering the installation flexibility required for complex underground routing.
600V Reliability: Rated for continuous operation in wet or dry locations at temperatures up to 90°C.
Sunlight-Resistant XLP: Advanced XLP insulation provides exceptional resistance to UV degradation and environmental aging.
Direct Burial Ready: Specifically formulated to resist moisture and soil-based stressors without the need for additional protective conduit.
High-Capacity Feed: Designed to support the increased electrical demands of modern residential and commercial builds.
ENGINEERING OVERVIEW: 3/0-3/0-3/0 AWG Triplex URD
Application:Â Secondary underground distribution circuits; transformer-to-service-entrance power feeds.
Voltage Rating:Â 600 Volts.
UL Listing:Â UL 854 (Service-Entrance Cable).
Conductor Material:Â Concentric stranded 1350-H19 series aluminum.
Phase Insulation:Â Black sunlight-resistant XLP (Cross-Linked Polyethylene).
Neutral Insulation:Â Black XLP with 3 extruded yellow stripes for easy identification.
Temperature Rating: 90°C (Wet or Dry).
Cable Outer Diameter:Â 1.30 inches (33.02 mm)
Ampacity (Direct Burial): 280Â Amps.
Ampacity (In Duct): 205Â Amps.
Compliance Standards:Â UL 854 (Service-Entrance Cable); Type USE-2; RUS Accepted; ASTM B-230, B-231, B-609, B-901; ICEA S-105-692; Federal Spec A-A-59544A.
Service Entrance Conductors: Primary power feed from the transformer to the main distribution panel of high-demand buildings.
Service Upgrades: Ideal for replacing aging infrastructure to support increased electrical loads.
Branch Circuit Feeders: High-amperage power transmission to secondary distribution hubs and multi-unit developments.
Commercial Site Development: Reliable power delivery for business infrastructure and exterior utility equipment.
Direct-Trench & Conduit Installations: Flexible for both open-trench burial and pull-through electrical duct systems.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
Ampacity: 90°C conductor temperature, 20°C ambient temperature, RHO 90, 100% load factor. Single and Quadruplex based on 3/C. Neutral wire carries unbalanced load only. Reference NEC article 310.15 for NEC installations.
Â
| Wire Size (AWG/MCM) | 3/0 |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Strand Count | 19 |
| Outer Diameter (OD) (in/mm) | 1.30 in. / 33.02 mm |
| Jacket Type | XLPE |
| Conductor Count | 3 |
| Shield | Unshielded |
| Insulation Type | (XLPE) Cross-Linked Polyethylene |
| Voltage Rating | 600V |
| Ampacity Rating | 280 |
| Direct Burial Rating | Yes |
| Submersible | No |
| Flexibility Rating | Low |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | ASTM B-230 Aluminum 1350-H19 Wire for Electrical Purposes ASTM B-231 Concentric-Lay-Stranded Aluminum 1350 Conductors ASTM B-609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes ASTM B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire Construction ICEA S-105-692 600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables Federal Specification A-A-59544A UL 854 Service-Entrance Cables Sunlight Resistant RUS Accepted |
| Miscellaneous Information | All values are nominal and subject to correction. *Actual number of wires may differ for compressed round stranded aluminum conductors using single input wire (SIW) **Ampacity: 90°C conductor temperature, 20°C ambient temperature, RHO 90, 100% load factor. Single and Quadruplex based on 3/C. Neutral wire carries unbalanced load only. Reference NEC article 310.15 for NEC installations. |
| Primary Applications | Underground Secondary Power Distribution |
| Common Uses |
|
| Weight per Foot | 0.68 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : ROC-3URD
SKU : ROC-3URD-100
Parent SKU : ROC-3URD
SKU : ROC-3URD-100
"The Rockland 3/0-3/0-3/0 triplex URD cable is engineered for heavy-duty secondary power distribution. Built to withstand the harshest underground conditions, this cable features high-conductivity 1350-H19 aluminum and robust, sunlight-resistant XLP insulation, making it the ideal choice for high-amperage residential and commercial service entrances."
For projects requiring high current capacity and long-term reliability, the Rockland triplex URD is an excellent option. This configuration provides superior power delivery for demanding electrical loads while offering the installation flexibility required for complex underground routing.
600V Reliability: Rated for continuous operation in wet or dry locations at temperatures up to 90°C.
Sunlight-Resistant XLP: Advanced XLP insulation provides exceptional resistance to UV degradation and environmental aging.
Direct Burial Ready: Specifically formulated to resist moisture and soil-based stressors without the need for additional protective conduit.
High-Capacity Feed: Designed to support the increased electrical demands of modern residential and commercial builds.
ENGINEERING OVERVIEW: 3/0-3/0-3/0 AWG Triplex URD
Application:Â Secondary underground distribution circuits; transformer-to-service-entrance power feeds.
Voltage Rating:Â 600 Volts.
UL Listing:Â UL 854 (Service-Entrance Cable).
Conductor Material:Â Concentric stranded 1350-H19 series aluminum.
Phase Insulation:Â Black sunlight-resistant XLP (Cross-Linked Polyethylene).
Neutral Insulation:Â Black XLP with 3 extruded yellow stripes for easy identification.
Temperature Rating: 90°C (Wet or Dry).
Cable Outer Diameter:Â 1.30 inches (33.02 mm)
Ampacity (Direct Burial): 280Â Amps.
Ampacity (In Duct): 205Â Amps.
Compliance Standards:Â UL 854 (Service-Entrance Cable); Type USE-2; RUS Accepted; ASTM B-230, B-231, B-609, B-901; ICEA S-105-692; Federal Spec A-A-59544A.
Service Entrance Conductors: Primary power feed from the transformer to the main distribution panel of high-demand buildings.
Service Upgrades: Ideal for replacing aging infrastructure to support increased electrical loads.
Branch Circuit Feeders: High-amperage power transmission to secondary distribution hubs and multi-unit developments.
Commercial Site Development: Reliable power delivery for business infrastructure and exterior utility equipment.
Direct-Trench & Conduit Installations: Flexible for both open-trench burial and pull-through electrical duct systems.
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
Ampacity: 90°C conductor temperature, 20°C ambient temperature, RHO 90, 100% load factor. Single and Quadruplex based on 3/C. Neutral wire carries unbalanced load only. Reference NEC article 310.15 for NEC installations.
Â
| Wire Size (AWG/MCM) | 3/0 |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Strand Count | 19 |
| Outer Diameter (OD) (in/mm) | 1.30 in. / 33.02 mm |
| Jacket Type | XLPE |
| Conductor Count | 3 |
| Shield | Unshielded |
| Insulation Type | (XLPE) Cross-Linked Polyethylene |
| Voltage Rating | 600V |
| Ampacity Rating | 280 |
| Direct Burial Rating | Yes |
| Submersible | No |
| Flexibility Rating | Low |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | ASTM B-230 Aluminum 1350-H19 Wire for Electrical Purposes ASTM B-231 Concentric-Lay-Stranded Aluminum 1350 Conductors ASTM B-609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes ASTM B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire Construction ICEA S-105-692 600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables Federal Specification A-A-59544A UL 854 Service-Entrance Cables Sunlight Resistant RUS Accepted |
| Miscellaneous Information | All values are nominal and subject to correction. *Actual number of wires may differ for compressed round stranded aluminum conductors using single input wire (SIW) **Ampacity: 90°C conductor temperature, 20°C ambient temperature, RHO 90, 100% load factor. Single and Quadruplex based on 3/C. Neutral wire carries unbalanced load only. Reference NEC article 310.15 for NEC installations. |
| Primary Applications | Underground Secondary Power Distribution |
| Common Uses |
|
| Weight per Foot | 0.68 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||||
While often used interchangeably, "URD" stands for Underground Residential Distribution (typically owned by utilities), and "USE-2" is the UL designation for Underground Service Entrance cable. Our cable is dual-rated, meaning it meets the stringent UL 854 standards required for utility-grade reliability and residential service entrance applications.
Yes. This cable is specifically engineered for direct burial. It is built to withstand soil moisture, mechanical pressure, and chemical exposure without the need for additional conduit, provided the trench is prepared in accordance with local electrical codes.
While this cable is optimized for underground utility distribution (URD), it is not a "Service Drop" (triplex for overhead) cable. Service Drop cable requires a specific ACSR messenger for structural support. You should use approved Service Drop cable for overhead spans to comply with safety standards.
For 3/0-3/0-3/0 URD, the ampacity depends on the installation method:
Direct Burial:Â 280 Amps
In Duct/Conduit:Â 205 Amps
Note: Always refer to NEC 310.15 or consult a licensed electrician to verify derating requirements based on your local environment.
Yes. Per NEC Table 300.5, direct-buried cable typically requires a minimum cover of 24 inches (or 18 inches if protected by a specific RCD/GFCI system). However, always verify your local municipal codes, as some jurisdictions have stricter requirements for service-entrance conductors.
We stock a full range of single conductor, duplex, triplex & quadruplex URD cables including 2 AWG URD, 1/0 URD, 2/0 URD, 4/0 URD & 750 MCM URD You can browse our complete inventory and view detailed specifications for each size in our Full Aluminum URD Collection here.
