Parent SKU : FAR-3URD
SKU : FAR-3URD-100
"The industry-standard for high-amperage residential, farm, and commercial power distribution. Engineered for reliable 600V delivery, this cable is rated for both direct burial and duct installations, featuring sunlight-resistant XLP insulation for robust, long-term underground performance."
The Fairfield 750-750-500 URD cable is the definitive high-capacity solution for major secondary underground power distribution. Engineered for the most demanding large-scale commercial developments and industrial service entrances, it provides a stable, high-performance solution for moving massive power loads. By utilizing high-conductivity 1350-H19 aluminum and a heavy-duty, sunlight-resistant XLP insulation, it offers the highest level of resistance to environmental degradation, moisture ingress, and thermal stress in its class.
600V Reliability: Rated for continuous operation in wet or dry locations at temperatures up to 90°C, ensuring stability under peak load conditions for industrial machinery and large complexes.
Sunlight-Resistant XLP: Advanced cross-linked polyethylene insulation prevents premature aging caused by UV exposure, maintaining structural integrity at the service entrance.
Easy-Identify Neutral: For faster installation and safer maintenance, the neutral conductor features three extruded yellow stripes and clear sequential footage markings.
Direct Burial Ready: Specifically built for the harsh conditions of underground utility distribution; can be installed directly in the earth or within large-diameter conduit/duct systems.

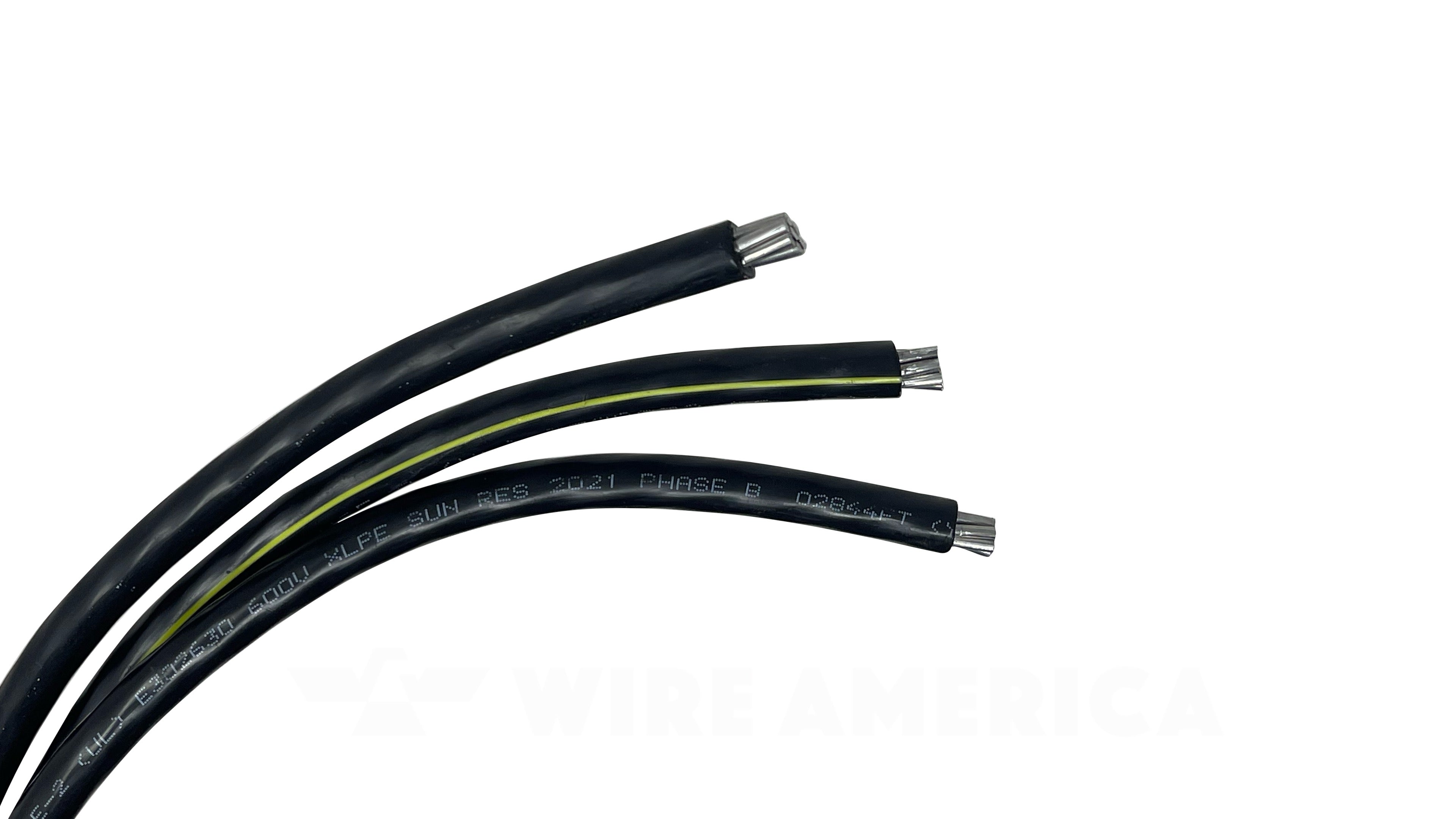

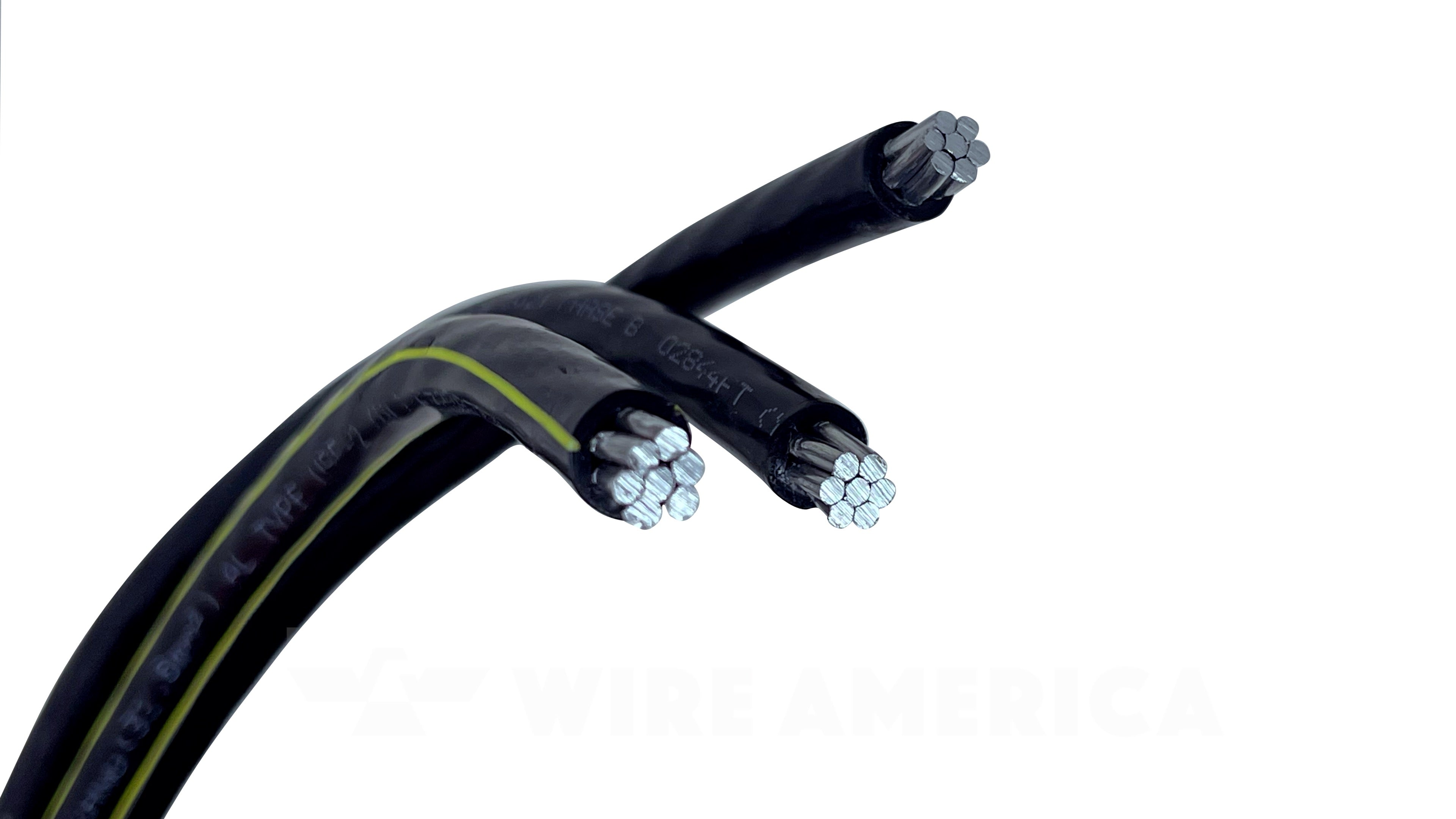

ENGINEERING OVERVIEW: 750-750-500 Triplex URD
Application: High-capacity secondary underground distribution; industrial transformer-to-service power feeds.
Voltage Rating: 600 Volts.
UL Listing: UL 854 (Service-Entrance Cable).
Conductor Material: Concentric stranded 1350-H19 series aluminum.
Phase Insulation: Black sunlight-resistant XLP (Cross-Linked Polyethylene).
Neutral Insulation: Black XLP with 3 extruded yellow stripes for easy identification.
Temperature Rating: 90°C (Wet or Dry).
Cable Outer Diameter:Â 2.40 inches (60.96 mm)
Ampacity (Direct Burial): 620 Amps.
Ampacity (In Duct): 495 Amps.
Compliance Standards: UL 854 (Service-Entrance Cable); Type USE-2; RUS Accepted; ASTM B-230, B-231, B-609, B-901; ICEA S-105-692; Federal Spec A-A-59544A.
Industrial Service Entrance: The go-to feeder for manufacturing plants, data centers, and heavy industrial facilities.
Major Infrastructure Upgrades: Necessary for massive power requirements where multiple smaller conductors are not feasible or code-compliant.
Utility-Scale Solar: Frequently used for main collection lines and inverter-to-transformer runs in utility-scale renewable energy projects.
Multi-Family Housing: Ideal for main secondary feeders serving large apartment complexes or mixed-use developments.
Direct Burial or Conduit: Rated for direct-trench installation or pull-through duct runs in high-demand infrastructure projects.
Â
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
Ampacity: 90°C conductor temperature, 20°C ambient temperature, RHO 90, 100% load factor. Single and Quadruplex based on 3/C. Neutral wire carries unbalanced load only. Reference NEC article 310.15 for NEC installations.
Â
| Wire Size (AWG/MCM) | 750 MCM |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Strand Count | 61 |
| Outer Diameter (OD) (in/mm) | 2.40 in. / 60.96 mm |
| Jacket Type | XLPE |
| Conductor Count | 3 |
| Shield | Unshielded |
| Insulation Type | (XLPE) Cross-Linked Polyethylene |
| Voltage Rating | 600V |
| Ampacity Rating | 620 |
| Direct Burial Rating | Yes |
| Submersible | No |
| Flexibility Rating | Low |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | ASTM B-230 Aluminum 1350-H19 Wire for Electrical Purposes ASTM B-231 Concentric-Lay-Stranded Aluminum 1350 Conductors ASTM B-609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes ASTM B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire Construction ICEA S-105-692 600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables Federal Specification A-A-59544A UL 854 Service-Entrance Cables Sunlight Resistant RUS Accepted |
| Miscellaneous Information | All values are nominal and subject to correction. *Actual number of wires may differ for compressed round stranded aluminum conductors using single input wire (SIW) **Ampacity: 90°C conductor temperature, 20°C ambient temperature, RHO 90, 100% load factor. Single and Quadruplex based on 3/C. Neutral wire carries unbalanced load only. Reference NEC article 310.15 for NEC installations. |
| Primary Applications | Underground Secondary Power Distribution |
| Common Uses |
|
| Weight per Foot | 2.29 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : FAR-3URD
SKU : FAR-3URD-100
Parent SKU : FAR-3URD
SKU : FAR-3URD-100
"The industry-standard for high-amperage residential, farm, and commercial power distribution. Engineered for reliable 600V delivery, this cable is rated for both direct burial and duct installations, featuring sunlight-resistant XLP insulation for robust, long-term underground performance."
The Fairfield 750-750-500 URD cable is the definitive high-capacity solution for major secondary underground power distribution. Engineered for the most demanding large-scale commercial developments and industrial service entrances, it provides a stable, high-performance solution for moving massive power loads. By utilizing high-conductivity 1350-H19 aluminum and a heavy-duty, sunlight-resistant XLP insulation, it offers the highest level of resistance to environmental degradation, moisture ingress, and thermal stress in its class.
600V Reliability: Rated for continuous operation in wet or dry locations at temperatures up to 90°C, ensuring stability under peak load conditions for industrial machinery and large complexes.
Sunlight-Resistant XLP: Advanced cross-linked polyethylene insulation prevents premature aging caused by UV exposure, maintaining structural integrity at the service entrance.
Easy-Identify Neutral: For faster installation and safer maintenance, the neutral conductor features three extruded yellow stripes and clear sequential footage markings.
Direct Burial Ready: Specifically built for the harsh conditions of underground utility distribution; can be installed directly in the earth or within large-diameter conduit/duct systems.
ENGINEERING OVERVIEW: 750-750-500 Triplex URD
Application: High-capacity secondary underground distribution; industrial transformer-to-service power feeds.
Voltage Rating: 600 Volts.
UL Listing: UL 854 (Service-Entrance Cable).
Conductor Material: Concentric stranded 1350-H19 series aluminum.
Phase Insulation: Black sunlight-resistant XLP (Cross-Linked Polyethylene).
Neutral Insulation: Black XLP with 3 extruded yellow stripes for easy identification.
Temperature Rating: 90°C (Wet or Dry).
Cable Outer Diameter:Â 2.40 inches (60.96 mm)
Ampacity (Direct Burial): 620 Amps.
Ampacity (In Duct): 495 Amps.
Compliance Standards: UL 854 (Service-Entrance Cable); Type USE-2; RUS Accepted; ASTM B-230, B-231, B-609, B-901; ICEA S-105-692; Federal Spec A-A-59544A.
Industrial Service Entrance: The go-to feeder for manufacturing plants, data centers, and heavy industrial facilities.
Major Infrastructure Upgrades: Necessary for massive power requirements where multiple smaller conductors are not feasible or code-compliant.
Utility-Scale Solar: Frequently used for main collection lines and inverter-to-transformer runs in utility-scale renewable energy projects.
Multi-Family Housing: Ideal for main secondary feeders serving large apartment complexes or mixed-use developments.
Direct Burial or Conduit: Rated for direct-trench installation or pull-through duct runs in high-demand infrastructure projects.
Â
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
Ampacity: 90°C conductor temperature, 20°C ambient temperature, RHO 90, 100% load factor. Single and Quadruplex based on 3/C. Neutral wire carries unbalanced load only. Reference NEC article 310.15 for NEC installations.
Â
| Wire Size (AWG/MCM) | 750 MCM |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Strand Count | 61 |
| Outer Diameter (OD) (in/mm) | 2.40 in. / 60.96 mm |
| Jacket Type | XLPE |
| Conductor Count | 3 |
| Shield | Unshielded |
| Insulation Type | (XLPE) Cross-Linked Polyethylene |
| Voltage Rating | 600V |
| Ampacity Rating | 620 |
| Direct Burial Rating | Yes |
| Submersible | No |
| Flexibility Rating | Low |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | ASTM B-230 Aluminum 1350-H19 Wire for Electrical Purposes ASTM B-231 Concentric-Lay-Stranded Aluminum 1350 Conductors ASTM B-609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes ASTM B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire Construction ICEA S-105-692 600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables Federal Specification A-A-59544A UL 854 Service-Entrance Cables Sunlight Resistant RUS Accepted |
| Miscellaneous Information | All values are nominal and subject to correction. *Actual number of wires may differ for compressed round stranded aluminum conductors using single input wire (SIW) **Ampacity: 90°C conductor temperature, 20°C ambient temperature, RHO 90, 100% load factor. Single and Quadruplex based on 3/C. Neutral wire carries unbalanced load only. Reference NEC article 310.15 for NEC installations. |
| Primary Applications | Underground Secondary Power Distribution |
| Common Uses |
|
| Weight per Foot | 2.29 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||||
The ampacity depends on your installation method:
Note: Always consult your local electrical inspector and NEC Table 310.15 to ensure the ampacity meets your specific service calculation.
Yes. Fairfield 750 MCM URD is designed for direct burial. Its XLP insulation is specifically formulated to resist moisture and soil-based stressors, though at this size, many installers prefer conduit for added physical protection and ease of future replacement
Our 750 MCM Fairfield URD has a nominal OD of 2.40 in. / 60.96 mm. This cable is extremely heavy and has a significant bending radius; please plan your trenching or conduit pulls accordingly.
Technical Note: All values are nominal and subject to industry tolerances. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes. Neutral wire carries unbalanced load only.
Absolutely. Its high ampacity and 600V rating make it the industry standard for secondary feeders in large-scale industrial complexes, data centers, and manufacturing facilities. It is specifically engineered to handle the continuous high-load demands of heavy machinery and large distribution switchgear where smaller gauges would suffer from excessive heat or power loss.
