Parent SKU : DAV-4URD
SKU : DAV-4URD-100
"The industry-standard for secondary three-phase residential, farm, and commercial power distribution. Engineered for reliable 600V delivery, this cable is rated for both direct burial and duct installations, featuring sunlight-resistant XLP insulation for robust, long-term underground performance."

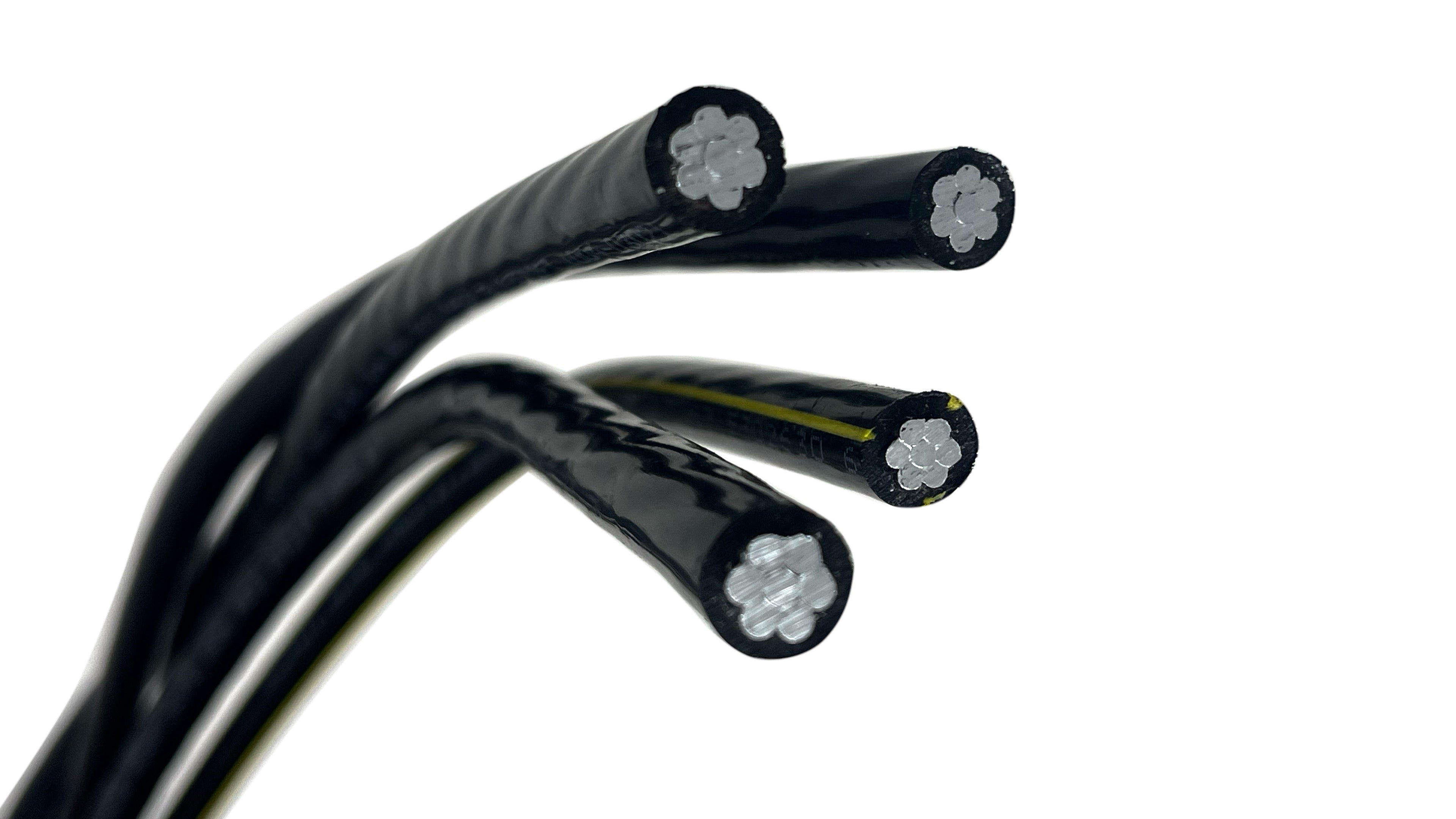

The Davidson 3/0-3/0-3/0-3/0 URD cable is the preferred solution for secondary underground three-phase power distribution in high-demand 150-Amp to 200-Amp applications. Unlike "reduced neutral" cables, the Davidson features a full-size neutral, making it the superior choice for projects with significant unbalanced loads or specific utility requirements. By utilizing high-conductivity 1350-H19 aluminum and heavy-duty, sunlight-resistant XLP insulation, it offers maximum resistance to environmental degradation, moisture ingress, and thermal stress.
600V Reliability: Rated for continuous operation in wet or dry locations at temperatures up to 90°C, providing dependable power for high-capacity 3-phase equipment.
Full-Size Neutral Advantage: Features four identical 3/0 AWG conductors, providing a full-capacity neutral for systems with sensitive electronics or non-linear loads.
Sunlight-Resistant XLP: Advanced cross-linked polyethylene insulation prevents premature aging caused by UV exposure at termination points and service entrances.
Direct Burial Ready: Specifically built for the harsh conditions of underground utility distribution; can be installed directly in the earth or within conduit/duct systems.
ENGINEERING OVERVIEW: 3/0-3/0-3/0-3/0 Quadruplex URD
Application: Quadruplex Aluminum 600V URD cable is designed for use in secondary distribution circuits, where installed in duct or direct burial applications.
Voltage Rating: 600 Volts.
UL Listing: UL 854 (Service-Entrance Cable).
Conductor Material: Concentric stranded or compressed 1350-H19 series aluminum.
Phase Insulation: Black sunlight-resistant XLP (Cross-Linked Polyethylene).

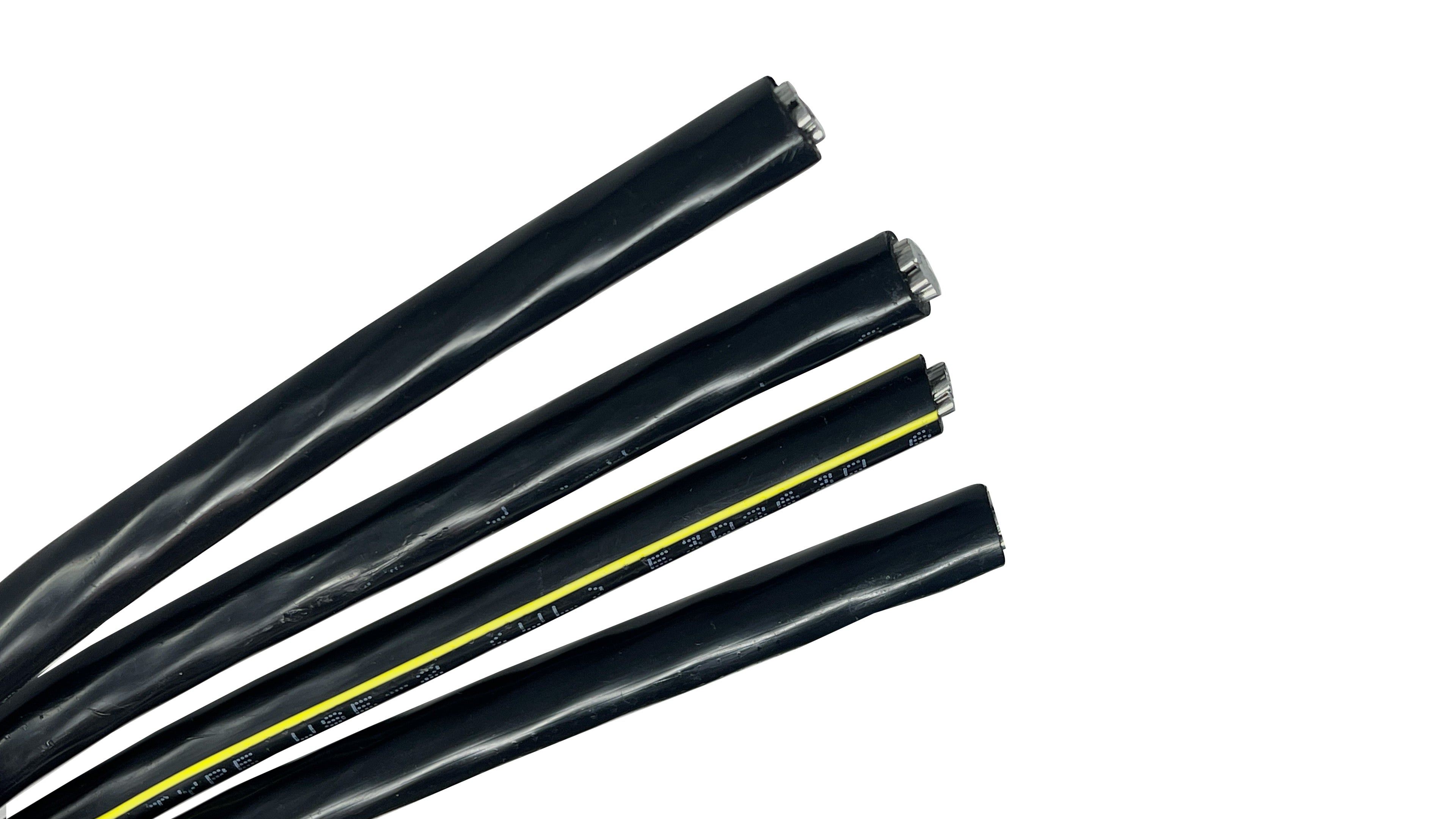

Neutral Insulation: Black XLP with 3 extruded yellow stripes for easy identification.
Temperature Rating: 90°C (Wet or Dry).
Phase Conductor Size: 3/0 AWG.
Neutral Conductor Size: 3/0 AWG (Full-Size Neutral).
Outer Diameter: 1.46 inches (37.084 mm)
Ampacity (Direct Burial): 250 Amps.
Ampacity (In Duct): 195 Amps.
Compliance Standards: UL 854; Type USE-2; RUS Accepted; ASTM B-230, B-231, B-609, B-901; ICEA S-105-692.
Heavy Commercial Service: Ideal for restaurants, retail centers, or workshops with high 3-phase power demands and sensitive equipment.
High-Demand Agricultural Feeds: Frequently used for large grain elevators, dairy facilities, and irrigation systems requiring High Amp stability.
Sub-Panel Distribution: The standard choice for feeding large detached buildings or multi-unit residential panels where a full-capacity neutral is preferred.
Utility Infrastructure: A durable and cost-effective solution for secondary distribution from transformers to residential or commercial meter pedestals.
Direct Burial or Conduit: Flexible enough for direct-trench installation or pull-through duct runs in developed commercial sites.
Â
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
Ampacity: 90°C conductor temperature, 20°C ambient temperature, RHO 90, 100% load factor. Single and Quadruplex based on 3/C. Neutral wire carries unbalanced load only. Reference NEC article 310.15 for NEC installations.
Â
| Wire Size (AWG/MCM) | 3/0 |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Strand Count | 19 |
| Outer Diameter (OD) (in/mm) | 1.46 in. / 37.084 mm |
| Jacket Type | XLPE |
| Conductor Count | 4 |
| Shield | Unshielded |
| Insulation Type | (XLPE) Cross-Linked Polyethylene |
| Voltage Rating | 600 |
| Ampacity Rating | 250 |
| Direct Burial Rating | Yes |
| Submersible | No |
| Flexibility Rating | Low |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | ASTM B-230 Aluminum 1350-H19 Wire for Electrical Purposes ASTM B-231 Concentric-Lay-Stranded Aluminum 1350 Conductors ASTM B-609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes ASTM B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire Construction ICEA S-105-692 600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables Federal Specification A-A-59544A UL 854 Service-Entrance Cables Sunlight Resistant RUS Accepted |
| Miscellaneous Information | All values are nominal and subject to correction. *Not RUS accepted size **Ampacity: 90°C conductor temperature, 20°C ambient temperature, RHO 90, 100% load factor. Single and Quadruplex based on 3/C. Neutral wire carries unbalanced load only. Reference NEC article 310.15 for NEC installations. |
| Primary Applications | Underground Secondary Power Distribution |
| Common Uses |
|
| Weight per Foot | 0.903 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : DAV-4URD
SKU : DAV-4URD-100
Parent SKU : DAV-4URD
SKU : DAV-4URD-100
"The industry-standard for secondary three-phase residential, farm, and commercial power distribution. Engineered for reliable 600V delivery, this cable is rated for both direct burial and duct installations, featuring sunlight-resistant XLP insulation for robust, long-term underground performance."
The Davidson 3/0-3/0-3/0-3/0 URD cable is the preferred solution for secondary underground three-phase power distribution in high-demand 150-Amp to 200-Amp applications. Unlike "reduced neutral" cables, the Davidson features a full-size neutral, making it the superior choice for projects with significant unbalanced loads or specific utility requirements. By utilizing high-conductivity 1350-H19 aluminum and heavy-duty, sunlight-resistant XLP insulation, it offers maximum resistance to environmental degradation, moisture ingress, and thermal stress.
600V Reliability: Rated for continuous operation in wet or dry locations at temperatures up to 90°C, providing dependable power for high-capacity 3-phase equipment.
Full-Size Neutral Advantage: Features four identical 3/0 AWG conductors, providing a full-capacity neutral for systems with sensitive electronics or non-linear loads.
Sunlight-Resistant XLP: Advanced cross-linked polyethylene insulation prevents premature aging caused by UV exposure at termination points and service entrances.
Direct Burial Ready: Specifically built for the harsh conditions of underground utility distribution; can be installed directly in the earth or within conduit/duct systems.
ENGINEERING OVERVIEW: 3/0-3/0-3/0-3/0 Quadruplex URD
Application: Quadruplex Aluminum 600V URD cable is designed for use in secondary distribution circuits, where installed in duct or direct burial applications.
Voltage Rating: 600 Volts.
UL Listing: UL 854 (Service-Entrance Cable).
Conductor Material: Concentric stranded or compressed 1350-H19 series aluminum.
Phase Insulation: Black sunlight-resistant XLP (Cross-Linked Polyethylene).
Neutral Insulation: Black XLP with 3 extruded yellow stripes for easy identification.
Temperature Rating: 90°C (Wet or Dry).
Phase Conductor Size: 3/0 AWG.
Neutral Conductor Size: 3/0 AWG (Full-Size Neutral).
Outer Diameter: 1.46 inches (37.084 mm)
Ampacity (Direct Burial): 250 Amps.
Ampacity (In Duct): 195 Amps.
Compliance Standards: UL 854; Type USE-2; RUS Accepted; ASTM B-230, B-231, B-609, B-901; ICEA S-105-692.
Heavy Commercial Service: Ideal for restaurants, retail centers, or workshops with high 3-phase power demands and sensitive equipment.
High-Demand Agricultural Feeds: Frequently used for large grain elevators, dairy facilities, and irrigation systems requiring High Amp stability.
Sub-Panel Distribution: The standard choice for feeding large detached buildings or multi-unit residential panels where a full-capacity neutral is preferred.
Utility Infrastructure: A durable and cost-effective solution for secondary distribution from transformers to residential or commercial meter pedestals.
Direct Burial or Conduit: Flexible enough for direct-trench installation or pull-through duct runs in developed commercial sites.
Â
Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.
Ampacity: 90°C conductor temperature, 20°C ambient temperature, RHO 90, 100% load factor. Single and Quadruplex based on 3/C. Neutral wire carries unbalanced load only. Reference NEC article 310.15 for NEC installations.
Â
| Wire Size (AWG/MCM) | 3/0 |
| Conductor Material | Aluminum |
| Conductor Type | Stranded |
| Strand Count | 19 |
| Outer Diameter (OD) (in/mm) | 1.46 in. / 37.084 mm |
| Jacket Type | XLPE |
| Conductor Count | 4 |
| Shield | Unshielded |
| Insulation Type | (XLPE) Cross-Linked Polyethylene |
| Voltage Rating | 600 |
| Ampacity Rating | 250 |
| Direct Burial Rating | Yes |
| Submersible | No |
| Flexibility Rating | Low |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 90ºC |
| Standards | ASTM B-230 Aluminum 1350-H19 Wire for Electrical Purposes ASTM B-231 Concentric-Lay-Stranded Aluminum 1350 Conductors ASTM B-609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes ASTM B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire Construction ICEA S-105-692 600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables Federal Specification A-A-59544A UL 854 Service-Entrance Cables Sunlight Resistant RUS Accepted |
| Miscellaneous Information | All values are nominal and subject to correction. *Not RUS accepted size **Ampacity: 90°C conductor temperature, 20°C ambient temperature, RHO 90, 100% load factor. Single and Quadruplex based on 3/C. Neutral wire carries unbalanced load only. Reference NEC article 310.15 for NEC installations. |
| Primary Applications | Underground Secondary Power Distribution |
| Common Uses |
|
| Weight per Foot | 0.903 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||||
In the wire and cable industry, specific quadruplex aluminum URD constructions are assigned "bird names" or common names to simplify ordering. "Davidson" specifically refers to the 3/0-3/0-3/0-3/0 AWG configuration, ensuring the phase and neutral conductors are all identically sized.
Yes. This cable is specifically rated for Direct Burial, meaning it can be placed directly in a prepared trench. However, check local codes for depth requirements (typically 24 inches) and ensure the backfill is free of sharp rocks that could damage the XLPE insulation.
Absolutely. While it is direct-burial rated, it is also perfectly suited for installation in PVC or HDPE conduit. This is common when crossing under roads or driveways where extra mechanical protection is desired.
Note: These ratings are based on 90°C conductor temperature. Always consult NEC Table 310.15 for specific installation derating.
Aluminum URD is the industry standard for underground utility feeds because it is significantly more cost-effective and lighter than copper. At the 3/0 AWG size, aluminum provides the necessary ampacity for large residential and commercial feeds at a fraction of the cost.
You must use connectors rated for aluminum (marked AL9CU). Because aluminum forms an oxide layer, it is critical to wire-brush the conductors and apply a high-quality antioxidant joint compound to prevent overheating at the termination points.
