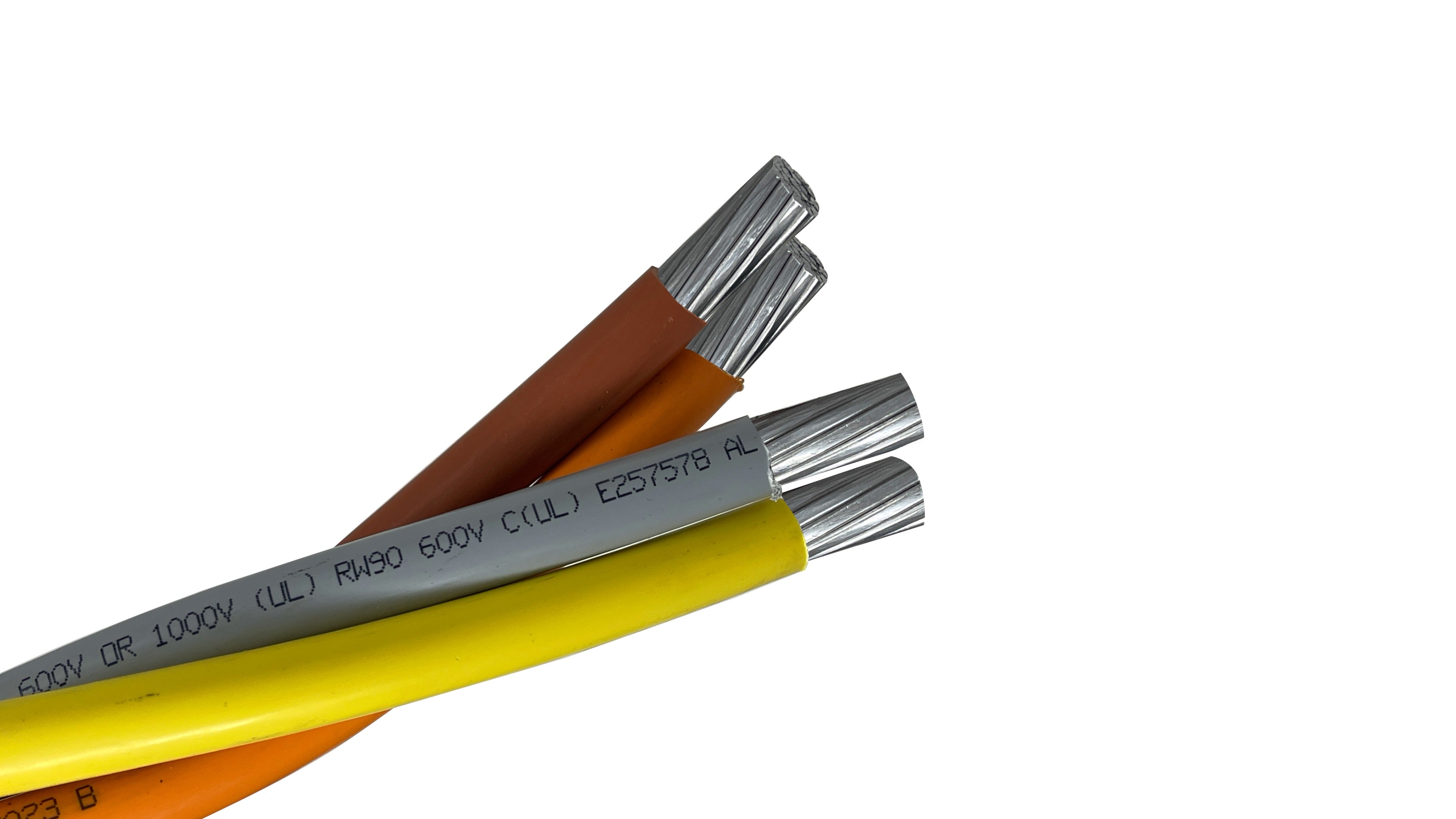

750 MCM 4C Twisted XHHW-2 Aluminum Feeder Cable, Priority-Plex®, (Brown, Orange, Yellow, Gray)

This 750 MCM 4-conductor Priority-Plex® assembly is the heavy-duty powerhouse of the aluminum feeder line, specifically color-coded for 277/480V 3-phase, 4-wire systems. By factory-twisting these massive Brown, Orange, Yellow, and Gray conductors into a single synchronized bundle, this system overcomes the immense physical challenges of pulling individual 750 MCM wires, drastically reducing labor, friction, and the risk of cable damage.

Why Choose Priority-Plex® 750 MCM Aluminum Feeder?

At the 750 MCM level, traditional cable pulling requires massive equipment and significant manpower. The Priority-Plex® pre-twisted configuration ensures the bundle acts as a single unit, which is critical for maintaining consistent tension and preventing the conductors from "wedging" or "crossing" in large-diameter conduits.

• Maximum Pulling Efficiency: The twisted geometry reduces the sidewall pressure and total surface contact within the conduit, allowing for longer, smoother pulls even through multiple 90° bends.

• Safety & Identification: Factory-colored insulation (Brown, Orange, Yellow, Gray) provides permanent identification for high-voltage systems. This eliminates the need for field-taping and helps prevent phase-rotation errors in mission-critical 480V infrastructure.

• XHHW-2 Thermal Stability: The XLPE (Cross-linked Polyethylene) insulation is engineered for high-demand industrial environments, offering a 90°C rating in both wet and dry locations and superior resistance to chemical exposure.

• Economical Scale: Utilizing AA-8000 series aluminum at this gauge offers massive cost savings compared to copper, while significantly reducing the overall weight load on the building's structural supports.

Technical Specifications: 750 MCM 4C

• Conductor Size: 750 MCM (kcmil)

• Number of Conductors: 4 (Brown, Orange, Yellow, Gray)

• Conductor Material: AA-8000 Series Aluminum Alloy

• Insulation Type: XHHW-2 (Cross-linked Polyethylene)

• Voltage Rating: 600V

• Temperature Rating: 90°C (Wet/Dry)

• Ampacity: 435 Amps (@ 90°C) | 385 Amps (@ 75°C)

• Configuration: Parallel-Twisted (Priority-Plex®)

Common Applications

• Major Industrial Feeders: Primary power distribution for heavy manufacturing, automotive plants, and steel mills.

• Utility-Scale Infrastructure: Main service feeders for large hospitals, airports, and high-rise commercial campuses.

• Data Center Power: High-amperage 480V distribution from primary switchgear to large-scale transformers.

• Central Plant Mechanicals: Powering the largest industrial chillers, boilers, and water treatment pumping stations.

Technical Note: Pulling 750 MCM twisted bundles requires heavy-duty tuggers and high-capacity pulling eyes. Ensure that all terminations are made with AL9CU-rated mechanical or compression connectors. Given the high amperage, the use of an approved antioxidant compound and precise torque-checking is mandatory to prevent terminal overheating.

CABLE CONFIGURATION: 4C (BRN-ORG-YEL-GRY) Twisted Bundle

PRIORITY PART#: 750-04PPLEX-BOYG
