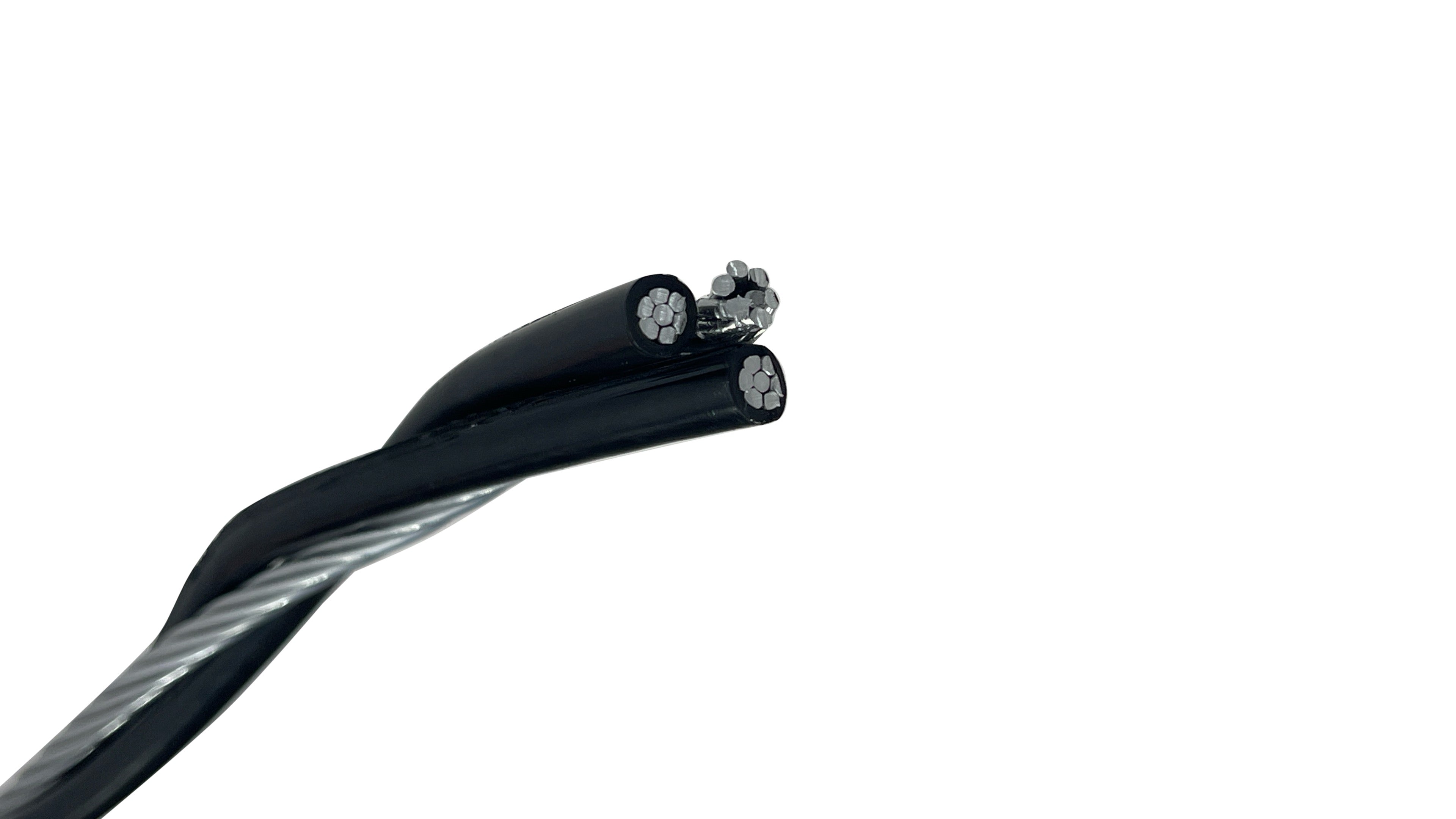

4-4-4 Triplex Aluminum Overhead Service Drop Cable (Periwinkle)

"The industry standard for 120/240V single-phase overhead utility drops, residential main power feeds, and temporary jobsite distribution. Engineered for dependable 600V aerial power delivery from utility lines to building weatherheads, this 3-conductor triplex cable features two insulated aluminum phase conductors, weather-resistant XLP insulation, and a heavy-duty bare steel-reinforced ACSR neutral messenger built to withstand environmental strain."

Key Features & Benefits: 4-4-4 Triplex Overhead Service Drop Cable

The 4-4-4 Periwinkle Triplex Cable is the go-to choice for overhead single-phase 120/240V secondary power distribution requiring higher current capacity than standard #6 wire. Designed to span overhead gaps from utility pole transformers to residential weatherheads and service masts, it provides a balanced, sag-resistant solution for main service drops and temporary construction power feeds.

By pairing two 7-strand 1350-H19 series aluminum phase conductors with a high-tensile ACSR neutral messenger, Periwinkle triplex provides lightweight, low-maintenance power delivery with exceptional physical strength. The cross-linked polyethylene (XLP) insulation offers superior protection against sunlight, freezing rain, and severe atmospheric wear.

• 600V Aerial Reliability: Rated for continuous 120/240V aerial service (up to 600V max phase-to-phase) at conductor temperatures up to 90°C with XLP insulation.

• High-Tensile ACSR Messenger: Features a 6/1 steel-reinforced ACSR neutral messenger delivering 1,860 lbs of breaking strength to prevent sag and withstand heavy ice and wind loads.

• Sunlight & Weather-Resistant XLP: Heavy-duty black cross-linked polyethylene insulation prevents UV degradation, cracking, and moisture damage in outdoor environments.

• Cut to Length by the Foot: Order only the exact span length needed for your project, eliminating jobsite waste and unused spools.

Technical Specifications: 4-4-4 Triplex Overhead Cable

• Application: Overhead secondary power drops (120/240V single-phase) from utility pole to weatherhead, temporary jobsite power, and outbuilding service feeds.

• Code Word: Periwinkle.

• Voltage Rating: 600 Volts Maximum (Phase-to-Phase).

• Phase Conductors Size & Stranding: Two (2) #4 AWG (7-strand 1350-H19 Series Aluminum).

• Neutral Messenger Size & Stranding: One (1) #4 AWG ACSR (6 Aluminum / 1 Steel Strand).

• Messenger Breaking Strength: 1,860 lbs.

• Insulation Material: Black Cross-Linked Polyethylene (XLP).

• Insulation Thickness: 0.045 inches (1.14 mm).

• Nominal Outer Diameter: 0.67 inches.

• Approximate Cable Weight: 172 lbs per 1,000 ft.

• Ampacity (90°C XLP Conductor): 115 Amps.

• Ampacity (75°C Poly Conductor): 90 Amps.

• Compliance & Standards: ASTM B-230, ASTM B-231, ASTM B-232, ICEA S-76-474, RUS Accepted.

Common 4-4-4 Triplex Overhead Cable Applications

• Residential Overhead Service Drops: 120/240V single-phase power runs from utility pole transformers to residential weatherheads or outbuilding subpanels.

• Temporary Construction Power: Heavy-duty overhead power delivery for temporary service poles and main jobsite power distribution panels.

• Agricultural & Detached Buildings: Aerial power supply to workshops, barns, and detached garages requiring up to 115A capacity.

Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.

Ampacity Reference: Based on conductor temperature of 90°C for XLP (75°C for Poly), 40°C ambient temperature, 0.9 emissivity, and 2 ft/sec wind in full sun. Reference applicable NEC articles for site-specific installation guidelines.
