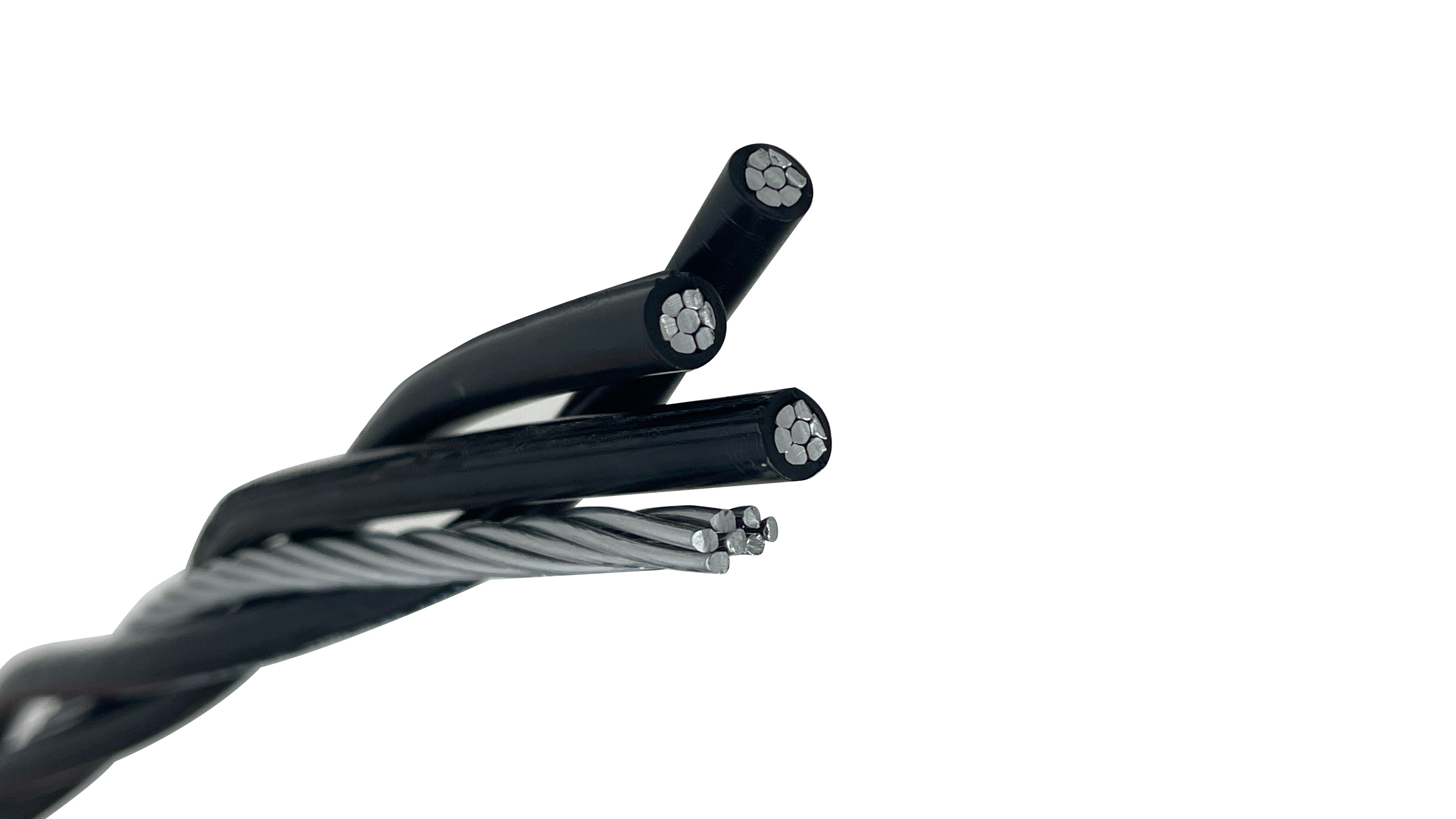

4/0-4/0-4/0-4/0 Quadruplex Aluminum Overhead Service Drop Cable (Appaloosa)

"The industry standard for high-capacity 3-phase overhead utility drops, commercial service entrances, and heavy-duty temporary jobsite power distribution requiring 19-strand phase conductors and a full-size steel-reinforced neutral messenger. Engineered for reliable 600V aerial power delivery from pole-mounted utility transformers to building service masts and weatherheads, this 4-conductor quadruplex cable features three 4/0 AWG insulated aluminum phase conductors, weather-resistant XLP insulation, and a heavy-duty bare 4/0 AWG steel-reinforced ACSR neutral messenger designed to handle maximum structural tension and environmental strain."

Key Features & Benefits: 4/0 Quadruplex Overhead Service Drop Cable

The 4/0-4/0-4/0-4/0 Appaloosa Quadruplex Cable is built for maximum-capacity 3-phase overhead secondary power distribution requiring a full-size neutral conductor to manage heavy unbalanced loads or strict utility requirements. Designed to span long overhead distances from pole transformers to building service entrances, it provides a sag-resistant, dependable solution for high-amp commercial power drops, outbuildings, and major temporary jobsite distribution.

By combining three 19-strand 1350-H19 series 4/0 AWG aluminum phase conductors with a heavy-duty 4/0 AWG ACSR neutral messenger, Appaloosa quadruplex delivers a 275-amp free-air capacity with 8,350 lbs of breaking strength. The heavy-duty 60-mil cross-linked polyethylene (XLP) insulation offers long-lasting resistance against UV rays, freezing rain, and extreme weather exposure.

• 600V 3-Phase Aerial Reliability: Rated for continuous 3-phase aerial service up to 600V phase-to-phase at conductor operating temperatures up to 90°C with XLP insulation.

• Full-Size ACSR Neutral Messenger: Features a matching 4/0 AWG 6/1 steel-reinforced ACSR bare neutral messenger delivering 8,350 lbs of breaking strength to prevent sagging and withstand severe wind and ice loads.

• 60-Mil Weather-Resistant XLP Insulation: Heavy-duty black cross-linked polyethylene insulation protects against UV degradation, moisture, and ambient temperature swings in harsh outdoor environments.

• Cut to Length by the Foot: Order only the exact span length needed for your project, eliminating jobsite waste and unused spools.

Technical Specifications: 4/0-4/0-4/0-4/0 Quadruplex Overhead Cable

• Application: Overhead 3-phase secondary power drops (up to 600V) from utility pole transformers to weatherheads, temporary jobsite power, and commercial service entrances.

• Code Word: Appaloosa.

• Voltage Rating: 600 Volts Maximum (Phase-to-Phase).

• Phase Conductors Size & Stranding: Three (3) 4/0 AWG (19-strand 1350-H19 Series Aluminum).

• Neutral Messenger Size & Stranding: One (1) 4/0 AWG ACSR Full-Size Neutral (6 Aluminum / 1 Steel Strand).

• Messenger Breaking Strength: 8,350 lbs.

• Insulation Material: Black Cross-Linked Polyethylene (XLP).

• Insulation Thickness: 0.060 inches (1.52 mm).

• Nominal Outer Diameter: 1.52 inches.

• Approximate Cable Weight: 1,079 lbs per 1,000 ft.

• Ampacity (90°C XLP Conductor): 275 Amps.

• Ampacity (75°C Poly Conductor): 210 Amps.

• Compliance & Standards: ASTM B-230, ASTM B-231, ASTM B-232, ICEA S-76-474, RUS Accepted.

Common 4/0 Quadruplex Overhead Applications

• Commercial & Industrial 3-Phase Overhead Drops: Aerial power runs from pole-mounted transformers to commercial weatherheads, main switchgear, or large commercial facilities requiring up to 275A service.

• Heavy-Duty Temporary Jobsite Power: 3-phase overhead power delivery for major temporary utility poles, main site distribution boxes, and heavy equipment power on construction sites.

• Agricultural & Large Outbuilding Distribution: Aerial power supply to large workshops, pump stations, commercial barns, and secondary facilities.

Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.

Ampacity Reference: Based on conductor temperature of 90°C for XLP (75°C for Poly), 40°C ambient temperature, 0.9 emissivity, and 2 ft/sec wind in full sun. Reference applicable NEC articles for site-specific installation guidelines.
