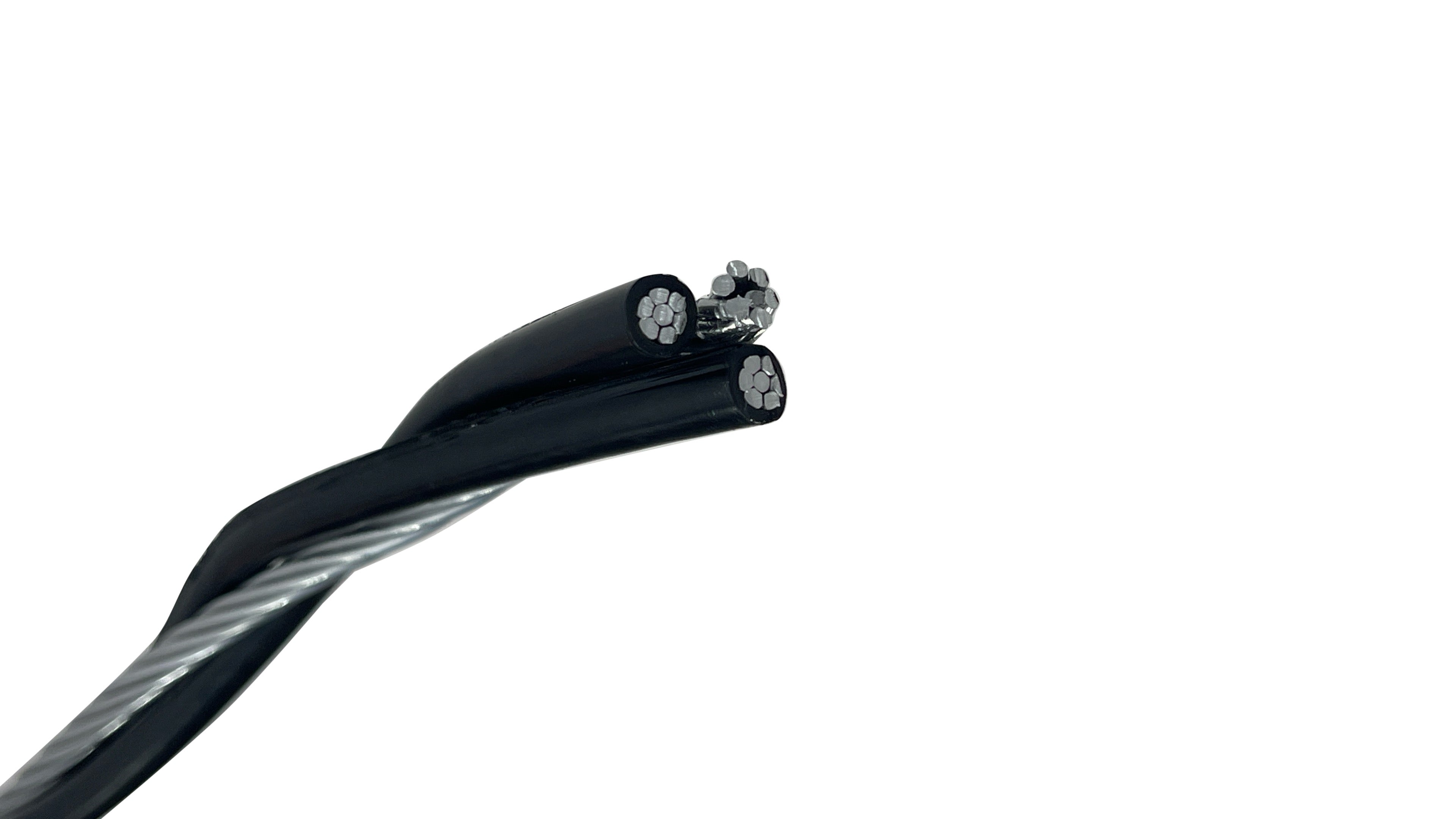

2/0-2/0-2/0 Triplex Aluminum Overhead Service Drop Cable (Runcina)

"The industry standard for high-capacity 120/240V single-phase overhead utility drops, commercial power feeds, and temporary jobsite distribution requiring a full-size neutral messenger. Engineered for dependable 600V aerial power delivery from utility lines to building weatherheads, this 3-conductor triplex cable features two 2/0 AWG insulated aluminum phase conductors, weather-resistant XLP insulation, and a heavy-duty bare 2/0 AWG steel-reinforced ACSR neutral messenger built to withstand severe environmental strain."

Key Features & Benefits: 2/0 Triplex Overhead Service Drop Cable

The 2/0-2/0-2/0 Runcina Triplex Cable is designed for high-amp overhead single-phase 120/240V secondary power distribution requiring a full-size neutral conductor to handle heavy unbalanced loads or utility requirements. Designed to span long overhead distances from utility pole transformers to residential weatherheads and commercial service masts, it provides a robust, sag-resistant solution for main service drops and temporary construction power feeds.

By pairing two 7-strand 1350-H19 series 2/0 AWG aluminum phase conductors with a heavy-duty 2/0 AWG ACSR neutral messenger, Runcina triplex delivers 235-amp capacity with maximum mechanical break strength. The 60-mil cross-linked polyethylene (XLP) insulation offers superior protection against UV rays, freezing rain, and severe atmospheric wear.

• 600V Aerial Reliability: Rated for continuous 120/240V aerial service (up to 600V max phase-to-phase) at conductor temperatures up to 90°C with XLP insulation.

• Full-Size ACSR Messenger: Features a matching 2/0 AWG 6/1 steel-reinforced ACSR neutral messenger delivering 5,310 lbs of breaking strength to prevent sag and withstand severe ice, wind, and long-span mechanical loads.

• Thick 60-Mil Weather-Resistant XLP: Heavy-duty black cross-linked polyethylene insulation prevents UV degradation, cracking, and moisture damage in high-exposure outdoor environments.

• Cut to Length by the Foot: Order only the exact span length needed for your project, eliminating jobsite waste and unused spools.

Technical Specifications: 2/0 Triplex Overhead Service Drop Cable

• Application: Overhead secondary power drops (120/240V single-phase) from utility pole to weatherhead, temporary jobsite power, and outbuilding service feeds.

• Code Word: Runcina.

• Voltage Rating: 600 Volts Maximum (Phase-to-Phase).

• Phase Conductors Size & Stranding: Two (2) 2/0 AWG (7-strand 1350-H19 Series Aluminum).

• Neutral Messenger Size & Stranding: One (1) 2/0 AWG ACSR Full-Size Neutral (6 Aluminum / 1 Steel Strand).

• Messenger Breaking Strength: 5,310 lbs.

• Insulation Material: Black Cross-Linked Polyethylene (XLP).

• Insulation Thickness: 0.060 inches (1.52 mm).

• Nominal Outer Diameter: 1.11 inches.

• Approximate Cable Weight: 519 lbs per 1,000 ft.

• Ampacity (90°C XLP Conductor): 235 Amps.

• Ampacity (75°C Poly Conductor): 185 Amps.

• Compliance & Standards: ASTM B-230, ASTM B-231, ASTM B-232, ICEA S-76-474, RUS Accepted.

Common 2/0-2/0-2/0 Triplex Overhead Applications

• High-Capacity Overhead Service Drops: 120/240V single-phase power runs from utility pole transformers to residential weatherheads or commercial service entrances requiring up to 200A/225A main service with a full neutral.

• Heavy-Duty Temporary Construction Power: Overhead power delivery for major jobsite temporary service poles and main distribution equipment.

• Commercial & Agricultural Buildings: Aerial power supply to large workshops, barns, commercial facilities, and outbuildings.

Technical Note: All values are nominal and subject to industry tolerances and manufacturer corrections. Specifications are subject to change without notice. It is the buyer’s responsibility to verify that all materials meet the specific requirements of the project and comply with local electrical codes.

Ampacity Reference: Based on conductor temperature of 90°C for XLP (75°C for Poly), 40°C ambient temperature, 0.9 emissivity, and 2 ft/sec wind in full sun. Reference applicable NEC articles for site-specific installation guidelines.
