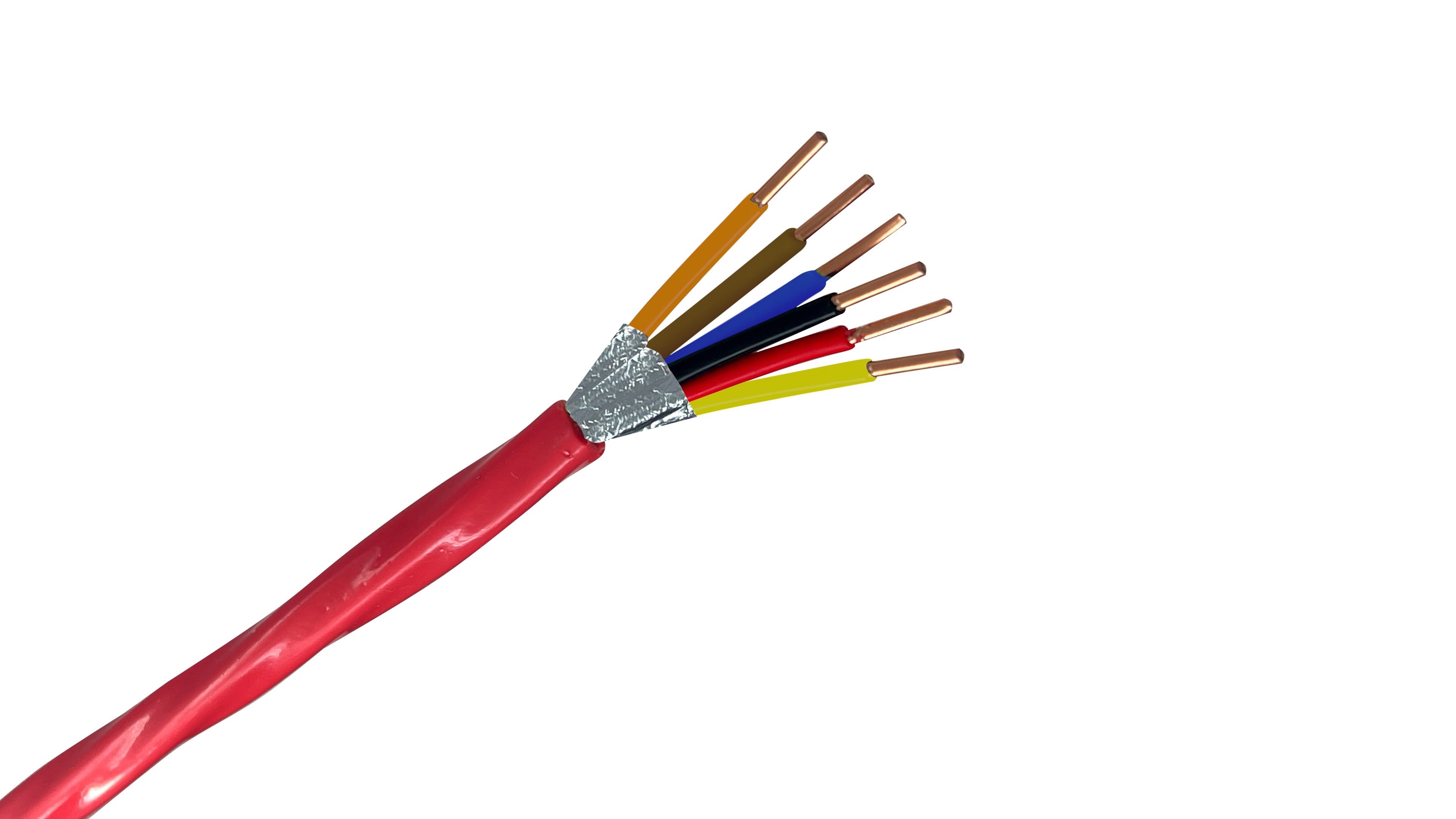

18-6C Shielded Riser Fire Alarm Cable

Parent SKU :  FAR-SHD18-6

SKU :  FAR-SHD18-6-250

SHIELDED FPLR RISER FIRE ALARM CABLE. PVC JACKET.
Download Spec Sheet
Wire Size 18
Conductor Material Copper
Conductor Type Solid
Outer Diameter 0.216 in. / 5.49 mm
Conductor Count 6
Voltage Rating 300V
Download Spec Sheet

Get Product Details

Get Product Details
APPLICATION:
Shielded Riser Rated PVC Fire Alarm Cable is suitable for use on fire alarms, smoke detectors, burglar alarms, voice communications, power limited circuits, and indoor non-conduit applications per NEC. Applications not to exceed 300 volts.

CONDUCTORS:
Solid soft drawn bare copper conductors.

SHIELD:
Overall mylar backed aluminum tape shield over cabled conductors with a tinned copper drain wire.

CONDUCTOR COLORS:
Black, Red, Brown, Blue, Orange, and Yellow.

JACKET:
Overall red polyvinyl chloride (PVC) jacket, which is rated for use in temperatures from -20°C to +75°C

JACKET COLOR:
Red

INSULATION:
Color coded polyvinyl chloride (PVC) insulation rated 60°C




All values are nominal and subject to correction.

See Full Specifications

See Full Specifications
Download Spec Sheet

Physical Specifications

Wire Size (AWG/MCM) 18
Conductor Material Copper
Conductor Type Solid
Strand Count 1
Outer Diameter (OD) (in/mm) 0.216 in. / 5.49 mm
Jacket Type PVC
Conductor Count 6
Shield Coverage % 100
Shield Shielded
Riser Rating true
Insulation Type PVC
UL Listing Numbers UL 1424, UL1666

Technical Specifications

Voltage Rating 300V
Submersible No
Flexibility Rating Very Good
Temperature Rating 75ºC
Standards UL 1424 Type FPLR
UL 1666 Flame Test
NEC Article 760 & Riser Rated
Meets California State Fire Marshal requirements
Meets New York State Fire Prevention & Building Code 15
ASTM B3, B258
Miscellaneous Information All values are nominal and subject to correction.
RoHS Compliance Yes

Usage & Installation

Common Uses
  • Fire Alarms
  • Smoke Detectors
  • Voice Communications
  • Burglar Alarms

Packaging & Dimensions:

Weight per Foot 0.049 lb
