Parent SKU : FAP-USHDNY18-2P
SKU : FAP-USHDNY18-2P-500
APPLICATION:

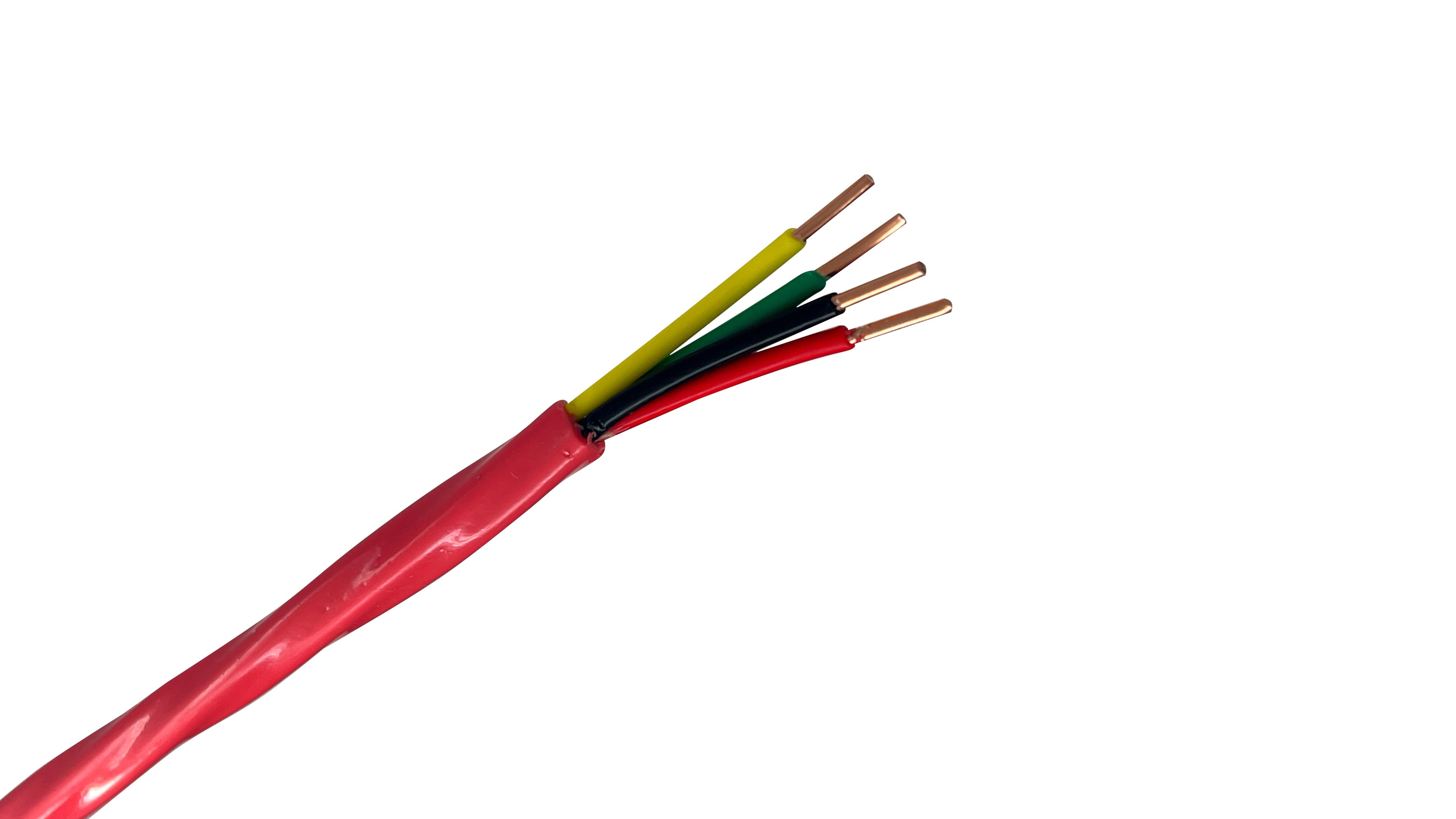

Our 18/4 NYC Certified FPLP Plenum Rated Fire Alarm Cable is used for wiring fire alarms, smoke detectors, voice communications, burglar alarms, and approved for NYC LL39 (formerly LL5) fire protective circuits installed in the City of New York. Applications not to exceed 300 volts, suitable for use up to 200°C.
CONDUCTORS:
Fully annealed solid bare copper per ASTM B3 & B258.
ASSEMBLY:
Insulated conductors cabled together with or without shield under an overall jacket. Ripcord and sequential footage markings to facilitate installation.
CONDUCTOR COLORS:
Pair 1 - Black and Red
Pair 2 - Yellow and Green
JACKET COLOR:
Red
INSULATION:
Premium-grade, color-coded FEP.
Why Professionals Choose 18/4 FPLP Unshielded NYC Approved Cable:
LL39 Compliance Guaranteed: Specifically manufactured with the required NYC-certified print legend to ensure your project passes DOB electrical inspections.
Space-Saving 4-Conductor Design: Allows for the installation of dual addressable loops or redundant signaling circuits in a single pull, maximizing conduit capacity.
200°C FEP Construction: Built with Fluorinated Ethylene Propylene (FEP) insulation, offering extreme thermal survivability that standard 75°C or 105°C plenum wires cannot match.
High-Flexibility 18 AWG: The smaller gauge size makes this cable incredibly easy to navigate through tight bends and crowded junction boxes.
Plenum Rated (FPLP): UL-listed for air-handling spaces and high-rise plenums, eliminating the need for conduit in many interior applications.
Installer’s Note:
"When you're dealing with crowded conduits in an NYC retrofit or a dense new build, the 18/4 FPLP NYC Approved Fire Alarm Cable is a lifesaver. It gives you four conductors of Local Law 39 compliant power and signal in a very slim profile. Because it uses a 200°C FEP jacket, you're not just saving space—you're installing a system that can withstand extreme thermal events without the insulation 'gumming up' or failing."
All values are nominal and subject to correction.
| Wire Size (AWG/MCM) | 18 |
| Conductor Material | Copper |
| Conductor Type | Solid |
| Strand Count | 1 |
| Outer Diameter (OD) (in/mm) | 0.232 in. / 5.89 mm |
| Jacket Type | Plenum-Rated FEP |
| Conductor Count | 4 |
| Shield | Unshielded |
| Insulation Type | (FEP) Fluorinated Ethylene Propylene |
| UL Listing Numbers | UL 13, UL 444, UL1424 |
| Plenum Rating | true |
| Voltage Rating | 300V |
| Submersible | No |
| Flexibility Rating | Very Good |
| Temperature Rating | 200ºC |
| Standards | NYC Local Law 39 (Formerly LL5) UL 13 Power-Limited Circuit Cable UL 444 Communication Cables UL1424 Cables for Power-Limited Fire-Alarm Circuits UL Listed Type FPLP, 200°C NFPA 262 Test for Flame Travel and Smoke of Wires and Cables for Use in Air Handling Spaces NEC Article 725, 760, 800 |
| Miscellaneous Information | All values are nominal and subject to correction. |
| Other Certifications | NYC LL5/LL39 |
| RoHS Compliance | Yes |
| Primary Applications | NYC LL39 (formerly LL5) fire protective circuits installed in the City of New York. |
| Common Uses |
|
| Weight per Foot | 0.047 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : FAP-USHDNY18-2P
SKU : FAP-USHDNY18-2P-500
Parent SKU : FAP-USHDNY18-2P
SKU : FAP-USHDNY18-2P-500
APPLICATION:
Our 18/4 NYC Certified FPLP Plenum Rated Fire Alarm Cable is used for wiring fire alarms, smoke detectors, voice communications, burglar alarms, and approved for NYC LL39 (formerly LL5) fire protective circuits installed in the City of New York. Applications not to exceed 300 volts, suitable for use up to 200°C.
CONDUCTORS:
Fully annealed solid bare copper per ASTM B3 & B258.
ASSEMBLY:
Insulated conductors cabled together with or without shield under an overall jacket. Ripcord and sequential footage markings to facilitate installation.
CONDUCTOR COLORS:
Pair 1 - Black and Red
Pair 2 - Yellow and Green
JACKET COLOR:
Red
INSULATION:
Premium-grade, color-coded FEP.
Why Professionals Choose 18/4 FPLP Unshielded NYC Approved Cable:
LL39 Compliance Guaranteed: Specifically manufactured with the required NYC-certified print legend to ensure your project passes DOB electrical inspections.
Space-Saving 4-Conductor Design: Allows for the installation of dual addressable loops or redundant signaling circuits in a single pull, maximizing conduit capacity.
200°C FEP Construction: Built with Fluorinated Ethylene Propylene (FEP) insulation, offering extreme thermal survivability that standard 75°C or 105°C plenum wires cannot match.
High-Flexibility 18 AWG: The smaller gauge size makes this cable incredibly easy to navigate through tight bends and crowded junction boxes.
Plenum Rated (FPLP): UL-listed for air-handling spaces and high-rise plenums, eliminating the need for conduit in many interior applications.
Installer’s Note:
"When you're dealing with crowded conduits in an NYC retrofit or a dense new build, the 18/4 FPLP NYC Approved Fire Alarm Cable is a lifesaver. It gives you four conductors of Local Law 39 compliant power and signal in a very slim profile. Because it uses a 200°C FEP jacket, you're not just saving space—you're installing a system that can withstand extreme thermal events without the insulation 'gumming up' or failing."
All values are nominal and subject to correction.
| Wire Size (AWG/MCM) | 18 |
| Conductor Material | Copper |
| Conductor Type | Solid |
| Strand Count | 1 |
| Outer Diameter (OD) (in/mm) | 0.232 in. / 5.89 mm |
| Jacket Type | Plenum-Rated FEP |
| Conductor Count | 4 |
| Shield | Unshielded |
| Insulation Type | (FEP) Fluorinated Ethylene Propylene |
| UL Listing Numbers | UL 13, UL 444, UL1424 |
| Plenum Rating | true |
| Voltage Rating | 300V |
| Submersible | No |
| Flexibility Rating | Very Good |
| Temperature Rating | 200ºC |
| Standards | NYC Local Law 39 (Formerly LL5) UL 13 Power-Limited Circuit Cable UL 444 Communication Cables UL1424 Cables for Power-Limited Fire-Alarm Circuits UL Listed Type FPLP, 200°C NFPA 262 Test for Flame Travel and Smoke of Wires and Cables for Use in Air Handling Spaces NEC Article 725, 760, 800 |
| Miscellaneous Information | All values are nominal and subject to correction. |
| Other Certifications | NYC LL5/LL39 |
| RoHS Compliance | Yes |
| Primary Applications | NYC LL39 (formerly LL5) fire protective circuits installed in the City of New York. |
| Common Uses |
|
| Weight per Foot | 0.047 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||||||
The most searched question regarding this low-voltage collection focuses on why the FDNY and the NYC Department of Buildings (DOB) mandate an extreme 200°C Local Law 39 (LL39) listing. The answer is High-Rise Evacuation Survival and Smoke Prevention. Due to the density of Manhattan and the outer boroughs, high-rise buildings take significantly longer to safely evacuate. Standard fire alarm cables carry a 75°C or 105°C limit and melt quickly under direct flame stress. The LL39 200°C certification guarantees that the premium FEP insulation will survive extreme localized fire spikes, allowing the alarm network to stay active and communicate evacuation paths. Furthermore, FEP produces minimal toxic smoke, preserving breathing conditions in enclosed airflow plenums.
This is the Unshielded version, meaning it does not contain an inner aluminum foil wrap. It is highly flexible, affordable, and ideal for standard notification devices like flashing strobes, sirens, and basic smoke detectors. You would switch to a Shielded cable only if you are running the line directly alongside massive high-voltage building power lines or fluorescent lighting ballasts that could cause electronic static interference (EMI) on addressable digital fire systems.
When supporting this cable across open ceiling areas, city inspectors look closely at routing organization. You cannot lay fire alarm wire directly across the top of ceiling grid panels or tie it to local air duct supports. You should mount dedicated steel J-Hooks or bridal rings every 4 to 5 feet along the path, supporting the red wire bundle neatly in its own independent overhead pathway.
Wire America ships all of our 18/4 Unshielded NYC Approved FPLP Fire Alarm Cable directly from our centralized fulfillment centers throughout the United States. We are able to cut to length, process, and ship your order within 1–2 business days and ship straight to your job site, commercial, or residential property. Most standard orders arrive at your doorstep within 2 to 4 business days, with expedited shipping options available at checkout.
