Parent SKU : FAP-SHDNY16-2P
SKU : FAP-SHDNY16-2P-500
APPLICATION:

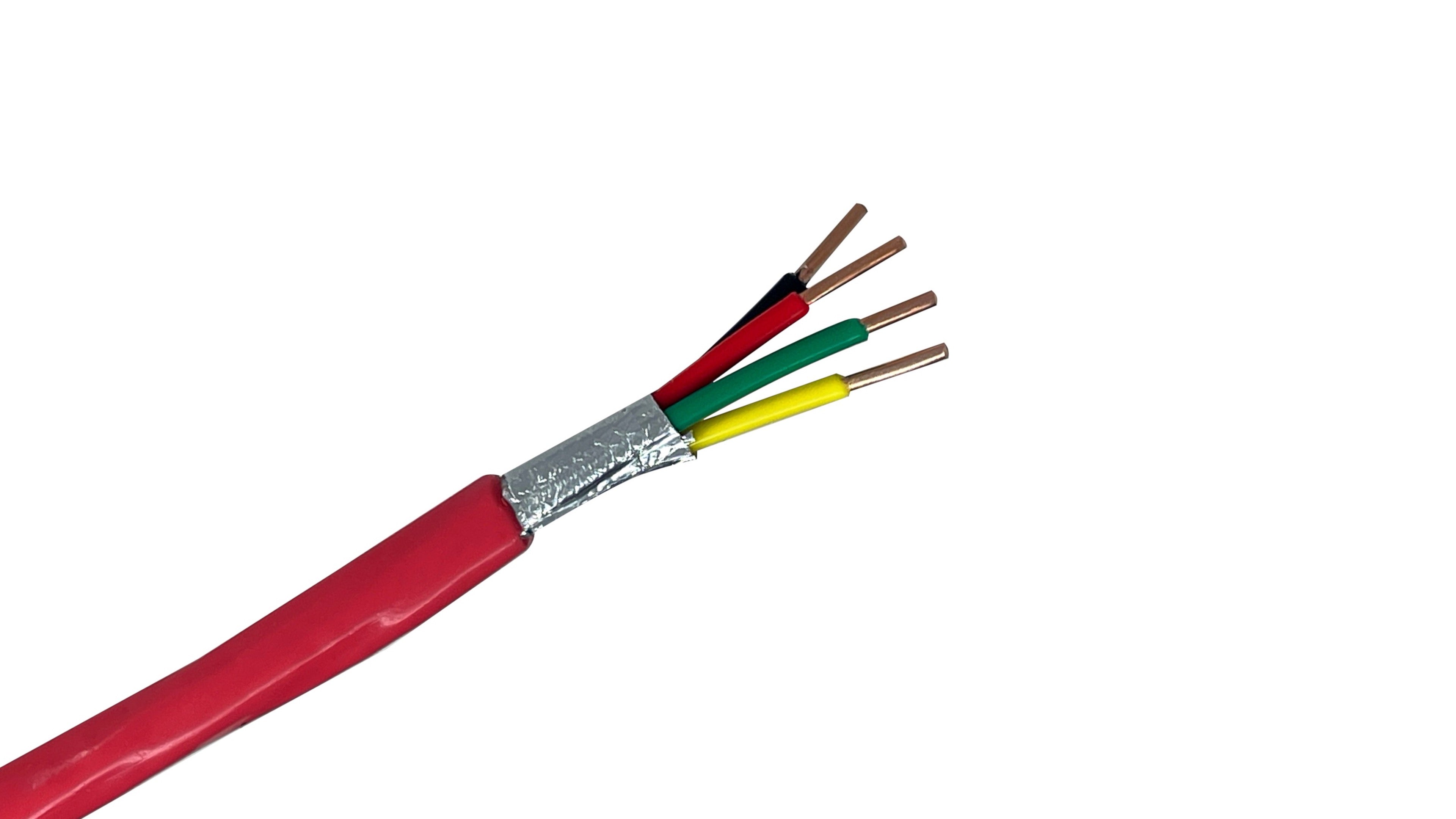

Our 16/4 Shielded NYC Certified Plenum Rated Fire Alarm Cable is used for wiring fire alarms, smoke detectors, voice communications, burglar alarms, and approved for NYC LL39 (formerly LL5) fire protective circuits installed in the City of New York. Applications not to exceed 300 volts, suitable for use up to 200°C.
CONDUCTORS:
Fully annealed solid bare copper per ASTM B3 & B258.
DRAIN WIRE:
Solid 24AWG tinned copper drain wire.
ASSEMBLY:
Insulated conductors cabled together with or without shield under an overall jacket. Ripcord and sequential footage markings to facilitate installation.
CONDUCTOR COLORS:
Pair 1 - Black and Red
Pair 2 - Yellow and Green
JACKET COLOR:
Red
INSULATION:
Premium-grade, color-coded FEP.
The 16/4 Shielded FPLP NYC Approved Fire Alarm Advantage:
LL39 Compliance Guaranteed: Printed with the mandatory NYC-certified legend to ensure your project passes DOB electrical inspections without friction.
Dual-Pair Shielded Construction: Allows for two separate shielded circuits in a single pull, perfect for redundant "Class A" loops or speaker/strobe combinations.
100% EMI/RFI Protection: Features an aluminum/polyester foil shield and tinned copper drain wire to block noise from elevator motors, fluorescent ballasts, and radio equipment.
200°C FEP Construction: High-performance Fluorinated Ethylene Propylene (FEP) insulation provides a massive safety margin against melting or shorting during a fire event.
Plenum Rated (FPLP): UL-listed for air-handling spaces and high-rise plenums, eliminating the need for conduit in many interior applications.
Installer’s Note:
"For NYC projects requiring high-rise Voice-Evacuation, the 16/4 Shielded FPLP NYC Approved Fire Alarm Cable is non-negotiable. By utilizing the 100% foil shield, you’re preventing the 'hum' and 'cross-talk' that can plague multi-zone audio circuits. This Local Law 39 compliant cable ensures that when an emergency broadcast is made, the instructions are loud, clear, and uncompromised by the building's electrical noise."
All values are nominal and subject to correction.
| Wire Size (AWG/MCM) | 16 |
| Conductor Material | Copper |
| Conductor Type | Solid |
| Strand Count | 1 |
| Outer Diameter (OD) (in/mm) | 0.264 in. / 6.70 mm |
| Jacket Type | Plenum-Rated FEP |
| Conductor Count | 4 |
| Shield Coverage % | 1 |
| Shield Type | Overall polyester-backed aluminum foil with a solid 24 AWG tinned copper drain wire. |
| Shield | Shielded |
| Insulation Type | (FEP) Fluorinated Ethylene Propylene |
| UL Listing Numbers | UL 13, UL 444, UL1424 |
| Plenum Rating | true |
| Voltage Rating | 300V |
| Submersible | No |
| Flexibility Rating | Very Good |
| Temperature Rating | 200ºC |
| Standards | NYC Local Law 39 (Formerly LL5) UL 13 Power-Limited Circuit Cable UL 444 Communication Cables UL1424 Cables for Power-Limited Fire-Alarm Circuits UL Listed Type FPLP, 200°C NFPA 262 Test for Flame Travel and Smoke of Wires and Cables for Use in Air Handling Spaces NEC Article 725, 760, 809 |
| Miscellaneous Information | All values are nominal and subject to correction. |
| Other Certifications | NYC LL5/LL39 |
| RoHS Compliance | Yes |
| Primary Applications | NYC LL39 (formerly LL5) fire protective circuits installed in the City of New York. |
| Common Uses |
|
| Weight per Foot | 0.065 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Parent SKU : FAP-SHDNY16-2P
SKU : FAP-SHDNY16-2P-500
Parent SKU : FAP-SHDNY16-2P
SKU : FAP-SHDNY16-2P-500
APPLICATION:
Our 16/4 Shielded NYC Certified Plenum Rated Fire Alarm Cable is used for wiring fire alarms, smoke detectors, voice communications, burglar alarms, and approved for NYC LL39 (formerly LL5) fire protective circuits installed in the City of New York. Applications not to exceed 300 volts, suitable for use up to 200°C.
CONDUCTORS:
Fully annealed solid bare copper per ASTM B3 & B258.
DRAIN WIRE:
Solid 24AWG tinned copper drain wire.
ASSEMBLY:
Insulated conductors cabled together with or without shield under an overall jacket. Ripcord and sequential footage markings to facilitate installation.
CONDUCTOR COLORS:
Pair 1 - Black and Red
Pair 2 - Yellow and Green
JACKET COLOR:
Red
INSULATION:
Premium-grade, color-coded FEP.
The 16/4 Shielded FPLP NYC Approved Fire Alarm Advantage:
LL39 Compliance Guaranteed: Printed with the mandatory NYC-certified legend to ensure your project passes DOB electrical inspections without friction.
Dual-Pair Shielded Construction: Allows for two separate shielded circuits in a single pull, perfect for redundant "Class A" loops or speaker/strobe combinations.
100% EMI/RFI Protection: Features an aluminum/polyester foil shield and tinned copper drain wire to block noise from elevator motors, fluorescent ballasts, and radio equipment.
200°C FEP Construction: High-performance Fluorinated Ethylene Propylene (FEP) insulation provides a massive safety margin against melting or shorting during a fire event.
Plenum Rated (FPLP): UL-listed for air-handling spaces and high-rise plenums, eliminating the need for conduit in many interior applications.
Installer’s Note:
"For NYC projects requiring high-rise Voice-Evacuation, the 16/4 Shielded FPLP NYC Approved Fire Alarm Cable is non-negotiable. By utilizing the 100% foil shield, you’re preventing the 'hum' and 'cross-talk' that can plague multi-zone audio circuits. This Local Law 39 compliant cable ensures that when an emergency broadcast is made, the instructions are loud, clear, and uncompromised by the building's electrical noise."
All values are nominal and subject to correction.
| Wire Size (AWG/MCM) | 16 |
| Conductor Material | Copper |
| Conductor Type | Solid |
| Strand Count | 1 |
| Outer Diameter (OD) (in/mm) | 0.264 in. / 6.70 mm |
| Jacket Type | Plenum-Rated FEP |
| Conductor Count | 4 |
| Shield Coverage % | 1 |
| Shield Type | Overall polyester-backed aluminum foil with a solid 24 AWG tinned copper drain wire. |
| Shield | Shielded |
| Insulation Type | (FEP) Fluorinated Ethylene Propylene |
| UL Listing Numbers | UL 13, UL 444, UL1424 |
| Plenum Rating | true |
| Voltage Rating | 300V |
| Submersible | No |
| Flexibility Rating | Very Good |
| Temperature Rating | 200ºC |
| Standards | NYC Local Law 39 (Formerly LL5) UL 13 Power-Limited Circuit Cable UL 444 Communication Cables UL1424 Cables for Power-Limited Fire-Alarm Circuits UL Listed Type FPLP, 200°C NFPA 262 Test for Flame Travel and Smoke of Wires and Cables for Use in Air Handling Spaces NEC Article 725, 760, 809 |
| Miscellaneous Information | All values are nominal and subject to correction. |
| Other Certifications | NYC LL5/LL39 |
| RoHS Compliance | Yes |
| Primary Applications | NYC LL39 (formerly LL5) fire protective circuits installed in the City of New York. |
| Common Uses |
|
| Weight per Foot | 0.065 lb |
In-stock orders placed before 3pm EST typically ship within 1-2 business days. Our business days are Monday through Friday; we do not process orders on Saturday, Sunday, or major US Holidays.
You will receive an e-mail with a tracking number within 1-2 business days from the time its shipped. You will also be able to view your order status and tracking numbers in your account order history.
Expedited shipments are delivered Monday-Friday except on US Holidays. The order must be placed before 12pm CST to ship same day ( Mon-Fri Only).
You have 30 days from the day you receive the item to contact us for a return. Returns are subject to a 30% Restocking Fee.
Please contact us at help@wireamerica.com to request a return authorization. Have your order number or name the order was placed with ready and we will email you an RMA (return) number and instructions for return. Currently, we do not offer exchanges. A new order must be placed if you need a different item. If you provide the new order number at the time of your return request, the restocking fee may be lowered.
Orders on any items with a material value of $50 or less are non-returnable.
Get notified when this product is back in stock
Physical Specifications
Technical Specifications
Usage & Installation:
Packaging & Dimensions:
|
||||||||||||||||||||||||||||||||||||||||||||||||
New York City requires fire alarm cables to meet specific standards beyond standard NEC rules, specifically Local Law 39 (LL39) and Local Law 5. This means the cable must feature specialized insulation (like FEP or ECTFE) that is flame-retardant and low-smoke, often with a higher temperature rating (150°C to 200°C) than standard fire alarm wire.
Unshielded: Ideal for most standard notification appliance circuits (NACs) and pull stations where electromagnetic interference (EMI) is not a concern.
Shielded: Required for data communication links (SLC loops) or installations near high-voltage lines, elevator motors, or fluorescent lighting to prevent signal interference and false alarms.
In the NYC market, the 16/4 Shielded 200°C cable is specifically used for:
NYC Approved FPLP (Plenum): Must be used in "plenum" spaces—areas used for air circulation, like above drop ceilings or under raised floors. These have a low-smoke, high-fire-resistance jacket.
NYC Approved FPLR (Riser): Used for vertical runs between floors (risers). In NYC, most commercial specs call for FPLP even in non-plenum areas for maximum safety, but check your specific building code.
The primary difference is the gauge (thickness) of the copper conductor and its ability to carry current over long distances without losing power (voltage drop).
Important Note: Consult Your Licensed NYC Electrician
While our cables are NYC Approved and manufactured to meet Local Law 39 standards, fire alarm requirements can vary based on your specific building type, occupancy, and the latest FDNY bulletins.
Due to its superior heat resistance and durability, this cable is the standard for Commercial High-Rises, Hospitals, Schools, and Industrial Facilities requiring maximum fire survivability and FDNY compliance.
While standard fire alarm wire is acceptable for many small residential jobs, these specific high-occupancy and mission-critical environments use 200°C 16/4 cable to ensure:
Important Note: Consult Your Licensed NYC Electrician
While our cables are NYC Approved and manufactured to meet Local Law 39 standards, fire alarm requirements can vary based on your specific building type, occupancy, and the latest FDNY bulletins.
