14 AWG Diesel Locomotive Cable, 2000V

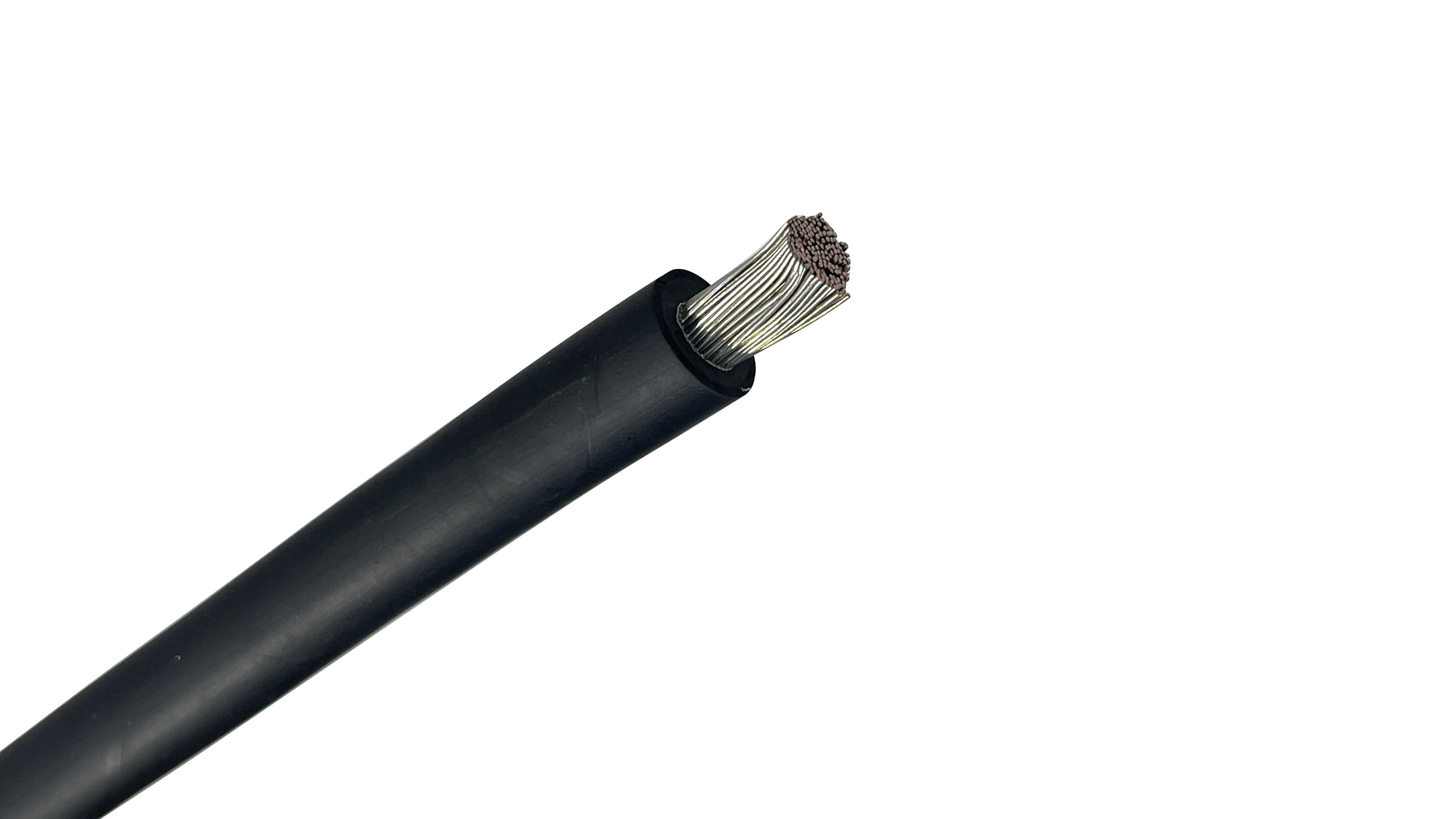

14 AWG Diesel Locomotive Cable (DLO) is an industrial-grade, single-conductor portable power cable designed for specialized electrical equipment and high-durability power distribution configurations. Engineered to operate under a maximum continuous rating of 2000 Volts, this heavy-duty power line is built to withstand constant vibration, tight bend profiles, and severe environmental abuse in a highly compact gauge.

While originally engineered to transmit energy from traction generators to drive motors in diesel-electric locomotives, its supreme durability has made it a preferred choice for stationary and mobile applications. It functions as a flexible alternative to standard building wire (like THHN or XHHW) in situations requiring a tight bending radius, dynamic movement, or protection against chemicals and abrasion.

ELECTRICAL AMPACITY & PERFORMANCE DATA

Due to its robust stranding and specialized dual-layer insulation profile, 14 AWG DLO cable exhibits excellent heat dissipation and reliable current capacity limits:

• Maximum Current Capacity (30 degrees C Ambient Air): 35 AMPS This threshold is calculated using a continuous 90 degrees C conductor temperature operating as a single conductor in free air per National Electrical Code (NEC) tables.

• National Electrical Code Adjustments: When grouping multiple single-conductor DLO lines in closed structural conduits, wire troughs, or tight raceways, installers must apply standard NEC derating factors based on ambient room temperatures and total enclosed conductor counts.

Key Features

• Flexible Class I Tinned Copper Conductor: Features a 19-strand layout of fully annealed tinned copper (typically a 19/27 configuration). This configuration allows the 14 AWG cable to bend easily around tight structural boundaries without kinking, while the tin coating prevents copper corrosion and ensures long-term integrity at terminations.

• Premium EPR (Ethylene Propylene Rubber) Insulation: Coated with a high-dielectric EPR or EPDM insulation layer. This thermoset compound handles extreme temperature swings without softening, cracking, or experiencing internal voltage tracking breakdowns under 2000V strains.

• Heavy-Duty CPE (Chlorinated Polyethylene) Outer Jacket: Protected by an industrial-grade, abrasion-resistant black CPE jacket. It provides excellent defense against grease, fuel oils, petrochemical solvents, ozone, severe impacts, and continuous open-air sunlight exposure.

• Multi-Certified Safety Standard Ratings: Dual-listed as Type RHH/RHW-2 under UL 44, allowing code-compliant installation at 90 degrees C in both wet and dry applications.

Common Applications

• Control Panels & Relay Racks: Providing high-voltage, highly flexible interconnectivity within industrial control panels, switchgear, and control circuits.

• Small Motor & Generator Leads: Serving as flexible high-current feeder links on smaller manufacturing motors, control systems, and automated machinery.

• Telecom Power Plants: Providing localized low-voltage drop, high-amperage DC power distribution lines inside central telephone switching hubs and equipment racks.

• Diesel-Electric Locomotive Infrastructure: Supplying auxiliary power links, control panel feeds, and lighting grids across transit and locomotive cars.

Cable Layer Architecture (From Core to Jacket)

1. Central Conductor: 14 AWG stranded tinned copper core (19/27 layout).

2. Separator Layer: Clear polyester or paper binding tape applied between the conductor and insulation for smooth, easy stripping during field termination.

3. Primary Insulation: Premium-grade Ethylene Propylene Rubber (EPR or EPDM).

4. Outer Protective Armor: Rugged, thermoset, weather-proof Black Chlorinated Polyethylene (CPE) jacket.

Technical Specifications

• Conductor Size: 14 AWG

• Conductor Stranding Count: 19 Strands (27 AWG individual strand size)

• Conductor Material: Tinned Annealed Copper

• Insulation Material: Ethylene Propylene Rubber (EPR / EPDM)

• Jacket Material: Chlorinated Polyethylene (CPE)

• Nominal Outer Diameter: Approx. 0.190 to 0.205 inches (Varies slightly by manufacturer)

• Approximate Net Weight: Approx. 27 to 33 lbs per 1000 feet

• Voltage Rating: 2000 Volts Maximum

• Maximum Conductor Temperature: 90 degrees C (Continuous wet or dry)

• Compliance Standards: UL Listed Type RHH/RHW-2, CSA Type RW90 (1kV), MSHA Approved (Mine Safety), ICEA S-95-658, NEMA WC-70, IEEE 1202/FT4 Flame Test Compliant, RoHS Compliant

Technical Note Regarding Lugs: Because 14 AWG DLO cable utilizes Class I flexible stranding rather than stiff commercial solid or coarse building wire strands, it is critical to use properly sized compression terminals or control lugs. Ensure that all strands are fully contained within the lug barrel before crimping to prevent loose connections or fraying, which can degrade signal/power transmission and cause localized heating failures.

CABLE TYPE: 14 AWG Single-Conductor Flexible 2000V Diesel Locomotive Power Cable (Black CPE Jacket)

DISCLAIMER: The technical information provided is for general reference only. Industrial high-voltage power networks and flexible cable trays must strictly comply with the National Electrical Code (NEC), local municipal safety enforcement mandates, and individual equipment installation datasheets. Always verify official product submittal listings and exact core metrics with your electrical component manufacturer prior to configuring terminal arrays or subjecting lines to high pulling forces.

⚠️ The applications listed below are for informational and educational purposes only. Electrical code requirements vary significantly by region. Always consult a licensed electrician and your local building authority to verify compliance with the National Electrical Code (NEC®) for your specific project before purchasing or installing cable.

Common 14 AWG DLO 2000V Use Cases

• Locomotive Control Panels & Electronic Signal Wiring: Functions as highly flexible, low-draw control wiring inside diesel-electric locomotive cabs, diagnostic display dashboards, and braking signals where tight layout routing is mandatory.
• High-Vibration Control Cabinets: Deployed as panel wire within industrial motor control centers (MCC), relay racks, and automated machinery enclosures that are subjected to non-stop structural vibration.
• Oil & Gas Rig Instrumentation Links: Used on onshore and offshore drilling platforms to route low-amperage 2000V control signals, telemetry lines, and sensor networks through narrow, high-hazard layout spaces.
• Marine & Shipboard Auxiliary Systems: Utilized for internal shipboard distribution pathways, bilge control sensor networks, and radar tower wiring due to its extreme resilience against salt spray and moisture.
• Renewable Energy Inverter Controls: Connecting monitoring arrays, solar tracking systems, and low-amp control loops inside wind turbine nacelles and commercial photovoltaic collection hubs.
• Heavy Machinery Electronic Feeds: Supplies flexible feedback signals and low-amp secondary power to moving joints on industrial cranes, mining equipment, and robotic manufacturing components.

Who Relies on 14 AWG DLO 2000V?

Target Industries

• Railroad & Mass Transit Systems: Relied upon by transit authorities, locomotive assembly plants, and rail maintenance yards for auxiliary signaling and electronic layout wiring.
• Petrochemical & Drilling Infrastructure: Extensively utilized by oilfield technology companies and offshore marine contractors operating in harsh, hazardous environments.
• Industrial Automation & Panel Building: Integrated into custom electrical control panels, manufacturing machinery loops, and power distribution systems.
• Marine Vessel Construction: Selected by shipyard electrical teams requiring flexible, rugged, corrosion-resistant wiring for narrow hull pathways.

Core Professionals & Buyers

• Panel Builders & Industrial Electricians: Technicians who choose 14 AWG Diesel Locomotive Cable (DLO) for its exceptionally fine Class I tinned copper stranding (typically a 41/30 layout), allowing it to bend sharply around dense terminal blocks without kinking or breaking.
• Control Systems Engineers: Procurement professionals who specify DLO because its premium Ethylene Propylene Rubber (EPR) insulation delivers massive 2000V dielectric strength even in a highly compact conductor diameter.
• Industrial Estimators & Buyers: Supply chain managers tracking long-term asset life who count on the Chlorinated Polyethylene (CPE) thermoset jacket to resist oils, cutting fluids, heat, and ozone without cracking.
• Safety & Code Compliance Inspectors: Field regulatory officers who look for Dual-Rated RHH/RHW-2 attributes and MSHA flame-retardant listings to approve hazardous location or open cable tray wire configurations.
