Parent SKU : CPC1
SKU : CPC1-250

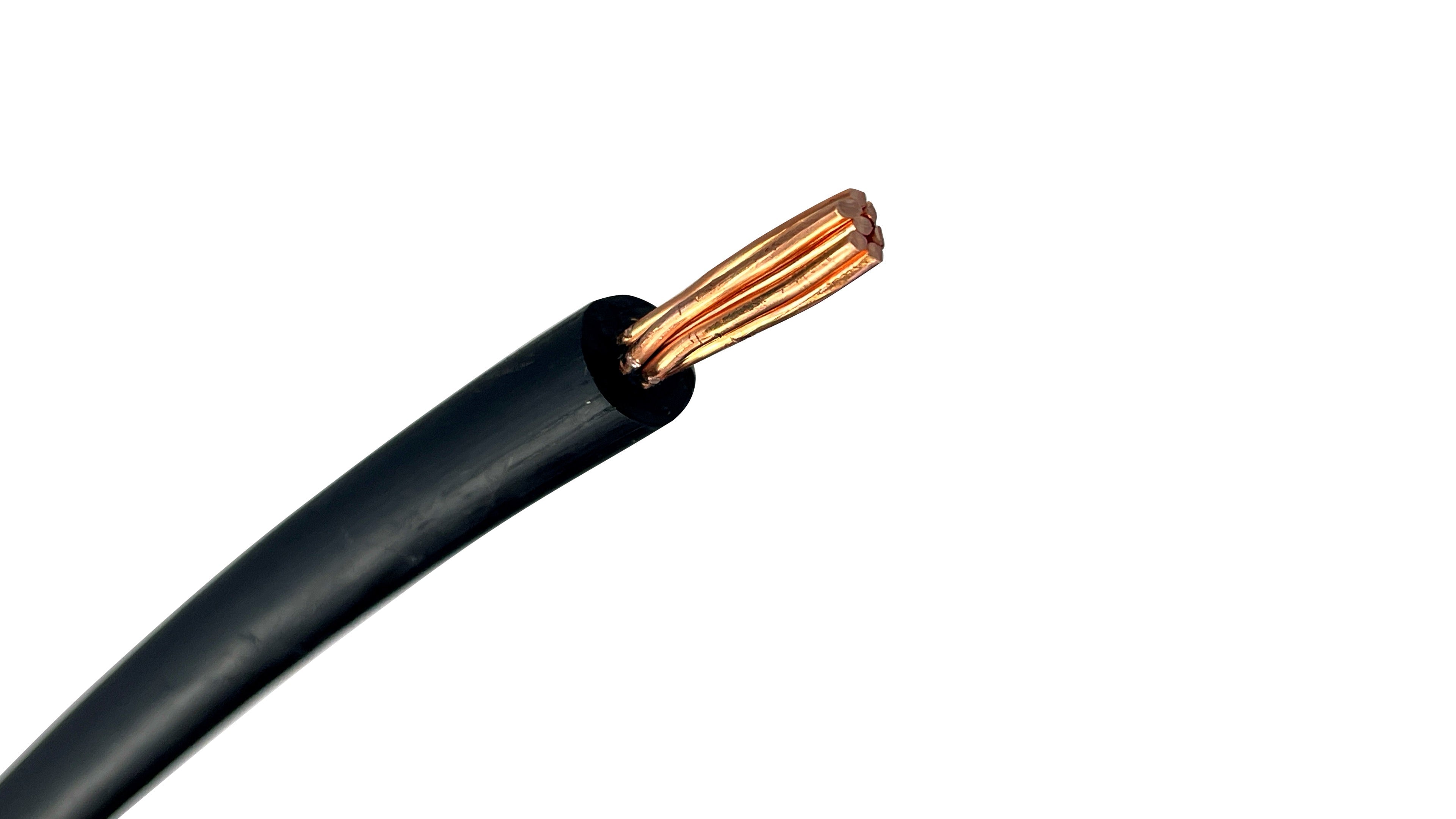

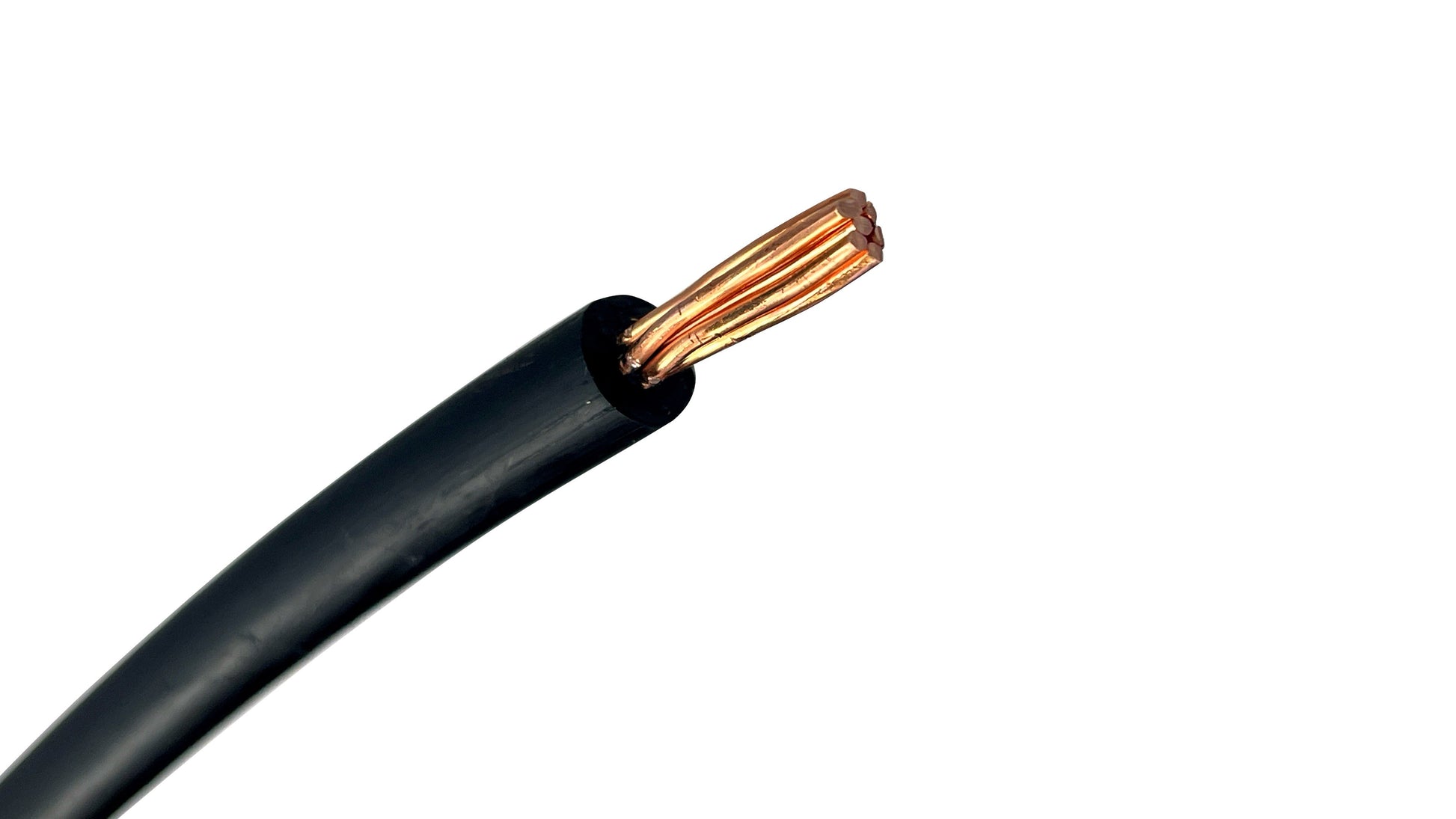

This #1 AWG HMWPE Cathodic Protection Cable is a specialized single-conductor wire designed for impressed current cathodic protection (ICCP) systems. It is engineered to withstand the aggressive electrochemical environments found in direct burial or submerged applications, serving as a critical link for the protection of buried pipelines and metallic structures.
In cathodic protection, the cable insulation is the first line of defense against system failure. Standard electrical insulation can be compromised by the corrosive gases (such as chlorine and hydrogen) generated at the anode. High Molecular Weight Polyethylene (HMWPE) provides a superior chemical barrier and exceptional mechanical toughness.
Chemical & Gas Resistance: The HMWPE jacket is specifically formulated to resist degradation from salts, moisture, and the acidic or alkaline conditions common in ground beds.
Mechanical Integrity: Known for its high "cut-through" resistance and abrasion durability, this cable is designed to be buried directly in the earth without the protection of conduit.
Direct Burial & Submergence: Fully rated for use in soil and for submersion in fresh, brackish, or salt water.
High Conductivity: Constructed with soft-drawn, stranded bare copper to ensure efficient current distribution with a low voltage drop over long feeder runs.
Conductor Size: #1 AWG
Conductor Material: Stranded Bare Copper
Insulation Material: High Molecular Weight Polyethylene (HMWPE)
Voltage Rating: 600V
Temperature Rating: 75°C (167°F)
Amp Rating: 130 Amps (@ 75°C)
Standard Color: Black (UV Resistant)
Approvals: ASTM D-1248, ICEA S-95-658
Pipeline Infrastructure: Used as anode leads and positive/negative feeder cables for oil, gas, and water pipelines.
Storage Tank Bottoms: Ideal for connecting rectifiers to anodes for underground and above-ground storage tanks.
Marine Environments: Protection for steel sheet piles, bulkheads, and jetty structures.
Deep Well Ground Beds: Reliable performance when submerged in water and coke breeze within deep-well installations.
Technical Note: To prevent premature failure, it is vital to ensure the insulation is not damaged during the pull or backfill process. Any breach in the HMWPE jacket allows the copper conductor to become an accidental anode, leading to rapid corrosion at the site of the nick. For extreme chlorine or hydrocarbon environments, a dual-insulated construction (HALAR/HMWPE) is recommended.
| Wire Size (AWG/MCM) | 1 AWG |
| Conductor Material | Copper |
| Conductor Type | Stranded |
| Strand Count | 19 |
| Outer Diameter (OD) (in/mm) | 0.59 in. / 14.98 mm |
| Conductor Count | 1 |
| Shield | Unshielded |
| Insulation Type | (HMWPE) High Molecular Weight Polyethylene |
| Voltage Rating | 600V |
| Ampacity Rating | 130 |
| Direct Burial Rating | Yes |
| Submersible | Yes |
| Flexibility Rating | Medium |
| Sunlight Resistance Rating | Yes |
| Temperature Rating | 75°C |
| Standards | ASTM B-8 Stranded Copper Conductors ASTM-D-1248 ICEA S-61-402 NEMA WC-5 Type I Class C Category 5 Grades E-5 and J-I HMWP |
| Miscellaneous Information | The data shown is approximate and subject to standard industry and manufacturer tolerances |
| Common Uses |
|
| Weight per Foot | 0.34 lb |
